How Protein Separation Drives Biomedical Research and Drug Discovery

Protein separation technologies play a central role in biomedical research and drug discovery. Protein separation serves as a critical pillar throughout the entire process from target identification to clinical validation. Its value has expanded beyond simple analysis into multidimensional fields including functional studies, preparative production, and data generation.

Primary separation techniques such as chromatography, electrophoresis, and precipitation each serve distinct applications. Understanding their specific roles in target validation, high-throughput screening, and biomarker research provides valuable insights for integrating protein separation technologies into practical scientific workflows.

Future development directions for protein separation technologies include innovative trends such as automation and microfluidics integration, multi-omics combination techniques, AI-driven optimization, and novel nanomaterial applications. These advancements offer critical technical perspectives for next-generation drug discovery.

New to the basics? Start with [Protein Separation Techniques Methods, Advantages, and Applications]

Introduction: Why Protein Separation Still Matters in Drug R&D

Central Role Throughout the Entire Process: Protein separation technology spans the entire drug development journey from target identification to clinical validation, serving as a vital bridge connecting basic research with clinical applications.

Multi-dimensional Technological Evolution: Its value has expanded beyond traditional "analytical“ tools to encompass diverse roles as "functional,“ "preparative,“ and "data-driven“ technologies.

Cost-critical in biologics R&D: In the era of biologics, purification steps can account for up to 50% of total production costs. Efficient separation technologies directly determine a drug's commercial success and patient access to treatment.

Discovery engine for multi-omics integration: Protein separation technology has deeply integrated into multi-omics research ecosystems—including genomics and proteomics—providing a robust platform for uncovering disease mechanisms and identifying therapeutic targets. It stands as the cornerstone of precision medicine.

Overview of Major Protein Separation Techniques

Chromatographic Methods and Their Role in Drug Development

Chromatography is the mainstream method for protein separation, offering advantages such as high resolution, scalability, and automation potential.

Ion Exchange Chromatography (IEC)

Separates proteins based on surface charge differences, particularly suitable for protein isoform analysis and post-translational modification studies.

Size Exclusion Chromatography (SEC)

Separates proteins based on molecular size, with the key advantage of preserving native protein conformation. It is particularly suitable for the separation and analysis of protein complexes and antibody aggregates.

Affinity Chromatography (AC)

AC is the most rapidly advancing technology in recent years. It achieves separation through biologically specific interactions, such as antigen-antibody, enzyme-substrate, or receptor-ligand pairs. Its high selectivity makes it a core technology for target purification and biopharmaceutical manufacturing.

The Value of Electrophoresis Methods in Early Drug Research

Electrophoresis techniques maintain significant importance in early drug research due to their simple equipment, user-friendly operation, and high resolution.

SDS-PAGE

SDS-PAGE serves as the gold standard for rapid expression validation and molecular weight assessment.

Two-Dimensional Electrophoresis (2-DE)

By combining isoelectric focusing and SDS-PAGE, 2-DE enables the separation of thousands of proteins in a single experiment, making it a vital tool for proteomics research and differential analysis.

Capillary Electrophoresis (CE)

As a high-tech evolution of traditional electrophoresis, CE enables high-throughput and automated screening, particularly suited for scenarios with limited sample quantities. Recent advancements in CE-mass spectrometry coupling have further expanded its application in drug-target interaction studies, allowing precise determination of binding constants and dissociation rates to provide critical parameters for lead compound optimization.

Precipitation Methods: Essential Tools for Crude Extraction and Early-Stage Industrial Screening

As one of the oldest separation techniques, precipitation methods retain a significant role in modern drug development.

Ammonium sulfate precipitation, favored for its low cost and simplicity, is commonly used for sample pretreatment and stability assessment.

Emerging methods like pH-Dependent Protein Precipitation (pHDPP) demonstrate unique value in protein recovery and enrichment prior to screening.

Although precipitation methods typically offer lower resolution, their high throughput and scalability make them irreplaceable in early industrial screening. Especially when combined with more refined downstream techniques, precipitation effectively reduces sample complexity and enhances the overall efficiency of the separation process.

For more selection guidance, you can refer to our other article [How to Choose the Right Protein Separation Method for Your Research]

Applicability of Primary Protein Isolation Techniques Across Drug Development Phases

Applications of Protein Separation in Drug Discovery and Development

In Target Identification and Validation

Protein separation technologies play a pivotal role in target identification and validation. Through efficient separation techniques, researchers can extract potential drug targets from complex biological samples for subsequent structural analysis and functional studies. For instance, utilizing immobilized metal ion affinity chromatography (IMAC) materials, researchers successfully compared the phosphoproteomes of lung cancer cells with differing metastatic capabilities.

Protein separation techniques have also significantly advanced structural biology research. Obtaining high-purity proteins is essential for X-ray crystallography and cryo-EM analysis. In traditional methods, protein crystallization is a time-consuming and inefficient process, particularly challenging at low protein concentrations.

In High-Throughput Screening (HTS) and Activity Assays

HTS, protein separation technology has become a critical step in identifying active compounds and validating their functions. Traditional HTS often employs relatively crude detection methods, whereas modern screening strategies tend to integrate separation techniques with functional analysis to obtain higher-quality data. For instance, the combination of CE with SEC enables target protein screening that preserves both separation and function, ensuring identified compounds interact with correctly folded, biologically active target proteins.

One of the most innovative applications is nano-weak affinity chromatography coupled with mass spectrometry (nano-WAC-MS), which rapidly screens fragment compounds weakly bound to membrane proteins. By integrating membrane proteins into nanopores to maintain their native conformation, researchers can screen using minimal protein quantities (less than 1μg per column) and analyze up to 150 fragments per run. This approach is particularly suited for fragment-based drug discovery (FBDD), addressing key challenges of membrane protein instability and low yield in traditional screening.

In Biomarker Discovery and Validation

In biomarker research, protein separation techniques are crucial for ensuring data quality. Whether used for diagnosis, prognosis, or predicting treatment responses, the discovery and validation of biomarkers require highly purified proteins to guarantee the specificity and sensitivity of detection methods. Biomarker proteins purified via chromatography and electrophoresis can be adapted to multiple detection platforms such as ELISA and mass spectrometry, significantly enhancing result reliability.

Phosphoproteomics research demonstrates the power of separation techniques in biomarker discovery. By optimizing phosphopeptide enrichment strategies, researchers identified 7,560 phosphorylation sites across 1,268 phosphoproteins, including 1,130 differentially phosphorylated sites. These abnormally expressed phosphoproteins primarily function in cellular migration processes such as invasion, migration, and apoptosis, offering potential biomarkers and therapeutic targets for cancer diagnosis and treatment.

The separation results also supported computational model development and clinical sample validation. Purified proteins provided high-quality data for mass spectrometry analysis, which was used to train machine learning models predicting novel biomarkers. These predictions were subsequently validated in clinical samples via targeted separation techniques, forming a complete closed-loop from discovery to validation.

Case Study: Protein Separation in Cancer Biomarker Discovery

Project Background

Lung adenocarcinoma is one of the most aggressive and lethal types of lung cancer, currently lacking effective early diagnostic biomarkers.

As key carriers of intercellular communication, exosomes transport bioactive molecules such as proteins and play a crucial role in regulating the tumor microenvironment and disease progression.

This study aims to identify differentially expressed proteins in serum exosomes from lung adenocarcinoma patients using proteomics technology, exploring their potential as diagnostic biomarkers for lung adenocarcinoma.

Technical Approach

Exosome Isolation and Characterization

Exosomes were isolated from serum samples of advanced-stage lung adenocarcinoma, early-stage lung adenocarcinoma, and healthy controls using ultracentrifugation. Characterization was validated through nanoparticle tracking analysis, transmission electron microscopy, and Western blot detection of exosome marker proteins.

Proteomics Analysis

Protein qualitative and quantitative analysis of the three exosome groups was performed using liquid chromatography-mass spectrometry (LC-MS), combined with bioinformatics-based functional enrichment analysis.

Differential Protein Validation

Candidate protein expression levels were validated in independent samples via Western blot, and their expression differences in lung adenocarcinoma tissue versus adjacent non-cancerous tissue were assessed using immunohistochemistry.

Key Findings

• 627 serum exosomal proteins were identified, including 58 high-abundance proteins listed in the Exocarta database, validating the isolation method.
• Two key proteins were selected: ITGAM and CLU. ITGAM showed significantly elevated expression in exosomes from advanced-stage lung adenocarcinoma patients; CLU was up-regulated in exosomal samples from advanced patients but down-regulated in tumor tissues.
• ITGAM exhibited specific enrichment in exosomes, whereas CLU showed no significant enrichment, suggesting distinct mechanisms of involvement in lung adenocarcinoma progression.
• This study first reports the expression pattern of CLU in serum exosomes from lung adenocarcinoma patients, offering new perspectives for its clinical application.

Serum Exosome Characterization Chart, showing particle size distribution and CD9, CD81 protein marker detection results (Figure from Shanshan Liu, 2022)

Innovation and Future Directions in Protein Separation

Automation and High-Throughput Integration

Automation and high-throughput processing represent the clear developmental trajectory of modern protein separation technologies. Advancements in robotics and microfluidics are driving increasing automation and miniaturization of protein separation workflows. For instance, capillary-flow LC-MS/MS (capLC, 1.5 μL/min) can replace traditional nano-flow LC (nLC) in terms of sensitivity, quantitation, and robustness, offering an efficient solution for clinical cohort and drug target studies.

The integration of microfluidic technology further advances lab-on-a-chip systems, integrating sample preparation, separation, and analysis onto miniature chips. This integration not only reduces sample and reagent consumption but also significantly increases analysis speed and throughput, making it particularly suitable for large-scale cohort studies with limited clinical samples. For instance, in ultra-high-throughput scenarios like COVID-19 plasma biomarker screening, microfluidic LC (μLC, 50 μL/min) demonstrates unique advantages.

Multi-Omics Coupling and Hyphenated Techniques

Multi-omics coupling represents another critical trend in protein separation. By tightly integrating separation techniques like chromatography and electrophoresis with analytical technologies such as mass spectrometry and NMR, researchers can obtain more comprehensive biomolecular information. Hydrophilic Interaction Liquid Chromatography (HILIC), a powerful technique for separating polar compounds, has become an effective tool for drug impurity analysis when coupled with mass spectrometry.

The most promising advancement lies in multidimensional separation techniques, where technologies based on different separation principles are used in series to significantly enhance resolution and coverage. For instance, in phosphoproteomics research, the combination of IMAC enrichment with reverse-phase liquid chromatography comprehensively reveals the complexity of signaling networks. This integrated approach is not only applicable in the discovery phase but is also increasingly applied to clinical sample analysis, supporting precision medicine.

AI and Machine Learning in Separation Optimization

Artificial intelligence and machine learning are revolutionizing the optimization processes and application strategies of protein separation technologies. These technologies can analyze vast amounts of separation data, identify patterns, and predict optimal conditions, thereby accelerating method development and optimization.

Beyond optimizing experimental conditions, machine learning can predict protein behavior and recommend optimal separation strategies. Ding et al. (2024) developed the machine learning algorithm PSPHunter, which predicts phase-separating proteins and identifies key amino acids by integrating their sequence and functional features. This tool not only advances fundamental biological research but also offers novel insights for drug development targeting phase separation processes.

Advanced Materials and Nanotechnology

Advanced materials and nanotechnology are revolutionizing protein separation techniques. Novel affinity materials, selective nanospheres, and functionalized surfaces significantly enhance separation efficiency and specificity. For instance, gold nanoparticles surface-modified with specific bioconjugates (e.g., maleimide and NHS) promote protein crystallization, enabling efficient crystal formation even at low protein concentrations.

The application of nanotechnology is particularly exciting. French researchers developed nano-weak affinity chromatography (nano-WAC) using a capillary with an inner diameter of 75 μm and a hydrophilic monolithic stationary phase to immobilize membrane proteins stabilized in nanodisks. This approach not only drastically reduces membrane protein consumption but also maintains proteins in a screening environment close to their natural state, enhancing the physiological relevance of results.

Frequently Asked Questions (FAQ)

Are Separation and Purification Interchangeable in Drug Development?

Although often used interchangeably, "separation“ and "purification“ carry distinct connotations in drug development. Separation typically refers to the process of isolating a target protein from a complex mixture, potentially involving a combination of methods aimed at achieving sufficient purity for specific analytical purposes.

Purification, however, emphasizes obtaining a high-purity, high-activity protein product, typically involving multi-step refinements to meet therapeutic applications or stringent structural research requirements. Within the drug development pipeline, separation techniques are more commonly employed during early discovery phases (e.g., target identification and validation), while purification processes are critical in later development and manufacturing stages (e.g., biologics manufacturing).

Is Affinity Chromatography Suitable for All Protein Targets?

Although affinity chromatography is a powerful and highly selective technique, it is not suitable for all protein targets. Traditional affinity chromatography requires known specific ligands, which may be unavailable for novel or incompletely characterized target proteins. Additionally, certain proteins may lose activity or alter binding properties during immobilization, particularly membrane proteins and multi-subunit complexes.

However, emerging technologies are expanding affinity chromatography's applicability. For instance, researchers have successfully applied membrane proteins to affinity chromatography screening by providing a lipid environment via nanodiscs. The use of tag proteins (e.g., His-tags) also enables effective separation of proteins that were previously difficult to purify via affinity chromatography.

Can Separation Technologies Adapt to Next-generation AI Drug Design Workflows?

Absolutely! Modern separation technologies are not only compatible with AI drug design workflows but increasingly complementary. Protein separation techniques provide high-quality training data for AI models, such as protein structures, modification states, and interaction information.

Conversely, AI algorithms optimize separation strategies, predict optimal conditions, and interpret complex separation data. For instance, machine learning models can predict phase-separated proteins and their key amino acids, guiding experimental validation. This synergy accelerates the iterative cycle from data collection to hypothesis generation, making drug discovery more efficient and precise.

How to Determine If Multi-Technique Separation is Necessary?

Selecting a multi-technique separation strategy depends on research objectives and sample complexity. Considerations include: sample complexity (simple samples may not require multi-technique separation), target protein characteristics (abundance, modifications, stability, etc.), final purity requirements (functional studies vs. structural studies), and downstream applications (mass spectrometry analysis vs. cellular function experiments).

Generally, multidimensional separation strategies (e.g., IMAC+RPLC) are often necessary for deep proteomic coverage or low-abundance target proteins. Conversely, single-dimensional separation may suffice for routine quality control and specific target protein monitoring. It is recommended to start with simpler methods, incrementally increasing complexity as needed, while balancing throughput, cost, and information depth requirements.

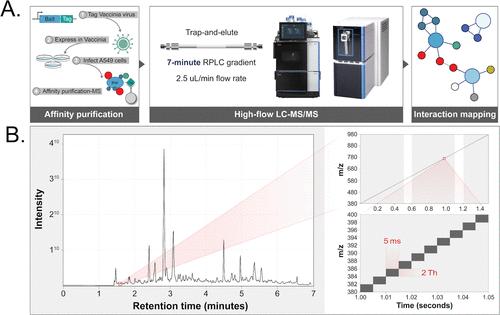

Analytical workflow for fast gradients coupled to Orbitrap–Astral MS for AP-MS experiments. (Figure from Lia R. Serrani, 2025)

References

1. Vidal, F. X., Gil, J., et al. (2025). Development of ultra-miniaturized weak affinity chromatography coupled to mass spectrometry as a high throughput fragment screening method against wild-type and purified membrane proteins embedded in biomimetic membranes. Analytica chimica acta.
2. Sun, J., Qu, J., et al. (2024). Precise prediction of phase-separation key residues by machine learning. Nature communications.
3. Woodland, B., Coorssen, J. R., et al. (2024). Protein "purity," proteoforms, and the albuminome: critical observations on proteome and systems complexity. Frontiers in cell and developmental biology.
4. Serrano, L. R., Pelin, A., et al. (2025). Affinity Purification Mass Spectrometry on the Orbitrap-Astral Mass Spectrometer Enables High-Throughput Protein-Protein Interaction Mapping. Journal of proteome research.
