    Phage ImmunoPrecipitation Sequencing (PHIP-Seq) has emerged as a transformative technology for decoding antibody-antigen interactions on a proteome-wide scale. By leveraging programmable phage display libraries and next-generation sequencing (NGS), PHIP-Seq enables high-throughput profiling of the human immunoglobulin repertoire with unprecedented breadth and resolution. This article provides a detailed resource for PHIP-Seq study—highlighting critical considerations in experimental design, sample input, and analytical workflows.

    Strategic Design Principles for PHIP-Seq

    Define a Specific Immunological Hypothesis

    A successful PHIP-Seq study starts with a clear biological question—not just a vague goal of "antigen discovery." Instead, frame your project within a specific immunological or clinical context to drive all downstream design decisions.

    Why It Matters

    • Ensures your experiment is hypothesis-driven, not just exploratory
    • Guides library design, sample selection, and statistical planning
    • Maximizes biological interpretability of antigen hits

    Common Use Cases

    • Tumor-specific antigen discovery in immunotherapy-responsive cancers
    • Early autoantibody profiling in diseases like lupus or type 1 diabetes
    • Serological comparison of post-infection (e.g., COVID-19) vs. unexposed individuals
    • Exploring host–pathogen cross-reactivity (molecular mimicry)

    Study Design Parameters Informed by the Hypothesis

    • Library scope: Full proteome vs. focused subsets
    • Controls: Number and type (healthy, disease-matched, etc.)
    • Sample size: Based on expected effect size and background noise

    Antigen Library Design: Tiling Strategy and Fidelity

    The peptide library defines the entire "search space" of your PHIP-Seq experiment. Its design determines what epitopes can be discovered—and how reliably.

    Tiling and Peptide Length

    Standard approach: Overlapping peptides (typically 49–90 aa)

    Overlap: 20–25 aa to ensure full linear epitope coverage

    Peptide length tradeoff:

    • 49-mers: Good coverage + expression fidelity
    • >90-mers: May reduce display efficiency or host viability

    Overlapping linear peptide tiling strategy for PHIP-Seq library designIllustration of overlapping peptide tiling used in PHIP-Seq libraries, ensuring comprehensive linear epitope coverage with offset peptide segments.

    Library Diversity

    Large libraries (>250,000 peptides) allow broader screening

    Require:

    • Deeper sequencing
    • Rigorous normalization to reduce background noise

    Content Sources

    • Human reference proteome (RefSeq, UniProt)
    • Pathogen proteomes
    • Tumor neoantigens (via exome + prediction pipelines)
    • Splice isoforms or post-translational variants

    Library Quality Essentials

    • Codon optimization for phage system
    • Removal of internal stop codons
    • High-fidelity DNA oligo synthesis

    Custom vs. Commercial Libraries

    Feature Custom Commercial
    Design flexibility ✅ High ❌ Fixed
    Turnaround time ⏳ Longer ✅ Faster
    Cost ❌ Higher ✅ Lower
    Hypothesis specificity ✅ Targeted ❌ General-use

    Phage Display System: T7 vs. M13

    The backbone phage system impacts the structure, size, and display context of your peptides—directly influencing what epitopes you can detect.

    Key Differences

    Attribute T7 Phage M13 Phage
    Display format Monovalent Multivalent
    Peptide length tolerance High (up to 100+ aa) Moderate (30–50 aa)
    Epitope structure Linear May support folding
    Amplification speed Fast Slower
    PHIP-Seq compatibility ✅ Standard choice Rare use

    When to Use M13

    • Displaying small constrained loops or cyclic peptides
    • Scenarios requiring high-avidity multivalent display
    • Hypotheses involving conformational epitopes

    Sample Requirements and Handling

    Sample Types and Input Amounts

    PHIP-Seq is designed to profile circulating antibody repertoires and is highly adaptable to various biofluid types. The choice of sample matrix depends on the immunological compartment of interest:

    • Serum and plasma: Most widely used; ideal for systemic antibody profiling due to high immunoglobulin concentration.
    • Cerebrospinal fluid (CSF): Suitable for studying intrathecal antibody responses in neurological diseases or CNS infections.
    • Bronchoalveolar lavage (BAL): Useful in respiratory studies (e.g., tuberculosis, COVID-19) for evaluating local mucosal antibody presence.
    • Synovial fluid: Offers a window into joint-specific immune responses, particularly in autoimmune conditions like rheumatoid arthritis.

    Recommended Input Amounts

    • Minimum working volume: ~20 µL of serum or plasma per immunoprecipitation (IP) is feasible for small libraries or pilot studies.
    • Standard input: 50–100 µL per IP reaction is recommended, especially when targeting rare antibodies or using large/diverse peptide libraries.
    • Multiple replicates: When sample volume is limited, distributing smaller aliquots across technical replicates (e.g., 3 × 15 µL) can improve signal robustness.
    • Pooled samples: For population-level screening or exploratory analyses, pooled sera from multiple donors may be used, though it reduces individual resolution.

    Note: The volume should be scaled in proportion to library complexity and expected antibody titers. Higher-complexity libraries require more input to ensure adequate coverage and antibody capture efficiency.

    Pre-Analytical Considerations

    High-quality input is essential for minimizing technical variability and enhancing reproducibility. Several factors can significantly influence the quality of PHIP-Seq data:

    Sample Integrity

    Hemolysis: Avoid visibly hemolyzed samples. Hemoglobin and other intracellular proteins can bind nonspecifically to phage particles or interfere with downstream quantification.

    Freeze–thaw cycles: Limit to two or fewer. Repeated cycles degrade immunoglobulins and compromise antigen-binding activity.

    Storage format: Store samples at −80°C in single-use aliquots (e.g., 20–100 µL per vial) to minimize degradation over time.

    Anticoagulant Selection

    Preferred anticoagulants: EDTA and citrate plasma are compatible and generally do not affect antibody-phage interactions.

    Avoid heparin: Heparin can interfere with immunoprecipitation and may introduce unwanted background due to its polyanionic nature.

    Sample Handling Workflow

    • Centrifuge plasma or serum before freezing to remove cellular debris.
    • Use low-protein-binding tubes to prevent IgG loss during storage or transfer.
    • Thaw samples on ice and mix gently before use—vigorous vortexing can shear antibodies.

    Sample Metadata and Best Practices

    For meaningful downstream analysis and reproducibility, all samples should be accompanied by clear and standardized metadata. This includes:

    Sample ID and matrix (serum, plasma, CSF, etc.)

    Collection date and method (e.g., venipuncture with EDTA)

    Storage conditions and history (e.g., number of freeze-thaw events)

    Clinical or cohort-relevant annotations, such as:

    • Age, sex, disease status
    • Treatment history
    • Vaccination or infection timeline
    • Timepoint within a longitudinal study

    Clear documentation supports subgroup analyses and interpretation of antibody repertoires across conditions.

    Additional Tips

    • Use consistent handling protocols across all samples within a study to reduce batch effects.
    • Include internal controls (e.g., pooled reference serum) in each PHIP-Seq batch to monitor assay performance over time.
    • When possible, randomize sample order during processing to mitigate systematic bias.

    PHIP-Seq Experimental Workflow

    Our PHIP-Seq platform is designed to deliver high-resolution antibody–peptide interaction profiles across diverse biological contexts. The workflow consists of five integrated stages, each optimized to ensure experimental consistency, signal sensitivity, and interpretability. Whether you're conducting discovery-phase screening or focused hypothesis testing, we provide comprehensive support across the following steps:

    Phage Library Preparation

    The phage-displayed peptide library serves as the foundation of any PHIP-Seq experiment, defining the antigenic landscape interrogated by antibodies in biological samples. We offer both off-the-shelf libraries (e.g., full human proteome, viral panels) and fully customized libraries tailored to your specific research goals.

    Key steps include:

    • Oligonucleotide design and synthesis: Our libraries are synthesized from high-fidelity DNA oligos, representing overlapping linear peptides (typically 49–90 amino acids). Design algorithms ensure comprehensive tiling across target proteins while minimizing off-target sequences and internal stop codons.
    • Cloning into phage vectors: Peptide-coding sequences are inserted into a T7 phage display system. This platform supports monovalent display of relatively long peptides (>70 aa), making it suitable for unbiased screening of linear epitopes.
    • Transformation and amplification: Recombinant phage particles are amplified in E. coli, followed by large-scale propagation under controlled conditions.
    • Quality control (QC): Each library batch undergoes:
      • Titering to assess phage concentration and viability
      • Sanger sequencing of random clones to confirm insert fidelity
      • Next-generation sequencing (NGS) of library DNA to evaluate representation and bias

    We also offer peptide representation analysis reports for transparency and downstream normalization.

    Immunoprecipitation (IP)

    The immunoprecipitation step enables selective enrichment of phage clones bound by antibodies present in biological specimens (typically serum or plasma).

    Workflow:

    • Sample incubation: Phage libraries are incubated with user-provided samples under optimized binding conditions. The reaction can be scaled based on available sample volume and expected antibody titers.
    • Immune complex capture: Antibody-bound phage particles are pulled down using magnetic beads conjugated with Protein A/G, which ensures efficient recovery of IgG-bound clones.
    • Stringent washing: Multi-step washing removes unbound or nonspecifically bound phage, preserving only high-affinity interactions.
    • Phage elution: The enriched phage pool is eluted and prepared for downstream DNA extraction.

    Recommended controls include:

    • Input library controls (pre-IP baseline for each batch)
    • Positive reference samples, where available
    • Technical replicates, to ensure reproducibility and enable statistical modeling

    Our team provides sample handling guidance to ensure maximum antibody recovery, especially for low-volume or biobank-derived samples.

    Phage DNA Recovery and Sequencing

    Following enrichment, the DNA inserts from captured phage are sequenced to identify the peptides targeted by sample antibodies.

    Steps include:

    • Phage lysis: Enriched phage are lysed enzymatically or thermally to release DNA.
    • PCR amplification:Insert-containing regions are amplified with sample-specific barcodes, enabling high-throughput multiplexing.
    • NGS library preparation: Amplified products are purified and prepared for Illumina-based sequencing (e.g., NovaSeq, NextSeq), with routine library QC via fragment analysis.
    • Sequencing depth: We typically target 2–5 million reads per sample to achieve sufficient coverage, especially for large libraries or low-abundance epitopes.

    We accommodate different sequencing scales—from pilot runs to multi-cohort studies—ensuring batch consistency and insert fidelity at every stage.

    Bioinformatics Pipeline

    PHIP-Seq data requires specialized computational tools to translate read counts into meaningful antibody–peptide interaction maps. Our analysis pipeline is modular, transparent, and tailored to each project's complexity.

    Core pipeline includes:

    • Demultiplexing and read QC: Fastq reads are assigned to individual samples, followed by quality filtering and trimming.
    • Read alignment: Reads are mapped back to the known peptide reference using optimized alignment parameters to ensure specificity and sensitivity.
    • Quantification and normalization: Signal intensity is normalized across samples using methods such as reads per million (RPM), Z-score transformation, or quantile normalization.
    • Enrichment scoring and hit calling: Peptides are scored based on fold-change over input controls or negative samples. Statistical thresholds (e.g., Z > 3) are applied to define enriched hits.
    • Multiple testing correction: P-values are adjusted to account for the large search space, using false discovery rate (FDR) methods like Benjamini-Hochberg.

    Optional analyses:

    • Differential binding analysis (e.g., case vs. control)
    • Motif discovery using MEME, GLAM2, or custom tools
    • Batch correction or background subtraction
    • Hierarchical clustering to reveal shared epitope profiles

    All results can be delivered in user-friendly formats (e.g., Excel summaries, heatmaps, volcano plots) and accompanied by technical documentation.

    Downstream Data Interpretation

    We support users in translating peptide-level hits into biological insights through a variety of interpretation tools and services.

    Capabilities include:

    • Clustering and subgrouping

    Unsupervised clustering to identify sample groups sharing similar antibody repertoires.

    • Functional enrichment

    Mapping of enriched peptides back to source proteins, followed by GO, KEGG, or pathway enrichment analysis.

    • Motif-based inference

    Identification of common binding motifs across enriched sequences—informative for cross-reactivity, autoimmunity, or pathogen mimicry hypotheses.

    • Epitope mapping

    Overlaying peptide-level data onto known antigen structures or immune databases (e.g., UniProt, IEDB) for contextualization.

    Where applicable, we assist clients in selecting top candidate peptides for orthogonal validation (e.g., custom ELISA, Luminex bead arrays, or microarrays), while emphasizing that PHIP-Seq data are best interpreted as discovery-phase results rather than confirmatory evidence.

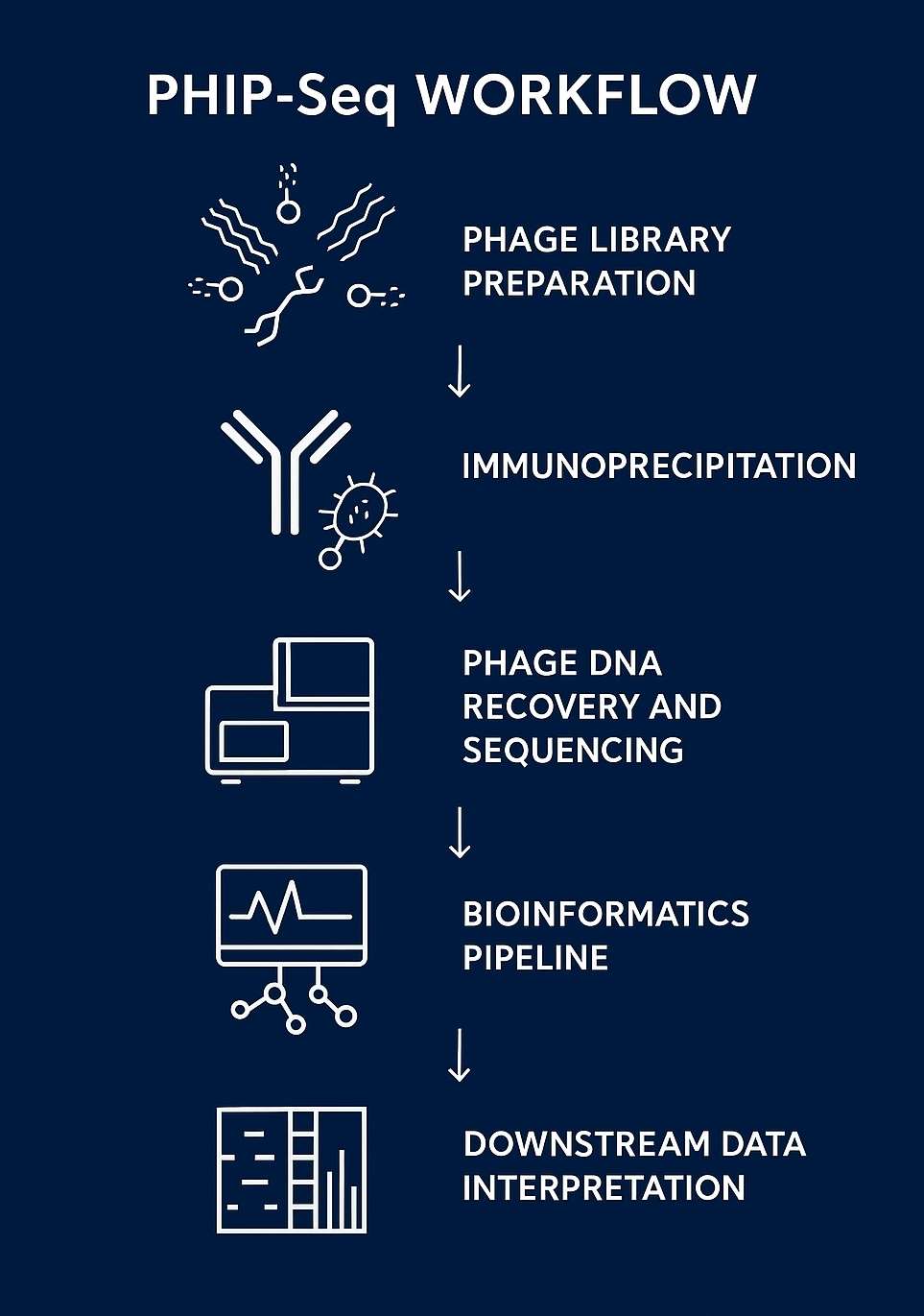

    PHIP-Seq five-step experimental workflow with icons and brief descriptions

    Advantages and Limitations of PHIP-Seq

    Phage ImmunoPrecipitation Sequencing offers a uniquely scalable solution for antibody profiling, with applications spanning immuno-oncology, infectious disease, autoimmunity, and vaccine development. However, its suitability depends on the specific biological question, required resolution, and tolerance for discovery-phase variability.

    Core Advantages of PHIP-Seq

    PHIP-Seq is increasingly favored in immunomics research due to its combination of throughput, resolution, and sample efficiency. Below are its most impactful benefits:

    Advantage Description
    Proteome-scale coverage Screen up to 1 million unique peptides in a single reaction—unachievable with traditional array platforms.
    Low input requirements Requires as little as 10–50 µL of serum or plasma, ideal for precious biobank or pediatric samples.
    Cost-effective multiplexing Dozens to hundreds of samples can be barcoded and sequenced in a single NGS run.
    Hypothesis-free discovery No need to predefine antigen candidates; enables identification of unexpected targets.
    Customizable libraries Fully adaptable to human, viral, bacterial, or tumor-derived peptides for niche applications.
    Flexible sample compatibility Applicable to serum, plasma, CSF, synovial fluid, and BAL, among others.
    Sequencing-based digital readout Avoids cross-reactivity or optical interference typical of microarrays.

    Technical and Biological Limitations

    Despite its powerful capabilities, PHIP-Seq is not without constraints. Recognizing these limitations is crucial to designing a biologically sound and interpretable experiment.

    Limitation Impact & Consideration
    Restricted to linear epitopes PHIP-Seq libraries display linear peptides; conformational and glycosylated epitopes may be missed.
    Limited structural context Peptides lack full protein folding or membrane localization, potentially affecting antibody accessibility.
    Display bias Some sequences are poorly expressed in phage, leading to underrepresentation despite presence in the design.
    Non-specific binding Certain sequences ("sticky peptides") may appear enriched across multiple samples due to inherent hydrophobicity or charge.
    Sequencing noise PCR amplification and uneven representation introduce variability that must be normalized computationally.
    Data complexity Requires advanced bioinformatics pipelines, statistical controls, and visualization tools for accurate interpretation.

    Best Practice Reminder:

    • Incorporate input (no-IP) controls in every batch
    • Avoid overinterpreting single enriched peptides without biological convergence
    • Use peptide-level QC filters (e.g., remove low-complexity sequences, check for repeat motifs)

    In practice, the most robust PHIP-Seq analyses are performed as multi-sample comparative studies, using statistical enrichment across groups—not single-sample diagnostics.

    When PHIP-Seq is Not Ideal

    There are cases where PHIP-Seq is not the most suitable technology:

    • If the immune response is primarily conformational (e.g., anti-native viral capsid antibodies)
    • If glycosylation is critical to recognition (e.g., certain anti-tumor or anti-HIV responses)
    • If only a small, fixed set of antigens is relevant—in such cases, targeted ELISA or bead-based multiplex platforms are more economical

    In these situations, orthogonal validation methods or alternative discovery strategies (e.g., protein microarrays, surface plasmon resonance, or single-cell BCR sequencing) may be more appropriate.

    Summary View: PHIP-Seq Suitability Matrix

    Project Type PHIP-Seq Suitability
    Novel autoantibody discovery ✓ Excellent
    Immune response profiling to viral infection ✓ Strong fit
    Monitoring vaccine-induced epitope responses ✓ Strong fit
    Diagnostics of folded/glycosylated antigens ✕ Not ideal
    Confirmatory biomarker quantification ✕ Use ELISA or Luminex

    Still deciding which profiling platform best suits your application? Explore detailed use-case comparisons in our guide: PHIP-Seq vs Traditional Antibody Profiling.

    PHIP-Seq Execution Excellence at Creative Proteomics

    At Creative Proteomics, we deliver PHIP-Seq services with precision, consistency, and scientific rigor. Over the years, we have developed and refined a fully standardized workflow that ensures reliable antibody–peptide interaction profiling across projects of various scales and biological contexts.

    This section outlines the operational and quality principles we follow across every PHIP-Seq engagement—from library design to data analysis—so clients can trust both the data and the biological interpretations we deliver.

    Design-Driven Project Initiation

    Every PHIP-Seq project begins with a collaborative planning phase, during which we align the experimental configuration to the client's biological question. Whether the goal is broad-scale autoantibody discovery or focused vaccine epitope screening, we assist in defining:

    • Optimal library type (whole-proteome vs. targeted panel)
    • Required control groups and technical replicates
    • Expected input volumes and sequencing depth
    • Pilot testing options for feasibility before scale-up

    Project design is hypothesis-informed, not template-based. We tailor scope, controls, and resource allocation to maximize signal clarity and data interpretability.

    Immunoprecipitation Under Controlled Conditions

    Our immunoprecipitation (IP) protocols are designed to ensure high specificity and reproducibility across samples and batches.

    Key operational features include:

    • Standardized bead-to-sample ratios for consistent IgG recovery
    • Pre-blocked Protein A/G magnetic beads to minimize nonspecific binding
    • Parallel inclusion of input (no-IP) libraries for normalization
    • Optional use of pooled reference samples to support batch effect modeling

    We routinely include technical replicates to assess assay precision and ensure statistical power for differential enrichment analysis.

    Library Preparation and Sequencing QC

    To minimize technical variability during sequencing, we implement rigorous control checkpoints at the library preparation stage:

    • Sample-specific dual-index barcoding for accurate demultiplexing
    • Controlled-cycle PCR to reduce amplification bias
    • Fragment size confirmation using electrophoresis or Bioanalyzer
    • Read quantification and pooling based on equimolar ratios

    Our Illumina-compatible protocols are validated for both small- and large-scale projects, and all sequencing runs are internally benchmarked for base quality, mapping rate, and read distribution across peptide inserts.

    Reproducible Data Processing and Statistical Analysis

    PHIP-Seq data require specialized statistical treatment to yield meaningful antigen enrichment profiles. Our bioinformatics team applies:

    • Read alignment to custom peptide libraries with mismatch tolerance
    • Cross-sample normalization (e.g., Z-score, quantile) to adjust for sequencing depth
    • Input-subtracted enrichment modeling to highlight antibody-specific signal
    • False discovery rate (FDR) control to manage peptide-level multiple testing

    We provide structured outputs, including:

    • Enrichment tables
    • Hit-calling summary (e.g., top-ranked peptides per sample/group)
    • Visualizations such as heatmaps, volcano plots, and clustering dendrograms

    Standardization and Traceability Across Batches

    Our workflows are tightly controlled to ensure cross-project consistency and traceability:

    Component Standardized Approach
    Bead and buffer reagents Consistent lots used within and across batches
    Phage library source Single validated lot per study unless custom design specified
    QC thresholds Defined pass/fail metrics at every major step
    Metadata tracking Full record of sample origin, handling, and batch ID

    References

    1. Tiu, Charles Kevin, et al. "Phage ImmunoPrecipitation Sequencing (PhIP-Seq): the promise of high throughput serology." Pathogens 11.5 (2022): 568.
    2. Mohan, Divya, et al. "PhIP-Seq characterization of serum antibodies using oligonucleotide-encoded peptidomes." Nature protocols 13.9 (2018): 1958-1978.
    3. Chen, Athena, et al. "Detecting antibody reactivities in Phage ImmunoPrecipitation Sequencing data." BMC genomics 23.1 (2022): 654.
    4. Sundell, Gustav N., and Sheng-Ce Tao. "Phage immunoprecipitation and sequencing—a versatile technique for mapping the antibody reactome." Molecular & Cellular Proteomics (2024): 100831.

    For research use only, not intended for any clinical use.

    Online Inquiry
