How to Analyze PhIP-Seq Data: Pipelines, Noise Control, and Hit Prioritization

Introduction: Why PhIP-Seq Data Analysis Determines Study Value

PhIP-Seq doesn't end with sequencing. The value of a study is ultimately determined by how reads are normalized, how background is modeled, and how enriched peptides are prioritized into a small, defensible shortlist. In other words, analysis choices control whether your findings are reproducible, biologically coherent, and publication-ready.

PhIP-Seq is now widely used for scalable antibody profiling, yet meaningful interpretation depends on control-aware analysis rather than raw count comparisons alone, as emphasized by recent methods overviews and reviews in leading journals (for example, see the 2024 review discussing background anchoring and normalization). The practical goal of this guide is to help you:

• Understand a publishable analysis workflow end to end
• Learn where false positives arise—and how to control them
• Build a rational framework for peptide calling, antigen-level interpretation, and hit prioritization

Scope and flow for the rest of this guide: read processing, normalization, noise control, statistical calling (fold-change vs count models vs Bayesian), peptide-to-antigen interpretation, and pragmatic hit prioritization.

Key takeaways

• Controls and replicates anchor interpretation; raw counts alone are not evidence of reactivity.
• Normalize before comparing samples; prefer composition-aware scaling when reactivity is skewed.
• Use background-aware statistical calling; match model complexity to study size and sparsity.
• Aggregate overlapping peptides to antigen-level summaries before drawing biological conclusions.
• Prioritize by statistical confidence, replicate support, antigen coherence, and validation potential.

What Makes PhIP-Seq Data Different from Standard NGS Count Data

In PhIP-Seq, sequencing reads map to displayed peptides rather than transcripts or genomic loci. Signal reflects antibody-dependent enrichment relative to an input library, so the observed counts are shaped by library representation, sequencing depth, background pull-down, and sample-specific composition. That's why direct read counts are not enough. The implications are straightforward: controls matter for defining background, replicates matter for assessing stability, background-aware models matter for specificity, and antigen interpretation should synthesize evidence across overlapping peptides instead of relying on a single spike.

From Raw Reads to a Usable Count Matrix

Read preprocessing and demultiplexing

Begin by trimming residual adapters as needed, accurately demultiplexing barcodes across samples and replicates, and removing low-quality reads. Barcode bleed-through and index hopping can induce false enrichment patterns if not caught early, so invest time in this step; technical errors here propagate throughout the pipeline.

Mapping reads to the peptide library

Assign reads to peptide identifiers using exact matching or aligners suited to short reads. The output is a peptide-by-sample count matrix. Review mapping rates, confirm expected coverage across the library, and check for unexpected contamination or extreme dropout.

Count matrix sanity checks

Before normalization, examine per-sample total reads, fraction mapped, and the distribution of counts across peptides. Flag failed samples and extreme outliers. Early QC prevents wasted effort downstream and sets clear expectations for normalization and calling.

Core QC Before Any Enrichment Analysis

Negative controls and mock IP samples

Bead-only or mock immunoprecipitation controls are essential, not optional. They empirically define the background distribution used later for enrichment calling. Without them, naïve thresholds overcall noise, especially for low-count peptides. Control-aware modeling treats "unexpectedly high relative to mock" as the key signal.

Replicate structure and concordance

Use technical and/or biological replicates to assess reproducibility. Check sample-to-sample correlations or replicate pair plots before interpreting candidates. Replicate concordance should be a gate: if replicates don't agree, pause to review QC rather than pushing forward to prioritization.

Library representation and coverage

PhIP-Seq libraries aim for even representation across tiled peptides, but skew and dropout happen. Evaluate evenness after sequencing; under-sequenced or skewed libraries inflate false negatives and distort enrichment estimates. If a plate or lane shows systematic issues, address it now.

Normalization Strategies for PhIP-Seq Count Data

Why normalization is necessary

Raw counts reflect sequencing depth and compositional differences between samples. Normalization is therefore required before comparing enrichment across samples or versus controls. In PhIP-Seq data analysis, failing to normalize invites depth-driven artifacts and composition bias.

Depth-based normalization

Counts per million (CPM) or reads per million (RPM) remove simple depth effects and provide a reasonable first-pass scale for exploratory plots. However, when global reactivity differs across samples or a subset of peptides dominates the signal, simple scaling can leave residual bias.

Composition-aware normalization

Composition-aware approaches (for example, TMM or upper-quartile scaling as implemented in RNA-seq frameworks) better stabilize between-sample comparisons when enrichment is concentrated in subsets of peptides. They are especially useful for uneven or strongly reactive samples.

Choosing a normalization approach in practice

Start with depth scaling to visualize distributions and QC. For formal calling and comparisons—especially with skewed composition—prefer a composition-aware method. Consistency matters: keep the chosen normalization aligned with your calling framework so effect sizes and error control remain interpretable.

Normalization quick reference

Controlling Noise and Background Signal

Common sources of analytical noise

Noise arises from non-specific pull-down, peptide-dependent background capture, uneven library abundance, batch effects, cross-sample contamination, and technical variability across runs. These factors can inflate apparent enrichment if not modeled.

Separating true enrichment from background

Background-aware models use control distributions to anchor interpretation. The goal is not "high counts," but "unexpectedly high counts relative to background." This framing makes fold-change alone insufficient unless paired with appropriate controls.

False positives in sparse and noisy data

Low-count peptides and unstable background estimates are a recurrent source of spurious hits. Shrinkage, hierarchical borrowing of information across peptides, or Bayesian modeling often improves robustness in small or noisy studies by tempering variance and stabilizing estimates.

Statistical Calling of Enriched Peptides

Fold change and simple enrichment metrics

Fold change offers intuitive triage but tends to overcall when counts are sparse or overdispersed. Z-scores or percentile ranks relative to mock controls can help, yet they still struggle when replicate structure is limited or background varies across plates.

Gamma-Poisson-style modeling

Count-based probabilistic models (negative binomial/Gamma–Poisson) handle overdispersion in peptide counts and enable formal significance testing with mature implementations. They are efficient for larger cohorts with decent replicate and control structure and integrate naturally with composition-aware normalization.

BEER and Bayesian enrichment calling

BEER-style Bayesian frameworks estimate peptide reactivity with posterior probabilities while incorporating mock controls and empirical borrowing across peptides. They shine in sparse, low-replicate contexts and when probabilistic hit calling is needed to balance sensitivity and specificity without brittle thresholds.

Practical guidance on choosing a calling strategy

Match model complexity to study design. In small, sparse datasets or when replicates are limited, a Bayesian approach is often worth the compute. In larger, well-replicated cohorts, negative-binomial models are fast, interpretable baselines. Keep normalization, controls, and calling coherent end to end.

Recommended Pipelines and the Software Ecosystem for PhIP-Seq Data Analysis

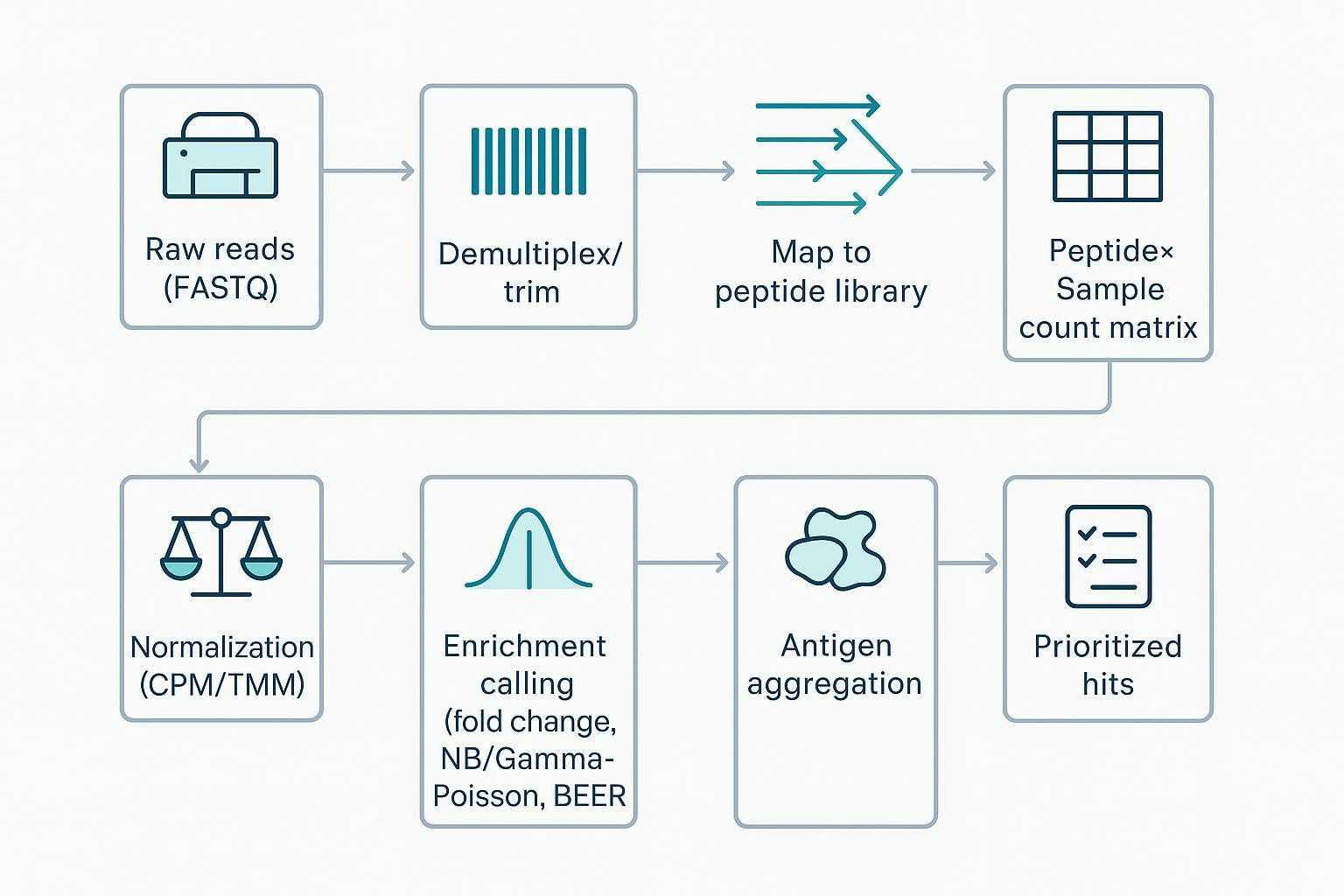

A practical pipeline typically flows through demultiplexing and read assignment; count matrix generation; sample and control QC; normalization; statistical calling; antigen summarization; and prioritization with transparent reporting. Scriptable, version-controlled workflows support reproducibility and review. If you need a service partner for study design-to-analysis or standardized reporting, the dedicated PhIP-Seq Antibody Analysis Service can be a neutral reference point for scoping and deliverable expectations.

Dedicated software ecosystems have emerged to organize and analyze PhIP-Seq data. For example, phippery describes a reproducible suite that covers raw-to-counts processing, curated data objects, and visualization. Specialized tooling improves metadata handling, promotes consistent QC checkpoints, and standardizes output tables—key ingredients for publication-ready results.

From Peptide-Level Hits to Antigen-Level Interpretation

Why peptide hits are not the final biological answer

Individual enriched peptides represent intermediate signals. Because libraries tile proteins with overlaps, robust biological interpretation requires evaluating coherence across neighboring peptides mapping to the same antigen or region, not focusing on an isolated spike.

Aggregating overlapping peptide evidence

Group overlapping or adjacent enriched peptides, inspect whether the signal forms a consistent regional pattern, and summarize antigen-level evidence with aggregated scores or posterior probabilities. This aggregation separates real epitope-level signal from noise.

Connecting peptide enrichment to biological hypotheses

Once antigen-level patterns are clear, tie them back to the study question: antigen discovery, epitope-focused interpretation, pathogen exposure profiling, autoantibody candidate generation, or biomarker development. For peptide-centric follow-up such as targeted verification by LC–MS/MS or deeper characterization, Peptide Sequencing can be a practical downstream path. When antibody-level context or immune profiling is the next step, consider Antibody Sequencing to relate reactivity patterns to clonotypes and isotypes.

Hit Prioritization: Which Findings Should Move Forward?

Prioritizing by statistical confidence

Start with reproducible statistical evidence: posterior probabilities or adjusted significance, separation from controls, replicate agreement, and stability across batches or runs. Re-check sensitivity of calls under alternative reasonable normalizations to guard against pipeline-specific artifacts.

Prioritizing by biological coherence

Favour multiple enriched peptides mapping to the same antigen and consistent regional enrichment that matches the study design or disease mechanism. Convergence with prior literature or orthogonal assays increases confidence that a hit is more than a stochastic outlier.

Prioritizing by downstream actionability

Shortlists should align with the next experimental step—epitope validation, biomarker development, immune-history reconstruction, or mechanistic studies. Choosing a small, defensible set accelerates validation instead of scattering resources across a long, low-yield list.

Prioritization rubric (publication-oriented)

Common Analysis Mistakes That Weaken PhIP-Seq Interpretation

Treating raw counts as conclusions ignores depth and composition effects. Ignoring controls or underusing replicates inflates false positives and weakens confidence. Overinterpreting single-peptide signals invites spurious narratives, while mixing incompatible QC, normalization, and calling choices fractures interpretability. Finally, discovery outputs are not validation-ready evidence; plan orthogonal confirmation.

What a Publication-Ready PhIP-Seq Analysis Output Should Include

Minimum reporting elements

Report sample metadata and replicate structure, library description, read processing summary, mapping and count matrix statistics, control strategy, normalization and calling approaches, and explicit criteria for hit prioritization. These elements enable reviewers to evaluate rigor and reproducibility.

Recommended figures and tables

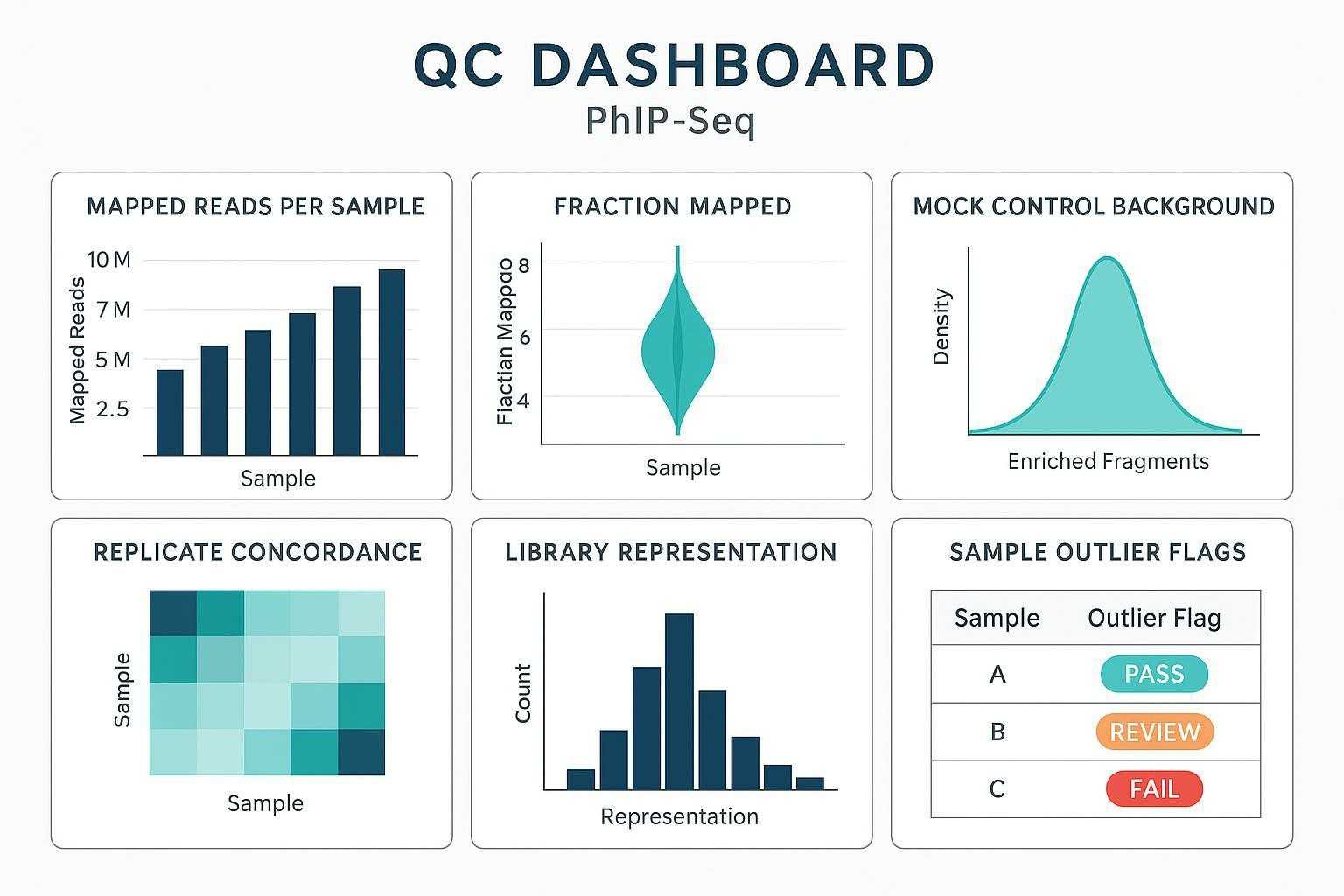

Provide a QC dashboard; sample-to-sample correlation or replicate concordance plots; background versus enriched signal distributions; antigen-level summary plots; and a prioritized hit table with annotations indicating statistical confidence and biological context.

How to present analysis choices transparently

Define the pipeline clearly, state how controls were used, report how hits were called and filtered, and make prioritization logic explicit. Keep artifacts scriptable and version-controlled so the full path from raw reads to shortlisted hits is auditable.

FAQ for PhIP-Seq Data Analysis

Can raw read counts be used directly to identify enriched peptides?

Short answer: no. Normalization and background-aware interpretation are required to separate depth/composition effects from true enrichment. Use controls and an appropriate calling model before naming hits.

Why are negative controls so important in PhIP-Seq analysis?

They define the empirical background distribution. Comparing each sample to on-plate mocks reduces false positives by focusing on unexpectedly high counts relative to that baseline.

What is the difference between peptide-level hits and antigen-level interpretation?

Peptide hits are intermediate; antigen-level interpretation aggregates overlapping peptides to assess coherent regional enrichment. Multiple peptides from the same antigen usually provide stronger evidence than a single spike.

When should Bayesian or Gamma–Poisson-style models be considered?

Bayesian (e.g., BEER) approaches are useful in small, sparse, or low-replicate datasets where probabilistic calling stabilizes decisions. Negative-binomial/Gamma–Poisson models are efficient and effective for larger cohorts with stronger replicate and control structure.

How many candidate hits should move to downstream validation?

Prioritize a short, defensible list based on statistical confidence, replicate support, antigen coherence, and actionability. A focused shortlist accelerates validation and reduces rework.

Does PhIP-Seq data analysis end with a ranked hit list?

No. Prioritization is an intermediate step; validation and biological interpretation follow, often including orthogonal assays and literature context.

References

1. Huang Z et al. PhIP-Seq: methods, applications and challenges (2024). https://pmc.ncbi.nlm.nih.gov/articles/PMC11408297/
2. Tiu CK et al. Phage ImmunoPrecipitation Sequencing: The Promise of High Throughput Serology (2022). https://pmc.ncbi.nlm.nih.gov/articles/PMC9143919/
3. Chen A et al. Detecting antibody reactivities in PhIP-Seq—comparisons of edgeR and Bayesian models (2022). https://pmc.ncbi.nlm.nih.gov/articles/PMC9476399/
4. Chen A et al. Detecting and quantifying antibody reactivity in PhIP-Seq data with BEER (2022). https://pmc.ncbi.nlm.nih.gov/articles/PMC9525010/
5. Galloway JG et al. phippery: a software suite for PhIP-Seq data analysis (2023). https://pmc.ncbi.nlm.nih.gov/articles/PMC10547927/
6. Rackaityte E et al. Validation of a murine proteome-wide PhIP-Seq library (2023, JCI Insight). https://insight.jci.org/articles/view/174976
