Peptide Sequencing Workflow Design: Optimizing Sample Prep, LC-MS/MS, and Bioinformatics

In modern multi-omics research, proteomics plays a pivotal role in decoding the mechanisms of life processes. Peptide sequencing (commonly via LC-MS/MS) serves as a core technology for protein identification, quantification, post-translational modification (PTM) analysis, and interaction network mapping.

However, for large-scale studies—such as clinical cohort analysis or drug mechanism research—treating peptide sequencing as a simple "submit-and-wait" service often leads to inefficiency, poor reproducibility, and limited interpretability.

The solution lies in designing an efficient peptide sequencing workflow with seamless integration across three core stages: front-end sample preprocessing, MS data acquisition, and bioinformatics analysis. Proper interface design ensures reliability, scalability, and high-value outcomes.

Learn the fundamentals first: [Peptide Sequencing: Principles, Techniques, and Research Applications]

Why Peptide Sequencing Requires Integrated Workflows for Large Projects

The Prerequisite Dependency of Data Quality

The reliability of peptide identification and quantification is highly dependent on the rigor of front-end sample processing (such as protein extraction efficiency, enzymatic digestion specificity and completeness, and PTM protection/enrichment effectiveness) as well as the stability and depth of mid-end mass spectrometry data acquisition (such as chromatographic separation reproducibility, mass spectrometry resolution and sensitivity, and fragmentation efficiency). Even minor deviations in any of these steps can be amplified in subsequent analyses, leading to false positives/negatives or quantitative distortions.

Fragmentation and Loss of Information Flow

Under the "single-point service" model, sample preprocessing, mass spectrometry runs, and bioinformatics analysis are often performed by different teams or service providers at different stages. Critical metadata (e.g., sample batches, processing details, instrument parameters, QC results) are prone to loss or incomplete recording during transmission, leading to difficulties in traceability, ambiguous result interpretation, and even the inability to perform effective batch corrections.

The Lag and Mismatch of Analysis Strategies

Bioinformatics analysis strategies (database selection, search parameters, quantification algorithms, FDR control, PTM analysis workflow) must be closely integrated with experimental design (sample type, target proteome depth, PTM types of interest) and mass spectrometry capabilities (data-dependent acquisition DDA vs. data-independent acquisition DIA/DIA) from the early stages of project design. Retrospective fixes often prove to be inefficient.

Scalability and Automation Bottlenecks

Large-scale projects involve massive sample volumes, and manual, non-standardized sample processing and data handover workflows become bottlenecks for throughput and timeliness, while also increasing the risk of human error.

Limited Interpretation 0f Results

Without a thorough understanding of upstream processes, bioinformatics teams may fail to correctly interpret low-confidence matches, complex modification spectra, or abnormal quantification values, thereby missing important biological clues or introducing erroneous conclusions.

For guidance on choosing the right technology for your goals, see [How to Choose the Right Peptide Sequencing Technology]

Front-End Sample Preprocessing: Foundation for Quality Data

Sample preprocessing is the starting point of the proteomics workflow, and its quality directly determines the reliability of data in all subsequent stages. In large-scale research projects, the diversity of sample sources (e.g., tissue, liquid biopsy, microbiome) and the characteristics of target peptides (molecular weight range, modification status, abundance level) require preprocessing strategies to combine standardized frameworks with customized flexibility. As cutting-edge research shifts from single cell lines to clinical cohort samples, the rigor of this step becomes a critical control point for distinguishing between true and false biomarkers.

Sample Collection And Standardized Processing

Recommended preprocessing strategies for different sample types

Standardization and automation

• SOP-driven: Establish strict, detailed, and validated standard operating procedures (SOPs) for different sample types (cells, tissues, body fluids, exosomes, etc.), covering lysis buffers (considering detergent compatibility), protein quantification methods, reducing alkylation conditions, and protease selection (Trypsin is most commonly used; the Lys-C/Trypsin combination can enhance specificity) and proteolytic conditions (time, temperature, enzyme: substrate ratio), as well as peptide desalting/purification methods.
• Automated platforms: In high-throughput projects, automated liquid handling workstations are used for protein quantification, sample transfer, reduction/alkylation, proteolysis, and other steps, significantly improving reproducibility, throughput, and reducing human error.
• PTM specificity processing: If specific PTMs (e.g., phosphorylation, glycosylation, acetylation) are of interest, enrichment steps (e.g., TiO₂, IMAC, HILIC, antibody-based) or protective strategies (e.g., low-temperature, neutral pH conditions to prevent deacetylation) should be integrated early in sample processing. Interfaces must clearly document enrichment methods, efficiency assessments, and potential sources of bias.

Quality Control Nodes Embedded

Protein-level QC

BCA/Lowry quantification, SDS-PAGE/chip-based electrophoresis (e.g., Bioanalyzer) to assess integrity/degradation.

Peptide-level QC

NanoDrop/UV measurement of peptide concentration, HPLC-UV/MS detection of peptide distribution, enzymatic digestion efficiency (e.g., monitoring characteristic peptides at cleavage sites, missed cleavage rate), and assessment of salt/detergent residues (affecting LC-MS performance).

Key interfaces

Establish clear peptide QC pass/fail criteria (e.g., minimum peptide concentration, chromatographic peak shape requirements, characteristic ion intensity), and transmit QC data (spectra, reports) along with the sample to the mass spectrometry platform. Failed samples should trigger an investigation or reprocessing workflow.

Metadata management and tracking

To ensure traceability and operational transparency of samples throughout the proteomics workflow, the following core measures must be implemented: Assign a unique identifier (ID) to each sample or sample batch; Use an electronic laboratory notebook (ELN) to mandatorily record all operational details (including personnel, time, reagents, instruments, deviations, and QC results), and use standardized terminology to describe metadata; simultaneously establish a clear sample tracking system to real-time record the status of sample flow (e.g., pending processing, in processing, QC status, sent to mass spectrometry, etc.)

Mass Spectrometry Data Acquisition: Capturing Peptide Sequence Information

As the physical interface of the workflow, the data acquisition mode of the mass spectrometry platform must be optimized in both directions to meet the requirements of the front and back ends.

Methodology Selection and Optimization

Separation interface (LC)

• Chromatography Column and Gradient: Select a C18 column with an appropriate particle size (1.7–3 µm) and length (15–50 cm). Optimize the gradient duration based on sample complexity (short gradients for high throughput, long gradients for high depth). The interface must standardize the gradient program (solvent composition, flow rate, temperature).
• Nano-flow vs. micro-flow: Nano-flow LC typically offers higher sensitivity and is more suitable for samples with low initial quantities (e.g., micro-puncture, single-cell derived materials), but it has higher requirements for system stability and operation.

Mass spectrometry acquisition strategies

• DDA (Data-Dependent Acquisition): Dynamically selects precursor ions for fragmentation based on parent ion intensity. Interface key points: Optimize TopN (number of precursor ions selected for fragmentation in a single cycle), dynamic exclusion time, isolation window, AGC Targets, Max Injection Time, and fragmentation energy (CE/NCE). Balance depth and quantitative reproducibility.
• DIA (Data-Independent Acquisition): Divides the entire mass-to-charge ratio range into multiple windows and sequentially fragments all ions within each window. Key interface parameters: Design window size and overlap (affecting specificity and complexity), fragmentation energy, and cycle time. Provides higher reproducibility and quantitative accuracy, particularly suitable for large-scale studies, but requires higher bioinformatics analysis capabilities.
• Target Acquisition (PRM/SRM): High-sensitivity, high-selectivity monitoring of known target peptides. Key interface parameters: Precisely set target m/z, retention time window, and fragmentation parameters.

Instrument Calibration and Tuning

Establish daily calibration (mass accuracy, sensitivity) and tuning (resolution, peak shape) procedures and record results.

Embedded Quality Control And Monitoring

QC samples

Run standard QC samples (e.g., HeLa cell lysate peptide fragments) at the beginning, middle, and end of each batch (Batch). Monitor key metrics: retention time drift, peak intensity/area reproducibility (%CV), number of identified peptides/proteins, response intensity of key peptides, and mass accuracy (ppm error). Key interfaces for setting QC indicator warning lines and action lines. QC failure should pause the run and investigate the cause (e.g., decreased column performance, ion source contamination).

Real-time monitoring

Use instrument software to monitor base peak chromatograms (BPC), total ion current (TIC), parent ion mass error, etc.

Metadata Capture And Output

Complete parameter acquisition:

Automatically record and output all instrument method parameters (LC gradient table, MS scan range, acquisition mode and parameters, tuning files).

Environmental parameter

Record laboratory temperature and humidity (which may affect LC retention times).

Raw data format

Output standardized, open, or widely supported raw data formats (e.g., .raw, .wiff, .mzML as a universal conversion format).

QC report

Automatically generate QC reports for batch runs, including the aforementioned QC metrics.

PowerNovo architecture overview (Figure from Denis V. Petrovskiy, 2024)

Explore how to interpret raw data effectively: [Peptide Sequencing Reports: Structure and Interpretation Guide]

Bioinformatics Analysis: From MS Data to Biological Insights

This stage converts raw mass spectrometry data into interpretable biological results (peptide/protein identification, quantification, PTM analysis). Interface design objectives: Ensure transparency, reproducibility, and scalability of the analysis workflow, and effectively integrate metadata from the frontend/midend to optimize analysis strategies and result interpretation.

Standardization and Version Control of Analysis Workflows

Workflow definition

• Use workflow management systems (e.g., Nextflow, Snakemake, Galaxy) or containerization technologies (Docker, Singularity) to define standardized analysis workflows. Ensure the reproducibility of the workflow.

Version locking

• Implement strict version control for critical software (search engines: MaxQuant, FragPipe, Spectronaut, DIA-NN; databases; parameter files). Interface Critical: Document the exact version of the analysis workflow (including all software and dependency versions), which is the foundation for result reproducibility.

Intelligent Integration of Databases and Parameter Configuration

Database selection

• Select an appropriate protein sequence database (Swiss-Prot, TrEMBL, species-specific database) based on species and project requirements. If new mutations or splicing variants are involved, a customized database should be considered.

Database search parameter optimization

• Key Interfaces: Parameter settings must precisely align with front-end processing (enzyme specificity, allowed missed cuts, fixed modifications such as Cys alkylation, variable modifications, and mass spectrometry acquisition parameters—parent ion mass tolerance (ppm), fragment ion mass tolerance (Da/ppm), and fragmentation mode type (CID/HCD/ETD)).

Integration of metadata

• Utilize mass spectrometry QC data (e.g., retention time) to optimize database searching (e.g., retention time prediction correction) or quantitative alignment.

Quantitative Strategy And Normalization

Method selection

DDA commonly uses Label-free (LFQ) or labeling methods (TMT, SILAC); DIA typically employs label-free quantification.

Normalization and batch correction

The key interface must integrate sample processing batch information and mass spectrometry run batch information, applying appropriate algorithms for batch correction to eliminate variability caused by non-biological factors.

Quality Control and Result Evaluation

False Discovery Rate (FDR) Control

Strictly enforce FDR control at the peptide/protein level (using the Target-Decoy method), with a unified threshold set.

Analytical QC: Monitor key metrics

total number of identified peptides/proteins, unique peptide count, average sequence coverage, PTM localization probability, proportion of missing values in quantitative data, sample correlation (Pearson/Spearman), and PCA plots to assess batch effects. Key interfaces automatically generate comprehensive reports incorporating these QC metrics.

Result visualization

Automatically generate standardized result visualizations (volcano plots, heatmaps, enrichment analysis bubble plots, PTM site spectra).

Data Management And Traceability

Standardized output formats

Results are stored in widely accepted formats (e.g., identification results: mzIdentML, pepXML; quantitative results: MSstats input, triqler input; PTM: PSP/CPTAC formats).

Metadata association

Ensure that final analysis results can be uniquely associated with all upstream metadata (sample processing records, mass spectrometry methods, QC reports, analysis workflow versions, and parameters) via a unique sample ID.

Data warehouse

Store raw data, processed intermediate data, final results, and complete metadata in a queryable data management system or cloud platform for long-term storage, sharing, and reanalysis.

How to Choose the Right Peptide Sequencing Service Provider

Multi-platform Collaborative Matching of Experimental Objectives

When seeking professional peptide sequencing services, an ideal service provider must first have the ability to cover mainstream cutting-edge mass spectrometry platforms. This is not merely about owning a few instruments, but about deeply understanding the core principles and application boundaries of different technologies (such as high-resolution Orbitrap, high-throughput timsTOF, and rapid screening MALDI-TOF), and being able to precisely match these technologies to the client's specific experimental objectives (such as de novo sequencing of unknown peptide fragments, deep coverage of complex mixtures, and precise localization of post-translational modifications). This is precisely our core strength—we not only have the latest generation of high-end platforms such as the Orbitrap Exploris™ 480 and timsTOF Pro 2, but also a team of experienced technical experts who ensure that the optimal technical approach is selected from the very beginning of the project, thereby avoiding poor data quality due to platform mismatch.

Professional Sample Processing Technology

When dealing with complex or highly challenging samples (such as low-abundance peptides, samples with strong matrix interference, or poorly soluble peptides), service providers must master critical pre-processing and enrichment techniques. Standardized procedures often fall short, potentially leading to signal loss or unreliable results. We have developed and optimized targeted sample pre-processing solutions, such as using efficient anti-interference nano-enrichment columns, precise multi-dimensional gradient chromatography technology, and affinity enrichment strategies tailored to specific modifications (e.g., phosphorylation, glycosylation). These proprietary technologies significantly enhance the detection rate and signal-to-noise ratio of target peptides, ensuring reliable sequencing data even when dealing with the most challenging samples.

Professional Data Analysis And Comprehensive Reporting

Robust bioinformatics analysis capabilities and customized reporting are the ultimate manifestation of service value. Raw mass spectrometry data is just the starting point; service providers must offer in-depth, accurate, and client-specific data interpretation. We not only provide standard database searches and quantitative analysis but also leverage AI-driven proprietary algorithms to demonstrate exceptional advantages in complex spectrum analysis, validation of low-confidence results, and precise localization of post-translational modification sites. Our reports are closely aligned with your research questions, providing clear, biologically insightful conclusions and visual results, truly transforming data into scientific discoveries for our clients. Choosing our company means choosing a complete, reliable, and high-value peptide sequencing solution from sample to answer, allowing each of our customers' samples to reach their full potential.

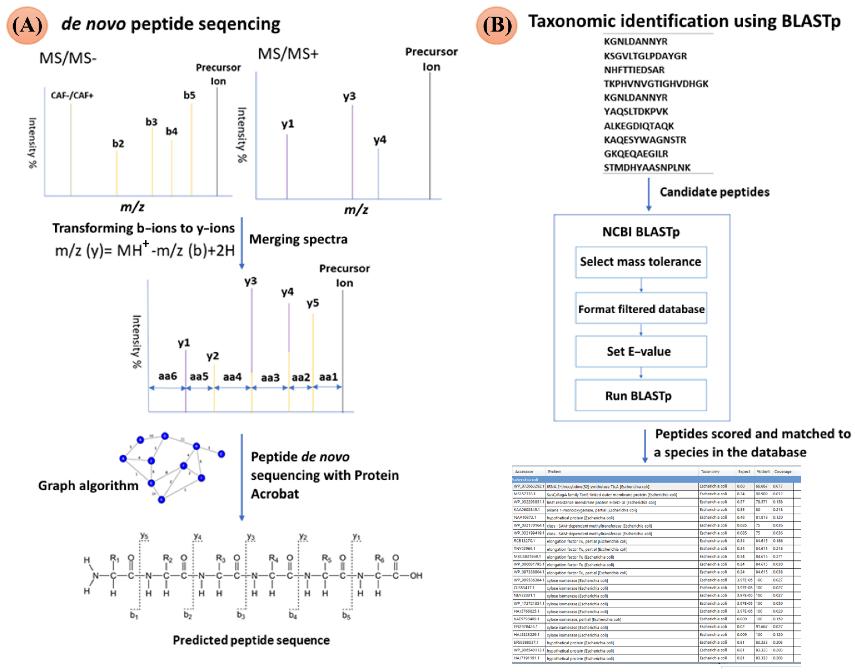

Integrated Pipeline for Species Identification via De Novo Peptide Sequencing:Aligning Complementary MS/MS Spectra to Predict y-Ion Sequences with BLASTp Validation. (Figure from Ema Svetličić, 2023)

References

1. Petrovskiy, D.V., et al. PowerNovo: de novo peptide sequencing via tandem mass spectrometry using an ensemble of transformer and BERT models. Sci Rep.
2. Nina Ogrinc Potočnik, et al. Sequencing and Identification of Endogenous Neuropeptides with Matrix-Enhanced Secondary Ion Mass Spectrometry Tandem Mass Spectrometry. Analytical Chemistry.
3. Svetličić, E., et al. Direct Identification of Urinary Tract Pathogens by MALDI-TOF/TOF Analysis and De Novo Peptide Sequencing. Molecules.
4. Liu, K., et al. Accurate de novo peptide sequencing using fully convolutional neural networks. Nat Commun.
