How to Choose the Right Peptide Sequencing Technology

Peptide sequence analysis is the ultimate tool for elucidating protein function. It not only accurately obtains amino acid sequences to clarify the relationship between protein structure and function, and capture dynamic regulatory mechanisms of post-translational modifications, thereby revealing the molecular basis of key biological processes such as signal transduction and metabolic regulation.

The core of peptide sequencing technology selection lies in matching "principle and demand." Existing technology platforms each have limitations: MALDI has high throughput but is prone to interference; ESI offers high sensitivity but is vulnerable to salt content; TOF has high precision but low throughput; ion trap analysis is strong but has poor quantification. Principle differences make universal application impossible, forcing technology selection to simultaneously adhere to the dual constraints of sample characteristics and research objectives.

Platform decisions must balance scientific needs with resource constraints. High-throughput mass spectrometry technologies (such as timsTOF) can process thousands of peptide fragments in a single run, but they are costly. If only a small number of synthetic peptide fragments need to be verified, MALDI-TOF or the Edman method are more appropriate.

Master the basics before advancing: [Peptide Sequencing: Principles, Techniques, and Research Applications]

Why One-Size-Fits-All Does Not Work in Peptide Sequencing Technology Selection?

Peptide sequencing, as a core technology for proteomics research, has a direct impact on experimental success or failure in its platform selection. Different technology routes (MALDI, ESI, LC-MS/MS) have significant differences in ionization mechanism, resolution, throughput, cost and other dimensions. There is no "one-size-fits-all" solution for peptide sequencing technology, and its core limitation stems from the essential differences in technical principles:

Core Technical Factors Behind Peptide Sequencing Platform Selection

Ionization efficiency: MALDI vs ESI in peptide sequencing

Inherent differences in ionization efficiency severely limit the universality of the technology. MALDI resists salt interference by encapsulating peptide segments in a crystalline matrix, but uneven laser energy distribution induces adduct ions, leading to complex mass spectrometry peaks. while ESI relies on Coulombic splitting of liquid-phase charged droplets, which offers higher ionization efficiency for large molecular peptides. However, when sample purity is insufficient, imbalances in droplet surface tension can trigger severe ion suppression effects. Therefore, MALDI is suitable for solid/semi-crystalline samples, while ESI is limited to ultra-pure liquid-phase environments.

Mass analyzer limitations

The physical limitations of mass analyzers create a natural trade-off between accuracy and speed. TOF relies on differences in the flight speed of ions in a vacuum tube to achieve mass separation, with its resolution increasing with the square root of the flight path length. Although ion traps capture ions through radio frequency fields to achieve multi-stage mass spectrometry (MSⁿ) dissociation and improve structural analysis depth, their limited ion storage capacity leads to space charge effects, causing mass axis drift. TOF trades speed for precision, while ion traps trade quantitative reliability for structural resolution capability.

Separation capacity bottleneck

Technical limitations of the separation system force a trade-off between throughput and resolution. Liquid chromatography (LC) coupled with reverse-phase column gradient elution for peptide separation effectively reduces ion suppression and increases the number of identifications. However, when performing a 120-minute gradient separation on a single sample, instrument utilization reaches 80%. Direct injection compresses the analysis to a few minutes, but due to competitive suppression caused by the simultaneous ionization of mixed peptides, the signal loss rate for low-abundance peptides reaches 70%.

Sample Characteristics That Drive Peptide Sequencing Technology Choice

Sample complexity: when to use MALDI-TOF vs LC-MS/MS

Simple peptide fragments, complex mixtures. Sample complexity directly determines the selection logic for technical pathways. When the number of peptide types in the sample is less than 10 (e.g., synthetic peptide validation), the pulsed ionization and rapid analysis characteristics of matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF) can efficiently complete identification; Conversely, when dealing with biological fluids containing over 100 components (e.g., serum or cell lysates), LC-MS/MS employs gradient elution to separate co-eluting peptides, combined with data-dependent acquisition modes (DDA/DIA) to achieve comprehensive coverage. Ion suppression effects cause high-abundance peptides in the mixture to suppress low-abundance signals.

Abundance level

Low abundance samples, where abundance levels force a trade-off in favor of sensitivity. For trace samples below the femtomole (fmol) level (such as needle biopsy or single-cell extracts), an ESI source must be enabled in conjunction with a high-response detector. The quadrupole-electrostatic field orbitrap (Q-Exactive) pushes the detection limit to 0.1 fmol with its ultra-high field orbitrap, while the TOF detector improves the signal-to-noise ratio by extending the ion injection time. If the MALDI technique with significant matrix interference is incorrectly selected, the signal loss rate will exceed 70%.

Physical and chemical properties

Differences in physical and chemical properties trigger a chain reaction of separation and ionization. Hydrophobic peptide segments cause peak broadening in reverse-phase chromatography due to strong retention, necessitating the use of a high organic phase gradient combined with a core-shell chromatography column to compress elution time; Acidic peptide segments form multi-charged ions in electrospray ionization due to the tendency of carboxyl groups to protonate, which enhances fragmentation efficiency but may induce charge-competitive inhibition. The solution pH must be optimized to below 3.0 to suppress ionization competition, while basic peptide segments require the addition of trifluoroacetic acid (TFA) to inhibit adsorption.

Goal-oriented Matching Logic

Qualitative identification

Qualitative identification should prioritize mass accuracy. When the primary objective is to determine the sequence of unknown peptide fragments, high-resolution mass spectrometry is the preferred choice due to its ability to obtain precise mass numbers. Quadrupole-Time-of-Flight Tandem Mass Spectrometry (Q-TOF) locks in amino acid composition with sub-ppm mass deviation, while Orbitrap distinguishes isopeptides with ultra-high resolution. If a low-resolution platform such as an ion trap is mistakenly selected, critical sequence features may be missed due to mass errors exceeding 200 ppm.

Quantitative analysis

The essence of quantitative analysis is a trade-off between stability and throughput. Labeled quantitative techniques rely on the intensity ratio of MS2-level fragment ions to achieve simultaneous quantification of multiple samples, with the core constraint being that the instrument must have high-speed MS/MS acquisition capabilities. Label-free quantitative techniques, while avoiding labeling costs, require chromatographic retention time deviations of <0.5 minutes, which causes column temperature fluctuations of ±1°C in liquid chromatography systems, thereby reducing quantitative correlation by 30%.

Modification sites

Modification site analysis requires precise adaptation of dissociation techniques. Unstable post-translational modifications (such as phosphorylation/O-GlcNAc) are prone to neutral loss in collision-induced dissociation (CID). Electron transfer dissociation (ETD) preserves modified groups through electron transfer reactions, increasing the identification rate of phosphorylation sites by 80%; while large-molecule modifications (such as ubiquitination) require the use of electron-activated dissociation (EAD) to generate c/z ions, overcoming fragmentation inhibition caused by steric hindrance effects.

MS target analysis for Manto-CC in K. flavicollis. (Figure from Heather G. Marco, 2022)

Comparison of Mainstream Technology Principles and Characteristics

MALDI-TOF: High Throughput But Limited Resolution

Working Principle

Based on matrix-assisted solid-state ionization, peptide fragments co-crystallize with the light-absorbing matrix. A pulsed laser vaporizes the matrix and carries the peptide fragments to form single-charge ions [M+H]⁺. The ions enter the vacuum flight tube under a high-voltage electric field, achieving mass separation based on the relationship between mass-to-charge ratio (m/z) and flight time.

Key Parameters

The optimal mass range is 1,000–10,000 Da (large molecules are fragile), with a throughput of >1,000 samples/day (96-well target plate automatic sampling), but the resolution is only ~20,000 (cannot distinguish between isopeptides of the same mass). After internal standard calibration, mass accuracy can be improved to <5 ppm, but laser energy fluctuations still cause ±0.1% mass drift.

Application scenarios

Focuses on simple systems; microbial identification relies on ribosomal protein fingerprinting; SNP detection locates mutant peptides via molecular weight differences; small-molecular-weight protein typing (e.g., serum proteins <10 kDa) leverages their salt resistance.

Advantages and limitations

The core advantage lies in direct analysis of solid samples (tissue sections/crystals), extremely high throughput (preferred for clinical screening), and no need for liquid-phase separation. However, ion suppression is significant in complex mixtures, uneven matrix crystallization induces adduct ion interference, and quantitative reliability is constrained by laser stability.

ESI Technology: A Sensitive Solution Compatible With Liquid Phase

Working principle

A high-voltage electric field is used to atomize liquid samples into tiny droplets. As the solvent evaporates, the droplets gradually shrink until they reach a critical point, at which point the molecules are charged to form a charged aerosol, which is then analyzed by a mass spectrometer. This process generates multi-charged ions, enabling large molecules to be detected by mass spectrometry.

Application Scenarios

Liquid samples, particularly complex biological samples. Especially suitable for analyzing polar molecules and large molecules, such as proteins, peptides, and nucleic acids.

Coupling Requirement

LC/CE coupling is necessary due to the unavoidable ion suppression effect. When the sample contains more than 50 components (e.g., cell lysate), co-eluting peptide segments experience competitive charge allocation during electrospray ionization, resulting in a loss rate of low-abundance signals exceeding 90%. Therefore, pre-separation via liquid chromatography (LC) or capillary electrophoresis (CE) is required. Reverse-phase LC-ESI is the most established approach, while CE-ESI is particularly suitable for charged peptide segments.

Advantages and disadvantages

Direct ionization of liquid samples, multi-charge ionization improves mass accuracy for large molecules (error <0.01%), and compatibility with online separation techniques. However, it relies on sample purity, multi-charge spectra are highly complex, and there is a high risk of capillary blockage.

LC-MS/MS: The Gold Standard For Complex Systems

Working Principle

The core principle lies in the synergistic effect of chromatographic separation and tandem mass spectrometry. Peptide mixtures are physically separated via reverse-phase liquid chromatography gradient elution, with the eluent directly introduced into an electrospray ion source (ESI) to generate multi-charged ions; Primary mass spectrometry (MS1) performs a full scan to obtain parent ion information of the peptide segments, followed by target ion selection via data-dependent acquisition (DDA) or data-independent acquisition (DIA) modes. Collision-induced dissociation (CID) generates characteristic fragment ions, which are ultimately analyzed for sequence information via secondary mass spectrometry (MS2).

Application scenarios

Covers the majority of proteomics needs. Whole-protein identification of cell lysates requires a 120-minute gradient + high-resolution MS2; plasma biomarker screening relies on DIA mode for traceable analysis; post-translational modification studies require the combination of ETD fragmentation and fragment ion scanning.

Advantages and disadvantages

Comprehensive coverage of complex samples (＞8,000 proteins/sample), precise localization of modification sites (PTM localization probability ＞99%), and high stability of unlabeled quantification. However, instrument occupancy time is long, and low-abundance peptides (＜0.1 fmol) are prone to detection errors in DDA mode.

Three Major Technical Performance Comparison Matrix

Dive deeper into how interface design streamlines MS/MS workflows: Read our article titled [Peptide Sequencing Workflow Design: Optimizing Sample Prep, LC-MS/MS, and Bioinformatics]

Experimental Requirements and Technical Matching Recommendations

De novo Sequencing of Unknown Peptide Segments

Preferred technology

For de novo sequencing of unknown peptide segments, high-resolution ESI-Q-TOF/MS systems (such as the Orbitrap series) are the preferred technology solution, with the core advantage of being able to capture the complete fragment ion spectrum generated by multiply charged ions.

Key Parameters

It is essential to ensure that MS/MS fragment coverage exceeds 90%. This requires the mass spectrometer to use variable isolation windows in the MS² stage combined with electron transfer dissociation (ETD) mode to fully capture b/y ion pairs and neutral loss fragments.

Key steps

The key step lies in the intelligent, selective triggering logic of tertiary mass spectrometry (MS³). After MS¹ detects the precursor ion, the MS² stage evaluates the fragmentation pattern in real time. When specific neutral losses or low-abundance diagnostic fragments are detected, MS³ is selectively triggered to provide deeper fragmentation and improved sequence confidence. This conditional cascading acquisition approach is particularly effective for structurally complex peptides, such as cyclic or heavily modified sequences.

Analysis of Complex Protein Mixtures

Key steps

The core of this process lies in breaking down component interference through four-dimensional separation (liquid chromatography + ion mobility + mass-to-charge ratio + intensity). First, high-pH reverse-phase fractionation pre-separates enzyme-digested peptides into 10 fractions, significantly reducing complexity and improving the detection rate of low-abundance proteins. Then, TMT 16-plex labeling enables simultaneous quantification of 30 samples, mitigating quantification errors caused by chromatographic retention time drift.

Key parameters

A 120-minute nano-flow chromatography gradient was set to balance throughput and resolution, and the ion mobility collision cross-section (CCS) resolution was controlled at >150 Ω/ΔΩ, which is critical for resolving isomeric peptides (e.g., isomeric modifications).

Technical combination

For in-depth analysis of complex protein mixtures such as plasma and tissue lysates, LC-ESI-MS/MS combined with ion mobility separation (IM) technology is required, with typical examples including the 4D proteomics platform of timsTOF Pro 2.

Pitfall avoidance tip

Avoid using MALDI for in-depth coverage studies.

Post-translational Modification (PTM) Specificity Detection

Precise localization of post-translational modifications (PTMs) requires a technical platform that combines high selectivity enrichment capabilities with modification-sensitive fragmentation patterns.

Phosphorylation

For phosphorylation analysis, TiO₂ microcolumn enrichment combined with Orbitrap parallel reaction monitoring (PRM) constitutes the gold standard.

Glycosylation

Hydrophilic interaction chromatography (HILIC) + electron transfer dissociation (ETD)

Key metrics

Modification site localization accuracy must reach 99% confidence level.

Case Study

Background

Peptides involved

The study focuses on cysteine-rich antimicrobial peptides (Cys-rich AMPs) in the seeds of traditional medicinal plants (flax, red clover, sesame), including lipid transfer proteins (LTPs), defensins, α-hairpinins, snakins, and plant albumin 1b (PA1b).

Issues and needs

These peptides are highly stable due to their multiple disulfide bonds, but traditional bioactivity-driven discovery methods are inefficient, and their expression profiles and functional studies in medicinal plants are severely lacking, necessitating high-throughput methods to accelerate their identification (e.g., there is currently no peptide-level evidence for red clover).

Analytical Methods

Mass Spectrometry

A bottom-up proteomics strategy using liquid chromatography-tandem mass spectrometry (LC-MS/MS) was employed, combined with trypsin digestion and database searching (Mascot).

Prediction and Validation Integration

AMP precursors were first predicted using bioinformatics tools (Cysmotif Searcher, SignalP), followed by mass spectrometry validation of actual translation products.

Tiered extraction optimization

Low-abundance peptides were enriched through a multi-step tiered process involving acid extraction, size exclusion filtration (>30 kDa and <1 kDa), strong cation exchange (SCX), and C18 reverse-phase chromatography (e.g., LTPs accounted for only 16% of predicted AMPs but 59% of detected peptides).

Disulfide bond treatment

Reduction alkylation (iodoacetamide) ensures effective peptide cleavage, enhancing sequence coverage.

Key Findings

Identification of novel AMPs

Mass spectrometry identified 22 novel Cys-rich AMPs in three plant seeds (10 in sesame, 9 in red clover, and 3 in flax), including the first-ever red clover PA1b and albumin 1b.

Unexpected Modification and Processing

The maturation process of α-hairpin peptides was found to be independent of the predicted asparagine endopeptidase (AEP) cleavage site, and only partial domains within the same precursor were processed into active peptides.

Significance

Although inactive against Escherichia coli in antimicrobial screening, the results revealed that medicinal seeds are rich in unexplored AMP resources, such as those in sesame and red clover. These findings provide priority targets for synthesis, structural modification, and broad-spectrum antimicrobial screening.

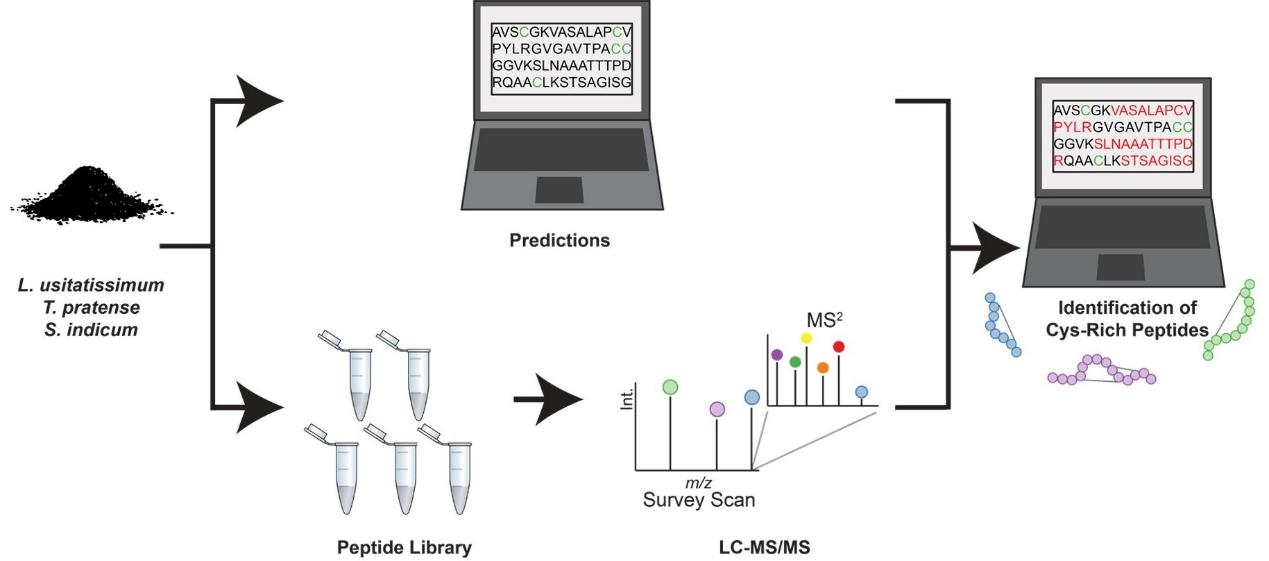

Flowchart of plant Cys-enriched peptide analysis (Figure from Tessa B. Moyer, 2021)

References

1. Moyer, T. B., et al. (2013). Mass Spectrometric Identification of Antimicrobial Peptides from Medicinal Seeds. Molecules.
2. Marco, H. G., et al. (2022). Mass Spectrometric Proof of Predicted Peptides: Novel Adipokinetic Hormones in Insects. Molecules.
3. Petrovskiy, D.V., et al. PowerNovo: de novo peptide sequencing via tandem mass spectrometry using an ensemble of transformer and BERT models. Scientific Reports.
4. Zhao, ZG., et al. Peptide Sequencing Directly on Solid Surfaces Using MALDI Mass Spectrometry. Scientific Reports.
