Custom PhIP-Seq Library Design: Cross-Reactivity & Variants

Key Takeaways

• In Silico Tiling Precision: Adopting a strict 50% step overlap (e.g., 28-amino-acid shift for 56-mers or 45-amino-acid shift for 90-mers) prevents junction-splitting artifacts that truncate 6–15 aa linear binding motifs.
• Variant Library Compression: Applying Consensus Backbone + Differential Variant Tiling compresses viral lineages and mutational drift panels by 60% to 80% without forfeiting single-amino-acid variant resolution.
• Signal Deconvolution: Integrating local alignment pre-screening (BLASTp/Smith-Waterman) with downstream statistical modeling (BEER and AVARDA) resolves shared homology networks and separates true infection signals from broad memory cross-reactivity.
• QC Benchmarks: Naive packaging pool validation requires a Drop-Out Rate < 1.5%, a Skewness Ratio < 5–10, and GC content strictly bounded between 40% and 60% to eliminate PCR bias and clonal over-amplification.

High-throughput serological profiling has undergone a paradigm shift with the advent of Phage ImmunoPrecipitation Sequencing (PhIP-Seq). By combining high-density programmable Oligonucleotide Library Synthesis (OLS), T7 phage display, and next-generation sequencing (NGS), PhIP-Seq digitizes complex polyclonal antibody repertoires at single-amino-acid resolution. Researchers can now screen complete human proteomes, full viral quasispecies, or comprehensive autoantigen panels in a single, highly multiplexed assay tube.

However, moving from off-the-shelf proteomic panels to custom PhIP-Seq library design presents significant engineering bottlenecks. Researchers face two central design challenges: balancing comprehensive variant and strain coverage against the risk of catastrophic library size explosion, while simultaneously controlling homologous cross-reactivity among closely related proteins.

Ultimately, how a well-designed library is architected in silico dictates downstream bioinformatic success. In silico tiling geometry, negative control selection, and DNA sequence optimization govern the signal-to-noise ratio, statistical power, and biological interpretability of every immunoprecipitation experiment.

Peptide Design Fundamentals

Selecting the appropriate peptide length and overlap scheme is the foundation of custom PhIP-Seq library construction. Because PhIP-Seq relies on the expression of synthetic peptide tiles displayed on bacteriophage capsids, the physical dimensions of the peptide define both the synthesis fidelity and the biological nature of the epitopes captured.

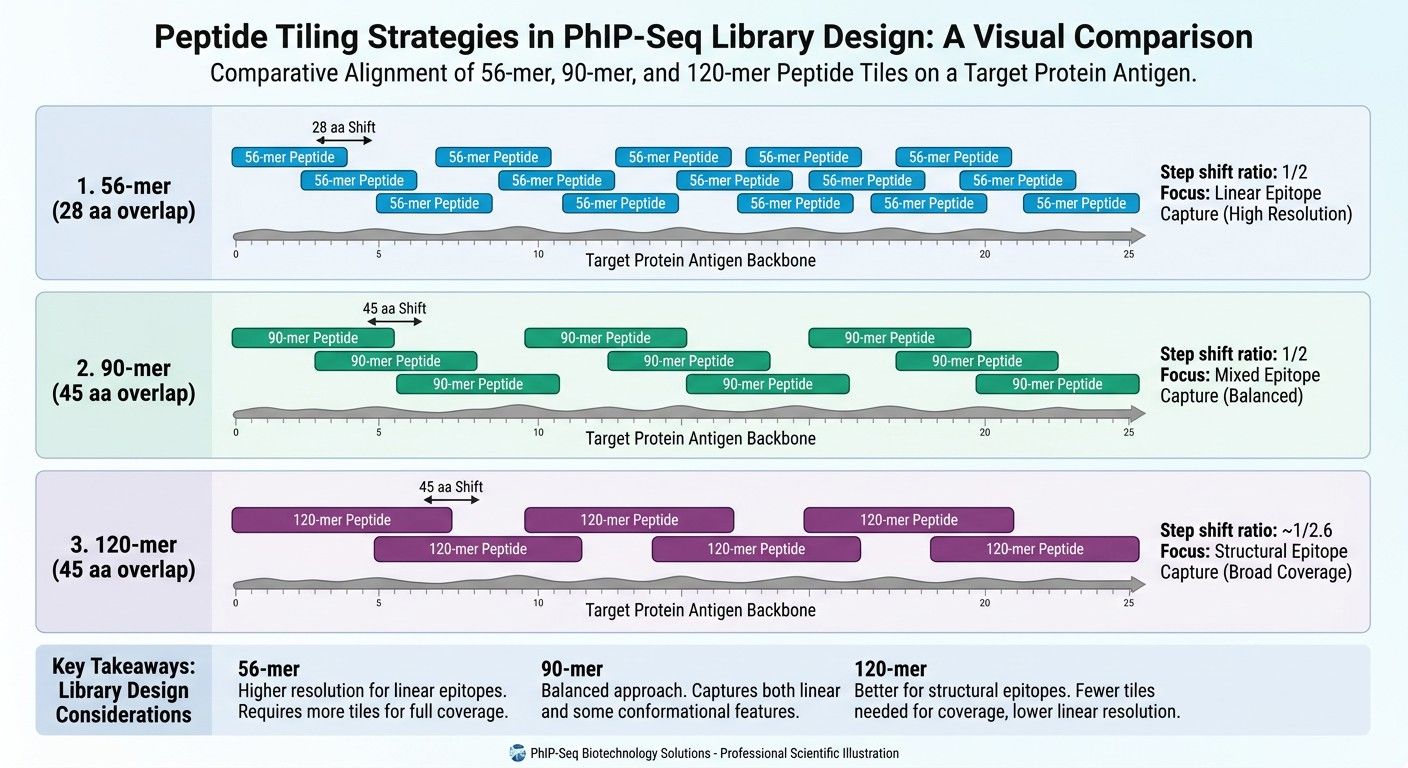

Peptide Length Selection and Its Effect on Epitope Resolution

Different study objectives require tailored peptide lengths. Designers must weigh synthesis yield, display efficiency, and structural resolution when selecting from standard library architectures:

• 56-mer Libraries (28 aa overlap): The gold standard for high-throughput linear epitope scanning. Because most linear B-cell epitopes consist of 6–15 core amino acids, 56-mers provide sufficient sequence context while maintaining exceptionally high oligonucleotide synthesis fidelity (>95%). Furthermore, 56-mers minimize oligo truncation rates and optimize library capacity within commercial OLS synthesis limits.
• 90-mer Libraries (45 aa overlap): Optimized for capturing linear epitopes alongside local secondary structural elements, such as short α-helices, β-turns, and hairpin loops. 90-mer constructs are particularly effective for complex viral glycoproteins, autoantigens, and membrane protein extracellular domains where local folding enhances antibody avidity.
• 120-mer Libraries: Specialized extended scaffolds designed for complex structural scanning. While 120-mers offer maximum conformational context, they carry elevated risks of synthesis truncation, frame-shift errors, and reduced packaging efficiency in E. coli, requiring strict bioinformatic sequence filtering.

When designing custom panels, researchers frequently leverage advanced protein sequencing and peptide characterization services to validate full-length protein backbones and confirm PTM-free primary structures prior to encoding synthetic peptide libraries.

Tiling Overlap Strategies to Preserve Linear Epitopes Intact

A critical error in peptide library design is underestimating boundary effects. If an antibody recognizes a linear motif located at the exact C-terminus or N-terminus of a peptide tile, the motif may be truncated or lack the flanking amino acids required for stable binding.

To prevent this issue, custom PhIP-Seq designs enforce a 50% step overlap across the entire protein sequence (e.g., a 28-amino-acid shift for 56-mers, or a 45-amino-acid shift for 90-mers). Mathematically, a 50% step overlap guarantees that any linear epitope up to half the length of the step shift will be represented entirely intact within at least one individual peptide tile. This eliminates junction-splitting artifacts, ensuring that border-spanning motifs are fully captured.

Trade-Offs Between Mapping Resolution and Library Complexity

While dense tiling (e.g., a 1-aa or 5-aa step shift) provides granular resolution, it exponentially expands the total number of unique oligonucleotides. Commercial OLS pool limits typically range from 10⁵ to 5 × 10⁵ unique sequences per pool.

Excessive library complexity increases synthesis costs and drastically elevates the sequencing depth required per sample to achieve statistical saturation. A standard 50% overlap balances spatial epitope resolution with manageable sequencing requirements, allowing thousands of samples to be multiplexed cost-effectively.

Building Coverage for Sequence Variants

Translating dynamic pathogen populations or patient-specific mutational landscapes into a static PhIP-Seq library requires intelligent sequence encoding. Simply tiling every isolate or mutant sequence independently leads to unmanageable library size growth.

Encoding Isoforms and Splice Variants

In human autoantigen and cancer panels, alternative splicing generates distinct protein isoforms. Rather than re-tiling shared constitutive exons across multiple isoforms, bioinformatic workflows perform Multiple Sequence Alignment (MSA) to identify canonical backbones.

• Canonical Backbone Tiling: Tile the full-length canonical protein backbone at the standard 50% overlap ratio.
• Targeted Exon-Junction Tiling: Generate specialized peptide tiles spanning only the unique exon-exon junctions and alternative exons. This captures isoform-specific linear epitopes without redundant sequence duplication.

Designing Neoantigen and Mutation-Focused Panels

For oncology and translational immunology, custom libraries must evaluate patient responses to Single Nucleotide Variants (SNVs), small insertions/deletions (indels), and gene fusions.

• Localized Mutation Windows: Construct 15–20 amino acid mutation windows centered precisely on the mutated residue, embedded within a standard 56-mer or 90-mer tile frame.
• Wild-Type vs. Mutant Pairing: Every mutant allele tile must be explicitly paired with its corresponding wild-type reference tile. Directly comparing enrichment ratios between wild-type and mutant pairs allows researchers to determine whether patient antibodies exhibit true mutation-specific affinity or broad cross-reactivity.

To support complex antibody characterization and confirm specific CDR binding profiles, scientists utilize de novo antibody sequencing and characterization workflows to correlate primary sequence variations with observed immunoprecipitation hits.

Managing Redundancy and Library Size

Viral families (e.g., SARS-CoV-2 variants of concern, Influenza HA/NA lineages, Dengue virus serotypes) exhibit extensive sequence conservation punctuated by hypervariable hotspots. Tiling 500 viral genomes individually creates massive redundancy.

• Consensus Backbone + Differential Variant Tiling: Generate a single consensus backbone for the viral lineage. Then, tile only the divergent peptide regions where sequence identity drops below 90%–95%. This strategy compresses viral lineage representation by 60% to 80% while retaining single-amino-acid mutation sensitivity.
• Algorithmic Epitope Clustering: Utilizing algorithms such as Dolphyn-style stitching clusters highly similar immunogenic regions across pathogen strains, prioritizing unique immunogenic motifs and preventing combinatorial pool explosion.

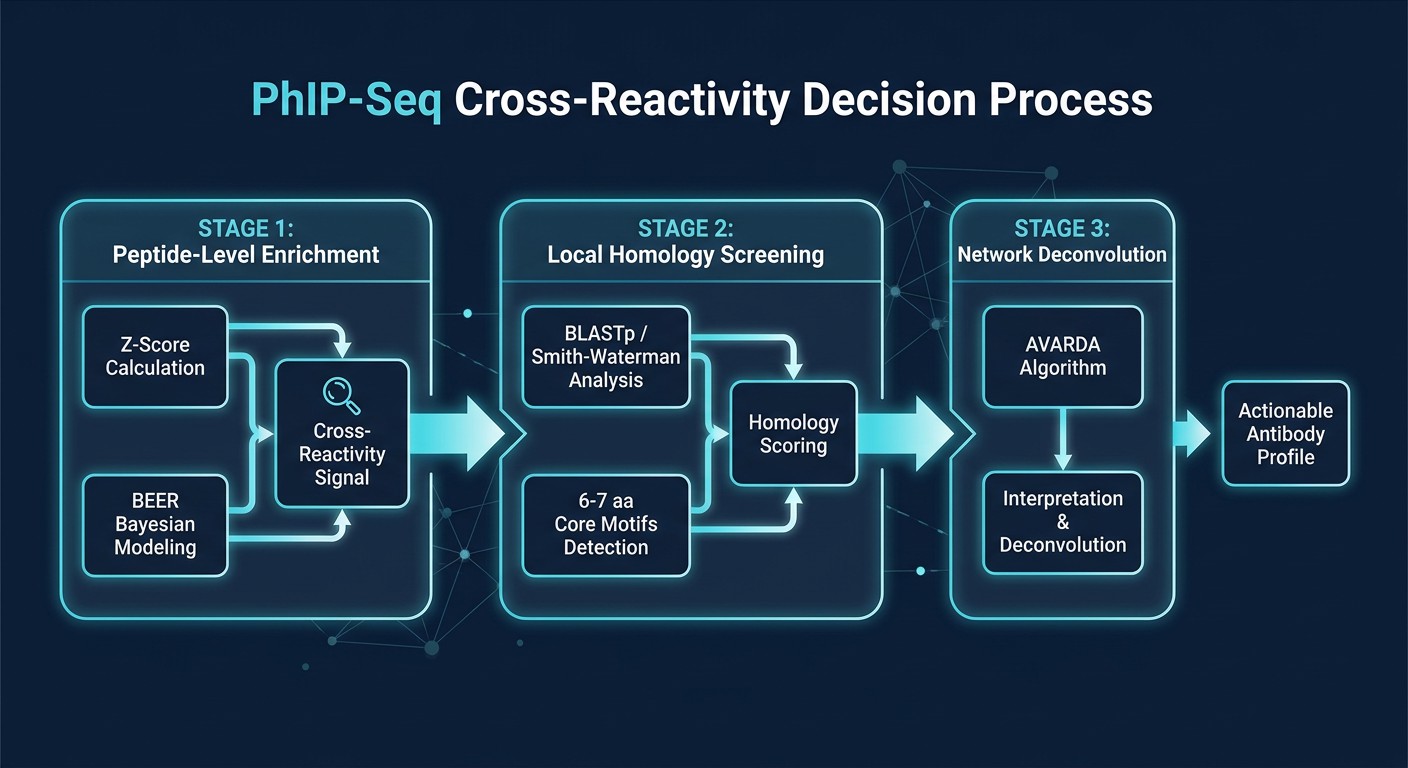

Controlling Cross-Reactivity in Custom Libraries

Cross-reactivity is an inherent biological property of antibodies, which often recognize conserved structural or sequence motifs present across different pathogens or host paralogs. In PhIP-Seq assays, cross-reactive binding can obscure true infection signals and yield misleading serological profiles.

Identifying Homology and Shared Motifs

Before finalizing an oligonucleotide synthesis list, bioinformatic pipelines must run pre-design local sequence alignments (such as BLASTp or Smith-Waterman searches) across all target candidate sequences:

1. Annotating Shared Core Motifs: Identify linear motifs of 6 to 7 contiguous amino acids that are shared across related viral families (e.g., Flaviviruses or Coronaviruses) or human paralogs.
2. Homology Clustering: Group peptides sharing identical or highly conserved core motifs into pre-defined homology clusters. This annotation allows downstream software to flag hits that may stem from a single cross-reactive antibody species rather than independent co-infections.

Designing Experimental Controls for Signal Verification

Accurate hit calling depends on rigorous negative controls integrated directly into the library plate layout:

• Beads-Only and Mock IP Controls: Reserve 4 to 8 wells per 96-well plate for controls containing phage library and magnetic beads but no patient serum. These wells quantify baseline background binding caused by non-specific interactions between phage capsid proteins, synthetic peptides, and the resin matrix.
• Baseline Non-Exposed Sera: Integrate serum samples from confirmed pre-immune or unexposed healthy cohorts. This establishes empirical background reactivity thresholds, filtering out public autoantibodies or ubiquitous anti-phage reactivity.

Interpreting Hits at the Peptide Level

Statistical deconvolution transforms raw sequencing read counts into confident biological insights:

• BEER (Bayesian Enrichment Estimation in R): Applies a Bayesian hierarchical model and Markov Chain Monte Carlo (MCMC) sampling to estimate peptide enrichment while accounting for sample-specific sequencing depth and background noise. BEER generates posterior probabilities and Z-scores that eliminate false positives in low-abundance signals.
• AVARDA (AntiViral Antibody Response Deconvolution Algorithm): An advanced algorithmic framework that evaluates network topologies of enriched, overlapping peptides. AVARDA analyzes shared sequence alignment matrices to assign enrichment signals to the most likely primary infectious agent, successfully distinguishing true historical exposures from cross-reactive memory recall.

Quality Control and Design Pitfalls

A perfectly architected in silico peptide library can still fail if the synthetic DNA pool suffers from poor quality control, extreme representation bias, or cloning inefficiencies.

Verifying Library Representation and Uniformity

Before performing immunoprecipitation assays, researchers must perform deep next-generation sequencing on the naive, amplified phage packaging pool to verify core quality metrics:

Avoiding Common Construction and Design Errors

• Strict GC Content Bounding: Bounding DNA oligonucleotide GC content within a strict 40% to 60% window prevents extreme melting temperature variations. Sequences with >60% GC form secondary hairpins that cause PCR dropout, while <40% GC sequences exhibit poor amplification efficiency.
• Monovalent T7 Capsid Display: Custom PhIP-Seq vectors utilize the T7Select 10-3b system, displaying peptides as C-terminal fusions to the 10B capsid protein (5–15 copies per phage virion). Avoiding high-valency display systems (such as multivalent M13 pVIII) prevents avidity-driven false-positive binding artifacts where low-affinity interactions appear artificially enriched.

Optimizing DNA Sequences for Cloning Success

Converting amino acid sequences into synthetic DNA requires careful codon engineering:

• Restriction Enzyme Site Elimination: Automated bioinformatic scripts must scan and remove internal restriction enzyme recognition sites (e.g., EcoRI, HindIII, NotI) via synonymous silent codon substitutions. This prevents accidental digestion of insert sequences during vector cloning.
• Stop Codon and Host Adaptation: Eliminate internal stop codons (TAA, TAG, TGA) and optimize codon usage frequencies for the E. coli host (achieving a Codon Adaptation Index, CAI > 0.8) to maximize peptide display efficiency on the phage capsid.

A Practical Design Workflow

To successfully build a custom PhIP-Seq library, research teams should execute a structured four-phase engineering workflow:

1. Defining the Antigen Space Before Sequence Encoding: Curate canonical target FASTA databases, clinical pathogen isolates, alternative splice isoforms, and mutational databases. Run pre-alignment algorithms to flag high-homology regions.
2. Choosing Tiling Parameters for the Study Objective: Select 56-mer formats for dense linear epitope scanning or 90-mer formats for structural/viral targets. Enforce the mandatory 50% step overlap rule across all sequence frames.
3. Incorporating Variant Tiles and Control Sequences: Apply Consensus Backbone + Differential Variant Tiling to compress viral lineages. Embed localized mutation windows for SNVs, and integrate 4–8 negative control wells (beads-only and mock IP) per plate.
4. Executing QC Verification Before Immunoprecipitation: Reverse-translate to DNA with 40%–60% GC content, remove restriction sites, synthesize the OLS pool, clone into monovalent T7 vectors, and deep-sequence the naive library pool to confirm Drop-Out Rate < 1.5% and Uniformity < 5–10 before running clinical serum screens.

For research use only, not intended for any clinical use.
