Protein separation is the most fundamental and critical step in biochemistry, molecular biology, and proteomics research. Whether for identification, quantification, or functional studies, selecting an appropriate separation method directly impacts the success and efficiency of experiments. However, researchers often feel overwhelmed by the vast array of available techniques.
This article aims to provide a systematic four-step decision-making framework to help you select the most appropriate protein separation method based on sample characteristics, research objectives, and practical conditions, thereby avoiding "over-engineering“ or "inefficient choices.“
Master the basics before advancing: [Protein Separation Techniques Methods, Advantages, and Applications]
Step 1: Understand Your Sample – Key Characteristics Matter
Any successful separation experiment begins with a deep understanding of the sample. Skipping this step and blindly selecting a technique is often the primary cause of failure.
Sample Source and Complexity
The source of the sample determines its fundamental complexity and the types of interfering substances present.
Cell lysates
Extremely complex, potentially containing thousands of proteins and rich in interfering substances such as nucleic acids and lipids. Typically requires high-resolution methods or pre-separation enrichment.
Serum/Plasma
Highly complex, containing extremely abundant proteins like albumin and IgG that mask low-abundance target proteins. Often requires pretreatment with high-abundance protein removal kits.
Tissue homogenates
Similar to cell lysates but may contain more insoluble material, fat, and fibrous tissue, making pretreatment (e.g., homogenization, centrifugation) more critical.
Recombinant expression systems
Proteins expressed in systems such as E. coli, yeast, or mammalian cells. These are relatively less complex but may contain impurities like host cell proteins (HCPs), nucleic acids, and endotoxins.
Key Physicochemical Properties of the Target Protein
Understanding the intrinsic properties of target proteins is central to selecting separation criteria.
The most commonly used separation criterion. Determines migration behavior in SDS-PAGE and size exclusion chromatography (SEC).
Isoelectric point (pI)
The pH at which a protein has a net zero charge. It serves as the basis for separation in isoelectric focusing (IEF) and ion exchange chromatography (IEX).
Hydrophobicity
Determines a protein's binding affinity to hydrophobic interaction chromatography (HIC) or reverse-phase chromatography (RPLC) media.
Post-Translational modifications (PTMs)
Includes modifications such as glycosylation and phosphorylation. These alterations significantly change a protein's molecular weight, pI, and hydrophobicity, presenting challenges for separation while also serving as targets for purification (e.g., using lectin or phosphoantibody affinity chromatography).
Sample Amount and Concentration
Micro-samples
Such as tissue obtained via biopsy, small quantities of cells, or valuable clinical specimens. Techniques requiring high sensitivity and low sample loading volumes are needed, such as capillary electrophoresis (CE) or micro-scale liquid chromatography (LC).
Sample concentration
Excessively low concentrations may require pre-enrichment steps (e.g., ultrafiltration, precipitation), while excessively high concentrations may necessitate dilution to prevent column clogging or excessive accumulation.
Summary: Comprehensive sample analysis forms the foundation for decision-making. The separation strategy for a low-abundance phosphorylated protein in a complex cell lysate is inherently different from that for a His-tagged protein expressed through recombinant methods.
Step 2: Define Your Research Goal Before Choosing a Technique
Technology serves the purpose. Clarifying "why separate“ is more important than "how to separate“; one should always adhere to the principle of "starting with the end in mind.“
Separation requirements corresponding to different research objectives:
| Research Goal |
Separation Characteristics |
Recommended Starting Techniques |
| Identification |
High Resolution: Effectively separates complex mixtures to provide pure components for downstream mass spectrometry identification. |
2D-PAGE: Simultaneously separates thousands of proteins, visually displaying distinct protein spots. RPLC: The gold standard for online mass spectrometry coupling, featuring high automation. |
| Quantification |
High Reproducibility & Wide Linear Range：Accurately and precisely reflects changes in protein abundance. |
CE: Efficient, rapid, with excellent reproducibility. LC-MS: Provides absolute quantification capabilities such as multiple reaction monitoring (MRM), with high throughput. |
| Purification |
High Selectivity & Yield: Designed to obtain large quantities of high-purity active proteins for structural and functional studies or pharmaceutical applications |
Affinity Chromatography (AC): Achieves efficient purification in a single step through specific binding (antibody-antigen, tag-ligand). IEX/ SEC: Often used as intermediate or final purification steps to remove impurities and aggregates. |
Summary: For comparing serum proteomic differences between disease and healthy states (qualitative + quantitative), 2D-PAGE or LC-MS is the ideal choice. For purifying kilogram-scale antibodies for production, protein A affinity chromatography combined with IEX/SEC is the essential pathway.
Step 3: Match the Right Separation Method to Your Needs
After identifying the sample and target, core technologies can be matched. Primary techniques fall into two major categories: electrophoresis and chromatography.
Electrophoretic Methods
Suitable for protein profiling and scenarios requiring high resolution, typically serving as the analytical endpoint.
SDS-PAGE
The most universal and fundamental technique. Separates denatured proteins by molecular weight, enabling rapid assessment of purity, molecular weight, and sample integrity. Serves as a prerequisite for Western Blot analysis.
2D-PAGE
Separates proteins in the first dimension based on pI (isoelectric focusing) and in the second dimension based on molecular weight (SDS-PAGE). Provides exceptional resolution, making it a powerful tool for identifying protein isoforms and modified forms, but suffers from low throughput and cumbersome operation.
CE
Separation using electric field forces within ultra-fine capillaries. Advantages include minimal sample consumption (nanoliter scale), rapid analysis speed, and high automation, making it ideal for high-throughput screening and micro-sample analysis.
Chromatographic Methods
Suitable for protein separation, enrichment, and preparative purification, with ease of scale-up and online detection.
AC
"Capture“-based purification relying on biologically specific interactions (e.g., antibody-antigen, enzyme-substrate, tag-metal ion). Offers highest selectivity, often achieving purification up to 1000-fold in a single step, making it the preferred method for purifying recombinant tagged proteins.
IEC
Separates proteins based on differences in net surface charge. Ideal for resolving charge isoforms (e.g., proteins with varying phosphorylation modifications), features high throughput, and serves as the mainstay for intermediate purification.
SEC
Separates proteins based on hydrodynamic volume (molecular size). Does not rely on binding, operates under mild conditions, preserves native protein conformation and activity, and is primarily used for desalting, buffer exchange, and aggregate removal.
RPLC
Separates proteins based on hydrophobicity differences. Typically uses organic solvents as the mobile phase, which can cause protein denaturation. However, it offers exceptional resolution and the best compatibility with mass spectrometry (MS), making it the core technology for bottom-up proteomics.
Multidimensional Chromatography (MDLC)
Combines two or more chromatographic techniques with distinct separation mechanisms (e.g., AC-RPLC, IEX-RPLC). This significantly enhances separation capabilities for extremely complex samples and is now standard for top-tier proteomics research.
Summary: No single technique is universally applicable. Multiple techniques are often combined—for example, capturing target proteins with AC followed by purification via IEX or SEC—to achieve the highest product purity.
For more detailed technical principles, please refer to: [Protein Purification vs. Protein Separation：Key Differences and When to Use Each]
Diagram of nSEC-nMS for gentle, high-sensitivity native protein separation and mass analysis using minimal sample. (Figure from Ziran Zhai, 2025)
Step 4: Make Smart Decisions – Practical Considerations
Transitioning from ideal technical matching to practical laboratory operations requires consideration of a series of practical factors. It is recommended to follow the decision flowchart below:

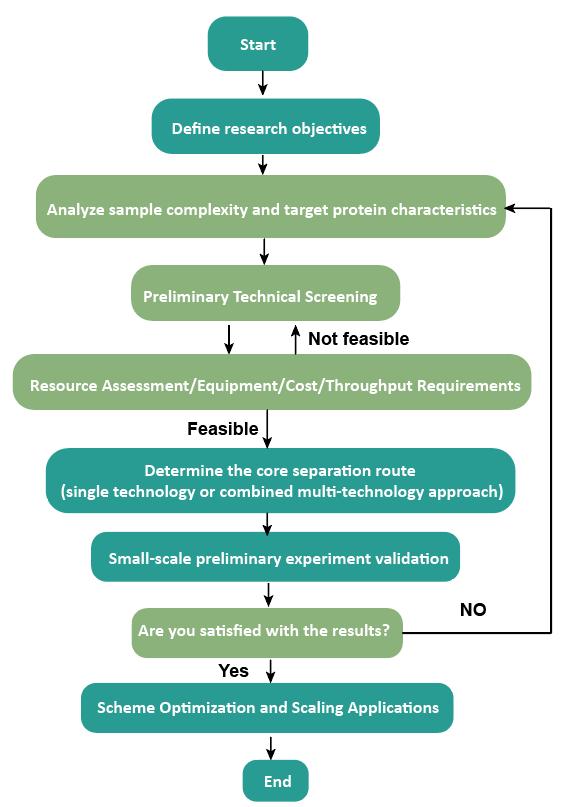

Decision Flowchart
Protein Separation Decision Flowchart
Core Trade-off Factors
| Factor |
Consideration |
| Resolution |
Is it necessary to distinguish proteins with similar molecular weights, isomers, or post-translational modification variants? High-resolution requirements point to 2D-PAGE or MDLC. |
| Sample Consumption |
Are the samples precious and limited in quantity? CE and microfluidic LC require only nanogram-level samples, while preparative SEC may require milligram-level samples. |
| Throughpu |
Do you need to process hundreds or thousands of samples daily? CE and 96-well plate formats of AC/RPLC are suitable for high-throughput screening. |
| Cost & Accessibility |
Does the laboratory have LC-MS, CE, or FPLC systems? The costs of chromatography consumables (columns) and reagents (organic solvents, enzymes) must be included in the budget. |
| Downstream Compatibility |
What are the downstream applications for the separated products? SDS-PAGE bands can be excised and digested for mass spectrometry identification; mild conditions in SEC are suitable for activity assays; the mobile phase from RPLC can be directly injected into mass spectrometry. |
Frequently Asked Questions (FAQ)
How to Choose the Technical Pathway Between 2D-PAGE and LC-MS?
The advantages of 2D-PAGE lie in its visual nature (allowing direct observation of protein spots and their modification patterns), the ability to compare multiple samples simultaneously (e.g., with DIGE technology), and its capacity to separate intact proteins. Its disadvantages include low throughput, challenges with extreme proteins (extremely high/low molecular weight or pI, hydrophobic proteins), and limited automation.
LC-MS (typically employing a bottom-up strategy) offers high throughput, automation, superior sensitivity, and the ability to identify more proteins—particularly low-abundance ones. Its drawbacks include the loss of intact protein information, with results based on peptide inference, making it less intuitive.
Selection criteria: If the research focus is on multiple modification forms of proteins and the sample size is small, 2D-PAGE is a good choice; if large-scale, in-depth proteome identification and quantification are required, LC-MS is a more powerful tool.
Can Electrophoresis and Chromatography be Used Together for Combined Separation?
Yes, and this is a highly effective strategy. The most common combination is liquid chromatography coupled with SDS-PAGE. For example, complex samples are pre-separated or fractionated using AC or IEX, followed by SDS-PAGE separation of collected fractions. These are then analyzed via Western Blot or gel-based mass spectrometry. This approach reduces sample complexity and enhances the detection probability of low-abundance proteins.
Is Further Purification Required after Affinity Chromatography?
Typically, yes. While affinity chromatography (e.g., His-tag purification) offers high selectivity, the resulting product may contain: ① degraded target proteins; ② non-specific co-purified proteins weakly bound to the resin; ③ detached ligands (e.g., imidazole); ④ Aggregates formed by the target protein. Therefore, samples post-affinity purification are typically considered "crude purities“ and require a subsequent purification step—such as IEX (removing co-bound proteins and aggregates) or SEC (replacing buffers, removing aggregates and ligands)—to obtain high-purity final products.
Which Separation Method Should be Chosen for Highly Hydrophobic Proteins Like Membrane Proteins?
Hydrophobic proteins (e.g., membrane proteins) readily aggregate and precipitate in solution, posing challenges for separation. SDS-PAGE is an effective tool for analyzing their molecular weight and purity.
In chromatography, RPLC effectively dissolves and separates hydrophobic protein fragments using organic solvents, but this causes denaturation. To preserve activity, consider affinity chromatography or size exclusion chromatography after solubilization with detergents.
How should I Proceed If My Target Protein Lacks Known Characteristics or Specific Ligands?
This constitutes a "blind screening“ scenario, commonly encountered in functional studies of novel proteins. Typically, a combination of non-specific yet broadly applicable separation techniques is employed.
The classic three-step purification strategy remains effective: ① Preliminary enrichment of crude extracts via IEX (ion exchange chromatography) based on charge; ② Size separation of active fractions via SEC; ③ Analyze the active fractions narrowed down by the first two steps via SDS-PAGE or 2D-PAGE, excise potential target bands/spots for mass spectrometry identification. Active tracking is maintained throughout to confirm the fraction containing the target protein.
Summary
Selecting the appropriate protein separation method is a systematic decision-making process that requires researchers to strike the optimal balance between sample characteristics, research objectives, technical principles, and practical constraints. The four-step framework presented in this article—understanding the sample, defining the objectives, matching the technology, and considering practical considerations—aims to help you establish clear logic, make confident and efficient technical choices, and thereby propel your research project forward smoothly.
References
- Zhai, Z., Holmark, T., et al. (2025). Nanoflow Size Exclusion Chromatography-Native Mass Spectrometry of Intact Proteoforms and Protein Complexes. Analytical chemistry.
- Ventouri, I. K., Malheiro, D. B. A., et al. (2020). Probing Protein Denaturation during Size-Exclusion Chromatography Using Native Mass Spectrometry. Analytical chemistry.
- Shixiang Liu, Zhihua Li, et al. (2020) Recent advances on protein separation and purification methods. Advances in Colloid and Interface Science.
