Can One-Bead-One-Compound Libraries Be Decoded by LC-MS/MS? Non-Natural Residues, Single-Bead Input, and De Novo Evidence

Yes—an individual hit bead from a one-bead-one-compound (OBOC) library can sometimes be decoded by LC-MS/MS, but only when the library was designed to yield enough interpretable material and the expected monomers can be distinguished in the tandem-mass-spectrometry evidence. A selected bead is not automatically a sequence result. It is a very small, chemically constrained analytical sample whose identity must be supported by precursor mass, fragment ions, library rules, and usually confirmation after resynthesis.

That distinction matters after a screening campaign. A binding signal may identify an interesting bead, while the next decision is whether its compound can be released, sequenced, and taken forward without introducing an incorrect residue assignment. This is particularly important for cyclic peptides, peptoids, D-residues, backbone-modified monomers, and libraries containing non-natural amino acids (NNAAs). In these formats, a conventional database search is rarely the right answer; de novo interpretation needs a defined monomer registry and an evidence plan.

Key Takeaways

• Single-bead decoding is a feasibility question, not a default capability. Resin loading, bead size, cleavage chemistry, sequence length, and analytical accessibility set the usable amount and spectrum quality.
• A non-natural residue is not inherently incompatible with LC-MS/MS. It becomes a risk when its exact mass, expected fragmentation behavior, stereochemistry, or position rules are unknown.
• Cyclic OBOC hits usually need a deliberate release or ring-opening design. A cyclic backbone can produce fragmented spectra that are much harder to interpret than a released linear analogue (Liang et al., 2013).
• Library design can reduce false assignments. Fixed regions, position-specific monomer sets, and non-isobaric building-block choices provide constraints that a de novo engine alone cannot supply (Vinogradov et al., 2017).
• A credible sequence package combines orthogonal evidence. It should include the observed precursor, assigned fragment coverage, library-rule consistency, and a plan to compare a resynthesized candidate with the hit-derived result.

Can a Single OBOC Bead Provide Enough Material for LC-MS/MS?

The useful answer is conditional. One bead can be enough when the support, loading, release chemistry, peptide architecture, and MS acquisition strategy were selected with identification in mind. It is not enough to know that a bead was positive in a screen. The analytical question is whether a released fraction contains a measurable precursor and enough product ions to discriminate one plausible sequence from the others permitted by the library.

Published OBOC work illustrates why the phrase "single-bead sequencing" should be interpreted carefully. In some workflows, a single selected bead is cleaved and directly analyzed by MALDI-TOF/TOF or LC-MS/MS. In others, a portion of the material is used for an activity or binding assay, while another portion is released and linearized for sequencing. A lysocin E discovery workflow retained an aliquot of each bead-derived cyclic peptide for MS/MS sequence determination after photocleavage and linearization (Kawahara et al., 2019). The design enabled the result; the selected bead alone did not remove the analytical constraints.

For a new project, the first feasibility review should capture the bead identity and diameter, nominal loading, library length range, expected molecular-weight window, linker, and whether the hit compound is exposed on the bead surface or distributed through the support. It should also record which material has already been consumed by screening. This information allows the sequencing strategy to be matched to the actual chemical sample rather than to an idealized peptide.

Why nominal loading is not the same as usable analyte

Nominal resin loading provides a theoretical upper boundary. It does not establish that the intact product will be released efficiently, survive the chemistry, ionize well, or produce a readable ion ladder. Hydrophobic sequences may be difficult to recover or chromatographically separate. Highly basic or acidic motifs can create charge-state distributions that complicate precursor selection. Partial synthesis products and side reactions can become prominent when the intended component is present at very low amount.

The practical unit of planning is the sequence-evidence budget: how much released material is likely to reach the mass spectrometer, and whether it is enough to establish a specific sequence rather than merely detect a mass. A feasibility review should reserve material for confirmation where possible instead of assigning every hit bead to a single irreversible readout.

When pooling helps—and when it defeats the purpose

Pooling several beads is useful only when they are known or designed to encode the same compound, or when the goal is to characterize the library distribution rather than identify a particular hit. Pooling unrelated positive beads can increase total signal while creating a mixed precursor population and ambiguous fragment spectra.

If the screen yields multiple beads with the same phenotype, the stronger path is often to decode them separately, look for convergent motifs, then resynthesize the highest-confidence sequences. If the research question is "which exact bead produced this signal?", keep the hit bead identity separate from the start.

Design the OBOC Library for Decoding Before the Screen

The most consequential decision is made during library design, not after hit selection. OBOC libraries can include noncanonical building blocks and large chemical diversity, but that flexibility expands the number of sequences that can share similar masses or produce incomplete fragment ladders. A decoding-aware design gives the analyst information that is independent of the software score.

Vinogradov and colleagues showed how fixed residues and alternating monomer subsets can constrain assignments in synthetic peptide libraries. In their model system, applying the pre-specified library rules removed candidates inconsistent with length, terminal residue, and allowed positions; high-confidence assignments were more reliable than unconstrained de novo output (Vinogradov et al., 2017). The exact scheme will not fit every OBOC campaign, but the principle is widely useful: encode analytical discriminability into the library architecture.

For projects where sequence identity is the principal deliverable, a small pilot library is often more informative than immediately scaling diversity. The pilot can confirm release behavior, evaluate how well representative non-natural building blocks fragment, and reveal any mass collisions before a large screening investment is made. This is also the point at which a peptide de novo sequencing strategy can be aligned with the actual monomer set rather than applied retrospectively.

How Do Non-Natural Residues Change De Novo Interpretation?

Non-natural amino acids, D-residues, N-methylated residues, peptoid units, nucleobase conjugates, and backbone modifications are all compatible with a carefully planned mass-spectrometric investigation. What changes is the evidence threshold. Standard peptide databases and common scoring models were optimized around canonical proteogenic residues and familiar fragmentation patterns. They may report a plausible sequence without recognizing an unregistered monomer, an isobaric alternative, or a cleavage pathway altered by the modification.

A robust submission therefore starts with a building-block table rather than a list of residue abbreviations. For each monomer, provide the exact structure or molecular formula, the mass contribution after coupling and cleavage, possible protecting-group remnants, stereochemical identity, and any expected neutral loss or labile linkage. If two monomers are isomeric or nearly isobaric, note whether the synthesis design places them in mutually exclusive positions. LC-MS/MS may distinguish some such alternatives through diagnostic fragments or retention behavior, but it should not be assumed without a representative test.

D- and L-amino acids: what mass spectrometry can and cannot establish

An ordinary MS/MS spectrum cannot generally distinguish D from L enantiomers because they have the same elemental composition and nominal fragment masses. If stereochemistry varies in the OBOC design, the library architecture or a follow-up chiral or orthogonal assay must carry that information. The sequence report should state whether the assigned residue identity is mass-defined only or stereochemically resolved by the synthesis map.

A high-quality b/y-ion series can support residue order and mass increments, yet cannot independently prove chirality. If D/L state is essential to the biological hypothesis, preserve it as encoded design metadata and verify the resynthesized candidate against the intended stereochemical form.

Cyclic peptides and constrained backbones need an exit route

Closed-ring peptides lack the simple termini that make linear peptide fragmentation and Edman-style interpretation more straightforward. Liang, Girard, and Biron developed a ring-opening strategy that released and linearized cyclic OBOC hits before MALDI-TOF MS/MS; the study specifically addresses the complex fragmentation patterns associated with cyclic hits (Liang et al., 2013). Subsequent work has also used dual ring-opening/cleavage concepts to improve sequence determination in cyclic OBOC libraries (Elashal et al., 2018).

The project implication is not that every cyclic library needs the same reagent or linker. It is that topology must be considered before the screen. If the hit will be a cyclic molecule, define how it will be converted into a measurable, interpretable species—or define the alternate encoding route—while the library is still being designed.

Direct MS/MS, Partial Ladder Methods, or Encoding: Which Route Fits the Library?

There is no universal decoding workflow. The appropriate route depends on whether the library is linear or cyclic, whether its monomers are known, how much material is recoverable, and whether the aim is rapid hit nomination or unambiguous structure confirmation.

Direct MS/MS is a good first route when the monomer dictionary is finite, release creates a predictable analyte, and the library has deliberate constraints. Choose a linearization or encoding strategy when the backbone and monomer chemistry make a direct spectrum underdetermined. For high-value leads, choose resynthesis comparison even when the initial de novo score looks compelling; it is the cleanest way to separate a plausible identification from a decision-ready sequence.

Figure 1. A decoding-first decision pathway for selected OBOC hits, from library metadata review through release, MS/MS evidence, and resynthesis confirmation.

What Does Defensible De Novo Evidence Look Like?

A de novo assignment should be reported as a structured evidence package, not simply as a sequence string and a software confidence value. The exact components will vary with the library, but the package should make clear which parts are directly observed and which are inferred from the library design.

At a minimum, the report should identify the observed precursor mass and charge state, the proposed molecular form after cleavage, the monomer dictionary used for interpretation, the assigned fragment-ion series, and any unresolved alternatives. If the library contains position rules or a fixed sequence segment, the report should show how these constraints were applied. This lets the project team distinguish an unambiguous result from a ranked candidate list.

Evidence that increases confidence

Multiple complementary observations are more convincing than a long but selective ion ladder. These may include agreement between observed and calculated precursor mass, contiguous b- or y-ion coverage across the variable region, expected terminal-marker fragments, replicate acquisition, and consistency with the allowed residue-position map. Vinogradov et al. demonstrated that library-rule filtering can eliminate erroneous candidate assignments and recover interpretations not ranked first by an unconstrained algorithm (Vinogradov et al., 2017).

For non-natural sequences, a resynthesized candidate offers an important final check. Comparing its precursor behavior and diagnostic fragments with the hit-derived material helps determine whether the nominated monomer order is reproducible. Where the project includes a functional readout, re-testing the resynthesized candidate against the original assay provides an additional independent line of evidence. This is especially valuable when a selected hit contains several modifications or a macrocyclic topology.

Evidence that should be described as provisional

Some findings are useful for prioritization but should not be presented as fully resolved. Examples include a precursor mass consistent with several possible sequences, a spectrum with a gap spanning isobaric monomers, or an assignment dependent only on a predicted fragmentation pathway. A transparent report names the ambiguity, states what would resolve it, and separates it from high-confidence candidates.

That approach protects downstream synthesis choices. It also helps researchers decide whether to advance one candidate, synthesize a small ambiguity set, or revisit the library design before a larger screen.

Common Reasons OBOC Hit Decoding Fails

The most frequent failure modes are not instrument failures. They are mismatches between the chemistry of the selected hit and the information available to interpret it.

• Insufficient released material: The bead was consumed in screening, release was incomplete, or the analyte was lost during handling. Address this with a hit-retention plan and an initial release feasibility study.
• Unknown monomer masses: The analyst receives shorthand names but not structures, formulae, or post-cleavage mass contributions. Address this by supplying a complete monomer registry before data processing begins.
• Isobaric or enantiomeric ambiguity: Different monomers generate the same or nearly the same mass increments. Address this with position constraints, orthogonal separation, or resynthesis of ranked alternatives.
• Topology-driven spectral complexity: Cyclic, branched, or heavily modified products do not yield a simple linear b/y-ion ladder. Address this by designing a compatible release or linearization route or using a separate identity encoding strategy.
• Mixed bead-derived material: Multiple hits or synthetic by-products are pooled, creating a composite spectrum. Address this by maintaining bead-level identity and interpreting each hit separately whenever exact sequence attribution is needed.
• Overreliance on one score: A software rank is treated as conclusive without checking precursor agreement, library rules, or diagnostic fragments. Address this through a written evidence threshold agreed before sequencing.

These failure modes are also useful at the quotation stage because they determine whether a project should begin with direct hit decoding, a library pilot, an alternative cleavage strategy, or parallel de novo protein and peptide sequencing support for unexpected sequence features.

Plan an OBOC Decoding Project Around the Deliverable

The most useful first question to send to an analytical team is not "Can you sequence this bead?" It is "What decision must the sequence evidence support?" A project intended to nominate several early-stage motifs can accept a ranked candidate list with clear confidence tiers. A program selecting a lead for resynthesis or structure–activity work needs a stronger chain of evidence and a specified approach to residual ambiguity.

Before submission, compile the following information:

1. A map of the library architecture, including sequence length, fixed regions, position-specific monomer sets, and topology.
2. The resin, approximate bead size and loading, cleavage linker, and any material already consumed.
3. Structures or molecular formulae for all canonical and non-natural building blocks, including expected cleavage-state masses.
4. The screen readout and whether a hit must be linked back to an individual bead.
5. A description of the desired deliverable: hit ranking, provisional de novo sequences, unambiguous sequence assignment, or comparative data after resynthesis.

Creative Proteomics can review these inputs before analysis, build a monomer-aware interpretation strategy, and provide a documented evidence package for selected OBOC hits. For libraries with constrained or modified backbones, peptide sequencing services can be scoped around the library topology, release form, and confirmation requirement rather than treated as a standard protein-database search.

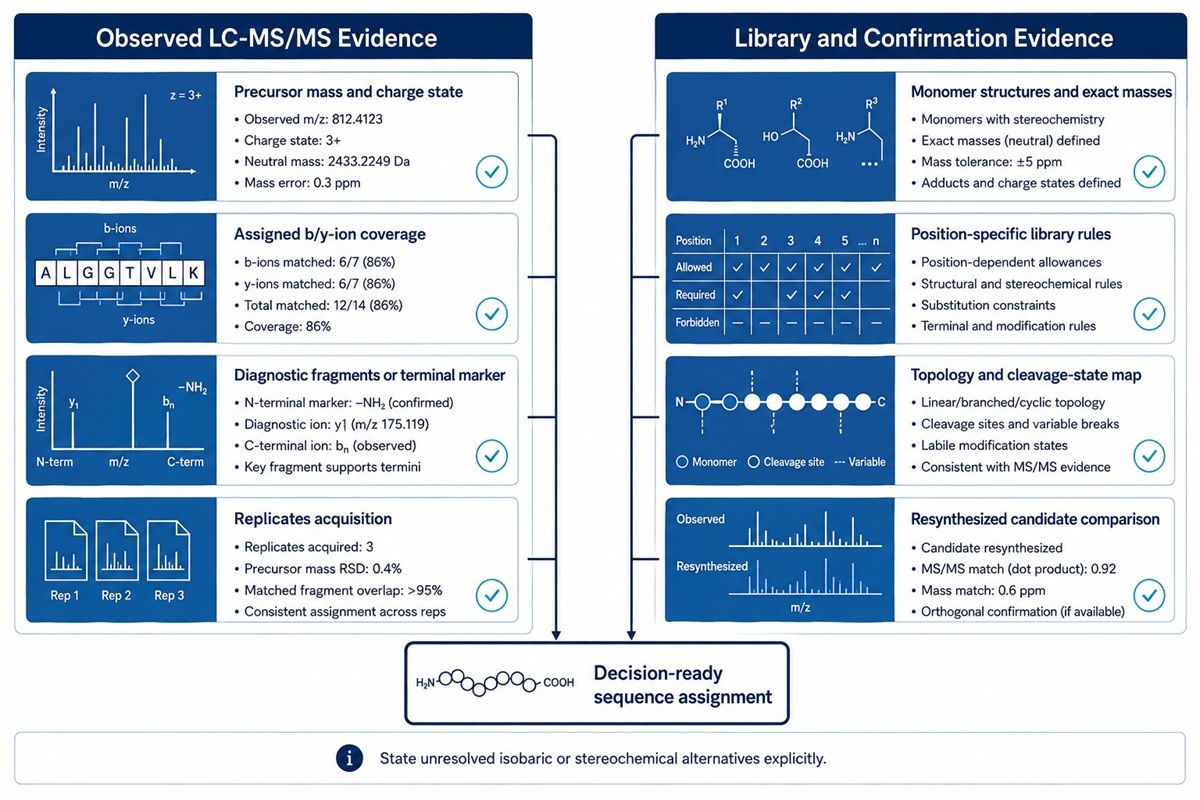

Figure 2. The proposed evidence package separates directly observed LC-MS/MS data from library-design constraints and resynthesis confirmation.

FAQ: OBOC Library Sequencing by LC-MS/MS

Can an individual OBOC bead be sequenced by LC-MS/MS?

It can be, provided the bead yields sufficient released analyte and the resulting product has an interpretable precursor and fragment pattern. The feasibility depends on resin loading, cleavage recovery, peptide topology, monomer chemistry, and the library metadata available for interpretation.

Can LC-MS/MS identify non-natural amino acids in a hit peptide?

Yes, when the non-natural residues are supplied as defined mass or structure entries and their possible positions are considered during interpretation. LC-MS/MS alone may not resolve isobaric building blocks or D/L chirality, so those attributes should be constrained by the synthesis design or verified orthogonally.

Why are cyclic OBOC hits harder to decode?

Cyclic backbones do not fragment like ordinary linear peptides and can generate complex product-ion spectra. A planned release and ring-opening strategy can convert the hit into a more interpretable form before MS/MS analysis.

Should several positive beads be pooled before sequencing?

Only if the beads are known to contain the same compound or if the aim is to characterize a mixture. Pooling unrelated hits can improve signal but prevents a reliable link between a particular screening bead and a specific sequence.

Is a high de novo software score sufficient for lead selection?

No. A strong candidate should also agree with the observed precursor mass, fragment-ion evidence, allowed monomers and position rules. Resynthesis and comparative MS/MS are recommended when the sequence will direct a high-value follow-up program.

What information should accompany an OBOC hit submission?

Provide the library map, resin and linker details, bead/loading information, complete monomer structures or formulae, topology, screen history, and the evidence level required. These inputs determine whether direct MS/MS, a linearization strategy, or an encoded approach is appropriate.

References

1. Vinogradov, A. A., et al. Library Design-Facilitated High-Throughput Sequencing of Synthetic Peptide Libraries. ACS Combinatorial Science 19, 694–701 (2017).
2. Liang, X., Girard, A. & Biron, E. Practical ring-opening strategy for the sequence determination of cyclic peptides from one-bead-one-compound libraries. ACS Combinatorial Science 15, 535–540 (2013).
3. Elashal, H. E., et al. Oxazolidinone-Mediated Sequence Determination of One-Bead One-Compound Cyclic Peptide Libraries. Organic Letters 20, 2374–2377 (2018).
4. Kawahara, T., et al. Development of a high-throughput strategy for discovery of potent analogues of antibiotic lysocin E. Nature Communications 10, 1–11 (2019).
5. Semmler, A., Weber, R. & Przybylski, M. De Novo Sequencing of Peptides on Single Resin Beads by MALDI-FTICR Tandem Mass Spectrometry. Journal of the American Society for Mass Spectrometry 21, 215–219 (2010).
