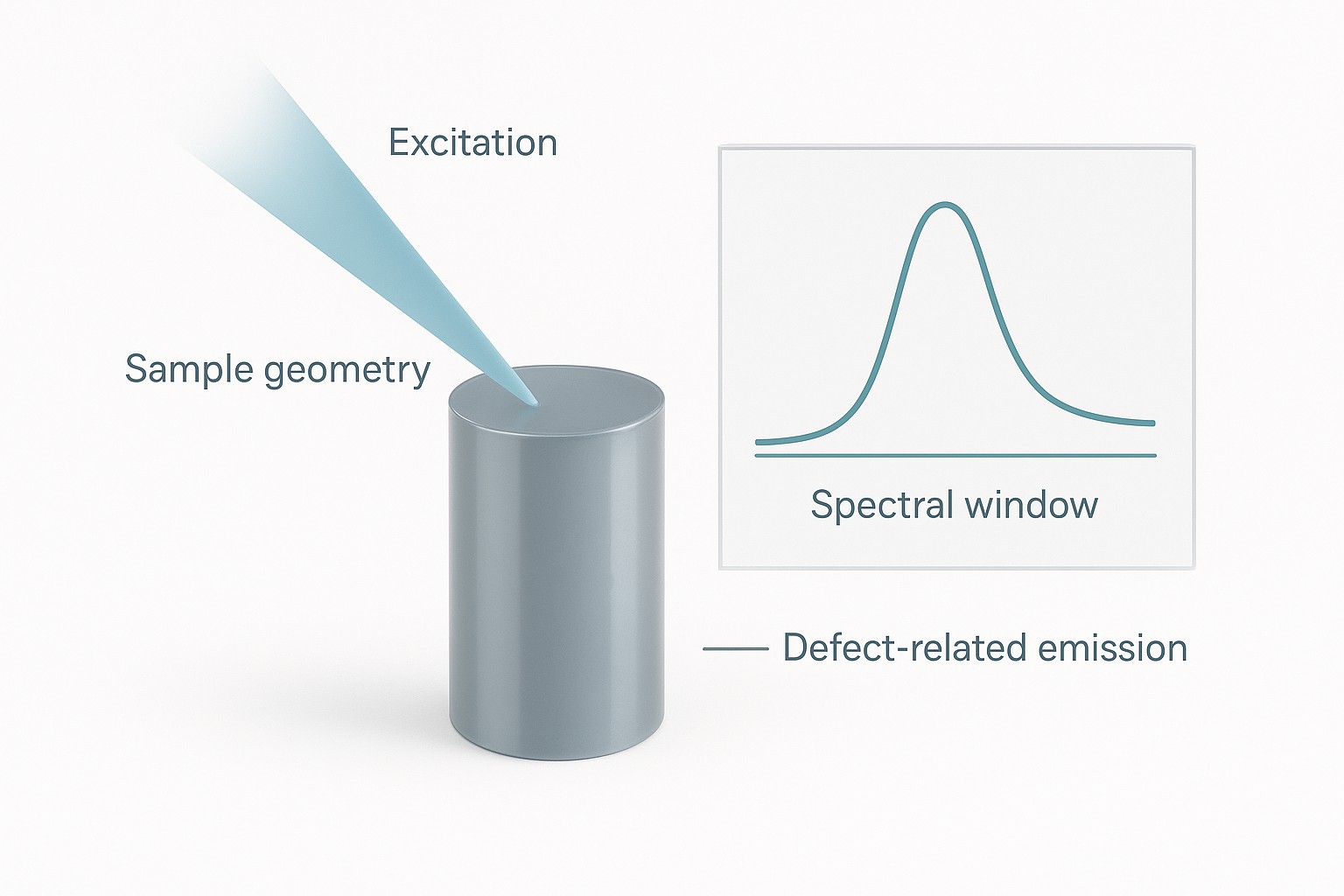

Fluorescence Spectroscopy for Solid Materials: Planning Photoluminescence for Defect Analysis

Many researchers still treat fluorescence spectroscopy as a “protein method” by default. But fluorescence and photoluminescence (PL) measurements can also be practical for solid materials, especially when you’re using emission features to compare fabrication, treatment, or aging conditions.

What changes is not the concept of fluorescence. It’s the planning burden. For solids, feasibility often hinges on geometry, surface condition, excitation logic, and the spectral/energy window, long before you argue about peak assignments.

A typical consideration-stage inquiry looks like this: a materials R&D team has silica (SiO₂) cylinders and wants to compare two fabrication conditions by scanning for oxygen-related defect emission features. They may already have a working hypothesis (for example, non-bridging oxygen hole centers and other oxygen-related species), a preferred excitation regime (deep UV), and a target reporting window (for example, about 1.5–5 eV). The main question is simple: can PL/fluorescence help, and what needs to be clarified up front so the output is interpretable?

If you’re evaluating whether a fluorescence-based readout can support a defect-focused comparison study, this guide lays out the project inputs that matter most.

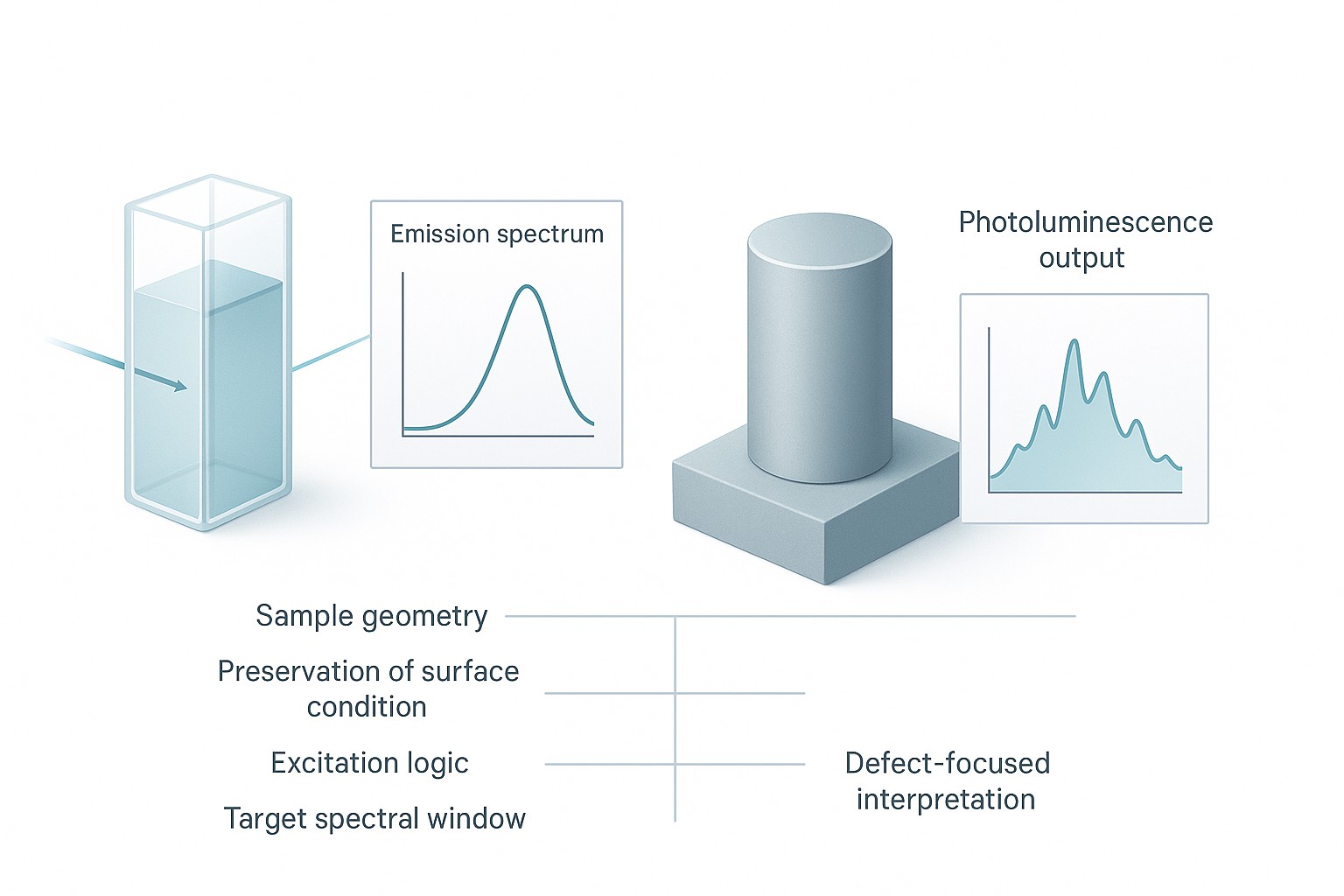

Note: Figure 1 uses a general planning schematic to emphasize scoping differences; it is not instrument-specific.

Key takeaways

• Yes, fluorescence/photoluminescence can be used for solid materials, but the outcome depends heavily on how the measurement is scoped (geometry, surface, excitation, and spectral window).
• For defect-focused work, the most useful first deliverable is often comparative spectra across conditions, not a single definitive defect identity claim.
• If you can only clarify four things before you start, make them: sample form, surface condition, excitation rationale, and target spectral/energy range.
• A strong solid-sample project starts with a comparison question (Condition A vs Condition B), not “scan everything and tell us what defects we have.”

What fluorescence or photoluminescence can reveal in solid-material and defect studies (photoluminescence spectra solid materials)

Decision question: What can PL/fluorescence actually help you decide in a solid-material project?

Why solid materials can produce meaningful fluorescence or luminescence signatures

In many solids, emission features reflect a combination of bulk electronic structure, impurities, and localized states such as point defects. Even when absolute quantum yields are low, the spectrum can still be informative if you’re consistent about measurement conditions and treat the output as a comparative readout.

For defect-focused work, you are typically looking for reproducible bands or band-shape changes that track with processing history (fabrication route, thermal treatment, irradiation, surface finishing, or aging). In practice, defect characterization by fluorescence spectroscopy is strongest when it’s framed as a controlled comparison rather than a one-shot identification exercise.

How defect-related emission can help compare material states or fabrication conditions

Defect-related emission is most actionable when it helps you answer a specific comparison question:

• Did Condition A introduce (or suppress) an emission band relative to Condition B?
• Do peak positions shift in a way that suggests a changed local environment?
• Is the relative intensity pattern consistent with a known defect family, or is it dominated by background/scattering?

In silica, for example, the non-bridging oxygen hole center (NBOHC) is widely discussed as an oxygen-related intrinsic defect with a ~1.9 eV photoluminescence band, and it has reported optical absorption features in the UV that can be used to motivate excitation selection in a defect study (see the open-access 2021 review on intrinsic point defects in silica for details).

Why fluorescence readouts are most useful when tied to a defined defect or comparison question

A spectrum is rarely a “defect fingerprint” on its own. It becomes useful when you define the decision it must support.

For many teams, the first win is not perfect defect naming. It’s getting a clean set of spectra that can answer:

• Is the contrast between conditions real?
• Is it large enough to justify deeper follow-up?
• Which spectral region should we focus on next?

Why solid samples are a different planning category from proteins and other liquid-phase samples

Decision question: What changes when the fluorophore is embedded in a solid matrix rather than dissolved in a controlled optical path?

Sample geometry and physical form matter immediately

In solution, the sample geometry is standardized (cuvette path length, beam footprint, controlled scattering). In solids, the sample itself sets the geometry: thickness, curvature, roughness, transparency, and internal scattering.

That means feasibility discussions often start with the physical question: how will we couple excitation light in, and how will we collect emission out?

Surface preparation and optical path considerations affect feasibility

Surface finishing can change what you measure in two ways:

1. Optical artifacts: roughness increases scattering and can distort baselines or introduce stray-light issues.
2. Real defect populations: polishing, cutting, and surface damage can add or modify defect density near the surface.

A practical approach is to treat surface condition as an explicit variable: document it, keep it consistent across comparison samples when possible, and avoid mixing “as-received” and “freshly polished” surfaces unless that contrast is intentional.

The key planning question is not only “what is the sample?” but “how should it be measured?”

Solid-material fluorescence/PL planning is often closer to method development than routine measurement. The point is not to make the spectrum “look nice.” It’s to make sure the collection geometry, excitation choice, and spectral window align with the defect question.

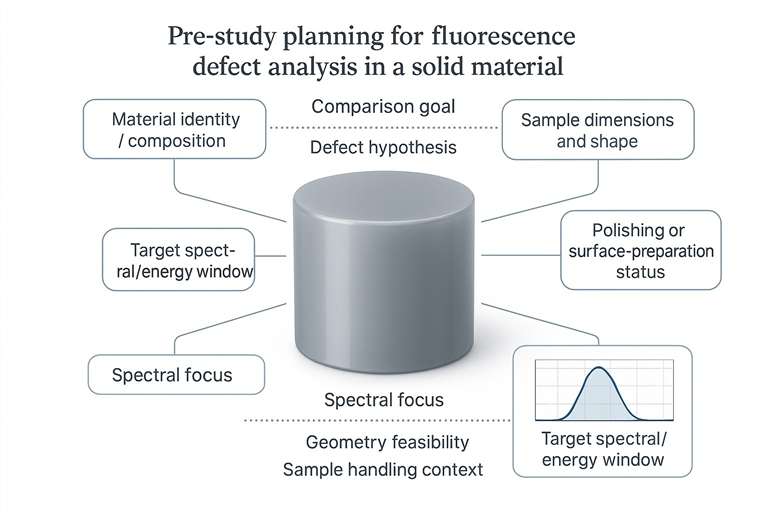

What to clarify before requesting fluorescence analysis for a solid material

Decision question: What must be known before anyone can judge feasibility or recommend a measurement approach?

Material identity and fabrication background

Start with what the sample is, plus what might plausibly create or modify emissive centers:

• composition (and known dopants/impurities, if relevant)
• fabrication route or supplier category (high-level is fine)
• post-processing (anneal, irradiation, surface treatment)
• what differs between the conditions you want to compare

Sample dimensions, geometry, and whether reshaping is possible

Solid-sample feasibility often depends on practical constraints:

• sample diameter/thickness/length
• whether cutting is allowed (and what faces can be exposed)
• whether you can provide flat faces for consistent collection

Mini-case framing (silica cylinders): If you have SiO₂ cylinders (for example, tens of millimeters in diameter and several centimeters long) and your comparison depends on a defect-related emission band, a key feasibility question is whether you can provide a repeatable measurement face (cut and polish) across both fabrication conditions.

If you’re searching for silica glass fluorescence defect analysis support specifically, include the fabrication contrast (Condition A vs Condition B) and which emission bands you consider decision-relevant.

Surface finishing or polishing status

Clarify:

• as-received vs polished
• polishing grit/finish (if known)
• whether the surface condition is part of the comparison, or a nuisance variable

If you’re defect-focused, this detail matters because surfaces can host different defect densities than the bulk.

Excitation requirement or wavelength logic

Do not treat excitation as an afterthought. Provide either:

• the excitation wavelength/energy you want, or
• the reason you want it (target defect absorption, penetration depth, avoiding background)

For silica NBOHC-related work, for example, an open-access review describes NBOHC optical absorption bands including ~4.8 eV (≈258 nm) alongside a ~1.91 eV PL band, which is the type of linkage that makes an excitation request interpretable rather than arbitrary.

Desired spectral or energy window

State your reporting window in:

• wavelength (nm), or
• energy (eV), or both.

If your project is defect-focused, it’s common to specify an energy window such as ~1.5 to 5 eV, then translate it into an instrument-relevant wavelength range. The key is not the unit. The key is to bound the window so the measurement can be configured to resolve what you care about.

Target defect peaks or defect hypotheses

If you have a hypothesis, state it. If you don’t, state the comparison goal.

For silica, literature often discusses NBOHC-associated emission around ~1.9 eV, and oxygen-deficiency-related families can show bands in the UV/blue region depending on the defect and excitation context.

Key Takeaway: A strong first inquiry makes your defect study scopable. It explains the sample, the comparison, the excitation rationale, and the spectral window.

Mid-article CTA

If your project involves solid samples, defect-related emission features, or non-standard excitation requirements, share your material type, sample dimensions, target spectral window, and comparison goal with our team before analysis so feasibility can be assessed in the right context. You can also start with the foundational overview, What Is Fluorescence Spectroscopy?, if you need shared terminology for internal alignment.

Why excitation conditions and spectral range should be defined before feasibility is discussed

Decision question: Why do excitation and spectral range determine whether the study is meaningful?

Excitation choice is part of the material question—not just an instrument setting

In defect-focused PL, excitation is how you choose which electronic states you populate. Two studies that both say “PL spectra” can be measuring different things if one excites near a defect absorption band and the other excites where the sample is mostly transparent.

For silica, the literature explicitly ties certain defects to UV absorption bands (for example, NBOHC absorption around ~4.8 eV) and to a visible PL band around ~1.9 eV, which is the kind of physics-level justification that makes excitation selection defensible.

Deep-UV and defect-focused projects need explicit scoping

Deep-UV requests tend to fail when they are expressed as “we need deep UV” without stating:

• which defect family is being targeted
• what emission window is expected
• whether surface effects are central to the hypothesis

This is especially important because deep-UV conditions can increase sensitivity to surface state, scattering, and stray light. In other words, deep-UV work is not automatically “better.” It’s more constrained.

The requested spectral window should match the emission process you want to evaluate

Treat your spectral window as a hypothesis statement:

• If your target is a visible defect band, the window must include it with adequate resolution.
• If your target is UV/blue emission, you may need to manage artifacts more aggressively.

A practical reliability point from the photoluminescence literature is that instrumental stray light, scattering, and reabsorption can distort spectra, and experimental choices such as optical filters, controlled geometry, and careful reporting of conditions can materially improve reliability.A practical guide to measuring and reporting photophysical data (RSC, 2025)

How to design a useful comparative solid-sample fluorescence study

Decision question: How do you design a study that produces interpretable differences instead of a single hard-to-interpret spectrum?

Two-condition comparison is often the strongest starting point

If you can state “A vs B” cleanly, you can make the measurement clean:

• same geometry (or controlled geometry differences)
• same surface finishing
• same excitation and collection configuration

This is often more valuable than scanning many samples with unknown variability.

Defect-focused studies work best when the contrast is clearly defined

A defect hypothesis does not need to be perfect. It needs to be specific enough to constrain the study.

For silica, many teams start with a small number of plausible oxygen-related defect centers and plan excitation/spectral windows that can test whether those bands track with fabrication history. If the contrast is real, you have a reason to refine.

Start with comparison-ready samples before trying to solve every defect question at once

A common failure mode is asking for a defect inventory from a single scan. If the goal is defect identification, you typically need a broader experimental program.

If the goal is process comparison, you can often start with spectra that answer:

• do we see consistent differences between conditions?
• where in the spectrum are those differences concentrated?

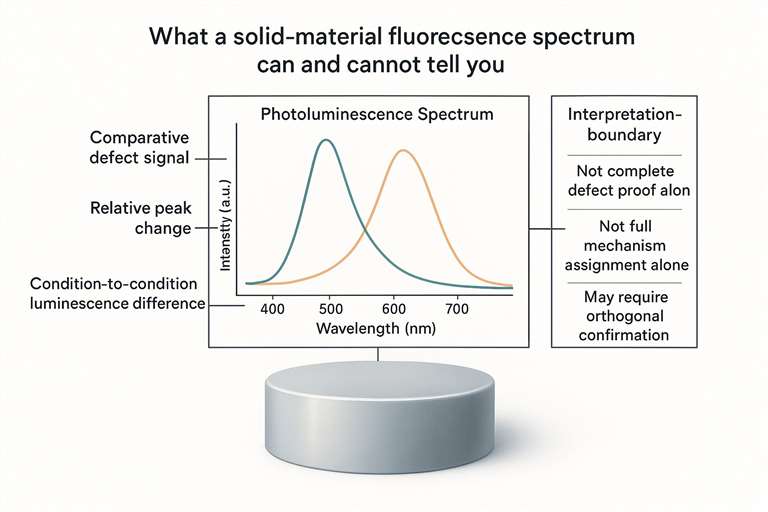

What data you can realistically expect from a solid-material fluorescence study

Decision question: What will the output look like, and what can it support?

Emission or photoluminescence spectra

The core deliverable is typically an emission spectrum (or spectral overlays) under defined excitation conditions. For comparison studies, overlays are often the most decision-relevant output.

Peak position and relative intensity comparison

For defect-focused work, you usually care about:

• peak position (or band maximum)
• band width (qualitative, context-dependent)
• relative intensity changes across conditions

Interpret intensities carefully. Geometry and surface state can change collection efficiency.

Condition-to-condition spectral differences

A well-scoped study provides a defensible statement such as:

• “Condition A shows a stronger band near the target region than Condition B under the same excitation.”

It avoids pretending that one spectrum conclusively proves a defect identity.

What fluorescence can suggest—and what still requires orthogonal confirmation

Photoluminescence can support defect-focused interpretation when:

• the band is consistent with the literature and
• the excitation logic matches reported absorption behavior and
• the comparison is controlled.

For silica, an open-access review summarizes NBOHC absorption bands (including ~4.8 eV) and an associated PL band at ~1.91 eV, illustrating how literature context can connect excitation and emission in a defensible way.Intrinsic point defects in silica (2021 review, 2021)

How to describe your solid-material project clearly when requesting support (fluorescence spectroscopy for solid samples)

Decision question: What does a “good inquiry email” look like for a solid PL/fluorescence project?

Start with the material and the comparison objective

Use one sentence:

• material: what it is
• comparison: what changed and what you want to learn

Example:

• “We have two silica-glass fabrication conditions and want to compare defect-related emission features by PL.”

Then define dimensions, preparation state, and excitation needs

Add the constraints:

• geometry and size
• whether cutting/polishing is possible
• surface state now
• excitation preference and why

Finally clarify target peaks, spectral range, and expected output

Close with:

• target window (nm or eV)
• any suspected defect bands
• what form of output you need (overlays, peak summary, etc.)

Before submitting your inquiry, clarify:

• material identity
• sample dimensions and shape
• whether cutting/polishing is possible
• fabrication or treatment conditions being compared
• target excitation logic
• desired spectral/energy range
• suspected defect-related peaks if known
• what comparison or decision the data should support

Common mistakes in solid-material fluorescence requests (solid sample fluorescence analysis planning)

Decision question: What causes a “we can’t assess feasibility yet” response?

Omitting excitation requirements

If the request says “measure PL” but does not state excitation logic or a target defect family, the study can become a fishing expedition. Excitation is a hypothesis statement.

Not specifying the spectral or energy window of interest

If you don’t bound the window, you increase the chance that the output misses the region you care about, or that the configuration is suboptimal for your most decision-relevant band.

Sending dimensions without a defined defect question

Dimensions alone do not define feasibility. The same cylinder can be feasible for one window and non-informative for another, depending on transparency, scattering, and excitation.

Treating defect-focused photoluminescence like a generic fluorescence scan

For defect interpretation, uncontrolled variables (surface finish, collection geometry, stray light) can dominate the spectrum. Treat these as design variables, not background details.

FAQ

Conclusion

Solid-material fluorescence and photoluminescence studies are feasible when the project is framed tightly: you know what the material is, what you’re comparing, what excitation logic you’re using, and which spectral/energy window matters for the decision.

If you treat those inputs as first-class design variables, PL/fluorescence can provide a practical comparative readout for defect-focused questions. If you don’t, the spectrum often becomes difficult to interpret and easy to over-read.

For additional context on where fluorescence approaches are commonly used, see the Application of Fluorescence Spectroscopy resource.

Planning fluorescence or photoluminescence analysis for a solid material or defect-characterization project? Send your sample format, dimensions, target spectral range, and analytical objective for a preliminary feasibility discussion via the photoluminescence defect analysis service.
