Fluorescence Antibody Peptide Binding: Study Design Guide

Key takeaways

• Fluorescence is often strongest as a comparison tool (antibody-to-antibody, condition-to-condition), not a single-assay “final verdict” on specificity.
• Define one primary decision first (rank antibodies, test pH sensitivity, test sequence specificity). The rest of the design exists to protect that decision.
• In labeled-peptide work, a signal change can reflect binding, but it can also reflect label microenvironment, peptide behavior, or pH-driven fluorescence behavior.
• Control peptides matter because they convert “a signal changed” into “the change is consistent with a sequence-defined hypothesis.”
• pH 7.4 vs 4.5 comparisons require matched controls because pH can shift both interaction behavior and fluorescence behavior.

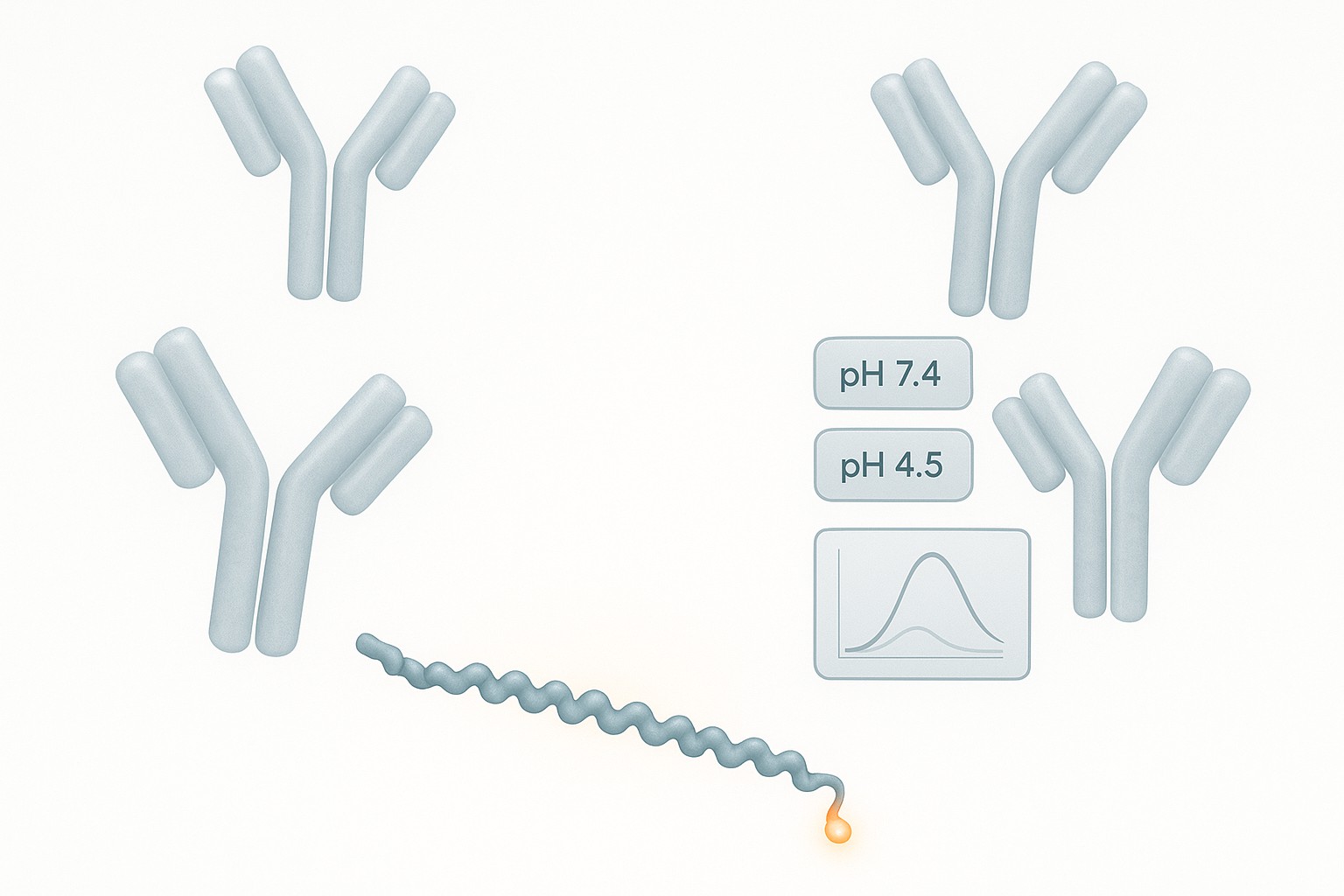

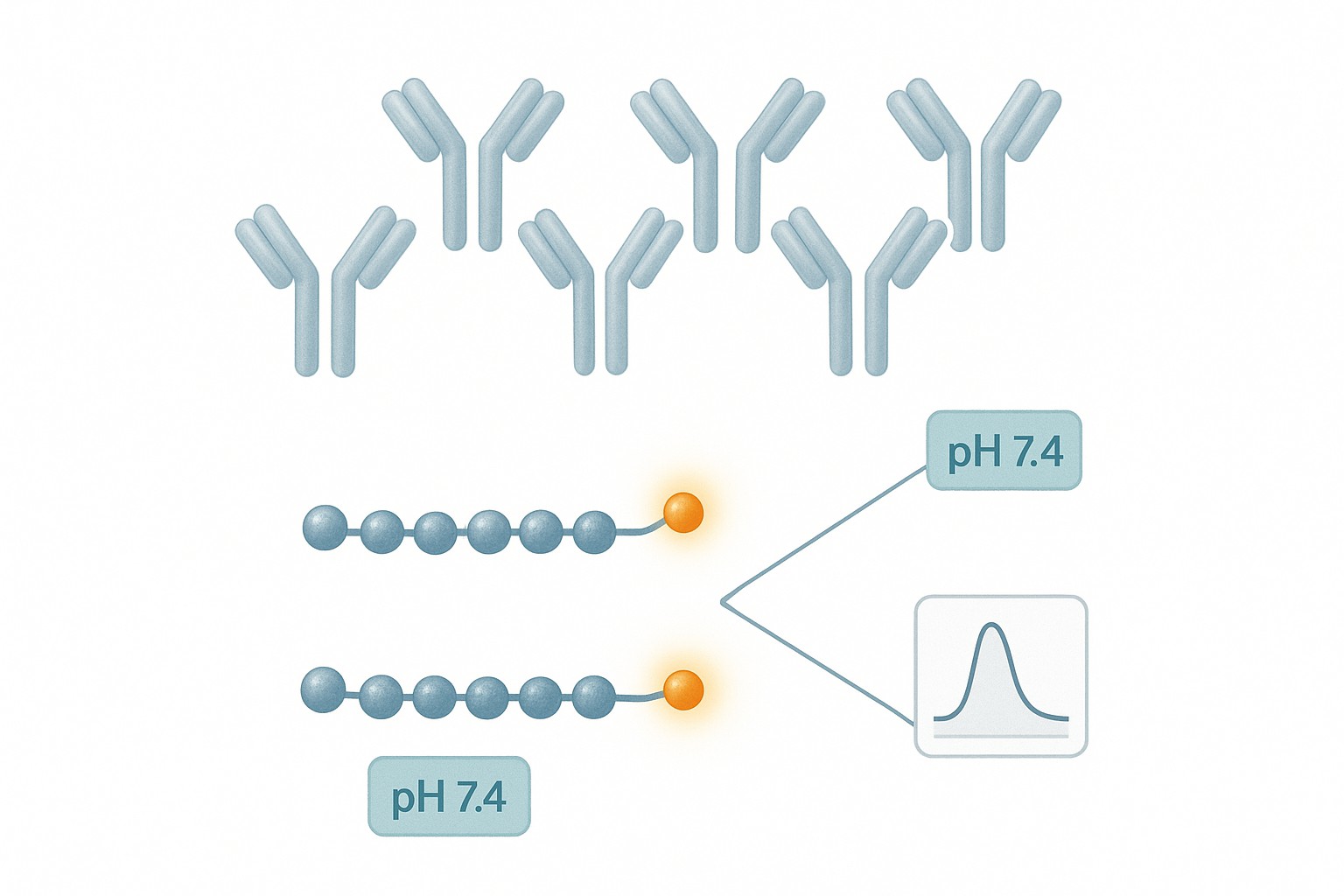

Figure 1. A fluorescence-based antibody–peptide binding study becomes interpretable only when peptide design, antibody comparison, control strategy, and environmental conditions are structured around a clear question.

Introduction

A fluorescent peptide can make antibody–peptide binding feel straightforward: mix peptide and antibody, measure a fluorescence readout, compare conditions.

The design challenge appears when the project is real:

• 7 monoclonal antibodies in a panel
• a fluorescent 15mer peptide
• two pH conditions (7.4 and 4.5)
• a control peptide included for comparison

In that situation, you’re not just “measuring fluorescence.” You’re running a fluorescence binding assay antibody peptide comparison, and the value comes from interpretability: can you attribute observed differences to antibody identity, pH, or peptide sequence without guessing?

This guide is written for consideration-stage teams who are already leaning toward fluorescence and need a practical study structure that supports a binding decision.

What fluorescence can reveal in antibody–peptide binding studies

What decision can fluorescence support in this system?

Fluorescence is most defensible when you’re making comparative, decision-support claims such as:

• which antibodies behave differently under identical conditions
• whether binding-related patterns change across pH
• whether the experimental peptide behaves differently from a control peptide

That’s often exactly what a panel-screening project needs.

Where fluorescence is useful for comparative binding questions

For labeled peptide tracers, fluorescence polarization (FP) and anisotropy are commonly used because binding to a larger species slows rotational diffusion and changes the polarization signal.

A classic example is the use of a fluorescein-labeled peptide to determine affinity constants for a monoclonal antibody–peptide interaction under equilibrium conditions by FP (Jiskoot et al., 1991; Analytical Biochemistry). The key point for study design is not the specific system—it’s that FP-style approaches can support interpretable, quantitative comparisons when the experiment is scoped around equilibrium and controls.

What signal changes may reflect in a labeled peptide system

A signal change may be consistent with binding. It may also reflect:

• label microenvironment changes (quenching, polarity, proximity effects)
• peptide self-association or adsorption that shifts the effective free tracer population
• pH-driven fluorophore behavior

So the question to keep asking is: what did we change, and what did we hold constant?

Why fluorescence is strongest as a comparison framework, not a stand-alone binding truth

A fluorescence readout is an observable interpreted through a model.

The practical way to keep your conclusions honest is to treat fluorescence as a method that supports comparative inferences (“A differs from B under controlled constraints”) and to reserve absolute claims (definitive specificity, true affinity, mechanism) for designs that include controls and, when needed, orthogonal checks.

Start with the biological question before designing the assay

What decision must the study support?

Choose one primary decision and build the study to protect it.

• Ranking decision: Which antibody shows the strongest comparative interaction signature?
• Condition sensitivity decision: How does the interaction pattern change from pH 7.4 to 4.5?
• Sequence decision: Does the experimental peptide separate from a control peptide in a way that matches the hypothesis?

Pollard’s guidance in A guide to simple and informative binding assays captures the mindset: simple designs that isolate variables tend to produce more useful binding conclusions than complex designs that are hard to analyze cleanly.

Are you comparing antibodies, conditions, or both?

Be explicit:

• If the main comparison is between antibodies, keep the peptide system and measurement settings constant.
• If the main comparison is between pH conditions, keep concentration logic constant and treat matched controls as mandatory.

Why one assay shouldn’t be expected to answer everything

A single fluorescence experiment rarely answers ranking, specificity, and mechanism with equal strength.

If you need a “one-run answer,” prioritize your decision. Then decide what you can realistically claim from fluorescence alone and what must be framed as a follow-up question.

The key experimental elements in a fluorescence antibody peptide binding study

Peptide identity, sequence, and fluorescent labeling strategy (fluorescent peptide binding study design)

Your peptide is both ligand and reporter. Before you measure anything, specify:

• sequence, length, and modifications
• label placement (N vs C terminus) and any linker/spacer
• whether unlabeled peptide is available for displacement/competition

One design risk to address early: fluorescent labeling can perturb measured peptide–protein affinity and selectivity, sometimes by >10×. A 2024 study highlights why adding displacement/competition with unlabeled peptide strengthens interpretation (J. Phys. Chem. Lett. 2024).

Antibody panel design and comparison structure

If you have seven monoclonals, “panel discipline” matters:

• standardize what “same condition” means (buffer, incubation time, measurement settings)
• decide whether you need a reference antibody for benchmarking
• decide what counts as a meaningful difference (rank ordering, pH sensitivity, separation from control)

Condition logic: pH, buffer, and comparison consistency (pH dependent antibody peptide binding fluorescence)

A pH shift can alter protonation states, peptide solubility, and fluorescence behavior.

If you want pH 7.4 vs 4.5 to be interpretable, avoid coupling pH changes with other untracked changes (buffer species, ionic strength, tracer concentration). If you must change multiple elements, do it knowingly and describe it as a multi-variable comparison.

Sample concentration planning and ratio logic

Concentration planning is where binding studies often become ambiguous.

General binding-assay principles help: keep one partner low and fixed when possible, and titrate the other to generate a curve with a clear transition (Pollard). For FP assays specifically, Moerke’s protocol overview is a useful reference for how direct versus competition formats affect what you can conclude (Current Protocols, 2009).

Why control peptides are essential in a control peptide fluorescence binding assay

What question is the control peptide supposed to answer?

A control peptide is only useful if it maps to an interpretive question.

Common questions include:

• Is the pattern sequence-linked or generic?
• Does pH shift the control and experimental peptides in the same direction?
• Do multiple antibodies show similar “binding-like” changes on the control peptide (background warning)?

Negative controls and related-sequence controls do different jobs

• Negative control (scrambled/non-binding): flags generic signal behavior.
• Related-sequence control: tests sequence sensitivity and helps interpret partial binding patterns.

If you can only include one, choose the control that targets your main uncertainty.

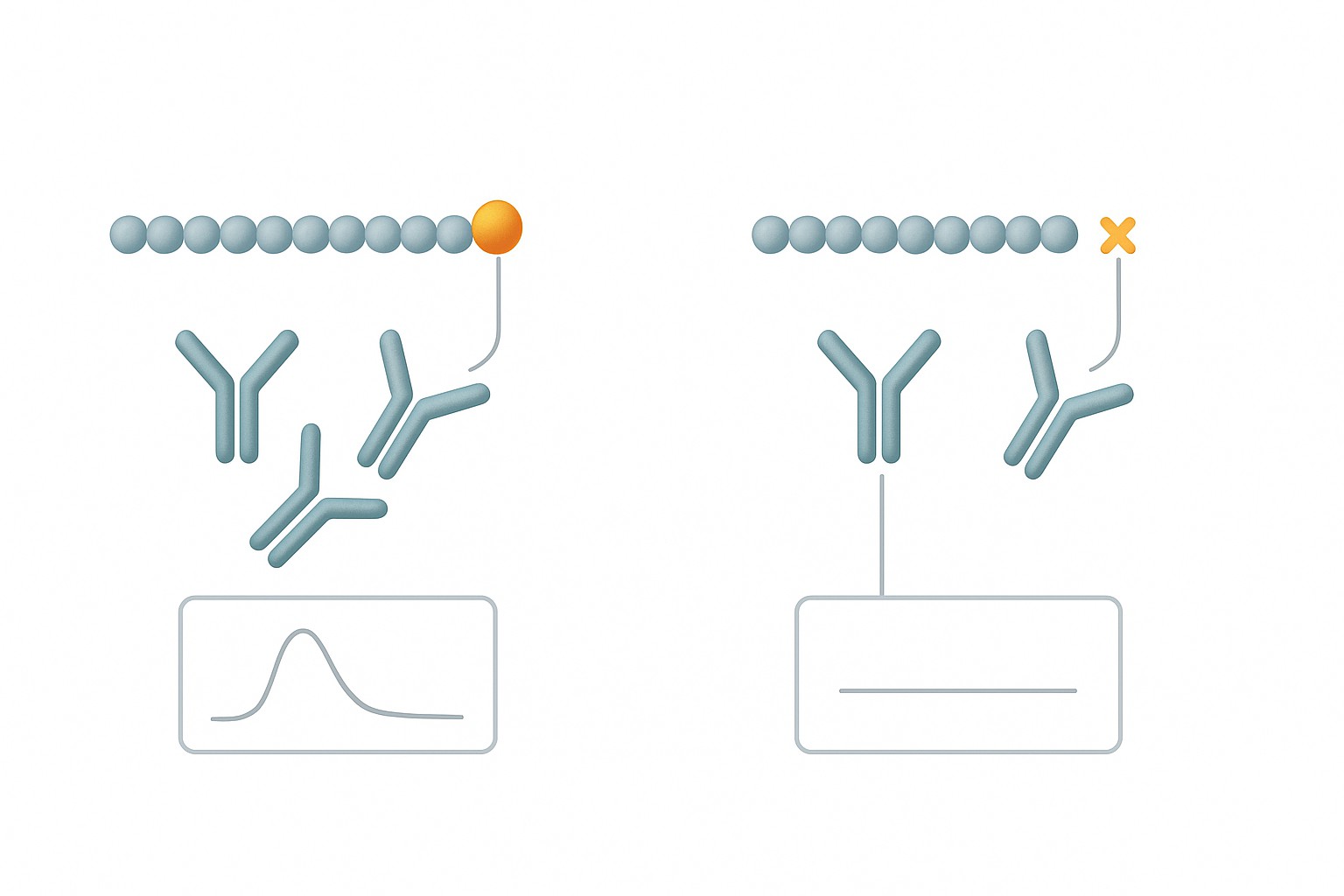

Figure 2. In fluorescence-based antibody–peptide studies, control peptides help separate sequence-specific interaction patterns from generic signal changes or assay background.

If your study compares multiple antibodies, pH conditions, or peptide variants, share your peptide design, control logic, and comparison goal with our team so the fluorescence study can be structured around a clear question.

How to compare multiple monoclonal antibodies without losing interpretability

Keep peptide conditions fixed when the main comparison is between antibodies

If the goal is antibody-to-antibody comparison, standardize aggressively:

• same peptide system and concentration
• same buffer at each pH
• same measurement settings

Decide whether the study is about ranking or mechanistic distinction

Ranking is usually achievable with fluorescence. Mechanistic claims are possible in some cases, but they often require more than a single fluorescence readout to be convincing.

A 7-antibody comparison needs a structure, not just a sample list

A practical structure:

• one standardized run plan at pH 7.4 for all antibodies
• the matched run plan at pH 4.5
• the same control peptide logic in both pH conditions
• a pre-defined rule for what “meaningful separation” looks like

How pH can reshape fluorescence-based binding interpretation

Why pH 7.4 vs 4.5 can be biologically meaningful

Even in in vitro comparisons, pH can expose condition sensitivity that matters to how the system behaves outside “neutral buffer” assumptions.

A pH shift can affect both binding and fluorescence behavior

pH can change the interaction and it can change the readout.

A practical reminder comes from antibody–antigen work showing meaningful pH dependence across neutral and acidic environments, reinforcing why it’s risky to extrapolate acidic behavior from neutral-only measurements (mAbs 2013, PMC3896599).

Why matched controls become even more important across pH conditions

Matched controls help you distinguish:

• environment-dependent signal shifts (peptide/label behavior)
• binding-linked shifts (pattern separates from control)

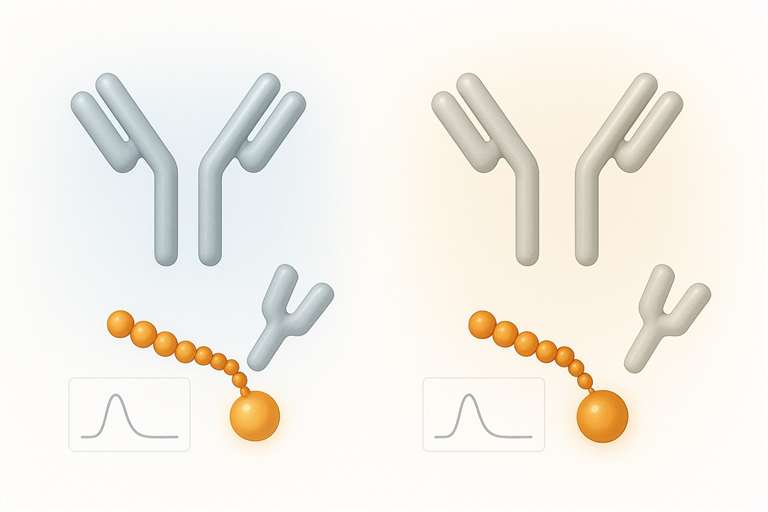

Figure 3. In antibody–peptide fluorescence studies, pH changes can influence both interaction behavior and fluorescence output, making matched controls essential for interpretation.

What to avoid when designing neutral-vs-acidic comparisons

• changing buffer species and pH simultaneously without acknowledging the design trade-off
• interpreting intensity shifts as binding changes without a control peptide pattern to support it
• mixing concentration regimes across pH

What data you can realistically expect from an antibody–peptide fluorescence study

Emission-based comparison between antibodies or conditions

Fluorescence readouts can support:

• comparative ranking under matched conditions
• within-antibody shifts across pH
• main peptide versus control peptide separation patterns

Comparative interpretation versus absolute binding claims

A safe result statement often looks like:

• “Under matched assay conditions, antibody A shows a larger response than antibodies B–G, while the control peptide remains flat.”

A risky statement is:

• “This proves antibody A binds specifically,”

unless you’ve included competition or other controls that earn that conclusion.

What fluorescence alone cannot establish with full certainty

Fluorescence alone may not establish:

• definitive specificity without competition/control logic
• true affinity values if labeling perturbs binding
• binding mechanism without additional evidence

That’s why it’s useful to design displacement/competition into the plan when the conclusion has to carry more weight.

How to describe your antibody–peptide project clearly when requesting support

What’s the minimum information needed to scope an interpretable antibody peptide interaction fluorescence study?

Provide the system as a structured comparison.

Start with the peptide: sequence/length, label placement/linker, and whether unlabeled peptide is available.
Then the antibody panel: list, formats, and the decision goal (ranking vs pH sensitivity vs specificity).
Then controls and conditions: control peptide choice, pH plan, and what output would be considered “decision-ready.”

Before submitting your inquiry, clarify:

• peptide identity and labeling information
• number of antibodies and comparison goal
• control peptide design and purpose
• pH conditions and what stays constant across pH
• intended readout and decision threshold
• concentrations and replicates (if known)

Common mistakes in fluorescence antibody–peptide binding requests

• No meaningful control peptide: the design can’t separate background behavior from sequence-linked behavior.
• Changing too many variables at once: you get data without inference.
• Treating signal change as confirmed specific binding: control and competition logic are what make that conclusion defensible.

FAQ

Conclusion

A useful fluorescence antibody–peptide binding study is defined less by “having a fluorescent peptide” and more by the clarity of its comparison framework.

When you predefine the decision, structure controls to protect that decision, and treat pH as an interpretive variable (not a buffer detail), fluorescence data becomes decision-support data.

Planning an antibody–peptide fluorescence interaction study? Send us your peptide details, antibody panel, pH conditions, and control design for a preliminary feasibility discussion.
