DLS and Zeta Potential Analysis: Why Many Nanoparticle Projects Need Both

Many teams know they need particle-size data. The surprise comes later: two dispersions that look similar by size can behave very differently once you change buffer, add a stabilizer, dilute into water, or move between formulation steps.

So the practical question is not “Should we run DLS or zeta potential?” It is this:

We already plan to measure nanoparticle size. Do we also need surface-charge context to make the size result interpretable for the decision we’re trying to make?

Key takeaways

• DLS and zeta potential are complementary: DLS describes hydrodynamic behavior (size and dispersity trends in the dispersant), while zeta potential adds electrostatic context that often explains dispersion tendencies.
• DLS alone is often a solid screen, especially for early-stage sizing, trend comparisons, and time-course checks.
• Zeta potential becomes decision-critical when dispersion behavior is charge-sensitive (polymer nanoparticles, mixed-material systems, salt/pH changes, adsorption/corona effects).
• A paired dataset is still not the finish line for non-spherical, heterogeneous, or multimodal systems; orthogonal methods may be required to confirm morphology or resolve populations.

The real question is not which method is better, but what does each measurement add?

Teams sometimes treat nanoparticle size and surface charge as interchangeable “stability” proxies. They are not.

One reason the distinction matters is that each readout is answering a different project-stage question:

• DLS asks: What hydrodynamic size distribution do the particles present in this medium right now, and is that distribution shifting over time or across conditions?
• Zeta potential asks: What electrostatic environment do the particles present at the slipping plane in this medium, and does that help explain attraction, repulsion, adsorption, or flocculation tendencies?

A cautionary review in the Journal of Controlled Release (“DLS and zeta potential – what they are and what they are not? (2016)”) makes the same core point: both methods are widely used, widely misread, and most informative when interpreted together rather than as competing alternatives.

Why particle size and surface charge are different analytical questions

Hydrodynamic diameter and zeta potential are both “in-liquid” measurements, but they are sensitive to different parts of the system.

• Size from DLS is a transport result. You are inferring a hydrodynamic diameter from diffusion behavior. That means it can shift with solvation layers, soft coronas, and changes in viscosity.
• Zeta potential is an interfacial result. You are characterizing electrokinetic behavior at the slipping plane, which is sensitive to pH, ionic composition, and what is adsorbed at the surface.

In other words, DLS tells you what is there in terms of hydrodynamic size and dispersity. Zeta potential helps explain how that population is likely to interact in the medium you care about.

Why many projects become under-interpreted when only one is measured

Single-readout packages can fail in predictable ways:

• Same size, different behavior. Two samples can share a similar Z-average and still diverge in stability tendencies after a salt change, excipient swap, or dilution step.
• Same zeta potential, hidden heterogeneity. A single zeta potential value may not reveal a small but impactful aggregate population that dominates light scattering and drives batch-to-batch risk.
• Interpretation becomes argument, not evidence. Without both size and charge context, teams often end up guessing which variable is driving a change.

A useful mental model is: size describes the “inventory,” charge helps describe the “interaction rules.”

What DLS tells you well and what it does not tell you

DLS is a high-throughput, low-friction way to screen dispersions and detect shifts. Used with care, it can answer many early-stage questions.

Hydrodynamic diameter, PDI, and broad distribution trends

In most nanoparticle characterization by DLS and zeta potential workflows, DLS contributes three decision-relevant signals:

• Hydrodynamic diameter (often reported as Z-average): a compact summary of how the ensemble diffuses in the dispersant.
• PDI: a quick read on dispersity and heterogeneity.
• Trend direction: whether the distribution shifts, broadens, or develops an apparent shoulder after a condition change.

Where DLS is especially useful is comparative work: “Sample A vs Sample B,” “Day 0 vs Day 7,” “buffer X vs buffer Y.” For early formulation, that often maps to the decisions people need.

Why DLS alone may still leave stability or dispersion questions unresolved

DLS is not a direct measure of “stability.” It is a measure of size-in-medium. Instability can show up as size growth and PDI drift, but the mechanism is not always clear.

Two limitations matter in a decision guide:

1. Intensity-weighting can hide smaller populations and over-emphasize larger ones. A perspective on particle characterization in solution (“Characterisation of particles in solution – a perspective on light scattering and nanoparticle tracking analysis (2018)”) emphasizes that scattered intensity scales strongly with particle size. Later mentions refer to this source without repeating the link.
2. Non-spherical and multimodal systems are hard to summarize with a single diameter. Rod-shaped particles, mixtures, and broad distributions often yield outputs that are directionally useful but easy to over-interpret.

That is why hydrodynamic diameter and zeta potential are often paired. When size drifts, charge context can help determine whether the change is consistent with electrostatic screening, adsorption, or surface modification.

What zeta potential adds to nanoparticle and colloidal interpretation

Zeta potential is often requested when the team’s real question is about dispersion behavior. It does not replace size information; it gives you a second axis.

Why surface charge helps explain dispersion and interaction behavior

Zeta potential can support interpretation in at least four common situations:

• Formulation comparisons where ionic strength, pH, or excipients differ.
• Surface-modified particles where the same core size is expected, but surface chemistry changes.
• Adsorption or corona effects where proteins, polymers, or ligands change the interfacial environment.
• Mixed-material systems where interaction rules are not obvious from size alone.

An illustrative example from the Journal of Colloid and Interface Science (“Dynamic light scattering and zeta potential of colloidal mixtures of amelogenin and hydroxyapatite (2011)”) shows why pairing helps: size changes (aggregation, adsorption, flocculation) can be interpreted alongside zeta-potential shifts that reflect surface coverage and interfacial changes. The paper also highlights an important caveat: ion-specific effects and pH can drive behavior that simple rules-of-thumb miss.

Why zeta potential is especially useful for charge-sensitive systems

Zeta potential tends to be most informative when electrostatics are an explicit variable in your system.

Examples that frequently benefit from nanoparticle size and surface charge data together:

• Polymer nanoparticles and polyelectrolyte complexes, where pH and ionic strength can reshape the interface.
• Organic/inorganic particles where specific ion adsorption and surface chemistry can drive flocculation even when mean size looks acceptable.
• Biological assemblies in suspension, where adsorption layers can modify the slipping plane.
• Salt-sensitive formulations, especially if the project includes dilution into different buffers.

For these projects, particle size and zeta potential become a paired interpretive unit. Measuring one without the other is often what turns a clean dataset into an ambiguous one.

Why many nanoparticle projects should scope DLS and zeta potential together

If your workflow includes dispersion behavior as a decision variable, scoping both readouts from the beginning reduces rework.

Size tells you what is there; charge often helps explain how it behaves

DLS is good at detecting “something changed.” Zeta potential can help explain “why it changed” in a way that connects to practical levers (pH, ionic strength, excipients, surface modification).

This is the difference between:

• “Size increased after buffer exchange.”

and

• “Size increased after buffer exchange, and zeta potential magnitude decreased under the new ionic environment, consistent with screened electrostatic repulsion and increased aggregation tendency.”

For teams evaluating whether a nanoparticle or colloidal formulation should be characterized by both hydrodynamic diameter and surface charge, a practical starting point is this DLS services overview.

Typical project types where combined measurement is more informative

Combined DLS and zeta potential measurements are often a better default for:

• polymer nanoparticle size distribution and surface charge comparisons across formulation iterations
• aptamer- or nucleic-acid-containing systems where surface-sensitive interactions matter
• VLP or capsid-like particles where dispersity and charge can shift during purification or buffer exchange
• inorganic nanoparticles where ionic environment drives rapid behavior changes
• peptide or protein assemblies where adsorption layers can move the slipping plane

In these cases, requesting both up front is less about adding a “nice-to-have” metric and more about ensuring the dataset supports interpretation.

Situations where DLS alone may still be enough

There are many workflows where DLS-only is a reasonable scope, especially early in a project.

First-pass size screening and trend comparison workflows

DLS-only can be fit-for-purpose when you need:

• a quick size screen across many samples
• time-course tracking to flag obvious aggregation
• comparative shifts between formulations where the medium is held constant
• triage decisions (which candidates move forward)

In those cases, zeta potential may be deferred until a formulation is selected or until an instability signal appears.

When the project question is primarily dimensional, not colloidal

If your decision is mainly dimensional (for example, confirming a narrow size band after a process change) and dispersion behavior is not a current decision variable, size trends may be the right first answer.

A practical marker is the interpretation goal: if you can make a “go/no-go” call from hydrodynamic size and PDI alone, adding zeta potential may not change the decision.

Situations where DLS plus zeta potential still may not be enough

A paired dataset can still be underpowered for certain particle systems.

Non-spherical, highly heterogeneous, or morphology-dependent systems

Rod-shaped particles, mixed populations, or strongly anisotropic systems often require additional context because:

• DLS compresses complex morphology into an apparent hydrodynamic diameter.
• A single zeta potential value can mask population-level differences.

The same 2018 perspective on particle characterization in solution (Journal of Pharmacy and Pharmacology, 2018) emphasizes that ensemble methods can be misleading when samples are polydisperse or non-spherical, and that complementary techniques are often needed.

When orthogonal characterization is still needed

If the project depends on resolving subpopulations or confirming morphology, consider orthogonal follow-up such as:

• microscopy (TEM/cryo-EM/SEM/AFM) to confirm morphology and aggregation state
• particle tracking analysis (NTA) to better resolve multimodal distributions and provide number-based context
• separation-coupled methods (for example, field-flow fractionation with detectors) when mixed populations are expected

A recent review on DLS for nanoparticle aggregation dynamics (“Dynamic Light Scattering and Its Application to Control Nanoparticle Aggregation Dynamics (2024)”) also stresses cross-verification: DLS is valuable for screening and kinetics, but complex samples benefit from microscopy or other complementary tools.

Real inquiry patterns that show why both readouts are often requested together

The following scenarios are composites based on common inquiry patterns.

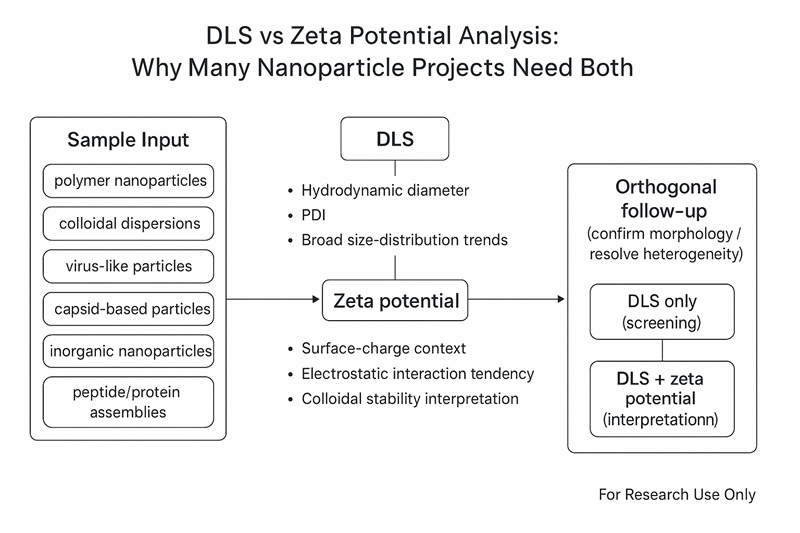

A practical decision framework: DLS alone, DLS plus zeta potential, or more?

The goal is a scope that matches your decision.

DLS-only scenarios

Choose DLS-only when:

• you are doing early candidate screening
• the dispersant is consistent across samples (same buffer, ionic strength, pH)
• your acceptance criteria are dimensional (size band and PDI)
• you mainly need trend direction (stable vs drifting)

In these cases, DLS and zeta potential are not “competing.” You are simply choosing the minimum dataset that supports the decision.

Combined DLS + zeta-potential scenarios

Scope both when:

• you expect salt, pH, or excipient differences to matter
• the system is polymeric, mixed-material, or surface-modified
• you need to interpret dispersion behavior, not just dimension
• you anticipate adsorption layers, ligand changes, or corona formation

When surface-charge context is part of the story, particle size and zeta potential together reduce ambiguity and help teams converge on a mechanism faster.

For many nanoparticle and colloidal systems, particle size and surface charge should be interpreted together, because DLS and zeta potential answer related but different questions.

Escalate beyond both when interpretation depends on morphology or population resolution

Move to orthogonal follow-up when:

• the sample is non-spherical (rods, filaments, anisotropic assemblies)
• the distribution appears multimodal or strongly heterogeneous
• small aggregate populations have outsized decision risk
• you need to confirm whether size changes are real particles vs transient clusters

In those cases, DLS vs zeta potential analysis is not the end of the workflow. It is the starting dataset that tells you what to confirm next.

How to scope a DLS and zeta potential project before requesting a quote

A small amount of upfront detail is what prevents incomplete testing.

Key details that determine whether both measurements should be included

Before you scope particle size and zeta potential, clarify:

• sample type (polymer NP, inorganic NP, VLP/capsid-like, protein/peptide assembly)
• expected size range and whether you expect mixed populations
• dispersant composition (buffer, ionic strength, additives) and whether it will change between conditions
• pH window of interest
• concentration range and any dilution steps
• number of samples and whether you need time-course monitoring

Why defining the interpretation goal helps avoid incomplete testing

A useful scoping prompt is: What decision will the dataset support?

• If you only need “Is it roughly the right size?” DLS may be enough.
• If you need “Will this dispersion behave consistently across buffers, excipients, or steps?” include zeta potential.
• If you need “What populations are present, and what morphology do they have?” plan orthogonal follow-up.

When the project involves nanoparticle dispersion behavior, colloidal stability interpretation, or charge-sensitive formulation performance, this DLS services overview can help frame whether a combined DLS and zeta-potential workflow is appropriate.

Conclusion

DLS and zeta potential should not be treated as competing methods. For many nanoparticle and colloidal projects, they are paired decision tools: DLS provides hydrodynamic size and dispersity trends, while zeta potential provides surface-charge context that often makes those trends interpretable.

The practical rule is simple. If your decision depends on dispersion behavior across conditions, plan both. If your decision depends on morphology or population resolution, plan for orthogonal methods as well.
