Mitigating Matrix Effects and Carryover in CSF/Plasma IP‑MS Workflows (LC‑MS/MS)

Creative Proteomics Team — LC‑MS/IP‑MS method development and verification specialists. Creative Proteomics is a contract research organization providing proteomics and LC‑MS/MS services for academic and industry biomarker quantitation and method development. The team combines over ten years of hands‑on experience in targeted PRM/MRM workflows, immunoaffinity enrichment, and bioanalytical QC. Learn more: https://www.creative-proteomics.com/proteomics/

You can't eliminate matrix effects in LC‑MS—you can only measure, control, and document them. In CSF/plasma immunoprecipitation workflows, matrix effects and carryover often masquerade as each other, derailing PRM/MRM verification just when timelines are tight. This guide distills lab‑tested diagnostics, design choices, and maintenance habits so your team can separate true ion suppression from residual analyte, cut false positives, and produce audit‑ready runs.

Key takeaways

• Bold distinction, fewer misdiagnoses. Matrix suppression/enhancement is an ionization phenomenon that's retention‑time specific; carryover is physical residue in the injection flow path. Treat them with different tests and fixes to avoid chasing ghosts.
• Diagnostics first, changes second. Use post‑column infusion to map suppression windows and high→blank sequencing to quantify carryover before changing gradients, columns, or wash programs. Adjust only what the evidence points to.
• Cleanup is a trade‑off. Immunoprecipitation (IP) boosts selectivity; solid‑phase extraction (SPE) boosts cleanliness. Combining them improves robustness—especially in plasma—but adds time and cost. Decide based on risk tolerance and observed suppression.
• Institutionalize prevention. Autosampler hygiene, column cleanup segments, and a steady maintenance cadence prevent recurrence. Document carryover flags, matrix factor notes, and IS‑normalized variability so peers (and reviewers) can trust your data.

CSF and plasma contain abundant proteins, salts, phospholipids, lipoproteins, and endogenous peptides. Even after IP, co‑eluting components distort electrospray ionization, driving matrix effects that vary across retention time. Tutorial and clinical LC‑MS reviews emphasize that you can't "fix” matrix effects outright; instead, you mitigate via chromatographic separation, smarter cleanup, and internal standards, then document what remains according to academic best practices. See the pragmatic overview in the tutorial on strategies to overcome matrix effects in LC‑MS techniques (Cortese, 2020) and a clinical LC‑MS/MS practice overview (Thomas, 2022) highlighting internal standard use and rigorous blanks.

According to Cortese's 2020 tutorial review, thoughtful use of internal standards, post‑extraction spikes, and chromatographic changes can localize and reduce suppression. Thomas's overview likewise underscores routine QC and blanks to monitor residual effects.

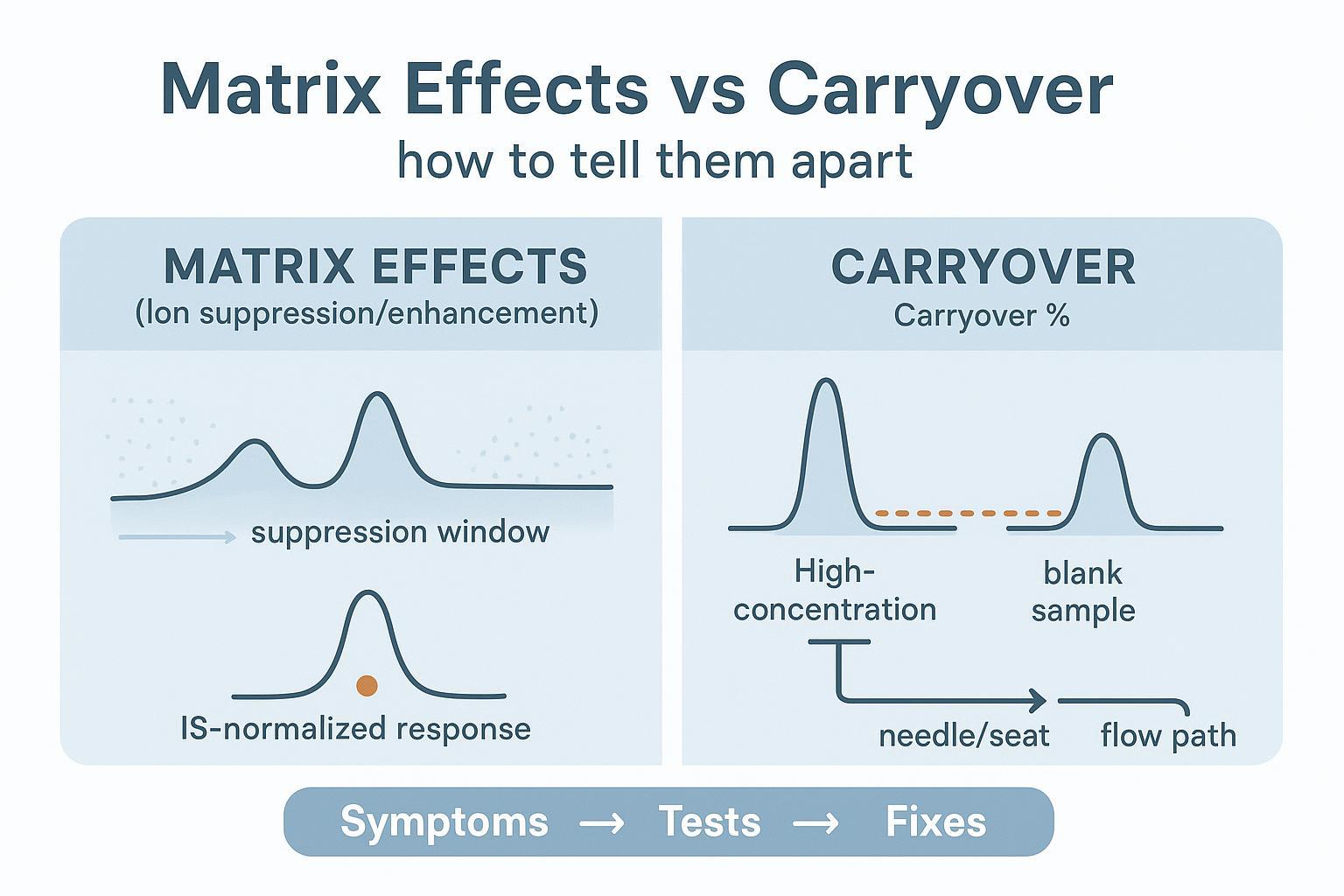

Define the Two Failure Modes: Matrix Suppression vs Carryover

Matrix suppression/enhancement reduces or amplifies signal in specific retention‑time windows because co‑eluting matrix alters ionization efficiency. Carryover leaves residual analyte in the injection path or on the column, producing false peaks in blanks right after high samples. Clear separation of these failure modes prevents circular troubleshooting.

Symptoms you'll notice: drifting response or non‑linear calibration in certain RT zones points to matrix effects; blank peaks at analyte RT after a high sample point to carryover. Diagnostics that work: use post‑column infusion (PCI) or post‑extraction spikes to map suppression windows for matrix effects; run high→blank challenges, escalate needle/seat/port washes, and isolate components (needle seat, rotor seal, loop, tubing) for carryover. For method background and practical steps, see post‑column infusion methodology guidance (Dubbelman, 2024) and a carryover troubleshooting case study on neuropeptide Y (Yamagaki, 2020) demonstrating component‑specific sources of carryover.

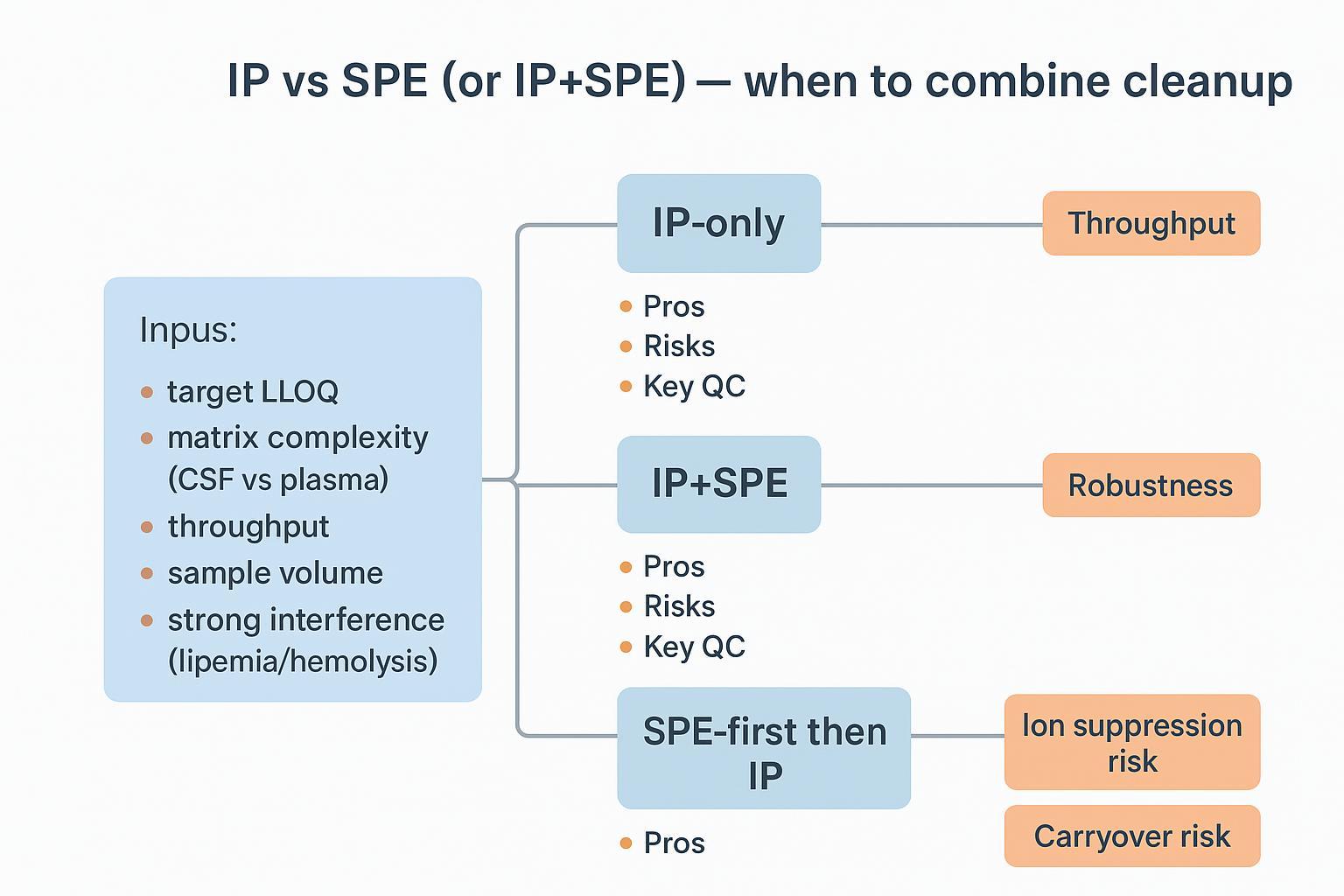

Decision Framework: When to Use Streamlined IP vs Add SPE

IP improves selectivity by binding the target; SPE removes broad classes of matrix components to reduce suppression. The right choice depends on observed suppression windows, matrix burden (plasma typically heavier than CSF), throughput needs, and risk tolerance. Some protein biomarker workflows use IP→digest→SPE specifically to cut phospholipids/salts while retaining target peptides.

Think of it this way: let PCIS results and blank behavior drive the decision. If your target elutes in a suppression window or blanks trend dirtier over time, IP alone may be insufficient; add SPE post‑digest or adjust chemistry. If PCIS maps are clean near the analyte RT and blanks are consistently clean, a streamlined IP can maximize throughput. Representative workflow and rationale can be found in immunoaffinity LC‑MS/MS biomarker quantification overviews (Neubert, 2020) and recent IP‑UPLC‑MS/MS applications.

SPE vs IP Cleanup—How Each Changes Matrix Suppression

SPE removes contaminants by physicochemical interactions (RP, HILIC, ion‑exchange, mixed‑mode), notably phospholipids that drive suppression in plasma. IP enriches the target but can co‑elute binders, detergents, or leachables. In practice, IP+SPE increases robustness when suppression persists near the analyte RT.

What to monitor so the comparison is actionable:

• Phospholipid burden: many labs track class‑representative MRM transitions for PCs/LPCs to gauge cleanup effectiveness; these markers correlate with suppression risk where they co‑elute. Vendor application notes and lipidomics reviews outline practical monitoring approaches and example transitions, such as Agilent's note on phospholipids as key interferences and Waters' SPE protocols for phospholipid removal.
• Background ions: track TIC/BPC in PCIS‑identified suppression windows; trend IS‑normalized response factors across batches to see whether cleanup stabilizes ionization. For PCI setup and interpretation, see Dubbelman, 2024.

Helpful overviews include lipidomics HRMS summaries covering MRM scheduling for phospholipids.

Designing Blanks the Right Way (So They Actually Diagnose Problems)

Not all blanks answer the same question. Use deliberate blank types and sequence placement to pinpoint the source: solvent blanks isolate system carryover/background; extraction blanks reveal extraction‑borne contaminants; process blanks cover full workflow contamination; IP reagent blanks flag detergents/leachables/antibody fragments. Place high→blank checks immediately after challenging samples to quantify carryover susceptibility.

Academic QC overviews and proteomics‑scale QC frameworks recommend mixing these blanks throughout the sequence to discriminate system vs matrix vs workflow issues and to track cleanliness over time. See Patterson's proteomics QC sequencing guidance (2023) for sequence‑level QC design, and the clinical LC‑MS/MS overview (Thomas, 2022) for practical blank usage in routine bioanalysis.

Wash Programs That Reduce Carryover Without Killing Throughput

Effective autosampler wash design uses both weak and strong washes. A weak wash akin to initial mobile phase avoids chromatographic shock; a strong wash (e.g., ACN/MeOH/IPA combinations) solubilizes sticky residues. Avoid salts in wash reservoirs. Schedule short default washes per injection and trigger extended, stronger washes after high‑concentration or "sticky” samples (lipid‑rich plasma, hydrophobic peptides). Practical wash‑sequence examples and reservoir guidance are detailed in vendor documents such as Agilent's InfinityLab best‑practice manual and Waters' needle wash optimization note.

Autosampler and Injection Path: The Most Common Carryover Culprit

Most true carryover originates in the injection path. Verify via a high→blank sequence (add multiple blanks if needed) and trend the decay. Then isolate components logically: inspect and backflush the needle/seat; clean or replace rotor seals; flush or replace the sample loop and short lengths of tubing with known unswept volumes. Preventive measures—fresh LC/MS‑grade solvents, regular seal wash routines, inline filters/guards, and scheduled component checks—dramatically reduce recurrence.

For stepwise isolation and maintenance procedures, consult vendor knowledge bases: backflushing the needle and seat without Lab Advisor (Agilent) and cleaning or changing the autosampler rotor seal (Agilent), plus contamination minimization tips from SCIEX.

Column and Gradient Factors That Look Like Carryover (But Aren't)

Late‑eluting junk, poor peak shape, or slow washout can mimic carryover. If apparent "carryover” vanishes after adding a high‑organic cleanup segment or replacing a fouled guard column, you likely had chromatographic memory rather than injection‑path residue. Incorporate periodic high‑organic flushes, maintain fresh salt‑free wash solvents, and monitor backpressure and peak shape drift to decide when to retire or deep‑clean a column. Guard columns are cheap insurance; replace them before artifacts creep in.

Representative application notes on sticky analytes show how gradient cleanup segments and guard columns resolve pseudo‑carryover without disrupting retention of target peptides; vendor best‑practice manuals (e.g., Agilent's) provide practical flush guidance.

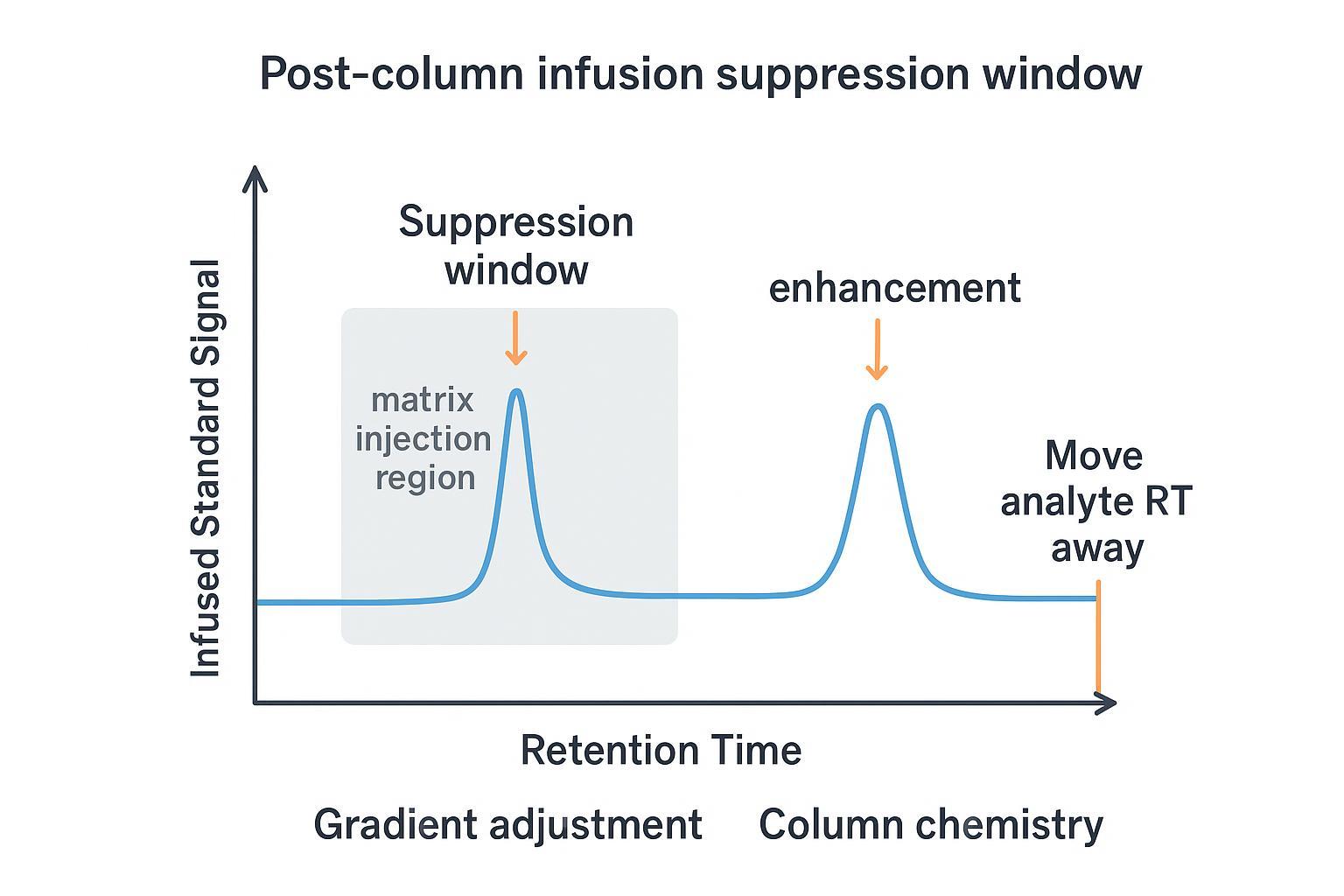

Post-Column Infusion Test to Map Suppression Windows

Post‑column infusion (PCI) is your map of where ionization falters. Infuse a standard post‑column at a low, steady rate while injecting a matrix extract through the LC. Dips in the infused signal indicate suppression, peaks suggest enhancement. Align these windows with your analyte RT and decide whether to shift RT via gradient tweaks, change column chemistry, or add cleanup. Only after chromatographic and sample‑prep optimization should you adjust source settings.

For reproducible PCI setups and analysis, see Dubbelman's 2024 guidance on post‑column infusion strategies and complementary discussions on using internal standards to quantify suppression trends, such as Fu, 2024.

Surrogate Matrix, Standard Addition, and Recovery—Picking the Right Quant Strategy

CSF scarcity often forces a surrogate matrix for bioanalysis. That's acceptable if calibrators behave like real CSF and lack interfering endogenous analyte. Buffers containing moderate protein (e.g., BSA) can reduce nonspecific binding and improve commutability; very low‑protein solutions risk binding losses. When endogenous background is uncertain, standard addition on representative samples can validate matrix‑matched calibration and confirm recoveries. Stable isotope internal standards remain the baseline for normalizing matrix and process variability.

Useful starting points include evaluations of CSF surrogate approaches for Aβ peptides (Oztug, 2024; Seino, 2021) and broader discussions of standard addition in quantitative LC‑MS practice (Ghafari, 2024).

For additional targeted LC‑MS/MS context around isotope‑labeled peptides and quantitative method design, see the quantitative LC‑MS/MS methods resource at Creative Proteomics.

Hemolysis and Lipemia: Build an Interference Study That Holds Up

Interference studies should be structured, documented, and reproducible rather than tied to fixed cutoffs. Build panels spanning graded hemoglobin and lipid content at low/mid/high analyte levels, plus non‑interfered controls. Record hemolysis/lipemia indices or equivalent descriptors per sample; archive chromatograms (and PCIS maps, if run) showing co‑elution or lack thereof; and interpret within your method's context. LC‑MS/MS often withstands lipemia/hemolysis better than immunoassays, but suppression does occur for particular analytes—use post‑extraction spikes and PCI to localize it. Clinical and pharmaceutical bioanalysis papers provide examples of interference panel design and documentation conventions you can adapt, such as Kolmer's plasma pemetrexed study (2021) and Turković's lipemic plasma suppression analysis (2023).

IP Reagents, Beads, and Antibody Choices That Increase Background

IP introduces unique background risks: keratins, trypsin autolysis peptides, blocking proteins (albumin/casein), plasticizers leaching from labware, and bead/antibody leachables. Mitigate by screening reagents, qualifying lots, and adopting low‑bind plastics. Consider stringency‑graded bead washes (higher salt/organic) with care to retain true binders, and log any changes to washing conditions alongside recovery metrics. Use an IP reagent blank in each batch so you can detect reagent‑borne signals before they confound results.

Community resources such as the CRAPome contaminant repository (Mellacheruvu, 2013) help anticipate common contaminants in affinity workflows; recent work details antifouling bead options (van Andel, 2022) and optimized co‑IP protocols (Lagundžin, 2022) to reduce nonspecific background.

A Practical Troubleshooting Playbook (Symptom → Test → Fix)

• Blank peak appears after a high sample → Inject a solvent blank immediately after the high sample. If a peak appears at the analyte RT, escalate needle/seat and port washes, then backflush and inspect the needle seat and rotor seal; if blanks clear, continue with an extended wash schedule at defined triggers.
• Signal drops mid‑run in a specific RT zone → Run PCI to map suppression; if the analyte RT sits in a suppression window, shift RT via gradient or column chemistry and consider adding SPE; clean the ion source only after chromatographic/sample‑prep changes are in place.
• Variable recovery across batches → Check bead/antibody lots and IP incubation conditions; run an IP reagent blank; verify digestion completeness and post‑digest cleanup; inspect IS‑normalized response trends across QCs.
• Random low‑level positives → Differentiate carryover from memory effects: inject multiple sequential blanks. If the signal decays monotonically, suspect injection‑path carryover; if sporadic, investigate reagent contamination, labware leachables, and late‑eluting junk; insert a gradient cleanup segment and refresh/replace the guard column.

For deeper background on each action, see the matrix‑effects tutorial (Cortese, 2020), the post‑column infusion methodology (Dubbelman, 2024), and vendor notes on isolating autosampler sources of carryover (needle seat, rotor seal, tubing) such as Agilent's needle/seat backflush guide.

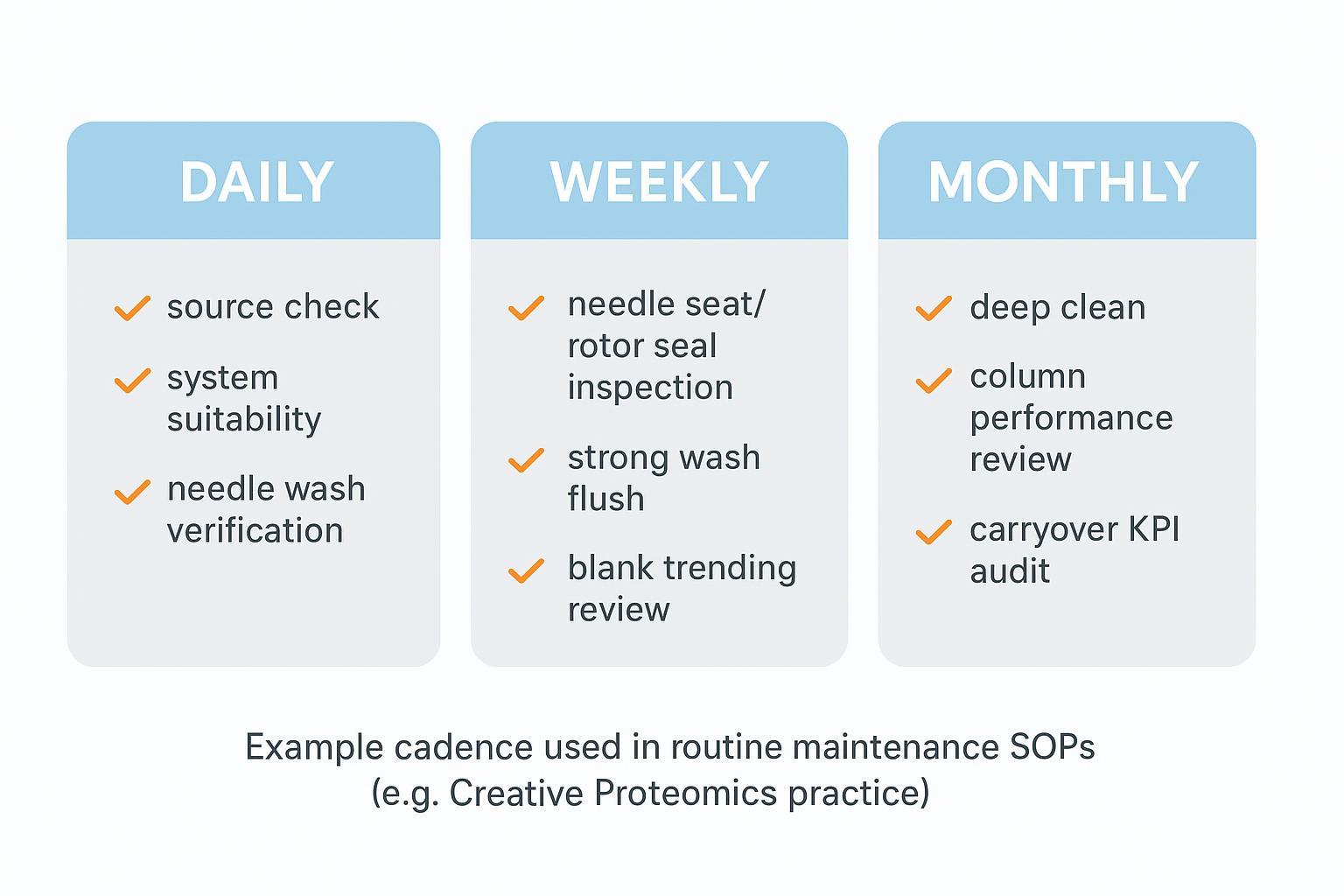

Maintenance SOP Cadence That Prevents Recurrence (Brand Integration)

Disclosure: Creative Proteomics is our product.

Preventive maintenance bakes cleanliness into the workflow. A pragmatic cadence many teams adopt looks like this: daily source checks and system suitability on a pooled QC; verify needle/seat wash execution; review prior run blanks. Weekly, inspect the needle seat and rotor seal, run a strong wash/flush sequence, review blank and IS trends, refresh aqueous mobile phases, and check guard column backpressure/peak shape. Monthly, deep‑clean the front end (spray cone/capillary per vendor procedures), run a high‑organic column flush, replace the guard column if peak shape drifts, and audit carryover flags and suppression window notes from the prior month.

Illustrative example: teams adopting a routine cadence similar to the one used in Creative Proteomics laboratory practice often align maintenance actions with batch outcomes (e.g., if blanks show emerging residue, trigger a seat backflush before the next batch). For a concrete IP‑MS workflow example and adaptable protocol notes (including Amyloid‑β absolute quantification), see the Creative Proteomics IP‑MS absolute quantification service overview.

QC Metrics and Documentation for Audit‑Ready Runs

Academic best practice prizes clarity over rigid numbers. Document, trend, and explain:

• Carryover flags in blanks after high samples, what action you took, and the retest outcome.
• Matrix‑factor notes via IS‑normalized comparisons between matrix‑matched QCs and neat; record suppression window observations from PCI.
• IS‑normalized variability across QCs over time; pair with RT and peak‑shape stability notes.
• Suppression window stability over weeks: maintain a small library of PCI maps for representative matrices and note gradient/column adjustments and their effects.

Micro‑example (internal practice): during a troubleshooting run, we log for each batch whether a post‑high blank exhibited an analyte‑like peak and whether extended washes cleared it. We also add a short note if PCI indicated suppression near the analyte RT and whether a gradient tweak shifted the RT away. This short narrative, plus IS‑trend plots, makes reviews fast and transparent.

For structured frameworks, see large‑scale proteomics QC guidance (Patterson, 2023) and "five easy metrics” for LC‑MS trend monitoring (Zhang, 2020). They emphasize flexible, fit‑for‑purpose documentation suited to academic verification.

Summary Checklist: "Before You Run" and "After You Run"

Before you run:

• Confirm the blank schedule and placements (solvent start/end; high→blank checks; extraction/process/IP reagent blanks aligned to suspected risks). Verify fresh, salt‑free wash solvents (weak ≈ initial mobile phase; strong = suitable ACN/MeOH/IPA mix). Ensure a healthy guard column and a gradient cleanup segment. Run a quick PCI with a matrix extract to verify suppression windows relative to analyte RT; adjust gradient or plan IP+SPE if overlap persists. Check IS baselines and RT on a pooled QC.

After you run:

• Review blanks and annotate any carryover flags plus actions and outcomes. Update PCI/suppression window notes if tested. Trend IS‑normalized responses and variability across QCs; inspect RT drift and peak shape. Log maintenance performed (washes, component inspections) and schedule the next cadence step.

Selected references for methods and rationale (readable starting points):

• Cortese, 2020: strategies to overcome matrix effects in LC‑MS — diagnostics (post‑extraction spikes, slope comparison) and mitigations.
• Dubbelman, 2024: post‑column infusion strategies — setup considerations and data interpretation.
• Yamagaki, 2020: carryover troubleshooting case study — isolating autosampler and path components.
• Agilent InfinityLab best practices and Waters needle wash optimization — wash design and carryover reduction.
• Patterson, 2023: proteomics QC frameworks and Zhang, 2020: five easy metrics — documentation and longitudinal trending.

If you'd like a neutral workflow review or a troubleshooting consult on your CSF/plasma IP‑MS, we're happy to help align diagnostics, cleanup, and documentation without changing your core method.
