Optimizing LiP‑MS Experimental Design: A Strategic Guide for Target Identification and MoA Validation

Limited proteolysis coupled to mass spectrometry (LiP‑MS) reads out ligand‑ or condition‑induced conformational changes across the proteome under near‑native conditions. This guide distills practical design choices—sample inputs, native‑state preservation, dose–response planning, and peptide‑to‑cut‑site analytics—so you can move from hypothesis to confident target lists and MoA validation. We emphasize how LiP‑MS differs from affinity/capture methods: it measures structural accessibility, not just physical binding or co‑purification, and can reveal allosteric impacts. Evidence is cited from peer‑reviewed and institutional sources only; service links are provided for navigation, not as scientific proof.

Key takeaways

• LiP‑MS is a native‑state, proteome‑wide structural readout that detects accessibility shifts at peptide resolution—complementary to affinity and expression‑centric approaches.
• Treat ~1×10^7 cells for common lines (e.g., HepG2) as a pragmatic starting guideline for depth and statistics; scale down with micro‑SOPs for precious inputs.
• Preserve conformation: favor in‑place compound treatment, rapid quenching/flash‑freezing, and shipping frozen pellets on dry ice to avoid buffer‑induced artifacts.
• Design gradients, not binaries: include multi‑dose series and fit potency‑style curves (e.g., pEC50) to prioritize primary targets over off‑targets.
• Analyze at the peptide and cut‑site levels with protein‑centric multiple‑testing control; require multi‑peptide evidence before elevating candidates.
• Plan for auditability: ≥3 replicates per condition, randomized processing, QC thresholds, and transparent handling of missing values.

The Strategic Rationale: Why LiP‑MS for Mechanism of Action

LiP‑MS measures how protease accessibility changes when a ligand binds or conditions shift, revealing localized structural rearrangements without tags or enrichment. That native‑state readout is precisely why it's powerful for MoA work.

Beyond affinity‑based proteomics

Affinity or capture methods (e.g., AP‑MS, bead‑based pulldowns) excel at detecting stable interactors, but they primarily reflect binding partnerships and can miss conformational effects or allostery in the absence of durable complexes. LiP‑MS instead tracks structural change signatures directly in complex lysates. Reviews outline this distinction clearly—LiP‑MS "tracks structural changes in complex proteomes" and complements expression‑centric measures, per the overview by Jiang and colleagues in 2024 in ACS Measurement Science Au. See the discussion in the comprehensive bottom‑up proteomics overview (Jiang et al., 2024, ACS Measurement Science Au).

Structural proteomics at the proteome‑wide scale

Structural proteomics methods (LiP‑MS among them) probe conformation and dynamics at scale, offering a fundamentally different lens than affinity isolation. For a survey of mass spectrometry approaches to structural interrogation and interaction profiling, see Kim et al.'s 2024 review on profiling protein interactions, which situates LiP‑MS within a broader toolkit for mapping structural effects in near‑native contexts.

Sample Input Requirements: Balancing Sensitivity and Depth

Getting inputs right determines how deep and confident your readouts will be. Because LiP‑MS relies on partial digestion under native conditions and peptide‑level quantification, the effective signal‑to‑noise improves with sufficient material and careful replicate design.

The 1×10^7 cells benchmark (with caveats)

For well‑characterized human cell lines like HepG2 or HeLa, ~1×10^7 cells per condition is a pragmatic guideline that typically supports high coverage, robust peptide statistics, and room for dose‑response gradients. Peer‑reviewed literature does not prescribe a single LiP‑MS‑specific count; treat this as best practice informed by deep proteome work and practical CRO experience. Always prioritize: (1) ≥3 replicates per condition, (2) consistent culture/harvest windows, and (3) randomized processing order to reduce batch effects.

Scaling for precious samples (primary cells, tissues)

When material is scarce—primary cells or small biopsies—scale down inputs by:

• Adopting miniaturized extraction and protease‑exposure SOPs.
• Using higher‑efficiency LC‑MS methods (e.g., DIA with optimized duty cycles).
• Pooling multiple small replicates to meet minimum peptide yield while keeping biological variation evident.
• Tightening QC thresholds and leaning on peptide→cut‑site aggregation to stabilize statistics.

Below is a quick‑reference matrix to align sample types with starting material and handling strategies.

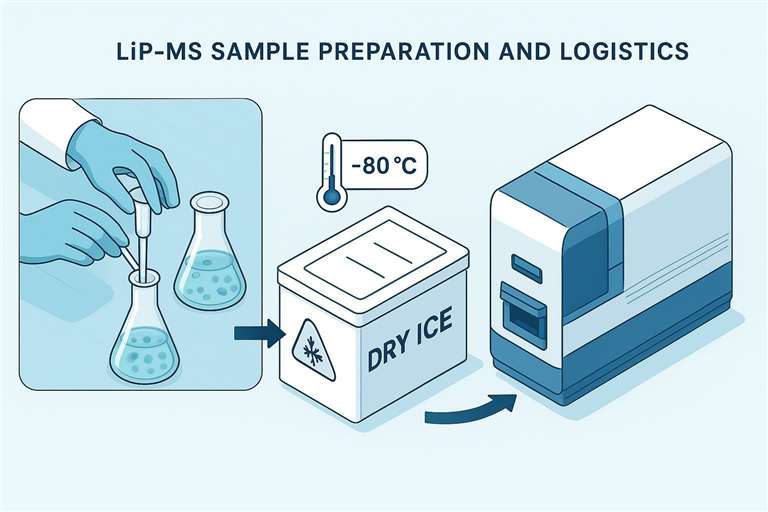

Strategic Sample Preparation: Ensuring Native‑State Preservation

LiP‑MS is only as reliable as the pre‑analytical handling that preserves native conformations until limited proteolysis occurs.

In‑house vs on‑site compound treatment

• In‑house (client‑side) treatment: Pros—biologically relevant timing in the home lab context; immediate quenching minimizes post‑treatment drift. Cons—requires training and access to cold‑chain infrastructure.
• On‑site (analysis‑lab) treatment: Pros—uniform, fully controlled conditions; consistent protease exposure. Cons—live‑cell shipping introduces stress and timing variability.

Where feasible, treat cells on site (your lab), quench rapidly, and ship frozen pellets.

Quenching and lysis logistics (flash‑freezing)

Rapid quenching (e.g., liquid‑nitrogen snap‑freezing) "locks in" the drug–protein state by halting enzymatic activity and limiting denaturation prior to controlled LiP. Institutional guidance underscores snap‑freezing at −80 °C and dry‑ice transport for biospecimen integrity—see the NCI DCTD best‑practice on snap‑freezing biospecimens and a university core facility guide on freezing tissues for downstream analysis. While these are not LiP‑specific, the principles map well to preserving native conformations.

Shipping strategy: frozen pellets over lysates

Frozen pellets shipped on dry ice typically reduce buffer‑induced artifacts and uncontrolled proteolysis compared with shipping lysates. If lysates must be shipped, maintain strict cold chain (≤−80 °C storage, dry‑ice transit), use inhibitor cocktails, and avoid freeze–thaw cycles. Be transparent: head‑to‑head LiP‑MS pellet‑versus‑lysate studies are limited, so we frame this as conservative best practice.

To streamline planning and SOP handoffs, teams often coordinate logistics with a specialist provider. For orientation, see Creative Proteomics for a LiP‑MS workflow primer and sample‑type considerations.

Dose–Response Characterization: Moving Beyond Binary Screening

Binary comparisons (±drug) can flag many candidates but struggle to separate primaries from off‑targets. A concentration series adds structure to the evidence.

Quantifying target engagement with pEC50 (best‑practice framing)

For peptide‑centric datasets, four‑parameter logistic (4PL) curve fitting is well established and can be applied to LiP‑MS signals to estimate EC50‑style potency metrics (reported as pEC50 after log transformation). The protti R package (Quast et al., 2021, Bioinformatics Advances) documents dose–response modeling for peptide‑level omics, and proteome‑wide PTM dose–response assays such as decryptM (Zecha et al., 2023) demonstrate serial dilution and 4PL fitting principles that translate to LiP‑MS. Note that explicit pEC50 reporting in published LiP‑MS studies remains limited; treat pEC50 as a recommended design readout rather than an entrenched field standard.

Practical design tips:

• Use ≥6 concentrations spanning at least two orders of magnitude around the anticipated potency.
• Include vehicle controls and, when possible, a negative control compound.
• Run ≥3 biological replicates per concentration; randomize sample prep and injections.
• Pre‑define curve‑quality filters (R², upper/lower bounds, hill slope plausibility) and apply multiple‑testing control at the protein context.

Discriminating primary targets from off‑target effects via gradients

Dose dependence helps prioritize candidates whose LiP‑MS signals scale plausibly with concentration. Combine curve fit quality, effect size at significant peptides/cut‑sites, and biological plausibility (e.g., domain proximity) to rank targets. Candidates supported by multiple significant peptides or cut‑sites and coherent dose–response trends should rise to the top, while one‑off hits without gradients get deprioritized for orthogonal follow‑up.

Case Study Focus: Deciphering the Autophagy Pathway

Autophagy involves large, dynamic protein assemblies whose conformational transitions can, in principle, be captured by LiP‑MS as accessibility changes.

Capturing dynamic transitions in autophagic proteomes

Selective autophagy remodels the proteome and organelle neighborhoods. Systems proteomics studies illustrate these dynamics; for example, lysophagy remodeling has been mapped at scale in eukaryotic cells in an eLife 2021 study by Eapen and colleagues. While not a LiP‑MS experiment, such work highlights the type of pathway remodeling where LiP‑MS's native‑state readout could provide complementary, peptide‑resolved insights.

Validating Mechanism of Action in complex pathways

Structural insights into autophagy initiator complexes (e.g., PI3KC3‑C1/Beclin‑1 regulators) reveal conformational switches relevant to MoA validation. See examples such as structural work on PI3KC3‑C1 activation (Young et al., 2019, PNAS). In LiP‑MS planning, align dosing windows to capture early‑phase transitions, prioritize proteins with membrane‑associated domains, and set orthogonal validations (e.g., phosphoproteomics, proximity labeling, cryo‑EM literature coherence) to strengthen conclusions.

Advanced Data Analytics: From Peptide Signals to Binding Sites

Robust analytics connect raw ion intensities to structural interpretations.

Peptide‑level resolution and sequence coverage (cut‑site mapping)

LiP‑MS features are peptide‑centric; aggregating to protease cut‑sites boosts interpretability and statistical power. The FLiPPR processor (Manriquez‑Sandoval et al., 2024, Journal of Proteome Research; PMCID: PMC10723326) formalizes peptide→cut‑site aggregation, protein‑centric multiple‑testing correction, and practical QC for LiP‑MS reanalyses. Visualize significant peptides and cut‑sites along protein sequences, then relate them to domains or structural models to hypothesize binding regions.

Candidate scoring and ranking algorithms

Prioritize proteins supported by:

• Multiple significant peptides and/or cut‑sites showing coherent directionality.
• Consistent effects across replicates and doses.
• Proximity of affected regions to functional domains or reported ligand pockets.

Toolchain sketch (examples): FragPipe (MSFragger + Philosopher + IonQuant) for identification/quantification; FLiPPR for LiP‑specific statistics; protti for peptide‑centric visualization and optional dose–response fitting. See FLiPPR and protti citations for method details.

Strategic FAQ: Expert Answers to Common Inquiries

• What is the incremental value of adding a drug‑treated dose series beyond a binary screen?

A gradient enables potency‑style metrics (e.g., pEC50), improving confidence in primary targets and filtering off‑targets that lack dose dependence. Use ≥6 concentrations, ≥3 replicates, randomized processing, and pre‑defined curve‑quality filters.

• Is cell availability a limiting factor for HepG2‑based LiP‑MS studies?

For depth and robust statistics, ~1×10^7 cells per condition is a strong starting point, but you can scale down with micro‑SOPs, higher‑efficiency acquisition (e.g., DIA), and pooled small replicates. Set expectations on proteome coverage and enforce tighter QC.

Next steps

If you're planning a LiP‑MS experimental design and want a second set of eyes on inputs, dose ranges, or QC thresholds, you can request a neutral, research‑focused sample‑evaluation consultation via Creative Proteomics. Services are for research use only.

References (selected)

• According to the bottom‑up proteomics overview by Jiang et al. (2024, ACS Measurement Science Au), LiP‑MS tracks structural changes in complex proteomes under near‑native conditions.
• For mass‑spectrometry approaches to structural interrogation and interactions, see Kim et al. (2024), progress in profiling protein–protein interactions.
• Peptide‑centric dose–response modeling is documented in the protti R package paper (Quast et al., 2021, Bioinformatics Advances; PMCID: PMC9710675).
• Proteome‑wide PTM dose–response design principles are illustrated by Zecha et al. (2023), decryptM assay.
• LiP‑MS statistical processing (peptide→cut‑site; protein‑centric FDR) is described in FLiPPR (Manriquez‑Sandoval et al., 2024, Journal of Proteome Research; PMCID: PMC10723326).
• Snap‑freezing and cold‑chain guidance appear in NCI DCTD best‑practice for biospecimens and a university core facility freezing guide (2023).
• Autophagy dynamics and structural context are covered in Eapen et al. (2021, eLife) on lysophagy remodeling and Young et al. (2019, PNAS) on PI3KC3‑C1 activation.
