IP-MS Explained: Principle, Workflow, and What “Absolute Quantification” Really Means

If you're new to immunoprecipitation followed by mass spectrometry, here's the short version: IP brings specificity, MS brings numbers. In this guide, we'll translate the ip‑ms principle into plain language, walk through a practical, end‑to‑end ip‑ms workflow, and set a realistic bar for what "absolute quantification" means in IP contexts. By the end, you'll know where ip mass spectrometry shines for high‑confidence validation, what controls to set up, and when standards or spike‑ins are actually required.

Key takeaways

• IP‑MS is best thought of as "enrichment first, measurement second." IP adds specificity and endogenous context; MS adds sensitivity, dynamic range, and statistical confidence.
• Antibody and controls determine the ceiling of your experiment. Plan Input/IgG/beads‑only and, when possible, KO/KD controls.
• Most first‑time projects aim for relative enrichment (fold change with FDR and replicates). "Absolute" claims require appropriate standards and calibration.
• AQUA peptides (post‑digest) and PSAQ proteins (pre‑digest) enable absolute readouts under the right conditions; otherwise stick to relative enrichment claims.
• A good report includes IDs at ~1% FDR (PSM and protein), quant tables with replicate statistics, volcano plots, and a transparent methods/QC appendix.
• For highly precise copy‑number or clinical‑grade claims, escalate to targeted PRM/MRM assays built around isotope‑labeled standards.

What IP‑MS is—and why many labs use it for high-confidence validation

IP‑MS—immunoprecipitation followed by mass spectrometry—pairs an antibody‑based enrichment step with an LC‑MS/MS readout. In validation mode, it provides orthogonal evidence when antibody‑only readouts (e.g., western blot) won't convince reviewers or can't reveal complex composition. In discovery mode, it maps interactors or complex members in endogenous context.

Teams typically turn to IP‑MS when they need: (1) better specificity than a single antibody band, (2) evidence of complex membership or stoichiometry, (3) sensitivity for low‑abundance targets, or (4) quantitative, statistically testable results rather than qualitative bands. In short, IP narrows the haystack; MS tells you what's in the bundle you pulled out, and how strongly it's enriched.

Common scenarios where IP‑MS beats antibody-only readouts

• Endogenous complexes where composition matters (e.g., scaffolded signaling assemblies)
• Mechanism‑of‑action work for tool compounds or leads (on‑/off‑target interaction profiling)
• Low‑abundance kinases or transcription factors below western blot sensitivity
• Difficult matrices (e.g., tissue, plasma, membrane fractions) where background bands mislead
• Reviewer or collaborator requests for orthogonal validation with quantitative evidence

IP-MS principle in plain language: enrichment first, measurement second

Think of IP as a selective fishing net and MS as a high‑resolution counter. The antibody "net" captures your bait and co‑purifies its partners in near‑native context; the LC‑MS/MS "counter" then identifies and quantifies the peptides/proteins with controlled false discovery.

IP contributes specificity and biological context: you're asking what travels with your bait in the sample you care about. MS contributes sensitivity, dynamic range, and a numerical, testable readout (not just band intensity). Together, they move you from "there's a band" to "these proteins are enriched by X‑fold with Y confidence."

What immunoprecipitation adds

• Specificity from the antibody (epitope‑driven capture)
• Endogenous context (complexes and conditional interactions preserved where possible)
• A tunable gate on background through wash stringency and control design

What mass spectrometry adds

• Sensitivity and broad dynamic range for low‑ and high‑abundance species
• Identification and quantification with explicit FDR control and replicates
• Statistical outputs (enrichment statistics, volcano plots) rather than subjective band strength

For interactome confidence and contaminant handling, community tools such as SAINT and repositories like the CRAPome support probabilistic scoring and background down‑weighting, improving the interpretability of IP‑MS experiments, as shown in the 2011 SAINT methodology and the 2013 CRAPome repository descriptions.

• According to the open‑access description of probabilistic scoring in AP‑MS, SAINT assigns posterior probabilities to bait–prey pairs using negative controls and supports FDR‑aware decisions (Choi et al., 2011) in the article "SAINT: probabilistic scoring of affinity purification–mass spectrometry data" (2011): SAINT methodology in Nat Methods (2011).
• The community contaminant database compiled in "The CRAPome: a contaminant repository for affinity purification–mass spectrometry data" (2013) helps identify frequent background proteins and informs filtering strategies: CRAPome repository in Nat Methods (2013).

The IP‑MS workflow: a practical end‑to‑end view

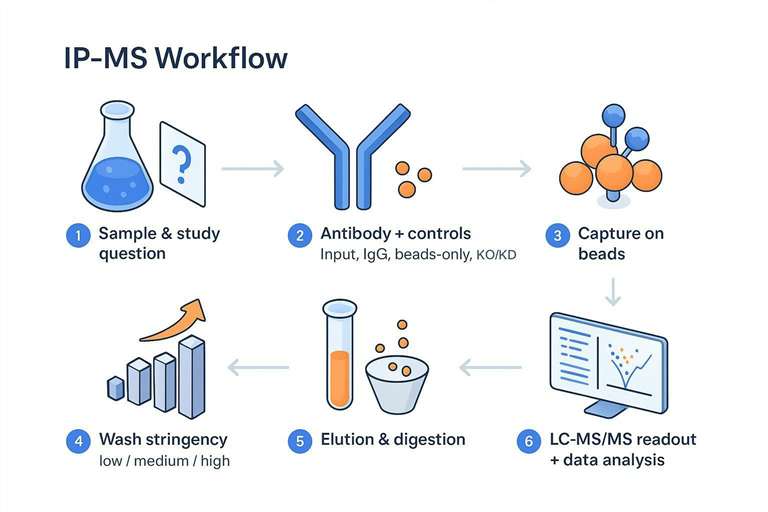

IP‑MS workflow overview showing immunoprecipitation steps, mass spectrometry readout, and data analysis outputs for absolute or relative quantification.

When you plan an ip‑ms workflow, focus less on SOP minutiae and more on the few decisions that move the needle: the exact question you're answering, the antibody/controls strategy, how aggressively you wash, and the readout/analysis you'll need to support your claim.

Step 1: Define the biological question and success metric

Decide what minimum statement you want to make in the manuscript or report. Examples:

• Validate membership of Protein B in a complex with Bait A under native conditions.
• Detect condition‑specific interaction changes (e.g., ±drug, ±stimulus) with fold‑change thresholds and FDR control.
• Quantify target abundance or stoichiometry changes across conditions.
• Obtain an absolute amount (fmol, pg, or copies per cell) for a specific target using standards.

Be explicit about success metrics: acceptable FDR, expected fold‑changes, replicate design (commonly ≥3 biological replicates per condition for robust quant claims), and whether you need relative or absolute outputs.

Step 2: Antibody strategy and controls

Antibody quality sets the ceiling. Choose an IP‑validated antibody where possible and confirm specificity in your matrix. Plan these controls:

• Input (1–10% lysate): shows target presence and total protein background
• IgG/isotype: measures non‑specific capture by antibody of the same class
• Beads‑only: measures resin‑mediated binding
• Knockout/knockdown (if feasible): defines the floor for specificity

Where heavy/light chain contamination is a concern, crosslink antibodies to beads and/or use light‑chain‑specific reagents. For a concise, lab‑ready overview of control design, see the internal resource "endogenous Co‑IP‑MS protocol checklist" presented as a service‑oriented guide: endogenous Co‑IP‑MS protocol checklist.

Step 3: Capture, wash, elute—where most failures happen

Wash conditions are a trade‑off: too gentle and background spikes; too harsh and weak/conditional interactors wash away. Titrate salt, detergent, and number of washes empirically, favoring MS‑compatible buffers. Consider on‑bead digestion to reduce handling losses for low‑input samples. For practical tips on minimizing sticky backgrounds and non‑specific binders in IP contexts, see these internal guidelines framed through service content: sticky protein background reduction strategies.

Step 4: MS readout and data processing snapshot

Choose a readout aligned to your claim and sample complexity:

• DDA with label‑free quantification (LFQ) is common for small‑ to mid‑scale interactome validation.
• TMT multiplexing can increase throughput but watch for ratio compression; mitigation (e.g., MS3 or interference correction) is often required in discovery modes.
• DIA can improve reproducibility and reduce missingness for discovery‑scale work with suitable libraries.

Data processing should report ~1% FDR at the PSM and protein levels, intensity or spectral‑count based quantification, replicate statistics (e.g., CVs), volcano plots to summarize enrichment, and—where interactors are the focus—probabilistic scoring (SAINT) with contaminant filtering (CRAPome‑informed). For a concise overview of processing choices, see: IP‑MS data analysis workflow.

Before you start, align on what a professional report includes. For a neutral, example‑driven description of outputs and QC from a provider context, see: IP‑MS service deliverables and reporting standards.

What "absolute quantification" really means in IP‑MS

Here's the deal: most IP‑MS experiments support relative enrichment claims (fold changes, presence/absence with controls). "Absolute" amounts (fmol, pg, or copies per cell) are feasible when you use appropriate standards and account for recovery and digestion efficiency.

Absolute vs relative: two different promises

• Relative (fold‑enrichment): Suitable for claims like "Protein B is enriched with Bait A in treated vs control" or "Interactor C is significantly depleted after mutation X." Requirements: controls (Input/IgG/beads‑only; KO/KD if possible), replicates, and FDR‑controlled IDs/quant.
• Absolute (amounts in fmol/pg/copies): Suitable for copy‑number or stoichiometry statements (e.g., "~1500 copies/cell" or "B:A ≈ 2:1 in the complex"). Requirements: isotope‑labeled internal standards, calibration curves, and spike‑recovery/QC to defend the number.

When standards are required—and when they aren't

Two widely used strategies enable absolute readouts:

• AQUA peptides (post‑digest): Spike known amounts of heavy‑labeled peptides matching proteotypic targets after digestion and quantify endogenous (light) vs heavy ratios. This is practical and powerful but does not correct for pre‑digest losses. The approach was described in 2003 in the methods description "Absolute quantification of proteins and phosphoproteins using a synthetic peptide‑based standard" (AQUA): AQUA peptide strategy in PNAS (2003).
• PSAQ proteins (pre‑digest): Spike full‑length stable‑isotope labeled proteins before digestion so the standard experiences the same processing losses and digestion efficiency as the endogenous protein. This enables more defensible absolute claims in complex matrices. See the 2007 paper "Protein Standard Absolute Quantification (PSAQ) method" for details: PSAQ full‑length protein standards in MCP (2007).

When you do not need standards: if your claim is purely about relative enrichment (e.g., conditional binding, presence/absence with controls) and you're not making copy‑number or concentration statements, relative quantification with appropriate statistics is typically sufficient and easier to scale.

When you should add standards: if you need a number (fmol/pg/copies) that reviewers will accept, or if you're comparing stoichiometry across conditions, plan standards and calibration upfront. For endpoints requiring clinical‑grade precision, escalate to targeted PRM/MRM built around those standards. A pragmatic decision overview on targeted quantification is available here: targeted quantification with PRM and targeted quantification with MRM.

Practical tip: If recovery through IP is a major uncertainty (often is), PSAQ or spiking an isotopically labeled protein earlier in the workflow is preferable to post‑digest AQUA peptides. If only peptides are feasible, report recovery/capture efficiency separately and reflect the uncertainty in your intervals.

A reality check: what you can confidently claim in a paper

• Without labeled standards: Avoid copy‑number or absolute concentration statements. Report fold‑enrichment with FDR and replicate statistics; disclose controls and potential limitations.
• With AQUA peptides: You may claim absolute peptide‑level amounts; note that pre‑digest losses are not corrected. Provide calibration, linearity, and uncertainty.
• With PSAQ (or equivalent protein standards): You may claim absolute protein amounts more defensibly because the standard experiences the same prep steps. Provide recovery checks and confidence intervals.
• For DIA or discovery studies: follow field guidelines on acquisition parameters, libraries/software, and explicit FDR control for identification/quantification, as summarized in the 2019 community manuscript guidance: Guidelines for DIA manuscripts in J Proteome Res (2019).

Key limitations (and how to reduce risk before you start)

Antibody specificity and non-specific binding

Your antibody determines the experiment's ceiling. Reduce risk by:

• Selecting IP‑validated antibodies and, if possible, testing multiple clones
• Designing robust controls (Input/IgG/beads‑only; KO/KD where feasible)
• Crosslinking antibodies to beads to limit heavy/light chain contamination
• Pre‑clearing lysates, optimizing wash buffer salt/detergent, and minimizing non‑specific binders

Background contaminants are common in IP‑MS. Confidence scoring frameworks and repositories—e.g., SAINT for posterior probabilities and the CRAPome for frequent contaminants—support transparent thresholds in reporting (see the SAINT 2011 and CRAPome 2013 papers linked above).

Sample loss and low-input constraints

IP can be lossy, especially with low‑abundance targets and small inputs. Mitigate by:

• Using on‑bead digestion to reduce transfers
• Favoring low‑loss prep and nano‑/micro‑flow LC for sensitivity
• Considering DIA to improve completeness in discovery runs
• Planning targeted PRM/MRM follow‑ups for precise quantitation of priority targets using labeled standards

Data complexity: what you should expect from a good report

A professional IP‑MS report typically includes:

• Identification lists with ~1% FDR at PSM and protein levels
• Quant tables with replicate statistics (e.g., CVs), volcano plots, and enrichment metrics
• Transparent control design and batch handling
• If absolute claims are made: standard type (AQUA/PSAQ), calibration results, spike recovery, and uncertainty

For additional context on QC/acceptance elements and analysis flow from a provider‑style perspective, see: IP‑MS data analysis workflow and the example outputs noted under IP‑MS service deliverables and reporting standards.

What to do next

Explore: Download an IP‑MS Best Practice Guide template and adapt it to your study design (controls, wash strategy, readout, statistics).

Evaluate: Book a short technical consultation to sanity‑check antibody/controls and define whether relative or absolute outputs suit your hypothesis, and whether DIA, DDA‑LFQ, or TMT fits your design.

Decide: If you need operational support with standards and reporting, you can engage a specialist provider. For an example of deliverables/QC language in a neutral, informational context, see Creative Proteomics.

References (methods and community resources)

• SAINT probabilistic scoring improves interactome confidence with negative controls and FDR‑aware decisions (Choi et al., 2011): SAINT methodology in Nat Methods (2011).
• The CRAPome repository catalogs frequent AP‑MS contaminants to aid filtering (Mellacheruvu et al., 2013): CRAPome repository in Nat Methods (2013).
• AQUA enables absolute peptide‑level quantification using isotope‑labeled standards (Gerber et al., 2003): AQUA peptide strategy in PNAS (2003).
• DIA reporting and FDR practices summarized for manuscripts (J Proteome Res, 2019): Guidelines for DIA manuscripts in J Proteome Res (2019).
