DIA to PRM Validation: How to Prioritize Protein Candidates After DIA or TMT Discovery

Key takeaways

• Your DIA or TMT differential-protein list is a hypothesis list. Turning it into a PRM panel requires protein candidate prioritization plus a separate feasibility gate at the peptide level.
• Start with the validation objective (confirm abundance change, PRM biomarker validation, target validation proteomics, or a reusable multiplex panel). That objective determines candidate count, quantification type, and study design.
• A fast, practical path is staged: discovery dataset review → candidate scoring → PRM feasibility → pilot panel → cohort-scale targeted proteomics validation.

Why discovery results need targeted validation

Discovery proteomics is optimized for breadth. DIA and TMT can quantify thousands of proteins and generate long differential lists. But discovery results are rarely the final proof you can reuse in a pilot or cohort.

Targeted validation (PRM/MRM) is usually the step that converts "interesting differences" into decision-ready evidence: reproducible quantification for a predefined list, with method definition and QC centered on those targets.

Discovery proteomics generates candidates, not final proof

Even when statistics look strong, discovery data can hide failure modes that matter later:

• peptide-level inconsistency (one peptide drives the protein call)
• missingness that is group-biased
• batch structure that tracks your phenotype
• interference that does not resolve cleanly at the protein level

Why candidate lists often need further prioritization

Moving a 100–500-protein list directly into PRM is a common way to waste time. The bottleneck is not only instrument time. It's that some proteins simply do not have peptides that are unique, stable, and detectable in your specific matrix.

So the job is not to pick "the most significant" proteins. It's to pick the proteins that are both worth validating and realistically assayable.

What PRM adds after DIA or TMT

PRM adds a controlled measurement definition: which peptides, which fragments, what retention time behavior, and what QC is required for each target. That definition is what enables consistent follow-up across batches, cohorts, and future studies.

When targeted validation may not be necessary

Targeted validation may be unnecessary when:

• your goal is hypothesis generation only (no cohort claims)
• discovery already includes enough replication and orthogonal evidence to make decisions
• your next step is functional perturbation where abundance confirmation is not limiting

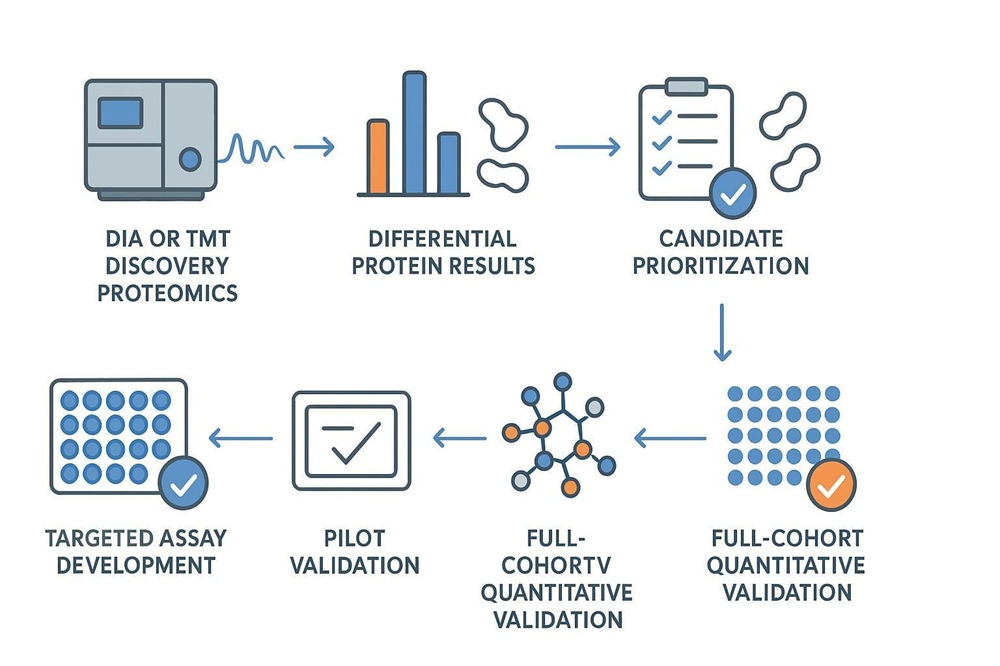

Figure 1. From DIA or TMT discovery results to a focused PRM validation panel.

How the DIA to PRM validation objective changes candidate selection

Different objectives change the entire downstream plan: candidate count, quantification strategy, sample numbers, and what "success" looks like.

Confirming differential protein abundance

Goal: verify that the direction and magnitude of change hold when quantified in a targeted way.

Typical implications:

• relatively small target list
• relative PRM often sufficient
• emphasis on reproducibility and peptide-level agreement

PRM biomarker validation

Goal: verify candidates at the cohort level, often with performance modeling and batch-aware reporting.

Typical implications:

• staged design (feasibility → pilot → cohort)
• stricter QC and deliverables
• careful handling of confounders and missingness

Target validation proteomics and pharmacodynamic markers

Goal: confirm mechanism-linked markers (dose response, time course, target engagement proxies).

Typical implications:

• panel selection may favor pathway consistency over raw fold change
• study design must match the decision point (time, dose, treatment)

Building a multiplexed protein panel

Goal: a reusable assay panel (often 10–150 proteins) that can be run repeatedly.

Typical implications:

• feasibility screening becomes non-negotiable
• absolute quantification may be justified if the panel must be comparable across studies

Review the DIA or TMT dataset before selecting candidates

In discovery to validation proteomics, this dataset review step is where you separate candidates that are biologically interesting from candidates that are validation-ready.

This section is not about universal thresholds. It's a review framework that helps you avoid prioritizing artifacts.

Confirm the quality of the discovery dataset

Start with design checks:

• sample annotation completeness (groups, covariates, timepoints)
• randomization and balance across batches
• QC injections / reference samples and whether drift was monitored

Review statistical and biological evidence

For each candidate, capture:

• directionality consistency across samples
• statistical support (adjusted p-values/FDR as reported)
• biological interpretability (pathway linkage, plausibility)

Check replicate consistency

A practical way to reduce risk is to de-prioritize candidates where the signal is driven by a small subset of samples unless you have a clear subgroup hypothesis and a validation plan designed to test it.

Evaluate missing values and batch effects

Missingness and batch effects are not "data cleaning" details. They define whether a candidate is likely to survive targeted follow-up. Candidates with heavy group-biased missingness or batch-aligned separation should move into the "high risk" bucket unless you can justify them biologically.

Confirm protein and peptide identification evidence

PRM assay development happens at the peptide level. Before you commit, confirm that candidates are supported by credible peptide evidence and that at least one or two peptides are plausible as quantotypic targets.

Build a candidate-prioritization framework

A useful framework scores candidates on five dimensions. The goal is a defensible shortlist, not a perfect universal score.

Biological relevance

Prioritize proteins that answer the actual question: mechanism, biomarker verification, or target engagement.

Strength and consistency of the discovery signal

Prefer candidates with consistent directionality and peptide-level support.

Availability of suitable quantotypic peptides

Peptide feasibility is often the hidden constraint. Practical PRM selection rules include uniqueness, stable MS behavior, and robust fragmentation patterns in the relevant matrix. For a detailed discussion of peptide/transition selection and interference handling in targeted MS workflows, see the 2021 tutorial review on best practices for targeted proteomics.

Expected abundance and matrix complexity

Matrix matters. Plasma/serum adds dynamic range and interference risk; tissues add heterogeneity; EVs add yield constraints. Low abundance is not a deal-breaker, but it changes your feasibility plan.

Validation value

Ask: if PRM confirms this protein, what decision changes? Candidates with no decision consequence are rarely worth method time.

Candidate scoring table (example)

Figure 2. Candidate proteins should be prioritized using both biological and analytical criteria.

How candidate selection differs between DIA and TMT studies

You don't need to restate DIA/TMT basics, but you do need to interpret the evidence in a platform-aware way.

Candidate selection from DIA datasets

DIA is often used for larger sample sets because it can provide broad quantification completeness. In DIA candidate validation, it is especially useful to look at peptide-level consistency and signs of interference.

A practical advantage: DIA can provide matrix-specific evidence about which peptides behave well. Plubell and colleagues describe using DIA data to inform targeted assay development, emphasizing reproducibility and interference-resistant transitions in the relevant matrix (Plubell et al., J Proteome Res, 2025).

Candidate selection from TMT datasets

TMT multiplexing is powerful for discovery, but quantification can be sensitive to co-isolation/interference and ratio compression depending on acquisition and processing. For TMT candidate proteins, scrutinize whether:

• multiple peptides support the protein-level change
• the effect is consistent across batches/plexes
• the candidate is robust to reasonable analysis choices

Handling platform-specific biases

Platform-specific biases don't invalidate candidates; they change your risk assessment. Strong biology with modest TMT effects may still deserve PRM follow-up. Strong DIA effects with peptide-level instability should move into feasibility-first testing.

Decide between relative and absolute PRM quantification

The relative-vs-absolute decision is a project design decision.

When relative PRM is sufficient

Relative PRM is often enough for:

• confirming a shortlist of discovery hits
• ranking candidates for next-stage work
• early pilot studies

When absolute quantification is needed

Absolute quantification is more justified when:

• results must be comparable across studies or time
• you need defined analytical performance with calibrators/QC
• the panel will be reused for ongoing cohorts

The role of stable isotope-labeled standards

Stable isotope-labeled standards are commonly used to anchor quantification and improve comparability, especially for absolute workflows.

How the quantification goal affects project design

Absolute quantification generally increases up-front method work (standards, calibration design, QC strategy). If your decision question does not require absolute numbers, relative PRM can be a faster first step.

For teams that want to align discovery outputs with downstream targeted quantification, Creative Proteomics' quantitative proteomics services (DIA, TMT, PRM/MRM) can support both discovery and validation stages within a single RUO project plan.

Assess PRM feasibility before full PRM assay development

Feasibility is where panels shrink. That is expected.

What to check in feasibility

• Do you have unique peptides for the protein/isoform question?
• Do peptides show clean behavior in your matrix (retention, fragmentation, interference risk)?
• Can targets be multiplexed without breaking cycle time and QC strategy?

Decide whether a pilot is needed

If matrix complexity is high or targets are low abundance, a small pilot (representative samples) is the most efficient de-risking step.

Plan alternatives for failed candidates

Predefine fallbacks:

• alternative peptides
• alternative proteins in the same pathway
• enrichment/fractionation
• switching to MRM/SRM for certain targets

⚠️ Warning: A "non-confirmation" can reflect biology or assay feasibility. Keep those hypotheses separate.

If you need structured feasibility screening and staged assay buildout, Creative Proteomics' targeted proteomics services (PRM/MRM validation) are designed for the discovery-to-validation transition.

Move from candidate list to a PRM validation panel

A practical path looks like this:

1. Initial pool: prioritize biology + discovery evidence; include a few high-value, higher-risk targets.
2. Feasibility screen: peptide behavior and multiplex constraints in your matrix.
3. Pilot panel: run the refined panel in representative samples.
4. Cohort validation: scale only after QC and batch strategy are locked.

Study design for discovery-to-validation projects

Independent cohort vs reuse of discovery samples

Reusing discovery samples can confirm technical continuity quickly. For biomarker verification, independent cohorts usually matter more for generalizability.

Pilot, qualification, and full-cohort stages

Think in three stages:

• pilot (does the panel work?)
• qualification (does it stay stable across batches/days?)
• cohort (does it answer the statistical question?)

Sample randomization, batch planning, and sample reserves

Plan randomized injection order, balanced groups per batch, and reserve sample volume for reruns. These details often matter more than adding more proteins.

QC and deliverables to request

Targeted verification is valuable when it comes with transparent QC and decision-ready outputs. A consortium discussion of analytical validation for multiplex targeted MS assays highlights the importance of reporting accuracy/precision/specificity/sensitivity/linearity/LOQ and using appropriate controls in the verification stage (CPTC analytical validation considerations). For additional practical guidance on targeted assay QC, peptide/transition choice, and interference checks, the proteomics community has published a 2021 tutorial review on best practices for targeted proteomics and an example of large-scale MRM assay development and characterization (Communications Biology, 2023).

Deliverables by project stage

Common mistakes in moving from DIA or TMT to PRM

• Selecting candidates only by fold change
• Sending an unfiltered protein list with no rationale
• Ignoring peptide detectability and uniqueness
• Mixing objectives (biomarker vs mechanism vs target engagement)
• Choosing absolute quantification without a clear need
• Skipping the pilot stage
• Treating PRM confirmation as biological causation

Mini case example: typical attrition from shortlist to locked PRM panel

In many DIA/TMT-to-PRM transitions, it's normal to see attrition even after you start with strong biology. A common pattern looks like this:

• Start with ~80–150 proteins in a prioritized shortlist.
• After peptide feasibility and multiplex constraints, ~40–70% remain practical PRM targets.
• After a small pilot in the real matrix, a locked panel often lands at ~25–60 proteins.

The most common "technical" reasons for dropout are lack of truly unique peptides for the biological question, matrix-specific interference, and targets that sit below the practical LOQ in the available sample input.

A practical candidate-selection framework

Appendix: practical templates you can reuse

Candidate scoring fields (copy/paste)

Use these fields to make your shortlisting defensible and easy to review with collaborators.

• Protein ID / gene symbol
• Biological rationale (decision link)
• Direction of change + effect size summary
• Discovery evidence (FDR/q-value, replicates, peptide agreement)
• Missingness / batch-risk notes
• Matrix-specific concerns (plasma/tissue/EV; dynamic range)
• Assay feasibility status (green/yellow/red)
• Preferred quantotypic peptides (2–3) + uniqueness notes
• Standard strategy (none / SIS for relative / SIS + calibration for absolute)
• "If confirmed, what changes?" (go/no-go, next experiment, panel inclusion)

PRM feasibility gate checklist

Before full assay build, confirm:

• Target protein question is defined (protein vs isoform vs PTM site)
• At least 1–2 candidate unique peptides exist for the intended question
• Peptides avoid obvious liabilities (known labile modifications unless intentional; extreme hydrophobicity; problematic cleavage sites)
• Chromatographic behavior is stable in your matrix
• Fragment ions show consistent patterns with low interference risk
• Multiplexing does not break cycle time and sampling requirements
• A clear fallback exists (alternate peptide, alternate protein, enrichment, or switching to MRM)

Pilot design and QC injection "rules of thumb"

• Use representative samples (matrix and phenotype) rather than "best case" material
• Randomize injection order and balance groups within each batch
• Include a pooled reference/QC sample on a fixed cadence (for example, every 8–12 injections) to monitor drift
• Predefine acceptance criteria (e.g., peptide-level agreement, CV targets, linearity/LOQ expectations for absolute workflows)
• Reserve sample volume for reruns and method iteration

Frequently asked questions

Why validate DIA or TMT candidates by PRM?

PRM defines a controlled assay for a predefined list and can provide more reproducible quantification for cohort-scale follow-up than discovery workflows.

How many proteins should I start with?

Start with more than your intended final panel and expect attrition after feasibility screening. The right number depends on matrix complexity and multiplex constraints.

What makes a protein suitable for PRM validation?

Strong biological rationale, consistent discovery evidence, and at least one or two unique, stable peptides that behave well in your matrix.

Should I reuse discovery samples?

They can be useful for early confirmation, but independent cohorts strengthen biomarker verification claims.

When do I need absolute quantification?

When cross-study comparability or defined analytical performance is required; otherwise, relative PRM is often sufficient for confirmation and prioritization.

What if a candidate has no suitable peptide?

Switch peptides, switch targets (same pathway), add enrichment, or choose a different assay strategy.

Next steps: move from discovery outputs to a PRM-ready plan

If you already have DIA/TMT results and want to proceed with DIA to PRM validation or TMT to PRM validation, share:

• DIA/TMT result files (protein and peptide quant tables + sample metadata)
• your candidate list and validation objective
• organism and sample matrix
• group definitions and key covariates
• sample count (pilot + planned cohort)
• relative vs absolute goal and required deliverables

Creative Proteomics can support staged validation through its Targeted Proteomics Service and biomarker-oriented workflows such as Plasma & Serum Biomarker Proteomics, with feasibility-first planning to reduce panel attrition.

Disclosure and scope

The author is employed by Creative Proteomics. The guidance in this article is research-use-only (RUO) and intended as platform-agnostic best practices for planning DIA/TMT-to-PRM transitions. Specific peptide choices, QC thresholds, and performance targets should be adapted to your matrix, instrument method, and study objective.

Author

CAIMEI LI is a Senior Scientist at Creative Proteomics, focusing on quantitative proteomics, targeted mass spectrometry, and proteomics applications in academic and pharmaceutical research. Connect with Caimei Li on LinkedIn.
