Custom PRM MRM Panel Development: From Target List to a Study-Ready Quantification Panel

Researchers often start with a protein list generated from discovery proteomics, literature review, or a clear biological hypothesis. The problem is what comes next: turning that list into a study-ready targeted quantification method that stays specific, sensitive enough, and reproducible in your real sample matrix.

That conversion step is where many projects lose time. Some targets are too low-abundance in the intended matrix. Some proteins don't have robust, proteotypic peptides. Some measurements fail once you scale because digestion variability and matrix interference show up as missing values, unstable peak integration, or inconsistent batch behavior.

This article focuses on the decision process behind custom PRM MRM panel development and targeted proteomics assay development—how a protein list becomes an executable targeted proteomics panel, why not every target should enter PRM/MRM immediately, how to balance panel breadth with measurement reliability, and when a pilot is the most efficient way to de-risk your final assay.

Key Takeaway: A "panel" is not a list of proteins. A panel is a set of peptide measurements with defined feasibility gates, QC rules, and reporting that can support study decisions.

Why a Protein List Is Not Yet a Quantification Panel

Discovery Candidates and Quantifiable Targets Are Different

Discovery workflows (DIA, TMT, label-free DDA) are designed to find many proteins and nominate candidates. Targeted proteomics (PRM/MRM) is designed to measure a predefined set of targets repeatedly, with clear evidence that each measurement is specific and comparable across samples.

This difference matters because identification evidence and quantification robustness are not the same thing:

• A protein can be detected in discovery because one peptide was observed once under favorable conditions.
• A protein can be statistically significant in discovery but still be difficult to quantify reliably in the final matrix (e.g., plasma, tissue homogenate, exosomes).
• A protein can be biologically important yet lack feasible peptide surrogates for the isoform/variant you need.

In other words: discovery produces candidates; targeted assays produce decision-grade measurements.

Biological Importance Does Not Guarantee Analytical Feasibility

Before committing targets to PRM panel development or MRM assay development, feasibility needs to be evaluated from multiple angles:

• Target abundance in the intended matrix (and whether enrichment/depletion is realistic for your study).
• Protein complexity (isoforms, high homology families, proteolysis).
• Sequence uniqueness (availability of proteotypic peptides for the organism and proteoform of interest).
• Sample matrix effects (ion suppression, co-elution interference, background complexity).
• Expected dynamic range across samples and cohorts.

A practical way to phrase this to your team: biological importance explains why you care; feasibility determines whether you can measure it well enough to use it.

Define the Purpose of the Panel Before Development

A targeted proteomics panel should be built around the decision it supports. Examples:

• Biomarker validation: prioritize reproducibility, data completeness, and batch comparability.
• Pharmacodynamic monitoring: prioritize sensitivity for pathway readouts across time courses.
• Target validation: prioritize specificity (including isoform/variant requirements).
• Mechanistic studies: prioritize pathway coverage and interpretability.
• Large cohort quantification: prioritize QC design, run acceptance rules, and traceable reporting.

If the purpose isn't defined early, the target list tends to grow, and the assay becomes over-multiplexed before performance is proven.

Start Panel Development with Target Prioritization

Build a Structured Target List

To start a feasibility review, provide a structured list rather than a raw set of IDs:

• Protein name
• Gene symbol
• Species
• Pathway / module
• Research objective for the target
• Expected sample type (matrix)

This structure is simple, but it prevents a common BOFU failure: spending development effort on poorly defined "nice-to-have" targets.

Classify Targets by Priority

A custom protein quantification panel is typically most useful when you explicitly separate:

• Essential targets (drive the primary endpoint)
• Supporting targets (strengthen interpretation)
• Exploratory targets (only if they don't compromise acquisition quality)

This makes your pilot strategy and your "freeze the panel" decision much clearer.

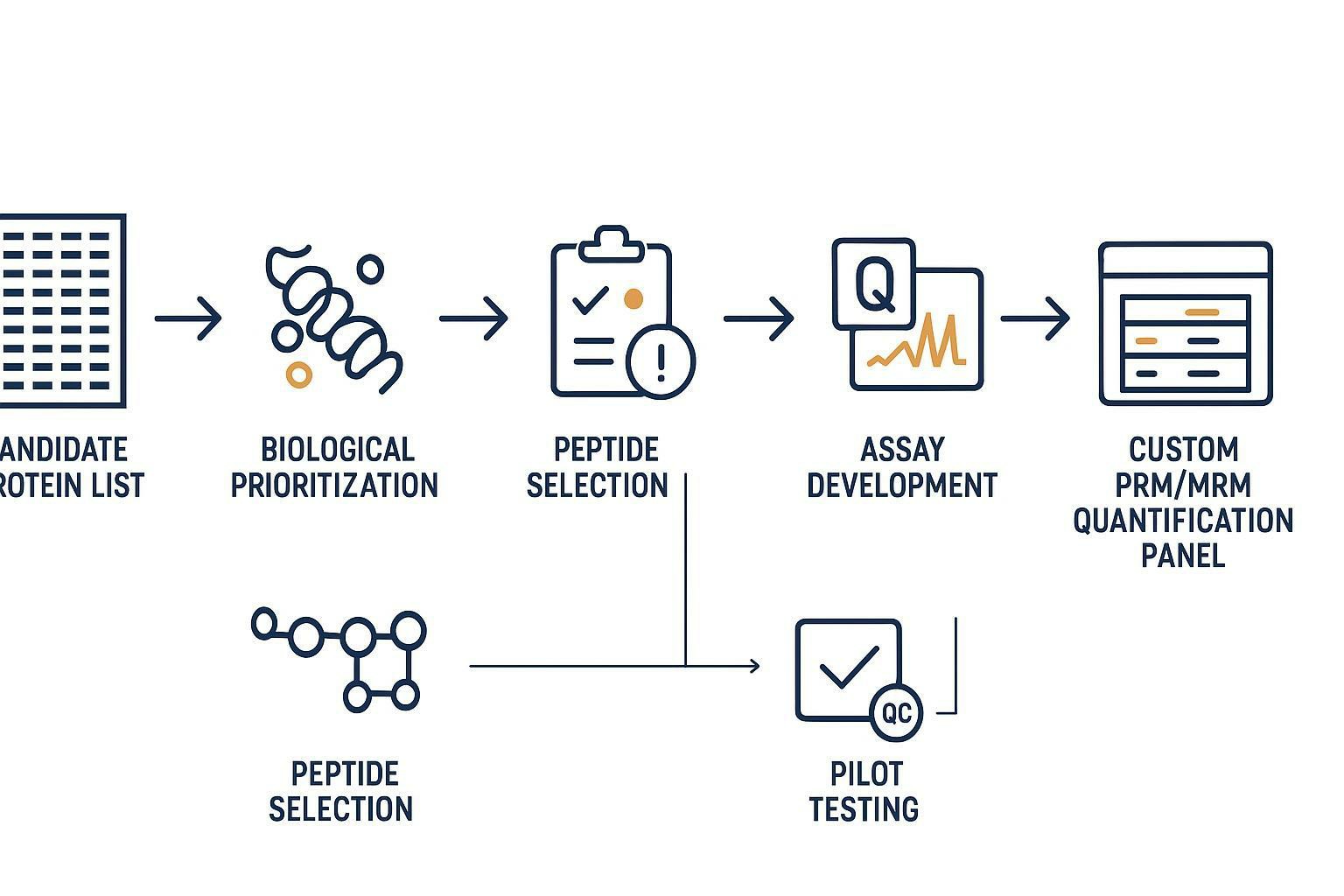

Figure 1. Workflow from candidate protein selection to custom PRM/MRM panel development.

Consider the Final Research Decision

If you can't answer "Which targets drive the decision?" you don't have a panel spec yet.

A helpful internal checklist:

• Which proteins will be used in the main conclusion?
• Which proteins provide context but are not decision-critical?
• Which proteins should be held for phase 2 after feasibility is proven?

This is how you protect the essential targets from being crowded out by panel breadth.

Peptide Selection Determines PRM/MRM Assay Performance

Identify Suitable Signature Peptides

Most targeted assays quantify proteins using peptide surrogates, so peptide selection is not a detail—it is the assay.

Community guidance (including the U.S. NCI CPTAC consortium) emphasizes peptide criteria such as uniqueness to the target, suitable length, appropriate enzymatic ends, and avoidance of modification-prone sequences unless the modification is your analyte. See the peer-reviewed CPTAC peptide standard recommendations (2016) for a practical summary of selection and standard-handling principles.

In applied workflows, peptide selection is usually iterative:

1. In silico screening (uniqueness, known variants/PTMs, predicted behavior)
2. Empirical confirmation (detectability and interference in your matrix)

Avoid Problematic Peptides

Common peptide-level failure modes include:

• Shared peptides across homologs or protein families
• Chemically labile residues (e.g., oxidation-prone sequences) when stability is essential
• Variable cleavage regions that yield inconsistent digestion
• Poor detectability or unstable retention behavior

The key point for panel planning: these risks are often matrix-dependent, so "good peptides" in a library are not automatically good peptides in your cohort matrix.

Consider Protein Isoforms and Sequence Variants

Your peptide strategy should match the specificity you need:

• If you need total protein abundance, choose peptides common to relevant isoforms and interpret accordingly.
• If you need isoform/variant discrimination, select peptides unique to that region and accept higher development complexity.

This step is also where many "protein candidate validation" projects become clearer: the biology may be proteoform-specific, but the measurement must be peptide-specific.

Choose Peptides Based on the Research Goal

Align peptide choices to the measurement purpose:

• General abundance: stable proteotypic peptides with robust detectability.
• Variant-specific quantification: peptides spanning the variant region.
• PTM-associated measurement: modified peptides plus PTM-aware QC.
• Absolute quantification: peptides that behave consistently with stable isotope standards across the expected range.

custom PRM MRM panel development workflow: from candidates to a multiplexed panel

Assay Feasibility Assessment

Feasibility assessment connects your biological list to analytical reality:

• Target review (priority, species, isoform requirements)
• Peptide feasibility (proteotypicity, modification risk, digestion behavior)
• Matrix consideration (interference/ion suppression risk)
• Expected abundance and dynamic range

This stage is where you typically reduce the initial list to protect the core targets.

Method Development and Optimization

Once candidate peptides are selected, method development focuses on ensuring the measurement is both specific and stable.

In PRM, a precursor is isolated and fragment ions are collected at high resolution; in MRM, predefined transitions are monitored on triple quadrupole systems. A practical PRM best-practice discussion is presented in Peterson et al., "Parallel reaction monitoring…" (2015).

Key optimization themes (without assuming universal numbers):

• Selecting fragments/transitions that are interference-resistant
• Collision-energy and fragmentation behavior confirmation
• Retention-time scheduling to maintain enough points across the LC peak
• Sensitivity evaluation in the actual matrix

Multiplex Panel Design Considerations

Multiplexed protein quantification is constrained by acquisition time and chromatographic peak width.

In general, as you add targets, you must protect:

• Cycle time vs peak sampling (too slow → too few points → unstable quantification)
• Dynamic range management (high-abundance targets can dominate)
• Throughput and batch design (run length, QC frequency, bridging)

A practical summary of these acquisition trade-offs (points across peak, duty cycle, and multiplexing tension) is discussed in "An Introduction to Advanced Targeted Acquisition Methods" (2021).

Pilot Testing Before Full-Scale Analysis

A pilot is a feasibility gate, not a formality. It should answer:

• Which essential targets are consistently detectable in the final matrix?
• Which peptides show interference or unstable digestion behavior?
• What QC thresholds and batch rules will you use when you scale?

A good pilot outcome is not "everything worked." A good pilot outcome is "we know exactly which targets to keep, which to change, and why."

A practical pilot & QC acceptance framework (fit-for-purpose):

• Define acceptance at three levels: (1) peptide/transition, (2) protein target, (3) run/batch.

• Peptide/transition-level checks (evidence that the measurement is specific and stable):

  • Co-elution and consistent relative ion ratios for quantifier/qualifier signals
  • Stable retention-time behavior under scheduling
  • Internal standard trace behaves as expected (if used)
  • Example thresholds (adjust per matrix and instrument): retention time drift within a narrow window; qualifier/quantifier ratio within a predefined tolerance band.

• Target-level checks (evidence the target is usable across the cohort):

  • Detection success rate across pilot samples for essential targets
  • Missingness pattern review (random vs matrix-/batch-linked)
  • Replicate agreement when technical or process replicates are included
  • Example thresholds (adjust per study): essential targets meet a high detection rate in the intended matrix; replicate CV meets a fit-for-purpose range for your decision.

• Run/batch-level checks (evidence the dataset will scale):

  • QC sample strategy defined (e.g., pooled matrix QC and blank injections)
  • Drift monitoring and re-injection rules
  • Batch bridging plan if multiple batches are expected
  • Example thresholds (adjust per workflow): QC samples fall within predefined control limits; runs failing QC triggers re-run or exclusion rules.

When these criteria are defined before cohort acquisition, it becomes much easier to "freeze the panel," defend exclusions, and keep the final dataset decision-grade.

Relative Quantification vs Absolute Quantification Panel Design

When Relative PRM Panels Are Appropriate

Relative panels are often appropriate for:

• Group comparisons
• Candidate confirmation after discovery
• Mechanistic studies where fold-change is the main output

Stable isotope standards may still be used to improve precision, but you may not need full concentration calibration.

When Absolute Quantification Is Required

Absolute quantification is required when decisions depend on concentrations in defined units or cross-study comparability.

If your study requires concentration reporting supported by stable isotope standards, see Creative Proteomics' isotope-labeled protein absolute quantification service.

Absolute workflows typically require:

• Stable isotope-labeled standards (e.g., AQUA peptides)
• Calibration strategy and defined LOD/LOQ
• Additional QC documentation to support accuracy/linearity

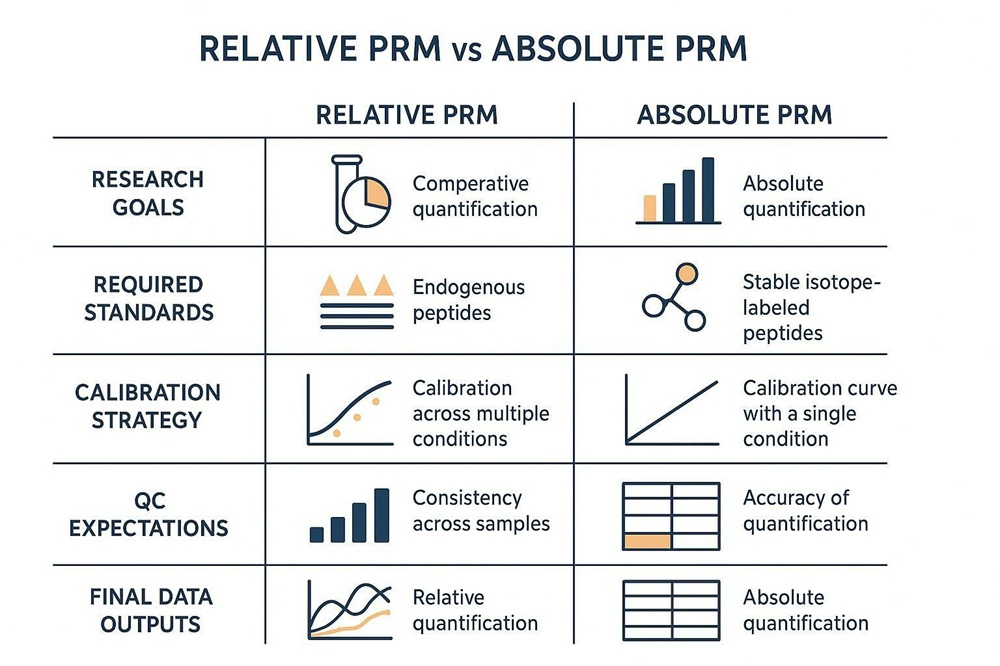

Figure 2. Relative and absolute PRM panel designs support different research objectives.

How Quantification Goals Change Panel Design

Designing Panels for Different Research Applications

Biomarker Validation Panels

A biomarker validation panel should be conservative by design:

• Start from discovery candidates, but filter by feasibility.
• Plan for independent cohorts and batch-to-batch comparability.
• Favor peptides that reduce missing values over peptides that maximize novelty.

Pharmacodynamic and Drug-Response Panels

Drug-response panels often combine:

• Treatment response markers
• Pathway modulation readouts
• Time-course stability requirements (batch design becomes part of the method)

Target Validation Panels

Target validation panels often require stronger specificity assumptions:

• Isoform-aware peptides where needed
• Downstream pathway proteins for functional confirmation
• Potentially narrower target sets if abundance or interference is limiting

Multi-Pathway Protein Panels

Multi-pathway panels (e.g., inflammation/oncology/immunology/metabolism) can be powerful, but multiplexing limits become the dominant technical constraint. This is where up-front prioritization and pilot gating pay off.

QC and Performance Evaluation of a Custom Panel

Method Performance Evaluation

A panel is "study-ready" only if you can defend performance in reporting:

• Precision and reproducibility
• Specificity/selectivity
• Sensitivity (where relevant)
• Batch behavior and QC acceptance rules

Sample-Level QC

Sample-level QC focuses on what happens before acquisition:

• Consistent digestion and cleanup
• Batch effects and drift controls
• Replicate agreement when appropriate

If sample prep variability dominates, PRM/MRM method quality cannot rescue the dataset.

Panel-Level QC

Panel-level QC asks whether the panel behaved consistently as a system:

• Target detection success rate
• Peptide-level failure patterns (missingness, interference)
• Stability of internal standards
• Data completeness across batches

Reporting Panel Limitations

A professional report should include:

• Successfully quantified targets
• Targets requiring optimization
• Detection limitations and likely causes
• Recommended next steps

Common Mistakes When Developing a PRM/MRM Panel

Starting with Too Many Targets

Starting too broad increases development complexity and can reduce robustness for decision-critical targets.

Selecting Proteins Without Peptide Feasibility Review

Skipping peptide feasibility creates late-stage rework when targets fail after scheduling and standards are designed.

Ignoring Sample Matrix Effects

Matrix effects are a top reason assays that work in one sample type fail in another. Always validate detectability and interference in-matrix.

Treating Discovery Results as Final Validation Evidence

Discovery evidence and targeted quantification evidence serve different purposes. A targeted panel exists to provide reproducible, peptide-verified quantification aligned to predefined QC criteria.

Changing Target Lists After Development Begins

Frequent target swaps can compromise comparability and slow the project. Pilot broadly, then freeze the final panel before cohort acquisition.

A Practical Workflow for Custom PRM/MRM Panel Development

Frequently Asked Questions

How many proteins can be included in a custom PRM panel?

Panel capacity is constrained by chromatography, scheduling, and the requirement to sample peaks densely enough for stable integration. The best estimate comes from feasibility testing under your LC-MS conditions.

Can all proteins from DIA or TMT discovery be transferred into PRM?

No. Discovery candidates often include proteins that are biologically interesting but not analytically feasible as robust peptide measurements in your matrix.

What information is needed to design a PRM/MRM panel?

A target list plus species, sample matrix, study objective, sample count/batch expectations, and whether relative or absolute quantification is required.

How are peptides selected for quantification?

Peptides are selected for uniqueness, digestion behavior, stability, and empirical detectability, following published selection and standard-handling criteria.

Why are some proteins difficult to quantify?

Low abundance, lack of proteotypic peptides, high homology, variable digestion, and matrix interference are common causes.

Do all PRM panels require stable isotope-labeled standards?

Not always. They are typically required for absolute quantification and are often recommended for improving precision in relative panels.

What is the difference between relative and absolute PRM panels?

Relative panels compare samples (ratios/fold-change). Absolute panels report concentrations and require standards/calibration and stricter QC.

Can PRM panels be customized for drug development studies?

Yes—especially for pharmacodynamic and mechanism studies—when panel design is aligned to the decision criteria.

Can PTM targets be included in a PRM panel?

Yes, but PTM panels should be treated as a dedicated workflow with PTM-aware design and QC.

How long does PRM assay development take?

It depends on target count, matrix complexity, and whether standards must be produced. Planning by milestones (feasibility → pilot → final) is more reliable than assuming a universal timeline.

What happens if some targets fail during development?

Targets may be replaced by alternative peptides, deferred, or reported as limited by abundance/interference. A pilot phase is the mechanism to identify this early.

Can an existing protein list be reviewed before starting?

Yes. A feasibility review can classify targets by priority and identify peptide/matrix risks before you commit to full development.

How should samples be prepared for a custom panel?

Use standardized, batch-aware sample preparation, and design QC samples to detect drift early.

What deliverables are included after panel development?

Deliverables depend on whether the project is relative or absolute, but typically include method documentation, quantitative tables, QC summaries, and—when applicable—calibration and LOQ/LOD documentation.

Conclusion and CTA

Custom PRM MRM panel development is not simply adding proteins to a list. A successful targeted proteomics assay requires:

• Biological prioritization
• Peptide feasibility assessment
• Fit-for-purpose quantification strategy (relative vs absolute)
• QC planning and batch design
• Decision-ready reporting

If you already have a candidate protein list (discovery hits, biomarker candidates, drug-related targets, or pathway sets), the most efficient next step is a feasibility review before cohort-scale acquisition.

To scope a project, prepare: target list, species, sample matrix, sample number/batch plan, study goal, relative vs absolute requirement, and your preferred deliverables.

For an end-to-end, RUO-focused workflow (proteotypic peptide selection → method optimization → QC-forward reporting), see Creative Proteomics' Custom PRM/MRM assay development service.

Related service pages (within our Proteomics services hub):

• Targeted Proteomics Services
• Multiplexed Protein Panel Quantification

Author: CAIMEI LI, Senior Scientist at Creative Proteomics
LinkedIn: Caimei Li

Author note: We support RUO quantitative proteomics projects spanning discovery-to-validation workflows, with a particular focus on fit-for-purpose PRM/MRM assay development, stable-isotope-supported quantification strategies, and QC-forward reporting across complex biological matrices. The decision gates described here reflect common feasibility and scale-up patterns we see when moving from candidate lists to study-ready targeted panels.
