From Raw Spectra to Publication-Ready Figures: Bioinformatics Deliverables for RNA Modification LC‑MS

Many teams running rna modification lc ms struggle with the same bottleneck: you receive a results table, but you're not sure it's defensible, publication‑ready, or auditor‑friendly. This Practical Guide turns RNA Modification LC‑MS Analysis outputs into an auditable, copy‑paste acceptance framework—covering raw data, quant tables, QC, statistics, and a figure pack suitable for peer review. In short, rna modification lc ms work becomes easier to verify, simpler to present, and faster to shepherd through reviewer questions (see References). Scope note: we focus on nucleoside‑level LC‑MS for mRNA/total RNA; site‑localization algorithms are out of scope.

Key takeaways

• A layered Deliverables Stack clarifies what to demand: raw files/metadata → quant table → QC appendix → statistical summary → figure pack.
• Use a strict but realistic QC baseline (R² ≥ 0.995; recovery 80–120%; tech CV ≤ 15% [≤ 20% low abundance]; blanks ≤ LOQ; carryover ≤ 0.1% IS) with SOW‑documented exceptions for complex matrices.
• Pair p‑values with effect sizes/95% CIs; make batch effects auditable with drift plots and simple multivariate overviews (see References).
• Build a figure pack you can drop into a manuscript: one main biological figure plus 2–4 supplement‑friendly QC/method visuals.
• Copy‑paste the Acceptance Checklist into SOW/POs to align vendors, core facilities, and reviewers up front.

Start With the End in Mind: What "Publication‑Ready" Means for LC‑MS

Three audiences, three deliverable expectations

• PI/Authors: need clean figures and interpretable conclusions that map directly to the study hypotheses and units (e.g., mol% base or fmol/µg RNA). They want a figure pack that survives peer‑review without weeks of rework. Practical example: state "Absolute m6A (fmol/µg RNA) increased 1.4× (95% CI 1.2–1.7) in treatment vs control; <LOQ values treated as censored," which ties biology, units, and missing‑data policy in one sentence (see References).
• Reviewers: expect auditable QC and methods evidence—calibration and reportable ranges, LOQ handling, recovery/precision, blank/carryover checks, and batch stability—with transparent definitions (see References). They often ask, "Where is the residual plot?" or "How did you set LLOQ?" If those panels and statements are pre‑packaged, review cycles shorten.
• QC/CMC‑minded stakeholders: require traceability and batch consistency; they will look for versioned raw files/metadata, run order documentation, and normalization rationales that make re‑analysis possible. Think of this audience as your internal auditor—if they can retrace every step, your submission is resilient.

The minimum "evidence package" for defensible quant

At a minimum, a publication‑ready evidence package should include: (1) calibration with model/weighting and residuals; (2) LLOQ/ULOQ definitions with accuracy and precision support; (3) spike‑recovery and replicate precision summaries; (4) blank strategies and carryover results; and (5) drift monitoring via QC/bridge samples, with pre/post normalization summaries when relevant (see References). Add a short, reusable acceptance sentence for each: "Reportable range verified LLOQ–ULOQ with accuracy within ±15% (>LLOQ) and precision ≤15% CV; LLOQ accuracy/precision within ±20%/≤20% CV; no carryover above blank acceptance; drift controlled via IS‑based normalization."

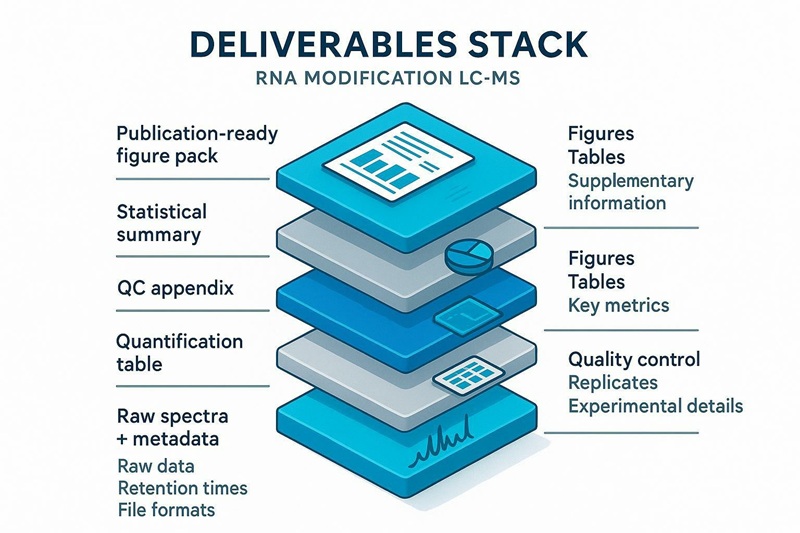

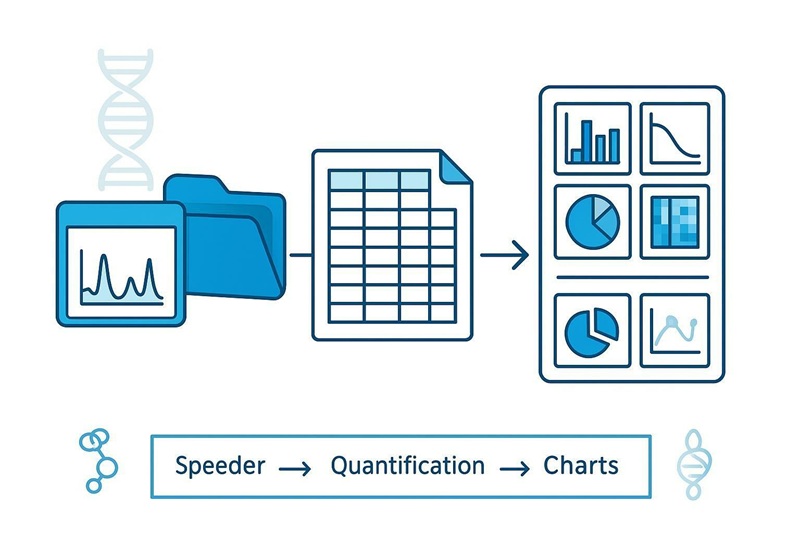

The Deliverables Stack: Raw Data → Quant Table → QC Appendix → Figure Pack

The backbone of any rna modification lc ms project is a clear Deliverables Stack. Each layer answers a different reviewer question and, together, they form an auditable chain from spectra to figures.

Raw data and metadata (what should be included)

Your raw layer must enable re‑processing and independent audit:

• Vendor raw files for LC and MS (e.g., .raw, .d, .wiff) and, where feasible, open exports (mzML/mzXML) with checksums.
• Acquisition sequence/run order; sample sheet with sample IDs, biological vs technical replicates, batch IDs, blanks and bridge/QC placements; injection time stamps.
• LC method details (column type/dimensions, gradient table, flow, temperature, injection volume) and MS parameters (mode, transitions/MRM where applicable, source settings, scan ranges, collision energies).
• Internal standards list (stable isotope‑labeled nucleosides where used), stock/working concentrations, and spiking scheme per sample/QC/calibrator.
• Processing parameters and software versions: integration rules, smoothing, calibration model and weighting, LOQ/LOD procedure, normalization approach, and any outlier criteria. Include data‑processing provenance (software build, parameter file hash) for reproducibility.

Quantification table (required columns)

A defensible quant table reads like a contract:

• Analyte (modified ribonucleoside), base identity; primary units declared consistently (e.g., fmol, pmol/µg RNA, or mol% base).
• Sample ID, batch ID, replicate ID; bridge/QC indicator; injection ID or time.
• Internal standard assignment and response ratio (analyte/IS) for absolute analytes; calibration range and model; back‑calculated concentration and residual.
• Flags: <LOQ, ND, NA/missing, outlier removed (with criterion), carryover flagged. Include a "Reportable?" boolean derived from LOQ rules.
• Quality fields: technical CV for replicates, spike‑recovery %, blank check outcome, and drift/normalization factor if used. Provide a short data dictionary so users can parse fields consistently.

QC appendix (what reviewers look for)

The QC appendix is where you prove control:

• Calibration summaries per analyte (range, R², residual distribution, LLOQ confirmation). Include a one‑line model rationale (e.g., "1/x weighting reduces low‑end bias").
• Precision and recovery tables (intra/inter‑batch %CV; spike recoveries targeting 80–120% unless justified otherwise). State the matrix and spike level explicitly.
• Blank and carryover evidence (post‑ULOQ blanks vs LLOQ; internal‑standard bleed criteria); representative chromatograms. Describe corrective actions if thresholds are exceeded.
• Drift monitoring plots vs run order; bridge/QC placement; normalization rationale and before/after comparisons. Note acceptance language such as "No monotonic drift; QC CV within 15%."

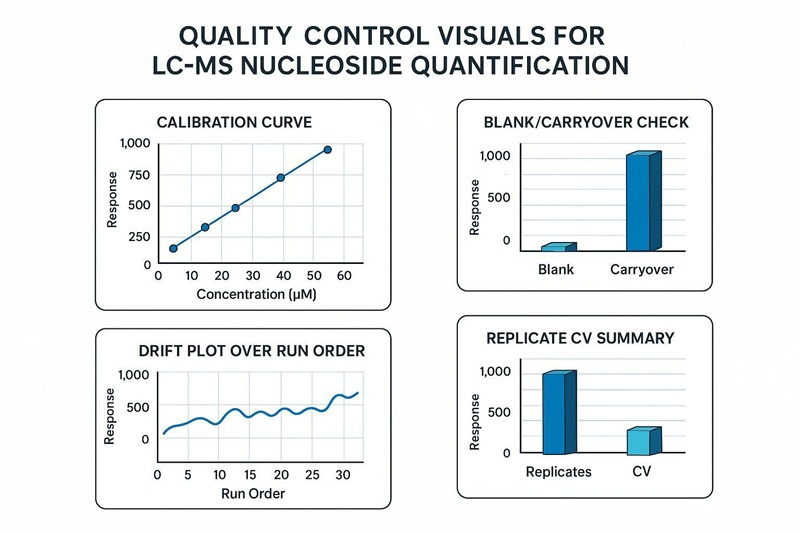

Figure pack (what you can drop into a manuscript)

Package one main biological figure (bar/box/heatmap) plus 2–4 supplement‑friendly method/QC visuals: a calibration inset for one sentinel nucleoside, a blanks/carryover panel, a run‑order drift plot, and a replicate‑CV summary. Keep fonts legible and units explicit; include LOQ handling in legends (see References).

A clear deliverables stack turns LC‑MS outputs into reviewer‑auditable evidence.

QC Metrics That Must Be Reported (and How to Interpret Them)

Calibration and reportable range

Report per‑analyte LLOQ/ULOQ with supporting accuracy and precision at each level; provide the calibration model (e.g., 1/x weighting) and residual plots. R² helps, but low‑end behavior, back‑calculation bias, and residual structure matter more for determining reportable range (see References). For isotope‑dilution absolute quant of key nucleosides (e.g., m6A, Ψ, m5C, m1A), align model/weighting with internal‑standard performance; if you're deep in m6A absolute quantification trade‑offs, see the concise explainer in m6A absolute quant deep dive.

Add reusable acceptance text: "Calibration performed across LLOQ–ULOQ with 1/x (or stated) weighting; back‑calculated concentrations show ≤15% bias above LLOQ and ≤20% bias at LLOQ; residuals random without low‑end structure; R² ≥ 0.995."

Precision and recovery

Summarize technical replicate CVs and inter‑batch variability; support bias/precision claims with spike‑recovery at low/mid/high levels. As a baseline, target recovery 80–120% and technical CV ≤ 15% (≤ 20% for low abundance). State any matrix‑specific exceptions in the SOW and define substitute QC. Example phrasing: "LQC/MQC/HQC recoveries averaged 92–108%; intra‑batch CVs ≤12%; inter‑batch CVs ≤15%."

Blanks, carryover, and contamination flags

Document solvent/method/matrix blanks and specify acceptance for post‑ULOQ carryover. Practical acceptance for robust publication‑grade work: blanks ≤ LOQ and carryover ≤ 0.1% internal standard signal for the next injection; if exceeded, show mitigations and re‑checks (see References). Clearly flag contaminated runs and explain exclusion criteria. One‑liner for Methods: "Carryover after ULOQ fell below 0.1% of IS and below LOQ response in blanks following enhanced needle‑wash."

Batch drift and normalization

Plot QC/bridge samples against run order to show stability or to justify normalization. Explain the normalization basis (internal‑standard–based, pooled‑QC LOESS, or equivalent) and display before/after attenuation of trends. Keep the rationale short and auditable (see References). Example legend text: "LOESS on pooled QC reduced run‑order slope from −0.004/injection to ~0."

Statistical Reporting: What Reviewers Expect vs What's Optional

Replicates and sample size transparency

Distinguish biological from technical replicates; disclose n per group. Describe how you handle values <LOQ: imputation strategy (e.g., LOQ/√2) or censored‑data treatment; or report as NA with a transparent rule. Spell out the reporting unit (fmol, mol% base, or both) and the reference base/amount for normalization (see References). Reusable sentence: "Values <LOQ were treated as censored and not used for inference; for display, we imputed LOQ/√2 and marked bars accordingly."

Appropriate comparisons and effect sizes

Don't stop at p‑values. Provide effect sizes and 95% confidence intervals to communicate magnitude and uncertainty. If the design involves multiple comparisons, note the method used to control error rates (e.g., Benjamini–Hochberg). A practical sentence you can reuse: "Group differences are reported as mean ratio (95% CI) with adjusted P; effects are discussed when the CI excludes 1.0 with practical relevance." (see References)

Visual QC for batch effects

Simple, auditable visuals go a long way: a PCA or clustering overview for high‑level structure, a run‑order drift plot for at‑a‑glance stability, and a replicate‑CV summary. These panels make batch effects discussable without deep software dives. Want a quick test for "too much correction?" Compare biological separation pre/post normalization; if it inverts expected patterns, explain why.

QC visuals make batch effects and drift auditable at a glance.

Figure Pack Templates: The 5 Figures Most Papers Need

Figure 1: main biological result (bar/box/heatmap)

Choose the chart that reflects your design: bar/box for discrete groups, line for time courses, or a heatmap for broad panels. Label units and indicate how <LOQ values were treated. If absolute and relative analytes co‑exist, note which are isotope‑dilution–based. Formatting guidelines: 8–10 pt axis fonts at 300 dpi minimum; color‑blind‑safe palettes; keep legends succinct; put units and LOQ rules in the caption.

Figure 2: method/QC summary (supplement‑friendly)

Include LLOQ/ULOQ statements, spike‑recovery ranges, and replicate CV summaries. A small calibration inset for a sentinel nucleoside helps reviewers gauge fit quality without scrolling through an appendix (see References). Add a short sentence such as "Residuals show no curvature at the low end."

Figure 3: drift and batch stability

Show run‑order trends for a bridge/QC sample and annotate normalization when applied. Briefly state acceptance (e.g., no monotonic drift; residual variation within technical CV targets). Consider an inset comparing pre/post normalization variance.

Figure 4: panel coverage and missingness

Make coverage explicit: which modifications are reportable per sample, which are <LOQ or ND, and where missingness stems from pre‑defined rules. This reduces back‑and‑forth during peer review. Add a footnote that "Reportable?" derives from LOQ logic in the Methods.

Figure 5: sensitivity statement (optional)

If space allows, visualize the reportable range across analytes (e.g., LLOQ distribution). Keep it compact and put detailed numerics in the QC appendix. A minimalist violin or dot plot works well.

Deliverables for Special Scenarios: tRNA Panels and Low‑Input Samples

tRNA‑focused projects (panel + interpretation)

For tRNA panels, insist on an explicit analyte list with per‑analyte calibration ranges and reportable status. Cross‑batch consistency matters: include bridge/QC designs that traverse runs and summarize the fraction of analytes retaining reportable status across batches. Add language like, "≥85% of panel analytes remained reportable across batches with inter‑batch CV ≤15%." For an applications overview of tRNA modification LC‑MS and interpretation angles beyond this checklist, see tRNA LC‑MS applications.

Low‑input projects (what changes in QC)

Small inputs amplify the impact of background and matrix effects. Strengthen your blanks strategy, test carryover more frequently, and scrutinize recovery near the LLOQ. Consider optimized hydrolysis and stable isotope‑labeled internal standards to protect accuracy/precision. Keep the standard baseline (R² ≥ 0.995; recovery 80–120%; tech CV ≤ 15% ≤ 20% low abundance]; blanks ≤ LOQ; carryover ≤ 0.1% IS), but pre‑define SOW exceptions with rationale and substitute QC (e.g., expanded blank frequency or replicate strategy). A concise perspective on practical trade‑offs for very small inputs is available here: [low‑input case notes. As a sanity check, report how many samples landed <LOQ for key analytes and whether additional concentration or injection volume was required (see References).

Acceptance Criteria: A Copy‑Paste Checklist for SOW/PO Approval

Use this checklist verbatim in your SOW/PO. It aligns labs, vendors, and reviewers around what "publication‑ready" means.

Required items (non‑negotiable)

• Raw data & metadata: vendor raw files; run order; sample sheet with batch/replicate IDs; LC gradient/column; MS parameters; internal‑standard list and concentrations; processing parameters and software versions.
• Quantification table: analyte; unit; sample/batch/replicate IDs; IS ratio (where applicable); calibration model and residuals; LOQ flag; ND/<LOQ/missing/outlier codes; Reportable? boolean.
• QC appendix: calibration/LLOQ evidence; intra/inter precision (%CV); spike‑recovery 80–120%; blanks/carryover results; drift plots vs run order; normalization rationale.
• Figure pack: one main biological figure plus 2–4 supplement QC/method visuals (calibration inset; blanks/carryover; drift; replicate CV). Units and <LOQ handling must be stated in legends.
• Statistics: replicate transparency; <LOQ handling rule; p‑values paired with effect sizes and 95% CIs; multiple‑comparison note if applicable.
• Thresholds baseline ("3A"): R² ≥ 0.995; recovery 80–120%; tech CV ≤ 15% (≤ 20% low abundance); blanks ≤ LOQ; carryover ≤ 0.1% IS. Exceptions only by SOW with rationale and substitute QC.

Optional items (project‑dependent)

• Open formats (mzML/mzXML) and deposition DOIs; instrument suitability tests.
• Additional statistics (power analysis; mixed models); stability/dilution integrity if relevant to scope.
• Reviewer response template or annotated supplement checklist.

How to handle "below LOQ"

• Define <LOQ as non‑reportable for quantitative comparisons; allow qualitative "detected" statements if chromatographic/ion‑ratio criteria are met.
• Choose one rule and state it: impute at LOQ/√2 for descriptive plots only; or treat as censored/NA for inference. Apply consistently and disclose it in legends and Methods (see References).

To help teams select the right template quickly, here is a compact table capturing the same acceptance scope:

Next Steps: Fast Quote With a Deliverables‑First Spec

What to send to avoid back‑and‑forth

• A sample information sheet with counts, groups, biological vs technical replicates, and any anticipated matrix complexities.
• The target modification panel and which analytes require isotope‑dilution absolute quant vs relative reporting.
• Clarify controls and replicates, expected deliverables stack depth (e.g., whether open formats and deposition support are needed), and any pre‑defined SOW exceptions for complex matrices or low‑input. If you already have prior runs, share a representative raw file and quant table to align processing parameters quickly.

Primary CTA (one click)

If you want to move quickly using a deliverables‑first specification—complete with quote/NDA/IP boundaries and a plain‑ scope statement—use this page to kick off the process: deliverables‑first quote & NDA/spec.

References

1. ICH M10 Bioanalytical Method Validation and Study Sample Analysis. European Medicines Agency. Step 2b draft PDF; harmonized criteria for LLOQ/ULOQ, accuracy/precision, run acceptance, and carryover testing. 2019–2022. https://www.ema.europa.eu/en/documents/scientific-guideline/draft-ich-guideline-m10-bioanalytical-method-validation-step-2b_en.pdf
2. U.S. FDA. Bioanalytical Method Validation Guidance for Industry. Final guidance covering chromatographic methods, accuracy/precision, calibration, carryover, and blanks. 2018. https://www.fda.gov/files/drugs/published/Bioanalytical-Method-Validation-Guidance-for-Industry.pdf
3. Jora M., et al. Detection of ribonucleoside modifications by liquid chromatography–tandem mass spectrometry. Nucleic Acids Res. 2018. PMID: 30535188; PMCID: PMC6401287. https://pmc.ncbi.nlm.nih.gov/articles/PMC6401287/
4. Ammann G., et al. Pitfalls in RNA Modification Quantification Using Nucleoside MS. Acc Chem Res. 2023. doi:10.1021/acs.accounts.3c00402. https://pubs.acs.org/doi/10.1021/acs.accounts.3c00402
5. González‑Domínguez Á., et al. QC*omics: recommendations for robust QC in MS‑based omics. 2024. PMCID: PMC10809278. https://pmc.ncbi.nlm.nih.gov/articles/PMC10809278/
6. Yu Y., et al. Assessing and mitigating batch effects in large‑scale omics. 2024. PMCID: PMC11447944. https://pmc.ncbi.nlm.nih.gov/articles/PMC11447944/
7. Su D., et al. Quantitative analysis of ribonucleoside modifications in tRNA by LC‑MS with DMRM. Anal Chem. 2014. PMID: 24625781. https://pubmed.ncbi.nlm.nih.gov/24625781/
8. Pan X., et al. Development, validation and application of an LC–MS workflow for nucleic acid components. 2024. PMCID: PMC11493786. https://pmc.ncbi.nlm.nih.gov/articles/PMC11493786/
