How to Compare Phosphoproteomics Between WT and KO Samples

When you set out to compare phosphoproteomics between wild type (WT) and knockout (KO) models—especially for a single kinase KO in a cell line with and without ligand across time—you're not just measuring abundance. You're tracing the live wiring of a signaling network. Here's the trap to avoid: calling a downregulated phosphosite a "hit" when the protein itself is simply less abundant in the KO. The antidote—and the hero of this guide—is Global Proteome Normalization: measure a parallel global proteome and report a pSite/Protein ratio so apparent changes reflect regulation, not just expression.

This ultimate guide walks you end to end: experimental design that "freezes" the phosphoproteome at harvest, enrichment strategies (IMAC, TiO2, pTyr IP), the quantitative choice (TMT pre-enrichment mixing vs. LFQ), and a practical analytics stack with site localization, pSite/Protein normalization, and Kinase-Substrate Enrichment Analysis (KSEA). We'll anchor the narrative on a single-kinase KO (e.g., EGFR/MAPK1/LKB1) in a human cell line with ± ligand/time-course.

Key takeaways

• Phosphoproteomics complements total proteome comparisons by capturing active signaling; normalization against the global proteome (pSite/Protein) prevents false positives.
• For controlled WT vs KO comparisons, TMT labeling with pre-enrichment mixing across channels and a parallel global proteome run is a best-practice design to minimize enrichment-driven variance.
• Use Fe3+-IMAC/Ti4+-IMAC and TiO2 as complementary capture chemistries; consider anti-pTyr IP to profile low-abundance tyrosine phosphorylation.
• Aim for ≥4 biological replicates per condition to handle high site-level variance, and use site localization probability thresholds plus FLR monitoring.
• Decode network-level changes with KSEA and substrate-set enrichment to validate direct kinase effects and compensatory pathways.

Beyond Global Abundance: The Strategic Value of Phosphoproteomics in KO Models

WT vs KO comparisons often begin with total protein abundance. But do equal protein levels guarantee equal pathway activity? Not at all. Conversely, do phosphosite-level shifts always reflect altered site occupancy? Also no—unless you correct for protein changes. A side-by-side proteome plus phosphoproteome readout lets you both see the rewired signaling and rule out abundance-driven artifacts.

Capturing the active signaling cascade

Signaling rewiring can occur with minimal changes in protein expression, and many regulatory decisions are encoded at Ser/Thr/Tyr sites that toggle interactions and activity. Systems-scale work has shown considerable decoupling between protein abundance and phosphorylation, underscoring why phosphoproteomics is essential to truly compare WT and KO models. For example, Li and colleagues explicitly normalized phosphosites by protein levels to separate genuine regulation from expression shifts in a multi-perturbation deletion background. See the methods and results in the Molecular & Cellular Proteomics article Investigation of Proteomic and Phosphoproteomic Responses (2019) for a clear demonstration of protein-abundance correction revealing regulation beyond total-protein changes: according to the authors' analysis, dividing phosphosite intensity by protein abundance exposed regulation otherwise masked by total-protein shifts. You can read the open-access study here: Investigation of Proteomic and Phosphoproteomic Responses (2019), Molecular & Cellular Proteomics.

Validating kinase knockouts and off-target effects

How do you use phosphoproteomics to validate that a KO removed a kinase's activity? Two steps:

• Identify direct substrates that lose site occupancy in KO (after pSite/Protein correction). These typically show coherent downregulation shortly after stimulus.
• Identify compensatory pathways that rise as the network adapts—e.g., shifts toward CDK1/AKT/p38 nodes in EGFR-pathway perturbations, or alternative MAPK branches after ERK2 loss. Time-resolved and perturbation studies showcase these patterns, supporting what you'll expect to see in a KO background (for example, coordinated substrate-set shifts under EGFR-pathway pressure in resistant models reported by Zhang et al., 2021, and time-resolved scaffolding changes in SHP2–EGFR signaling by Vemulapalli et al., 2021).

Bulletproof Experimental Design for WT vs. KO Comparisons

The difference between publishable and puzzling phosphoproteomics often comes down to design. Here's how to build power into your WT vs KO comparison.

"Freezing" the phosphoproteome at harvest

Phosphorylation changes rapidly ex vivo. To compare phosphoproteomics WT and KO fairly, "freeze" the state at lysis by adding broad-spectrum phosphatase inhibitors at the moment of extraction. Standard high-denaturant buffers (e.g., urea or guanidinium) plus protease and phosphatase inhibitor cocktails minimize post-lysis dephosphorylation and proteolysis. Reviews emphasize the necessity of inhibitor inclusion and rapid, cold processing to preserve in vivo phosphorylation patterns; see Mass spectrometry-based phosphoproteomics in clinical applications (2023), Clinical Proteomics and Recent advances in enrichment and separation strategies (2014), Proteomics for practical context.

Statistical power and biological replicates

Phosphosites are noisy: low stoichiometry, enrichment stochasticity, and PTM-specific fragmentation can inflate variance. For WT vs KO (± ligand, time-course), plan for at least n ≥ 4 biological replicates per condition to enable robust effect estimation and proper FDR control. PTM-aware frameworks, such as MSstatsPTM (2022), Molecular & Cellular Proteomics, jointly model modified and unmodified forms and provide guidance on replicate-aware contrasts.

Overcoming the Bottleneck: Phosphopeptide Enrichment Strategies

Low occupancy and substoichiometric regulation mean phosphopeptides are typically <1% of a digest—so enrichment is non-negotiable if you want depth and sensitivity in WT vs KO comparisons.

The low stoichiometry challenge

Think of your digest as a crowded station. Without a priority line, phosphopeptides rarely make it onto the instrument. Enrichment reduces interference, increases precursor ion currents for phosphopeptides, and boosts MS/MS sampling probability, materially improving the depth and quality of differential testing.

IMAC vs TiO2 enrichment (and when to combine)

Immobilized metal ion affinity chromatography (IMAC; Fe3+ or Ti4+) and metal oxide affinity chromatography (MOAC; primarily TiO2) provide complementary capture profiles. Benchmarked comparisons suggest Fe3+-IMAC often yields broader overall coverage in common setups, while TiO2/Ti4+-IMAC can show biases toward multi-phosphorylated peptides. Sequential or parallel use—sometimes termed SIMAC-like strategies—broadens coverage further. Because pTyr sites are sparse (~2%), consider an anti-pTyr IP step to enhance tyrosine coverage, followed by IMAC/MOAC for Ser/Thr.

• Reviews benchmarking enrichment chemistries and reporting complementarity include Phosphoproteomics in the age of rapid and deep proteome measurement (2016), Analytical Chemistry and Recent findings and technological advances in large-scale phosphoproteomics (2015), Proteomics. For an example dataset illustrating mono/multi-phospho distributions after Fe-IMAC workflows, see LFQ phosphoproteomics in fission yeast (2021), Journal of Proteome Research.
• For a concise overview of MOAC principles and use cases, see the resource from Creative Proteomics: Metal Oxide Affinity Chromatography (MOAC). A broader primer on enrichment options is summarized here: Summary of Protein Phosphorylation Detection Methods.

Quantitative Designs to Compare Phosphoproteomics WT and KO

To compare phosphoproteomics WT and KO precisely, your quantitative strategy must control enrichment variance, batch effects, and missing values while fitting your cohort size.

Why TMT pre-enrichment mixing is best practice for KO comparisons

For controlled contrasts (WT vs KO ± ligand/time), TMT labeling with pre-enrichment mixing is widely adopted: label individual digests, then pool all channels before phosphopeptide enrichment so every channel experiences the same capture. This design minimizes enrichment-driven batch effects. Employ SPS-MS3 acquisition to mitigate ratio compression from co-isolation interference and improve quantitative accuracy for phosphopeptides. See protocol details in SL-TMT with SPS-MS3 (2018), Journal of Proteome Research and broader context in Emerging MS-based proteomics (2020), Analytical Chemistry.

• Multi-batch TMT studies demonstrate excellent within-plex comparability but warn of cross-plex effects and increased missingness unless you include a common reference channel and careful design; see Multi-batch TMT reveals batch effects and missing values (2019), Molecular & Cellular Proteomics.

When to use LFQ

LFQ shines when cohorts balloon (e.g., 20+ samples or large time-series), especially with DIA acquisition and alignment to reduce missing values. While LFQ can rival or exceed TMT in identifications for certain contexts, fold-change precision and comparability depend on platform, library depth (for DIA), and alignment quality. For a representative comparative assessment, see Comparative assessment of phosphoproteomics quantification methods in tumors (2022), Analytical Chemistry.

Data Analytics: Decoding the Rewired Network

After acquisition, the analysis stack decides whether your WT vs KO comparison yields confident biology or confusion. The hierarchy: identification and site localization → normalization (including pSite/Protein) → differential testing → pathway/kinase inference.

Normalization against the global proteome (pSite/Protein)

Here's the deal: without protein-abundance context, many "hits" are mirages. Compute pSite/Protein by dividing the phosphosite intensity by the matching protein abundance measured from a parallel global proteome on the same samples and channels. Report both raw phosphosite fold-change and the pSite/Protein-corrected fold-change. Prioritize the corrected metric when interpreting regulation.

Implementation sketch

• Channel-matched runs: For TMT, acquire phospho and global proteome using the same channel layout so sample mapping is trivial.
• Site-to-protein mapping: Map each phosphosite to its parent protein group (review isoforms carefully; when ambiguous, apply consistent rules such as assigning to the leading protein or excluding ambiguous shared-peptide cases). Consider excluding sites lacking a confident parent protein quant.
• Handling missing data: Apply minimal imputation strategies (e.g., within-group small-value imputation for low-abundance sites) cautiously; document choices and assess sensitivity.
• Stats: Use moderated models (e.g., limma) or PTM-specific frameworks such as MSstatsPTM (2022), Molecular & Cellular Proteomics on pSite/Protein values.
• Reporting: Publish both the site-level and pSite/Protein-corrected fold-changes alongside localization probability; clearly mark which metric underlies biological conclusions.

Example pseudo-code (R-like)

# Inputs:
# phospho_mat: sites x samples (normalized reporter intensities)
# protein_mat: proteins x samples (global proteome intensities)
# site2protein: named vector mapping site_id -> protein_id

# 1) Collapse protein matrix to site's parent protein
prot_for_site <- protein_mat[site2protein[rownames(phospho_mat)], , drop = FALSE]

# 2) Compute pSite/Protein (add small epsilon to avoid divide-by-zero)
EPS <- 1e-6
psite_over_protein <- log2((phospho_mat + EPS) / (prot_for_site + EPS))

# 3) Differential testing (WT vs KO) using limma or MSstatsPTM-style models
# ... construct design matrix, fit model, adjust p-values ...

Why it matters

• A systems-scale KO/KD study in Molecular & Cellular Proteomics explicitly showed that dividing phosphosite intensities by protein abundances reveals regulation beyond expression changes and avoids false positives driven by protein loss: Investigation of Proteomic and Phosphoproteomic Responses (2019). This rationale aligns with emerging software support, for example Phospho-Analyst (2023), Journal of Proteome Research, which implements optional phosphosite-to-protein normalization when a parallel total proteome is available.
• For background on phosphosite localization scoring and FLR estimation—critical before any ratio reporting—see Phosphopeptide fragmentation and site localization (2018), Proteomics and Computational approaches to identify phosphorylation sites (2023), Briefings in Bioinformatics; for FLR controls via decoy amino acids, see False localization rate estimation (2022), Molecular & Cellular Proteomics.

For readers looking for fundamentals of phosphorylation site concepts and identification approaches, see these contextual primers from Creative Proteomics:

• Phosphorylation Site Identification Service

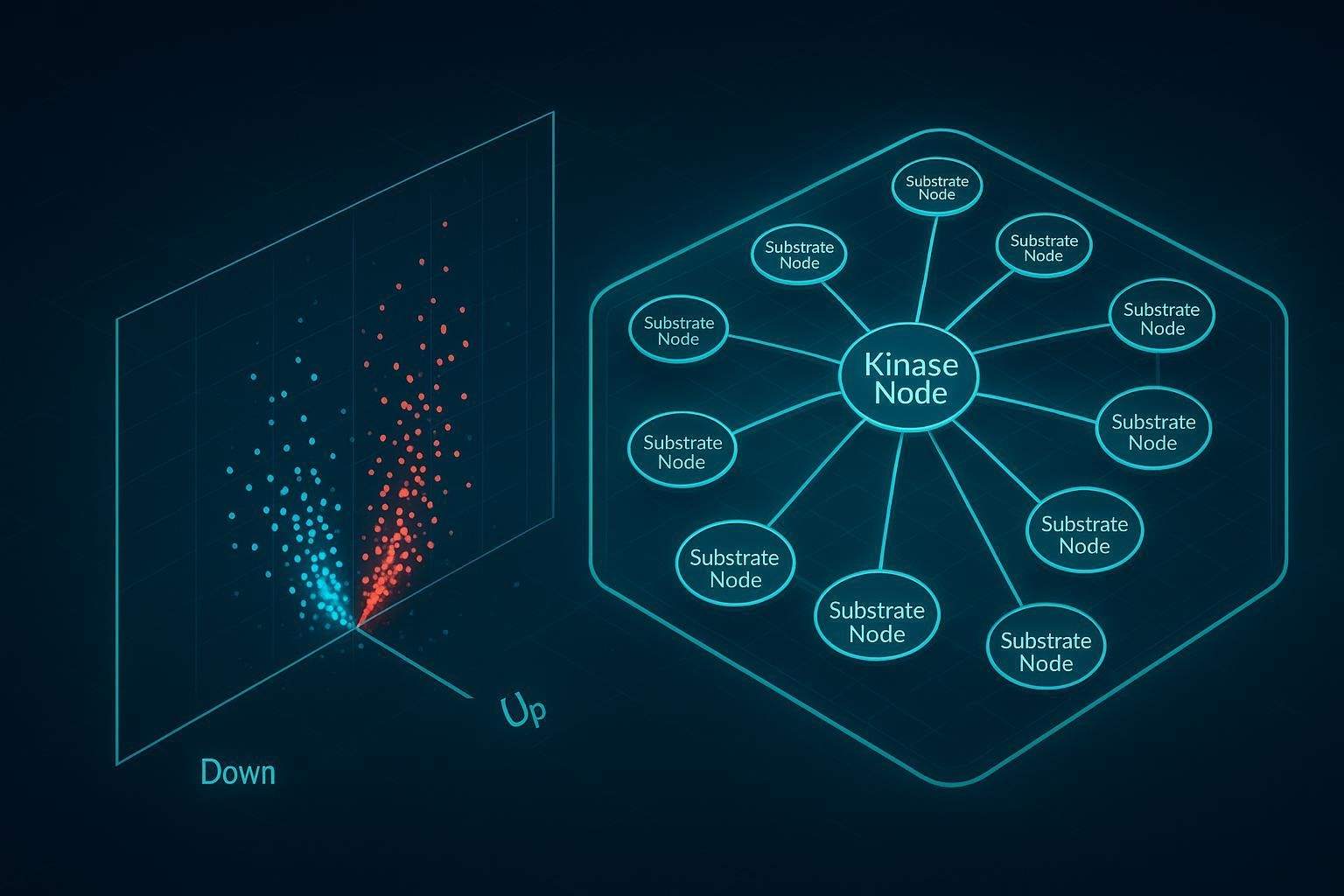

Kinase-Substrate Enrichment Analysis (KSEA)

Comparing phosphoproteomics WT and KO is often a prelude to asking: which kinases went up or down in activity? Kinase-Substrate Enrichment Analysis (KSEA) aggregates fold-changes across known substrate sets for each kinase and evaluates coordinated shifts versus background to infer activity changes.

• Resources such as KEA3 (2021), Nucleic Acids Research integrate curated kinase–substrate relationships and protein interaction data and have been peer-reviewed. KSEA-style z-scoring with FDR control provides significance estimates for each kinase; an app implementation is described in KSEA app, Bioinformatics.
• Interpretation tips: In a direct kinase KO, expect substrate sets for the deleted kinase to trend downward (after pSite/Protein correction), while compensatory kinases trend upward. Time-course data strengthens inference by showing early direct effects and later network adaptation.

Practical setup

• Input: a table of phosphosites with log2 fold-changes and adjusted p-values (preferably pSite/Protein-corrected). Map sites to proteins and then to kinase substrate sets.
• Tools: KSEA app implementations and KEA3-based workflows accept gene-level or site-proxy inputs. Control multiple testing at the kinase-set level.
• Cross-check: Validate top-kinase predictions against motif enrichment and known pathway context from your KO model and stimulus.

Anchor walkthrough: EGFR KO ± EGF time-course (conceptual design)

• Model: Human epithelial cell line with CRISPR EGFR KO; WT counterpart; stimulate both with EGF (e.g., 0, 2, 5, 15, 60 min).
• Quant: One TMT plex per time-course block with WT and KO channels mixed prior to enrichment; include a pooled reference channel across plexes if multiple plexes are needed.
• Enrichment: Anti-pTyr IP on an aliquot to boost pTyr coverage, followed by IMAC/MOAC on the remaining digest for Ser/Thr sites.
• Readouts and expectations: After pSite/Protein correction, early EGFR substrates (e.g., adaptor pY sites) show reduced occupancy in KO upon EGF; compensatory nodes (e.g., p38/AKT or CDK-linked sites) may rise later. KSEA should score EGFR-related substrate sets down and highlight up-trending compensatory kinases.
• Reporting: Present both site-level and pSite/Protein-corrected fold-changes, with localization probability and adjusted p-values; summarize kinase-level inferences with KSEA and motif enrichment.

Expert FAQ: Troubleshooting WT/KO Phosphoproteomics

Q: How much starting protein do I need for a robust WT vs KO phosphoproteomics study?

A: It depends on enrichment chemistry, fractionation, and instrument setup. Streamlined TMT-SPS-MS3 methods report deep coverage with moderate inputs, and FAIMS or gas-phase fractionation can further boost IDs. Rather than fixate on a universal number, align input to your target depth, fractionation strategy, and instrument sensitivity documented in peer-reviewed protocols like SL-TMT with SPS-MS3 (2018), JPR and FAIMS-enabled global phosphoproteome analysis (2020), JPR.

Q: Can I identify the exact phosphorylation site (Ser/Thr/Tyr) confidently?

A: Yes—use site localization algorithms (ptmRS/PTM-score/Ascore) with stringent localization probability thresholds (e.g., ≥0.75–0.9 depending on tool) and monitor false localization rate via decoy strategies. See Phosphopeptide fragmentation and site localization (2018), Proteomics and False localization rate estimation (2022), MCP.

Q: Do I really need a global proteome for normalization?

A: If your goal is to interpret site occupancy changes rather than abundance tracking, yes. A parallel global proteome enables pSite/Protein correction, which is supported conceptually by systems-scale work like Li et al., 2019, MCP and by tooling such as Phospho-Analyst (2023), JPR.

Q: TMT or LFQ for WT vs KO with time points?

A: Use TMT with pre-enrichment mixing when you want tight control of enrichment variance across conditions within a manageable cohort. Use LFQ (preferably DIA) when scaling to large cohorts beyond plex limits, and plan careful alignment and missing-value handling—see Comparative assessment in tumors (2022), Analytical Chemistry.

Q: How do I check for compensatory signaling after a kinase KO?

A: Combine KSEA (or KEA3-based inference) with motif analysis and pathway context. Track time-course behavior: direct substrate decreases early; compensatory nodes rise over longer windows or after ligand stimulation—tools and resources are described in KEA3 (2021), Nucleic Acids Research and KSEA app (Bioinformatics).

Closing thoughts and next steps

If you take just one thing from this guide, let it be this: to fairly compare phosphoproteomics WT and KO, always measure and use the parallel global proteome to compute pSite/Protein. Pair that with TMT pre-enrichment mixing for controlled contrasts, use complementary enrichment chemistries (IMAC/TiO2 and anti-pTyr IP), and lean on PTM-aware statistics plus KSEA to interpret the network.

For method primers and background reading on enrichment and phosphorylation fundamentals, these internal resources provide concise overviews:

• Metal Oxide Affinity Chromatography (MOAC)
• Summary of Protein Phosphorylation Detection Methods
• Phosphorylation Site Identification Service

—
