Ensuring CMC Compliance in mRNA Therapeutics Using LC-MS Analysis

Batch-to-batch consistency, clear release specs, stability trending, impurity control, and defensible comparability are the daily realities of CMC. In this context, mRNA programs need auditable, quantitative evidence that reviewers can trace from raw data to conclusions. That is exactly where mRNA Modification LC-MS Analysis and RNA Modification LC-MS Analysis excel: not as replacements for all assays, but as precise, nucleoside-level measurements that support identity, composition, impurity profiling, and drift detection across the lifecycle (see References). In this guide, we map LC–MS outputs to CQAs and control strategy, define a minimum, phase-appropriate validation package, and outline an audit-ready reporting set you can drop into your CMC sections.

Key takeaways

• LC–MS is best positioned as nucleoside-level quantitation and impurity trending that feed a phase-appropriate control strategy, not as a universal assay for every CQA (see References).
• The hero use case is comparability/change control: LC–MS absolute and ratio metrics support the argument of no clinically meaningful drift when paired with sound acceptance logic and history-based limits (see References).
• A minimal early-stage package can be "fit-for-purpose," while late-stage demands fuller validation per ICH Q2(R2) and specifications rationale per ICH Q6B (see References).
• Audit-ready reports show method intent and traceability, calibration and system suitability, LOQ/range, results tables, deviations handling, and comparability summaries aligned to ICH/FDA/EMA expectations (see References).

Where LC-MS Fits in CMC: From Nice-to-Have to Control Strategy

CMC control strategy in plain language

A control strategy is how you prove your product consistently meets the quality target profile through its lifecycle. It ties product knowledge to process controls, specifications, and monitoring. Expectations scale with phase: early IND can rely on qualified, fit-for-purpose methods; licensure demands validated procedures and a robust specs rationale supported by manufacturing history and stability data (see References).

What LC-MS is best at in mRNA therapeutics

LC–MS excels at traceable, nucleoside-level absolute and ratio measurements after digestion or hydrolysis. With stable-isotope internal standards and calibrated ranges, it enables:

• Auditable quantitation of designed modified nucleosides and canonical counterparts.
• Cross-batch comparability with ratio-based trending and acceptance logic.
• Targeted process-impurity monitoring with sensitivity and specificity.

Unlike peak-area or immuno-only signals, LC–MS outputs are inherently traceable to reference standards and instrument logs—an advantage when reviewers ask to see evidence chains and system suitability (see References).

Define the Quality Questions First: CQAs mRNA Modification LC-MS Analysis Can Support

Before instrument settings, write the quality questions. Then select the LC–MS outputs that actually answer them. The following subsections outline common CQA-aligned questions LC–MS can support, and where the boundaries lie.

Identity and composition

• Does the nucleoside pool match design intent? For example, the ratio of N1-methylpseudouridine to uridine should follow the intended substitution pattern. LC–MS at the nucleoside level can quantify absolute amounts and ratios with isotope-dilution calibration (see References).
• Are unexpected nucleosides emerging that might indicate raw-material or process drift? Here, LC–MS can flag abnormal peaks for targeted follow-up.

Purity and impurity profiling

• Which process-related small molecules or residual nucleosides matter for your program? LC–MS is strong for targeted quantitation and trend analysis of predefined impurities. It is not a universal unknown-impurity library; define targets based on risk and product knowledge (see References).
• Use orthogonal methods where appropriate—for example, HPLC-UV for abundant components or CE-based methods for integrity. LC–MS complements, it does not replace, these assays.

Stability and degradation trending

• Under accelerated or long-term storage, do key nucleoside ratios drift? Track modified-to-canonical ratios and emergent abnormal nucleosides as indicators. Treat them as chemical signals, not clinical surrogates. Investigate trends with predefined alert and action limits and confirm with orthogonal tests as needed (see References).

A compact, actionable matrix

• Question → Metric → LC–MS output → Paired method
• Identity → Modified:canonical ratio (e.g., N1-mΨ:U) → Absolute amounts + ratios → ddPCR/qPCR for identity confirmation
• Composition → Total nucleoside pool balance → Absolute amounts per nucleoside → HPLC-UV for abundant nucleosides
• Impurities → Defined residuals/small molecules → Targeted transitions/HRMS peaks → GC/LC-UV per impurity class
• Stability → Drift in key ratios; abnormal peaks → Time-series ratios + fingerprint peaks → Orthogonal integrity assay (e.g., CE)
• Comparability → Pre/post-change deltas vs history → Difference-from-mean; tolerance interval flags → Orthogonal assay triangulation

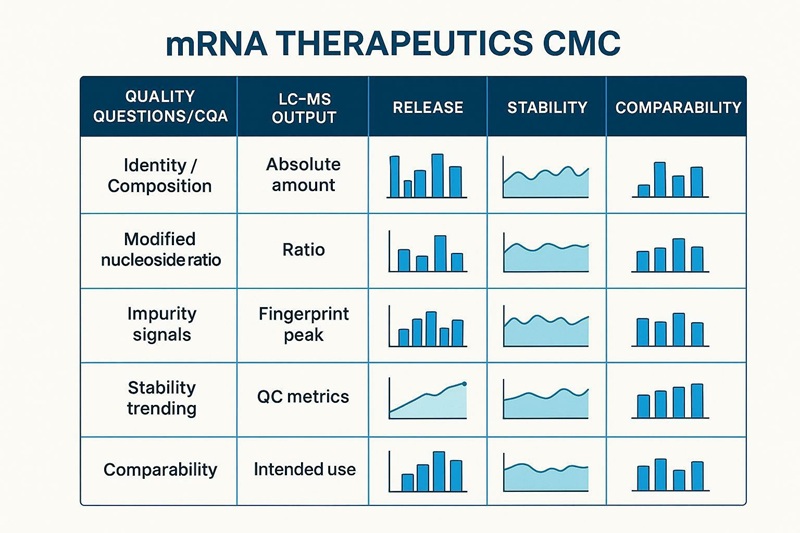

A practical CMC matrix linking mRNA CQAs to LC–MS outputs and where they fit in control strategy.

Sample Prep and Method Boundary: What Makes LC-MS CMC-Grade

Workflow boundary default

For CMC purposes, set a clear method boundary: mRNA sample to nucleoside-level digestion or hydrolysis to LC–MS quantitation. Report absolute values and ratios. Do not extrapolate to site-level localization, sequence mapping, or potency. State that boundary explicitly in your method summary and report (see References).

Typical nucleoside workflows use enzymatic digestion (e.g., nuclease P1 followed by alkaline phosphatase) or direct acid hydrolysis, with stable-isotope internal standards spiked before digestion. MS-friendly liquid chromatography and multiple-reaction monitoring or HRMS quantitation provide specificity and sensitivity. The focus is accuracy, precision, and traceability over broad discovery (see References).

Risk controls that matter to auditors

Reviewers will look for practical controls that demonstrate reliability:

• Digestion completeness checks and mass balance within acceptance ranges.
• Matrix-effect management via desalting and optimized mobile phases; internal-standard normalization.
• Carryover limits with blanks and needle-wash effectiveness; contamination controls and reagent logs.
• System suitability criteria, for example: retention time CV ≤ 1%, internal-standard area RSD ≤ 10–15%, blank carryover < 0.1% LLOQ, calibration R² ≥ 0.99, and back-calculated QC within ±15–20%.
• Version-controlled SOPs and batch records that show the same steps are executed consistently.

Internal link to SOP

For a CMC-friendly sample prep workflow and common failure controls, see our step-by-step SOP: Creative Proteomics.

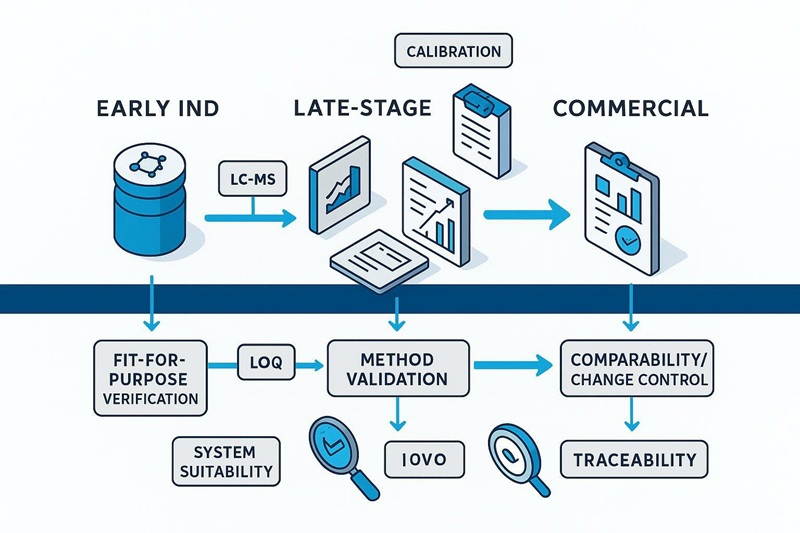

Validation and Verification: The Minimum Package for IND vs Late-Stage

Phase-appropriate expectations

• Early stage: Confirm the method is fit-for-purpose. Demonstrate specificity at the nucleoside level, linearity and range for key targets and ratios, accuracy via spike/recovery, repeatability and intermediate precision, and basic robustness around digestion or hydrolysis conditions. Document system suitability and traceability. This aligns with the minimal approach described in ICH Q2(R2), integrated with lifecycle thinking from Q14 (see References).
• Late stage: Expand to a full validation per ICH Q2(R2): specificity, accuracy, precision, linearity, range, LOD/LOQ, robustness, and ruggedness as appropriate. Confirm stability-indicating capability and define reportable ranges tied to specifications logic per ICH Q6B. Verification of compendial elements follows USP <1226> principles when applicable (see References).

Practical acceptance criteria defaults

Provide example ranges as defaults to be tuned per method:

• Calibration model with R² ≥ 0.99 over the intended range; use weighted regression if warranted.
• Back-calculated QC samples within ±15% of nominal (±20% at the LLOQ).
• Spike-recovery 80–120% for key nucleosides; internal-standard normalized.
• Intermediate precision CV typically ≤ 10–15% across days and analysts.
• Digestion completeness criteria documented; no residual oligo peaks within detection capability.
• Carryover < 0.1% of LLOQ in blanks; system suitability passed before sample runs.

Early vs late-stage checklists at a glance

• Early IND checklist
  • Purpose statement and boundary; ATP if used
  • Specificity demonstration at nucleoside level
  • Linearity/range for key ratios and targets
  • Accuracy by spike/recovery; precision (repeatability/intermediate)
  • Basic robustness around digestion/hydrolysis; matrix checks
  • System suitability, traceability, raw data index
• Late-stage checklist
  • Full Q2(R2) set including LOD/LOQ and robustness/ruggedness studies
  • Stability-indicating evidence; reportable range linked to specs per Q6B
  • Cross-site verification/transfer where applicable; software CSV notes
  • Comprehensive deviation/CAPA framework and lifecycle monitoring

State definitions for LOD/LOQ, reference standard sourcing and characterization, and data integrity controls. Use ICH/FDA/EMA language in your templates to ease review (see References).

Comparability and Change Control: Using LC-MS to Defend No Clinically Meaningful Drift

What triggers comparability needs

Comparability is required when changes may affect product quality: process scale-up, critical raw material or supplier changes, site transfers, equipment or column replacements, process-parameter shifts, or analytical re-optimization. The depth of analytics depends on risk, product knowledge, and history (see References).

A comparability analytics pattern that works

• Pair lots pre- and post-change, and where feasible include a bridge lot made with the new process but controlled for other variables.
• Select sensitive LC–MS metrics: absolute amounts of key modified nucleosides, their ratios to canonical counterparts, fingerprint peaks for known impurities, and QC/system-suitability confirmations.
• Define acceptance logic from manufacturing history. Use tolerance intervals or similar statistics to set alert and action limits for trending. Evaluate whether observed differences are within historical variability and whether any trends persist over time.
• Triangulate with orthogonal assays as needed to complete the analytical picture. Reserve nonclinical or clinical data for cases where analytics alone cannot close the risk argument (see References).

Worked example: tolerance-interval framing

• Historical data: N1-mΨ:U ratio across 20 commercial-scale lots; mean 1.85, SD 0.08.
• Set two-sided 95/99 tolerance interval capturing 99% of population: approximately 1.62–2.08 (illustrative; compute per your stats SOP).
• Pre-change lot: 1.83. Post-change lots: 1.80 and 1.86. All within interval; no drift trend across three months.
• Decision: Accept analytical comparability for this metric; continue enhanced monitoring for two subsequent campaigns with predefined alert/action limits.

Soft bridge to kickoff

If your team needs a comparability-ready analytics spec sheet and a clear NDA/IP checklist to start quickly, plan a focused kickoff that aligns method scope, acceptance criteria, and documentation expectations up front.

LC–MS supports phase-appropriate CMC—from verification to validation, release trending, and comparability.

Batch Release and QC Trending: What to Monitor Routinely

Release versus trending goals

• Release confirms that the lot meets specifications today.
• Trending detects drift early. It turns single-lot measurements into a stability and performance signal over time.

Suggested routine metrics

• Report absolute and ratio values for key modified nucleosides to canonical counterparts, such as N1-methylpseudouridine to uridine. Track means and CV across technical replicates.
• Monitor abnormal or sentinel nucleoside peaks indicative of degradation or raw-material variance.
• Apply system suitability gates and track internal-standard response RSD. Investigate out-of-trend behavior with predefined alert and action limits. Integrate findings into deviation/CAPA processes using CMC audit language (see References).

Setting alert and action limits

• Use historical manufacturing data to compute statistical control limits. Start with Shewhart-style charts and supplement with EWMA for slow drift.
• Define alert limits (investigate) and action limits (hold and assess). Link these to your deviation and CAPA SOPs so responses are consistent and auditable.
• Reassess limits after process improvements or significant changes, maintaining a living control strategy (see References).

Reporting for Audits: What Good Looks Like in a CMC LC-MS Report

What auditors and reviewers expect

A strong report reads like a traceable evidence package:

• Method summary with intent, scope, and boundary; equipment and software versions; reference standards with characterization notes.
• Calibration model, QC results, and system suitability logs; definitions and numeric statements for LOQ/range.
• Results tables for absolute amounts and ratios; stability and comparability figures with clearly labeled units and statistics.
• Deviation, OOS, and OOT handling paths described at the process level; CAPA references where relevant. No potency or clinical inferences from LC–MS alone (see References).

Data integrity and raw data index

• Provide an indexed folder structure that ties every result to raw data files, audit trails, and instrument logs.
• Include CSV/CSV-like validation notes for analytical software, version control for methods, and user-permission records where applicable.
• Record all re-integrations with reason codes and reviewer sign-off. Make it easy for auditors to follow the chain from sample ID to reported value.

Internal link to deliverables

For a publication- and audit-friendly deliverables checklist, including structured tables, QC appendix, and a figure pack, see: Creative Proteomics.

Common Misconceptions in mRNA CMC Analytics and How to Avoid Over-Claims

LC-MS alone proves potency — no

LC–MS demonstrates chemical identity, composition, and impurity trends. Potency relates to biological function and requires dedicated bioassays. Treat LC–MS metrics as quality indicators that support control strategy, not as surrogates for clinical performance (see References).

Site-level conclusions from nucleoside LC-MS — no

Nucleoside-level methods quantify pools after total digestion or hydrolysis. They do not resolve modification positions in sequence. Keep conclusions at the nucleoside level. If site-level information is needed for research, use specialized sequencing or orthogonal structural methods outside the CMC LC–MS boundary (see References).

Next Steps: A CMC-Ready Kickoff Checklist

Minimal info to start a CMC-grade LC-MS project

• Product and project phase: early IND versus late stage; intended use of data in filings.
• Target CQA list and preliminary thinking about specifications or acceptance logic.
• Sample type and matrix; anticipated ranges; reference standards and controls availability.
• Expected deliverables: audit pack, stability trending pack, comparability pack.
• NDA/IP parameters, target timelines, and acceptance criteria format.

References

• ICH Quality Guidelines hub. https://www.ich.org/page/quality-guidelines
• ICH Q5E Comparability slide deck. https://admin.ich.org/sites/default/files/inline-files/SESSION_II_ICH_Q5E_Comparability.pdf
• ICH Q12 Guideline (2019). https://database.ich.org/sites/default/files/Q12_Guideline_Step4_2019_1119.pdf
• ICH Q12 Annexes (2019). https://database.ich.org/sites/default/files/Q12_Annexes_Step4_2019_1119.pdf
• ICH Q6B Specifications. https://database.ich.org/sites/default/files/Q6B%20Guideline.pdf
• ICH Q2(R2)/Q14 Training Module set (2023–2025).
  • Module 1: https://database.ich.org/sites/default/files/ICH_Q2(R2)Q14_TrainingMat_%20Module_1_2025_0620.pdf
  • Module 2: https://database.ich.org/sites/default/files/ICH_Q2(R2)Q14_TrainingMat_Module%20_2_2025_0620.pdf
  • Module 3: https://database.ich.org/sites/default/files/ICH_Q2(R2)Q14_TrainingMat_Module_3_2025_0620.pdf
  • Module 6: https://database.ich.org/sites/default/files/ICH_Q2(R2)Q14_TrainingMat_Module_6_2025_0620.pdf
  • Module 7: https://database.ich.org/sites/default/files/ICH_Q2(R2)Q14_TrainingMat_Module7_2025_0620.pdf
  • Step 4 presentation (2023): https://database.ich.org/sites/default/files/Q2_Q14%20ICH_Step_4_Presentation_2023_1106_0.pdf
• Federal Register notice of FDA adoption of Q2(R2)/Q14 (2024). https://www.federalregister.gov/documents/2024/03/07/2024-04834/q2r2-validation-of-analytical-procedures-and-q14-analytical-procedure-development-international
• FDA. Chemistry, Manufacturing, and Control (CMC) Information for Human Gene Therapy INDs. https://www.fda.gov/media/113760/download
• EMA Draft Guideline on the Quality Aspects of mRNA Vaccines (2025). https://www.ema.europa.eu/en/documents/scientific-guideline/draft-guideline-quality-aspects-mrna-vaccines_en.pdf
• ICH Q1E Working Group Draft Update on Evaluation of Stability Data (2025). https://database.ich.org/sites/default/files/ICH_Q1EWG_Step2_Draft_Guideline_2025_0411.pdf
• USP General Chapters (landing pages):
  • <1225> Validation of Compendial Procedures. https://doi.usp.org/USPNF/USPNF_M99945_04_01.html
  • <1226> Verification of Compendial Procedures. https://doi.usp.org/USPNF/USPNF_M870_03_01.html
  • <621> Chromatography. https://doi.usp.org/USPNF/USPNF_M99380_01_01.html
  • <1086> Impurities in Drug Substances and Drug Products (see USP–NF)
• Lowenthal MS et al. In situ LNP–mRNA LC–MS quantification. Analytical Chemistry. 2024. https://pubs.acs.org/doi/abs/10.1021/acs.analchem.3c04406
• Harmonization study on LC–MS/MS RNA modification analysis. Nucleic Acids Research. 2025. https://academic.oup.com/nar/article/53/17/gkaf895/8252026
• Gilar M et al. LC methods for poly(A) analytics. 2023. https://pmc.ncbi.nlm.nih.gov/articles/PMC10535021/
• LC–MS isotope-dilution for modified nucleosides. 2022. https://pmc.ncbi.nlm.nih.gov/articles/PMC9850353/
• Pitfalls in RNA modification quantification using nucleoside MS. 2023. https://pmc.ncbi.nlm.nih.gov/articles/PMC10666278/
