How to Design a Lysine Beta-Hydroxybutyrylation (Kbhb) Proteomics Study: Multi-Group Comparisons, Normalization, and Confounders

A publishable multi-group study starts with a decision: are you trying to detect regulated sites, compare pathways, or test an interaction across groups? Those choices determine what you measure and what you can legitimately claim.

In practice, the biggest risk is interpretability, not data volume. If group labels become entangled with metabolic context or batch structure, you can end up “discovering” shifts that are really artifacts. This guide focuses on study design and confounder control for WT/KO/treatment (and beyond)—so your comparisons survive review.

What Kbhb proteomics can answer (and what it cannot)

Kbhb is a metabolically linked lysine acylation PTM (one member of the broader family of acylation PTMs). It can shift with ketone availability, redox balance, and substrate flux. That’s why Kbhb is scientifically interesting—and why it’s easy to over-interpret.

A well-designed Kbhb proteomics study can credibly answer questions like:

• Which Kbhb sites change across defined biological conditions? (site-level differential abundance)
• Which proteins or pathways are enriched among regulated sites? (pathway-level interpretation)
• Do genotype and treatment show an interaction pattern? (e.g., “treatment rescues KO” vs “treatment works only in WT”)

What it typically cannot answer by itself:

• Direct metabolic causality (“BHB caused this Kbhb site change”) without orthogonal evidence and careful confounder control
• Absolute site occupancy unless your workflow and calibration explicitly support stoichiometry/occupancy claims

If you need a conceptual refresher on the biochemical framing, start with the original discovery and regulatory-enzyme work described in the Science Advances report on lysine β-hydroxybutyrylation regulation (2021), then come back here for the study-design decisions.

Start with the claim: presence, change, or mechanism?

Reviewers evaluate Kbhb projects based on the strength of the claim you’re making—not the sophistication of any single experimental step. Before you choose enrichment, labeling, or statistical tests, write a one-sentence claim and force it into one of three categories.

Claim type 1: “Change” at the site/protein level

This is the most common publishable claim: certain Kbhb sites increase or decrease in condition A vs B (or across multiple groups).

Typical outputs:

• A site list with effect sizes, uncertainty, and FDR
• A small set of representative sites you can defend biologically

Claim type 2: Pathway-level interpretation

Here the claim is not about one site. It’s about whether regulated Kbhb tends to cluster in pathways that make metabolic sense.

Typical outputs:

• Enrichment analysis on regulated sites/proteins
• Pathway figures that connect directionality with context (e.g., “upregulated sites in fatty-acid oxidation enzymes under fasting”)

Claim type 3: Mechanism or interaction

Interaction claims are where multi-group design matters most.

Examples:

• KO alters baseline Kbhb, but treatment reverses it
• Treatment changes Kbhb only in WT, not in KO

Mechanistic claims are attractive, but they raise the bar: if your groups differ in feeding state, timepoint, tissue quality, or protein abundance, the interaction may be an artifact.

Define the primary endpoint

Your endpoint determines how you normalize, how you handle missingness, and what you report.

Pick one primary endpoint and commit to it:

• Site-level endpoint: specific Kbhb sites (peptidoforms) are the unit of inference
• Protein-level endpoint: protein-level summaries of Kbhb signal (use with caution; can hide site heterogeneity)
• Pathway-level endpoint: pathways enriched among regulated sites/proteins

A simple reviewer-proof sentence to include in your Methods planning document:

“Our primary endpoint is differential abundance at the Kbhb site level across prespecified contrasts, reported with effect sizes and BH-FDR.”

Avoid over-claiming metabolic causality

In heart tissue especially, a Kbhb shift can reflect:

• a real change in site regulation
• a change in the metabolic state you sampled
• a change in cell composition (cardiomyocytes vs fibroblasts vs immune infiltrate)
• a change in the protein’s abundance, not its modification

Treat any “metabolism caused Kbhb” statement as a hypothesis, not a conclusion, unless you designed the study to isolate that causal pathway.

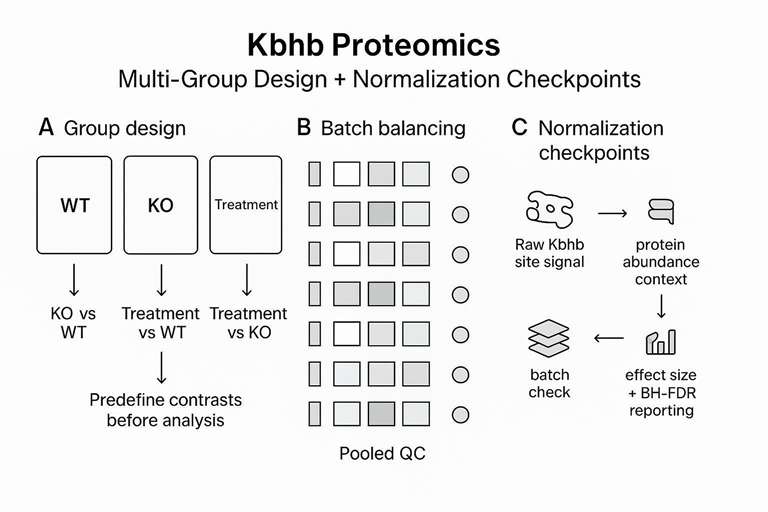

Multi-group design: WT vs KO vs treatment (and beyond)

Multi-group Kbhb studies fail in review for a predictable reason: the paper presents three groups, but the analysis behaves like a series of post-hoc pairwise tests.

You need a design template that makes your intended comparisons explicit before data generation.

Group structure and contrasts (table-ready)

Start by writing a contrasts table that is ready to paste into your Statistical Analysis section. For a WT/KO/treatment setup, the minimum contrast set is usually:

If the scientific claim is about interaction (treatment behaves differently in KO than WT), don’t imply it from separate contrasts. Encode it explicitly as an interaction question in your analysis plan.

Two practical tips that prevent rework:

• Define which contrast is primary (the one that drives power and acceptance criteria)
• Predefine the direction you expect only if it is biologically justified and not a fishing expedition

Replicates and batch balancing

Kbhb is often low-stoichiometry and sensitive to upstream variance. That makes batching decisions a first-order design variable.

Instead of giving a single “magic number” of replicates, think in two tiers:

• Minimum viable: enough biological replication to estimate within-group variance and run multi-group statistics without degeneracy
• Reviewer-friendly: enough replication to support interaction testing and to survive outlier removal without collapsing the design

What matters most is not the absolute number. It’s whether replication and batching allow you to separate:

• group effects
• batch effects
• sample-quality effects

Batch balancing rule: every batch should contain samples from every group.

If a batch contains only one group, you’ve made “group” indistinguishable from “batch.” Reviewers will see this immediately.

⚠️ Warning: In recent heart tissue WT/KO/treatment projects, the most common cause of costly rework is group–batch coupling, followed closely by missing records of metabolic context.

Timepoint and feeding/fasting context

Heart tissue proteomics is unusually sensitive to the sampling window.

At minimum, record and standardize:

• collection time window (circadian alignment)
• fasting duration or feeding protocol
• time-from-treatment to harvest

If you can’t standardize perfectly, treat these as covariates (or stratification factors) that belong in your metadata table and your analysis model—not as “background noise.”

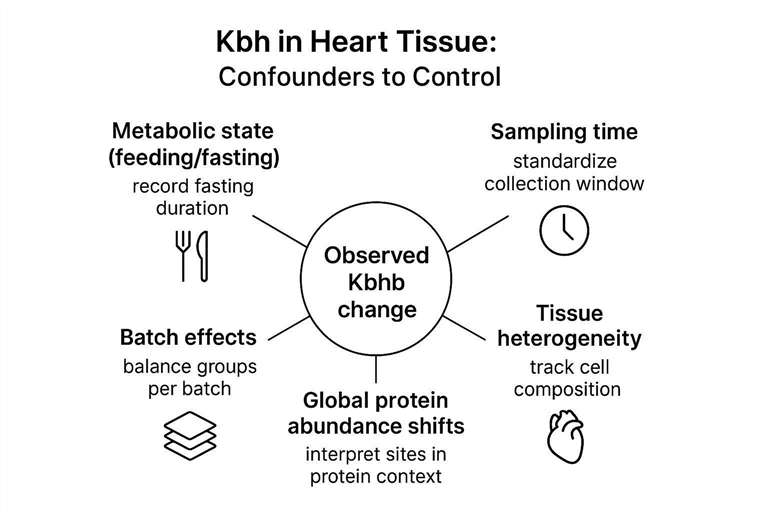

Sample considerations for heart tissue: heterogeneity and confounders

Heart tissue brings confounders that are easy to miss if you’re used to cell lines or homogeneous organs.

Tissue heterogeneity and cell composition shifts

A KO or treatment can change the heart’s cellular makeup—hypertrophy, fibrosis, immune infiltration, or vascular remodeling.

If the cell composition shifts, your measured “Kbhb change” could be driven by:

• different proportions of cell types with different baseline Kbhb patterns
• different protein-expression programs across those cell types

Design controls that help:

• capture phenotyping metadata (e.g., pathology scores, fibrosis markers, or other relevant readouts)
• standardize tissue region and dissection protocol
• avoid pooling across regions unless that is part of the biological claim

Global protein abundance confounding

This is the most common interpretability failure in PTM proteomics.

If a protein’s abundance doubles, and your Kbhb site signal doubles, you cannot tell whether:

• the protein is more abundant (no change in Kbhb usage), or
• the site’s Kbhb occupancy increased, or
• both happened

You don’t always need a full global proteome for every project. But you do need a plan to interpret Kbhb sites in protein context.

A peer-reviewed example of “PTM site signal interpreted relative to protein context” is described in an integrative multi-PTM workflow, where normalized protein abundances were used to adjust site-level PTM abundances before downstream comparisons (PMC11700301).

Practical reporting language reviewers accept:

“Kbhb site-level changes were interpreted with the parent protein abundance context to reduce confounding from differential protein expression.”

Pre-analytical consistency

Kbhb can be sensitive to pre-analytical variation. Reviewers won’t demand perfection, but they will expect transparency.

Track and report:

• time from excision to freezing
• temperature exposure and transport conditions
• freeze–thaw cycles
• lysis buffer class and inhibitor use (describe, don’t oversell)

The key is not to claim “no impact,” but to show that potential impact was minimized and documented.

Normalization strategy for lysine beta-hydroxybutyrylation studies: what to normalize to (and what not to)

Normalization is not a single step. It’s the set of assumptions you apply to make samples comparable.

In Kbhb proteomics, the wrong normalization can create a story that looks statistically clean but is biologically wrong.

Site-level vs protein-level normalization logic

Start with a simple mental model:

• Your measured value is Kbhb site signal.
• That signal is influenced by:
  • parent protein abundance
  • true Kbhb usage/occupancy
  • enrichment and measurement efficiency
  • batch effects

If you normalize only for sample loading or total signal, you have not solved the protein-abundance confounder.

A defensible workflow is usually layered:

1. Within-run / within-batch normalization to address loading and instrument drift
2. Protein-context adjustment (where possible) to interpret site changes relative to parent protein abundance
3. Across-batch checks to confirm that normalization did not introduce group-specific distortion

You can summarize the interpretability target in one sentence:

“We aim to distinguish PTM regulation from protein expression changes, rather than treating them as the same biological event.”

For readers who want a concrete Kbhb workflow reference, the Kbhb quantitative approach using enrichment and LC–MS/MS is described in a Kbhb-focused study design and analysis example (PMC8894020). Use it as methodological context, not as a one-size-fits-all template.

Multi-group normalization pitfalls

Multi-group designs introduce failure modes that don’t appear in two-group comparisons.

Common pitfalls:

• Over-normalizing away real biology: if one group truly has a global shift in Kbhb usage, aggressive distribution matching can erase it
• Normalizing across mixed batches without checking group balance: this can re-initiate the group–batch coupling you tried to avoid
• Using one group as an implicit reference without stating it: reviewers will ask what happens if the “reference” group is the one most perturbed

A practical safeguard is to write down the assumption behind each normalization layer:

• “This step assumes most sites do not change across conditions.”
• “This step assumes protein abundance differences should not be interpreted as PTM regulation.”

If you can’t defend an assumption, don’t hide it in preprocessing.

Transparency: what to report in Methods

Reviewers don’t need your software pipeline. They need your assumptions.

A minimal “Methods transparency” checklist for Kbhb normalization:

• what level you normalized at (PSM/peptide/site/protein)
• whether normalization was applied within-batch, across-batch, or both
• whether parent protein abundance context was used, and how it was summarized
• how pooled QC (if used) was incorporated
• which steps were chosen a priori vs after inspecting QC

Pro Tip: Write your normalization paragraph as a series of “because” statements. If you can’t explain why a step exists, it likely shouldn’t.

Data analysis plan: multi-group statistics and FDR transparency

Don’t let statistical choices become a post-hoc rescue plan. In multi-group Kbhb, your analysis plan is part of the experimental design.

Recommended comparison framework

A reviewer-friendly framework has three properties:

1. Contrasts are predefined (your table is the contract)
2. Effect sizes are central (not just p-values)
3. Multiplicity is controlled transparently

For three groups, you can still run a model that supports multiple contrasts without turning the paper into a fishing expedition. The key is that you declare contrasts before you see the results.

Effect size + BH-FDR

Multi-group PTM studies generate many tests. You need to show that you controlled the false discovery rate and that the effects are meaningful.

A canonical citation for FDR control is the original Benjamini–Hochberg paper in JRSSB (1995).

How to report results in a reviewer-proof way:

• report effect size (e.g., log2 fold change) and BH-FDR for each site
• define your reporting threshold in the Methods (and keep it consistent)
• avoid “statistically significant” language without effect-size context

At the identification layer, proteomics reviewers will also look for transparency on peptide/protein FDR estimation. The target-decoy framework is classically described in Elias and Gygi, Nature Methods (2007).

Missingness and site localization notes

Two practical points you should address explicitly:

• Missingness: Kbhb sites can be absent because they are truly low/absent or because of stochastic sampling. State whether you analyzed complete cases, used imputation, or used models tolerant to missingness.
• Site localization: if a peptide has multiple lysines, localization ambiguity can inflate site counts. Report that localization confidence was considered, and avoid over-interpreting borderline-localized sites.

If you can’t defend localization on a headline site, don’t build the story around it.

Reporting package: figures and tables reviewers expect

You can make review easier by shipping a reporting package that mirrors how reviewers read.

Must-have figures

• QC summary: sample-level metrics, batch structure, pooled QC behavior (if used)
• Group comparison summary: volcano/MA-style summaries per primary contrast
• Representative site and pathway views: a small set of interpretable sites plus pathway-level synthesis

Must-have tables

• Sample metadata table: group, batch, timepoint, fasting/feeding status, tissue region, key pre-analytical notes
• Contrast definitions table: the exact comparisons tested (with labels matching your text)
• Site list table: site identifiers with effect sizes, p-values, BH-FDR, and any localization/quality fields you consider critical
• Filtered list table (if used): explicitly document the filters and show counts before/after

A simple way to avoid reviewer confusion: use the same contrast labels in the figure panels, table headers, and text.

Conclusion and Recommendation
