Collagen is the load‑bearing scaffold of the extracellular matrix (ECM). Among its many post‑translational modifications (PTMs), lysine hydroxylation and subsequent lysyl‑oxidase–mediated cross‑linking jointly govern fibril maturation, tensile strength, and tissue mechanics. In practice, researchers rarely ask only "Is hydroxylation present?" The real questions are study‑design questions: which sample type will best reveal the biology, which analytical readouts matter (site‑specific hydroxylysine, immature vs. mature cross‑links, or both), and which workflow leads to publishable, traceable data. This guide synthesizes current biochemical understanding with practical mass‑spectrometry and complementary methods so you can plan an end‑to‑end collagen‑focused PTM project with confidence.
At the molecular level, lysine residues in procollagen are hydroxylated to hydroxylysine (Hyl) by lysyl hydroxylases (LH1–3), priming the substrate state that biases cross‑linking toward hydroxyallysine‑derived pathways. After secretion, lysyl oxidases (LOX/LOXL1–4) generate aldehydes on Lys/Hyl, initiating formation of divalent, reducible cross‑links (HLNL/DHLNL) that mature into stable, trivalent pyridinoline cross‑links (HP/LP). Because hydroxylation steers cross‑link chemistry, meaningful interpretation of ECM stability, fibrosis, aging, or engineered‑matrix performance usually requires considering both processes together.
Key takeaways
- Collagen lysine hydroxylation creates hydroxylysine that channels LOX‑mediated cross‑linking toward distinct chemistries; reading both together yields actionable insight into ECM stability.
- For site‑level specificity and cross‑link type resolution (immature HLNL/DHLNL vs. mature HP/LP), pair targeted sample prep (e.g., NaBH4 stabilization for immature species) with high‑resolution MS and orthogonal readouts.
- Animal tissues provide the most representative ECM complexity, but cultured cells and engineered matrices are valuable for mechanism, control, and iteration.
- Decide early whether your study is collagen‑centric (mechanics, maturation, fibrosis/aging, biomaterials) or a broad hydroxylation survey; the entry point changes the workflow. What questions will your data need to answer in peer review?
- Build traceability: prespecify QC (localization probability, target‑decoy FDR, isotope standards), normalization (e.g., hydroxyproline), and reporting suitable for peer review. All examples are for research use only (RUO).
Why Lysine Hydroxylation and Cross-Linking Are Often Best Studied Together
Lysine hydroxylation as a key step in collagen maturation
Hydroxylation of lysine at specific helical and telopeptidyl positions is catalyzed by LH1–3 before triple‑helix stabilization. LH2 is particularly associated with telopeptidyl sites that influence downstream cross‑link classes. In short, generating hydroxylysine creates hydroxyallysine precursors after LOX oxidation, shifting maturation toward pyridinoline‑type cross‑links. Reviews of LH2 biology describe how altered LH2 activity changes the balance of cross‑link families and, ultimately, tissue mechanics, providing a molecular lever between enzymology and phenotype, as summarized in the Matrix Biol Plus overview by Terajima (2022) in the section on telopeptidyl hydroxylation and pyridinoline bias.
Cross-linking as the functional outcome of collagen modification
Extracellular lysyl oxidases deaminate Lys/Hyl, creating aldehydes that form initial, divalent imine cross‑links—hydroxylysinonorleucine (HLNL) and dihydroxylysinonorleucine (DHLNL). These immature, reducible species can mature into non‑reducible, trivalent pyridinolines: hydroxylysylpyridinoline (HP, or PYD) and lysylpyridinoline (LP, or DPD). HP is typically associated with hydroxyallysine pathways, and LP with allysine pathways. Mature pyridinolines are acid‑stable and correlate with long‑term ECM stability. Foundational and recent syntheses detail this maturation cascade and its mechanical implications, including the storyline that higher telopeptidyl hydroxylation (e.g., LH2 activity) increases HP prevalence and stiffness. For comprehensive biochemical context, see the J Orthop Res review by Bielajew et al. (2020) on collagen quantification and cross‑links and the Skeletal Muscle review by Wohlgemuth et al. (2023) on alignment and cross‑linking in load‑bearing tissues.

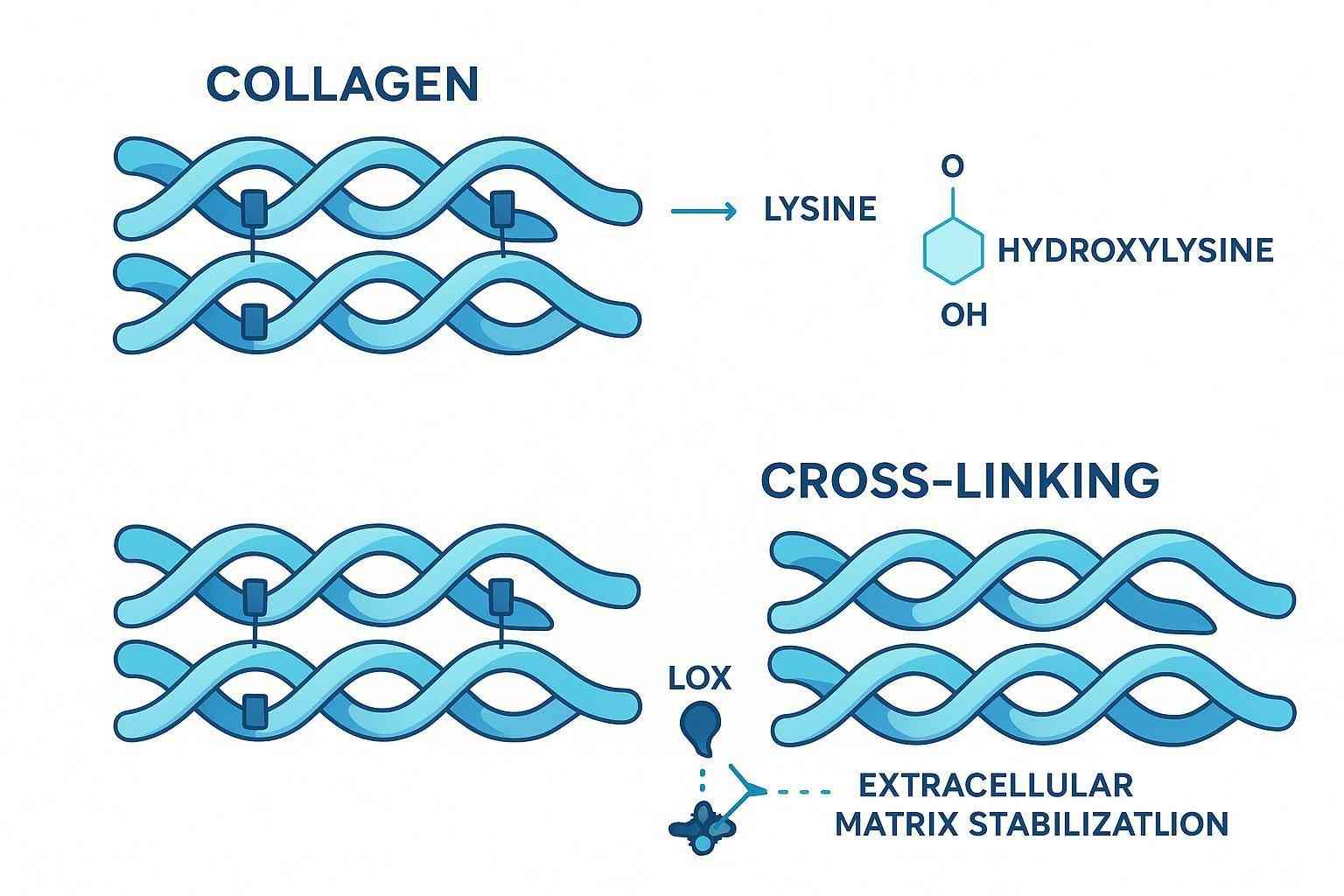

Collagen lysine hydroxylation and subsequent cross‑linking jointly shape extracellular matrix stability and tissue mechanics.
Which Sample Types Can Be Used for Collagen Modification Studies?
Animal tissues as a representative example
Animal tissues, particularly skin, tendon/ligament, lung, and bone, provide the richest ECM architecture and a realistic background of matrix‑bound proteins, enzymes, and mechanical forces. They are therefore ideal for detecting both hydroxylysine sites and the full spectrum of LOX‑dependent cross‑links. Mineralized tissues require special care: for bone, EDTA‑based decalcification at near‑neutral pH is generally preferred over strong acids to preserve protein integrity and cross‑links, as highlighted in methodological evaluations that compared EDTA with acid decalcification in preserving ECM proteins and cross‑link chemistry.
Cell‑based systems and engineered models
Cultured fibroblasts and other collagen‑relevant cells are valuable for controlled perturbations (e.g., knocking down LH2/PLOD2 or LOX family members) and for time‑course studies. Engineered matrices and tissue models—such as collagen‑rich scaffolds or decellularized ECM reseeded with cells—allow iteration on environmental parameters (alignment, density, glycosaminoglycan content) while maintaining an ECM context. These models are excellent for mechanistic hypotheses and for generating targeted reference libraries of modified peptides and cross‑link species before moving to complex tissues.
Collagen‑rich versus low‑collagen sample contexts
Signal expectations must match collagen abundance. In collagen‑rich contexts (tendon, ligament, cartilage, bone), both immature and mature cross‑links are accessible with appropriate prep, and site‑level hydroxylysine mapping is tractable with high‑resolution MS. In low‑collagen contexts (soft parenchymal tissues or cell monolayers), sensitivity becomes a key bottleneck; enrichment strategies and targeted acquisition (PRM/MRM) can help. For reducible, immature cross‑links (HLNL/DHLNL), chemical stabilization (e.g., NaBH4) prior to hydrolysis is often essential to avoid loss of labile imines. For mature pyridinolines (HP/LP), acid hydrolysis followed by HPLC/LC‑MS/MS or fluorescence detection is standard practice with normalization to collagen content (e.g., hydroxyproline).
When Do Researchers Need Collagen‑Specific Analysis Rather Than General Hydroxylation Profiling?
Broad hydroxylation questions
If your primary objective is to survey hydroxylation across many proteins or pathways—for example, to assess cellular oxygen‑sensing or prolyl/lysyl hydroxylase activity in a discovery mode—then a general hydroxylation entry point is appropriate. It casts a wide net to find candidate proteins and residues affected by your perturbation, deferring collagen‑specific depth until a signal emerges.
Collagen‑centered structural and functional questions
When the central question involves ECM mechanics, fibril maturation, fibrosis or aging phenotypes, or engineered scaffold performance, collagen becomes the dominant context. Here you need not only hydroxylysine site localization but also cross‑link class resolution (immature HLNL/DHLNL vs. mature HP/LP) because these readouts track with matrix stability and stiffness. That coupling between hydroxylation state and cross‑link chemistry is what makes collagen‑specific analysis the right first step for many ECM‑focused programs.
How to choose the right analytical entry point
Consider three filters: (1) sample collagen abundance and feasibility of detecting cross‑links; (2) whether mechanical interpretation is a goal (which implies cross‑link profiling); and (3) whether you need site‑level specificity to link enzymology (LH/LOX) to phenotype. If all three point to collagen, start with a collagen‑specific workflow. If only discovery is needed, begin broad and plan to pivot once collagen dominates the signal. Would a collagen‑centric readout change your study's conclusions or only confirm a broad trend? Answering that question early helps set the entry point.
Key Questions to Define Before Starting a Collagen PTM Project
Are you interested in site‑specific hydroxylation, cross‑linking patterns, or both?
Align objectives with readouts. Site‑level hydroxylysine mapping connects enzymology (LH1–3, especially LH2) to collagen domains. Cross‑link profiling (HLNL/DHLNL → HP/LP) connects chemistry to mechanics. Projects centered on ECM stability typically need both to interpret maturation.
Is your study exploratory or hypothesis‑driven?
Exploratory work benefits from broader PTM scans augmented with targeted validation; hypothesis‑driven designs can pre‑specify targets (e.g., specific telopeptidyl sites, HP/LP ratios) and integrate isotope‑labeled standards or PRM/MRM for absolute or semi‑absolute quantification.
Do you need structural insight, spatial context, or proteomics depth?
Structural methods (solid‑state NMR) speak to fibril conformation and dynamics; immunohistochemistry/histology contextualize spatial distribution; MS provides molecular specificity and site resolution. Choosing the right combination depends on whether your primary endpoint is chemical, mechanical, or spatial.
Analytical Strategies for Collagen Lysine Hydroxylation and Cross‑Linking Analysis
Mass spectrometry for site‑level collagen modification analysis
For hydroxylysine site localization, high‑resolution MS with mixed fragmentation (HCD + ETD/EThcD) improves sequence coverage and positional confidence, especially when multiple Lys residues occur in a peptide. EThcD often enhances localization of labile PTMs and complex peptides. Protease selection matters: trypsin and Lys‑C are standard, but missed cleavages increase near modified lysines; alternative enzymes or limited digestion can help. For reducible, immature cross‑links, stabilize with NaBH4 before hydrolysis or peptide‑level work, then target diagnostic fragments or use dedicated LC‑MS/MS assays. For mature pyridinolines, acid hydrolysis liberates HP/LP, which are quantified by HPLC/LC‑MS/MS (or HPLC‑fluorescence), ideally with stable‑isotope internal standards and matrix‑matched calibration.
Enrichment can boost sensitivity in low‑collagen matrices. Depending on the PTM mix and matrix, IMAC/MOAC/HILIC are common peptide‑level strategies to concentrate modified species before MS. Quantification options range from label‑free to PRM/MRM panels for defined markers; report performance metrics (LOD/LLOQ, CVs) and normalize to collagen content (e.g., hydroxyproline) to support interpretation across samples.
Structural and complementary methods
Solid‑state NMR (including MAS approaches) can report on collagen molecular conformation, hydration, and fibril‑level order in intact tissues, offering orthogonal insight that parallels cross‑link maturation. Immunohistochemistry and histology visualize collagen distribution, alignment, and co‑localization with enzymes (e.g., LOX), providing spatial context that pure chemistry lacks. These modalities are not substitutes for MS but strengthen biological interpretation.
Why collagen‑focused studies often need a tailored workflow
Collagen PTM projects are not generic hydroxylation analyses. They require sample handling that preserves labile intermediates (avoid harsh alkali; stabilize divalent cross‑links), ECM solubilization strategies (e.g., guanidine‑HCl, pepsin or acid extraction selected to preserve or remove telopeptides depending on goals), and fragmentation modes chosen for localization. QC should include target‑decoy FDR controls, site‑localization probability thresholds, system suitability (calibration standards), and spike‑in or isotope‑labeled internal standards when available. A practical example: teams may pair NaBH4 stabilization and hydrolysis‑based HP/LP quantification with EThcD‑inclusive LC‑MS/MS for site‑specific hydroxylysine mapping in the same study to connect chemistry and mechanics within one dataset.

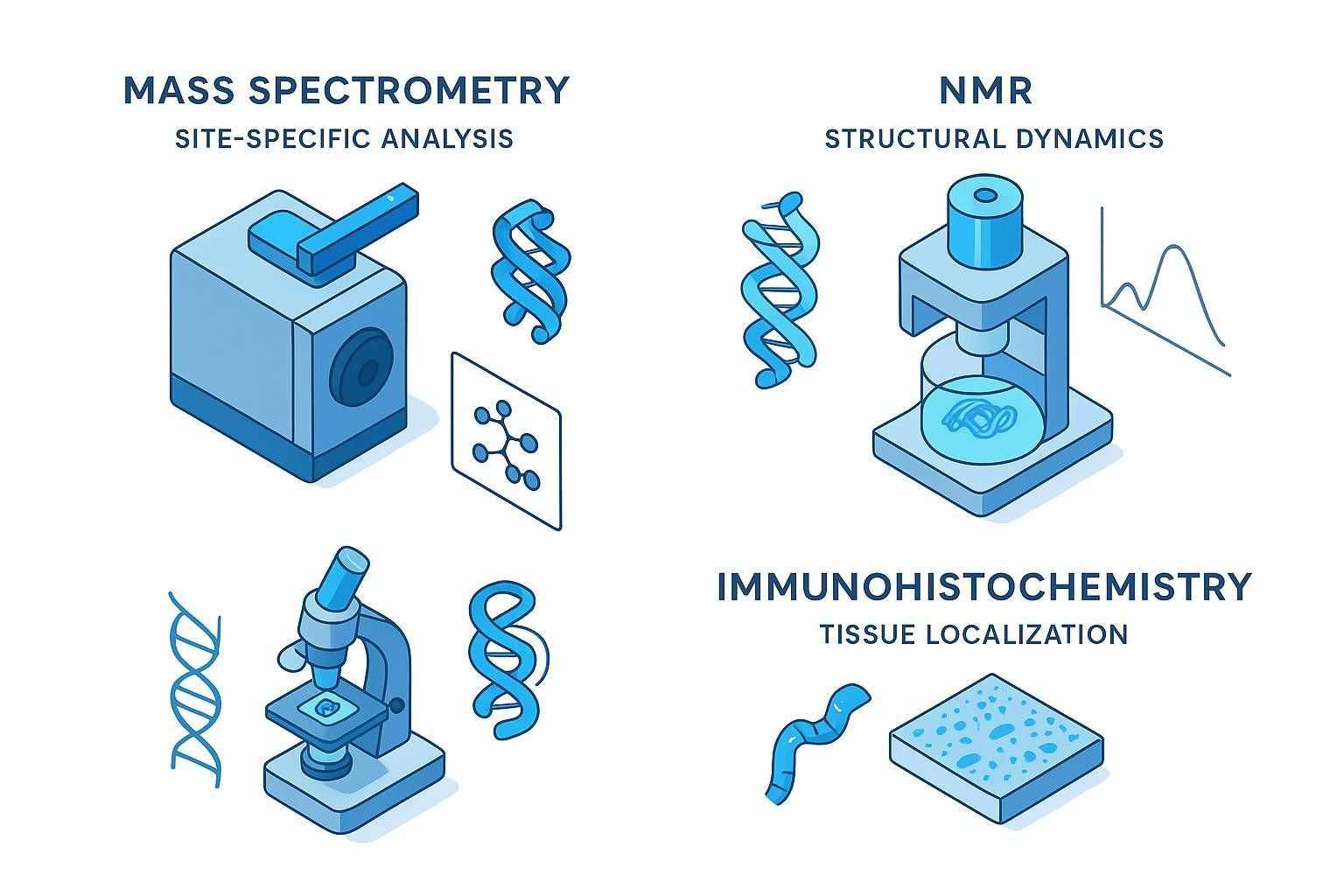

Mass spectrometry, structural methods, and tissue‑level visualization can provide complementary insight in collagen modification studies.
Application Scenarios: From Animal Models to Fibrosis, Aging, and Tissue Engineering
Why animal tissues are a valuable example
In vivo ECM remodeling couples biochemical modification with mechanical load and cellular signaling. Animal tissues therefore reveal the full maturation axis—from HLNL/DHLNL to HP/LP—under realistic enzymatic and biomechanical constraints. They also make it feasible to correlate cross‑link profiles with stiffness readouts from mechanical testing or AFM.
Fibrosis and aging‑related collagen remodeling
In fibrotic lung, both immature and mature cross‑links have been reported to increase alongside greater tissue stiffness, linking LOX‑pathway activity to mechanics. Age‑related remodeling often shows altered HP/LP balance and accumulation of cross‑links that stiffen matrices. These trends support including both immature and mature cross‑link readouts in studies of disease or aging where mechanical phenotype matters. Representative human‑tissue and model‑system studies document elevated cross‑link content with stiffness changes and discuss how modulation of LOX pathways can alter these properties.
Tissue engineering and biomaterial development
Engineered scaffolds must balance strength, elasticity, and degradation. Because cross‑link profiles are a major determinant of viscoelastic behavior, collagen‑centric PTM analyses are useful for tuning formulations and conditioning regimens (e.g., alignment, strain, cross‑link modulation). Combining site‑level hydroxylysine mapping with HP/LP ratios provides a chemical‑to‑mechanical bridge for rational design.
Common Planning Mistakes in Collagen Modification Studies
Treating hydroxylation and cross‑linking as unrelated readouts
These processes form a continuum. Ignoring hydroxylation when interpreting cross‑links (or vice versa) severs the causal chain that links enzymology to mechanics.
Using sample types without considering collagen abundance
Low‑collagen matrices demand enrichment and targeted acquisition to achieve reliable detection; otherwise, negative results may reflect limited sensitivity rather than true absence.
Starting broad when the project is clearly collagen‑driven
If your objectives emphasize ECM stability, fibril maturation, or mechanics, a collagen‑specific workflow saves time and yields interpretable data earlier. Broad scans are better reserved for discovery questions.
How to Decide Whether Your Study Is a Good Fit for Collagen Modification Analysis
Sample type and expected collagen signal
Estimate collagen content and feasibility of detecting HLNL/DHLNL and HP/LP. For mineralized tissues, plan EDTA decalcification. For soft tissues, plan gentle decellularization and ECM‑preserving extraction.
Study objective and interpretation depth
If you must interpret mechanics or maturation, include cross‑link class resolution; if you need to map enzyme activity, include site‑level hydroxylysine. Many programs need both.
Why early discussion helps refine the workflow
Up‑front alignment on stabilization (NaBH4), protease selection, fragmentation modes, and quantitation (isotope standards, PRM/MRM panels) prevents rework and ensures traceability. Early dialogue also clarifies whether to begin with a collagen‑specific path or a broader hydroxylation survey.

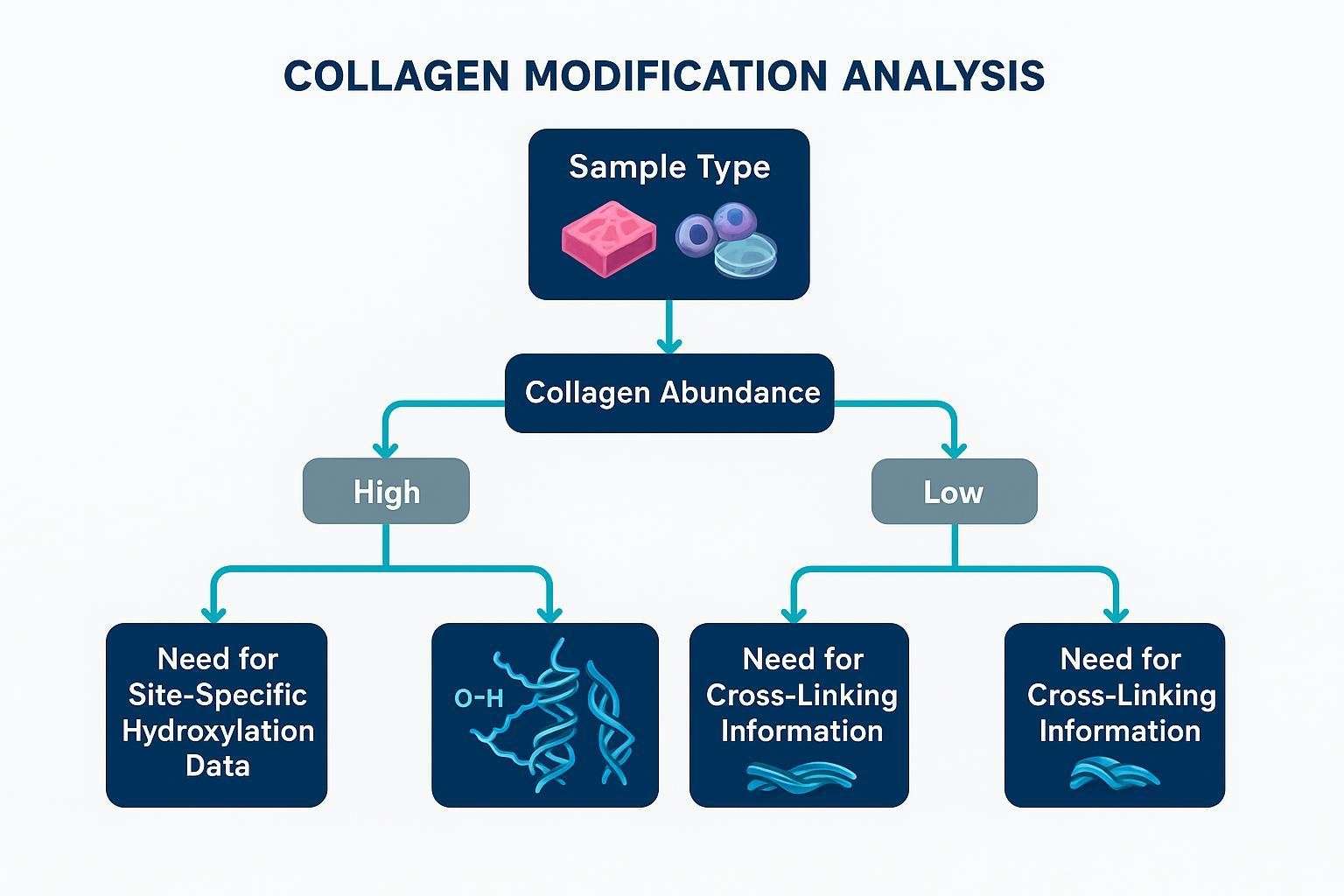

A sample‑first planning workflow can help determine whether a project is best suited for general hydroxylation profiling or collagen‑specific hydroxylation and cross‑linking analysis.
Choosing the Right Service Entry Point
When to start with collagen‑specific analysis
If your questions center on ECM mechanics, fibril maturation, fibrosis/aging biology, or engineered scaffold performance, prioritize a collagen‑focused workflow that integrates site‑level hydroxylysine with cross‑link class readouts. For a neutral description of scope and deliverables, see the Creative Proteomics page on collagen lysine hydroxylation and cross‑linking analysis.
When broader hydroxylation context is still useful
When you need an exploratory view across proteins or aim to track multiple hydroxylase pathways before committing to collagen depth, begin with a broader survey. See Creative Proteomics' overview of hydroxylation analysis for a general protein‑agnostic entry point, then bridge into the collagen‑specific route above as the questions narrow. If you need to return to collagen details while planning, consult the collagen modification analysis service page again to close the loop.
References and further reading (peer‑reviewed)
- Biochemistry and pathway overviews touching LH2 and LOX roles in collagen maturation and pyridinoline formation are well summarized in Terajima's review in Matrix Biol Plus (2022) describing telopeptidyl hydroxylation and bias toward pyridinolines; Gjaltema et al. (2016) discuss pyridinoline formation mechanisms and modulators; and Herchenhan et al. (2015) demonstrate LOX dependence of ordered fibrillogenesis. For accessible versions, see: Terajima 2022, Gjaltema 2016, and Herchenhan 2015 on the National Library of Medicine platform.
- Cross‑link taxonomy and maturation, including the HLNL/DHLNL to HP/LP cascade and mechanical implications, are reviewed by Bielajew et al. (2020) and Wohlgemuth et al. (2023), with cartilage maturation examples in Murdoch et al. (2015).
- Quantification strategies for HP/LP with HPLC/LC‑MS/MS, including fluorescence detection and isotope‑labeled internal standards, are detailed in Tang et al. (2016) and Bielajew et al. (2021), with related rapid LC‑MS/MS approaches described by Lloyd et al. (2024).
According to Terajima's 2022 review in Matrix Biol Plus, LH2 activity at telopeptides favors hydroxyallysine pathways leading to pyridinoline cross‑links. See Terajima M. Lysyl hydroxylase 2 mediated collagen post‑translational modification (2022): https://pmc.ncbi.nlm.nih.gov/articles/PMC9395344/
For mechanisms involved in pyridinoline maturation and the role of FKBP65–LH2 interactions, see Gjaltema RAF et al. Disentangling mechanisms involved in collagen pyridinoline formation (2016): https://pmc.ncbi.nlm.nih.gov/articles/PMC4932945/
For LOX dependence of ordered fibrillogenesis, see Herchenhan A et al. Lysyl Oxidase Activity Is Required for Ordered Collagen Fibrillogenesis (2015): https://pmc.ncbi.nlm.nih.gov/articles/PMC4481240/
For cross‑link taxonomy, quantification, and biomechanics context, see Bielajew BJ et al. Collagen: quantification, biomechanics, and role of minor collagens (2020): https://pmc.ncbi.nlm.nih.gov/articles/PMC8114887/ and Wohlgemuth RP et al. Alignment, cross‑linking, and beyond (2023): https://pmc.ncbi.nlm.nih.gov/articles/PMC10635663/
For HP/LP LC‑MS/MS and calibration practices, see Tang JCY et al. (2016): https://pmc.ncbi.nlm.nih.gov/articles/PMC11322722/ and Bielajew BJ et al. (2021): https://pmc.ncbi.nlm.nih.gov/articles/PMC8804780/
Conclusion
Designing a collagen lysine hydroxylation and cross‑linking analysis project begins with clarifying the biology and the endpoint. Because lysine hydroxylation and LOX‑mediated cross‑linking are a single maturation continuum, studies of ECM mechanics, fibrosis/aging, or engineered scaffolds generally require both site‑specific hydroxylysine mapping and cross‑link class resolution. Animal tissues provide a realistic exemplar for planning, but cell systems and engineered matrices are equally valuable depending on your objective and throughput needs. Align sample handling, stabilization, fragmentation, and quantitation to your goals, and define QC up front so the dataset is transparent and traceable. All workflows discussed here are for research use only and are not intended for clinical diagnosis or patient‑level decisions.
—
