Precision Targeted Proteomics for Genetic Variants: Organelle-Specific Normalization for SAV Quantification

Precision medicine rises or falls on measurement. Detecting a gene variant is only the starting point; what truly drives phenotype is the protein product in its native cellular context. This ultimate guide explains how to quantify single amino acid variants (SAVs) at the protein level in clinical cohorts using targeted LC–MS/MS, while placing the hero spotlight on organelle-specific normalization. We focus on VDAC1 as a practical mitochondrial proxy—extensible to other organelles—and weave in fit-for-purpose PRM assay design, AQUA/SIS absolute quantification, and ICH M10–aligned validation and scale-up plans suitable for 300+ samples.

Key takeaways

• Protein-level variant measurement needs context. Organelle-specific normalization reduces biological confounding that total-protein or housekeeping approaches miss.
• VDAC1 can serve as a pragmatic mitochondrial proxy when validated in-matrix; multi-proxy strategies and orthogonal checks are recommended to hedge against stress-driven regulation.
• High-resolution PRM enhances selectivity for SAV discrimination in complex digests by leveraging diagnostic fragment ions and strict identity criteria.
• AQUA with stable isotope standards converts relative ratios into absolute concentrations through matrix-matched calibration, proper weighting, and defensible LLOQ definitions.
• ICH M10 expectations map well to targeted peptide assays: plan selectivity, calibration, precision, accuracy, carryover, stability, and dilution integrity up front.
• Longitudinal QC with batch-bridging controls, pooled matrices, and system suitability enables cross-batch CV control under 15% for large cohorts.

Why protein-level variant quantification matters

Variant calling at the DNA level rarely tells the full story. Transcriptional regulation, translation efficiency, protein turnover, and subcellular localization shape functional outcomes. Quantifying SAVs at the proteoform level closes the loop between genotype and biochemical effect.

From genotype to proteotype

Think of genotype information as a blueprint and the proteotype as the constructed building with real-world wear, utilities, and occupancy. Protein-level data captures abundance, modifications, and localization, revealing whether a variant truly alters pathway flux or drug response in the relevant compartment.

Challenges of single amino acid variants in mass spectrometry

SAV peptides differ from wild type by one residue, which can create near-isobaric interferences, altered charge states, or cleavage behavior. In complex clinical matrices, selectivity hinges on chromatography plus high-resolution, accurate-mass MS/MS with fragment ions that encompass the substituted site. Orthogonal identity checks—co-elution with heavy standards, spectral library similarity, and retention-time anchoring—are essential.

Organelle-specific normalization framework

The biological matrix is heterogeneous. Two PBMC samples with the same total protein can differ in mitochondrial content, skewing interpretation of mitochondrial enzymes if normalized only to total protein. Organelle-specific normalization addresses this by scaling targets to a validated proxy that tracks the relevant organelle's abundance.

VDAC1 as a mitochondrial proxy

VDAC1 is a highly abundant protein of the outer mitochondrial membrane, making it an attractive anchor for normalizing mitochondrial proteins such as ALDH2 in blood-cell digests. Structural and biophysical work emphasizes its ubiquity and detectability in human mitochondria, supporting its use as a measurable proxy in targeted LC–MS/MS assays, as reviewed by the Journal of the American Chemical Society in 2022 in a study on VDAC1 structure and gating behavior (DOI: 10.1021/jacs.1c09848).

Yet proxies are never perfect. Under stress and mitophagy, VDAC1 can undergo Parkin-mediated ubiquitination and turnover, decoupling it from mitochondrial mass. Multiple studies outline these regulatory pathways, including evidence synthesized in 2021 by Science Advances on VDAC family ubiquitination in depolarized mitochondria (DOI: 10.1126/sciadv.abj0722). The implication is clear: validate the proxy in your specific cohort and conditions before relying on it for normalization.

A practical validation blueprint:

• Cohort and metrics: Evaluate VDAC1 alongside TOMM20 and an inner membrane marker such as COX4I1 or ATP5A1. Quantify each with SIS peptides in PBMC digests. In parallel, measure mtDNA copy number by qPCR, citrate synthase activity enzymatically, and a microscopy-based mitochondrial volume proxy such as MitoTracker Green.
• Analyses and acceptance: Target r ≥ 0.7 correlation of the proxy to orthogonal mitochondrial metrics; QC CV ≤ 15%; no significant bias after three freeze–thaw cycles (<15%). When feasible, apply Deming regression for proxy-to-proxy comparisons and propagate uncertainty into downstream statistics.

Extending to other organelles with multi-proxy strategies

Organelle-specific normalization generalizes beyond mitochondria. Consider calreticulin or CANX for endoplasmic reticulum content, LAMP1 for lysosomes, or a composite index using the geometric mean of two stable markers. Conceptual support for selecting and validating organelle markers is summarized in a 2021 review on organellar maps and normalization strategies in Subcellular Proteomics (PMCID: PMC8451152) and reinforced by a 2024 eLife study on organelle composition heterogeneity that argues for marker-informed normalization in variable tissues (DOI: 10.7554/eLife.85214).

How to incorporate proxy uncertainty into downstream analysis

Normalization introduces its own variance. When reporting target over proxy ratios, include confidence intervals that reflect error propagation from both numerator and denominator. For group comparisons, a mixed-effects model that treats batch and plate as random effects and includes the proxy as a covariate or ratio term can stabilize estimates across large cohorts. If stress biology may alter the proxy, consider a multi-proxy composite and prespecify sensitivity analyses.

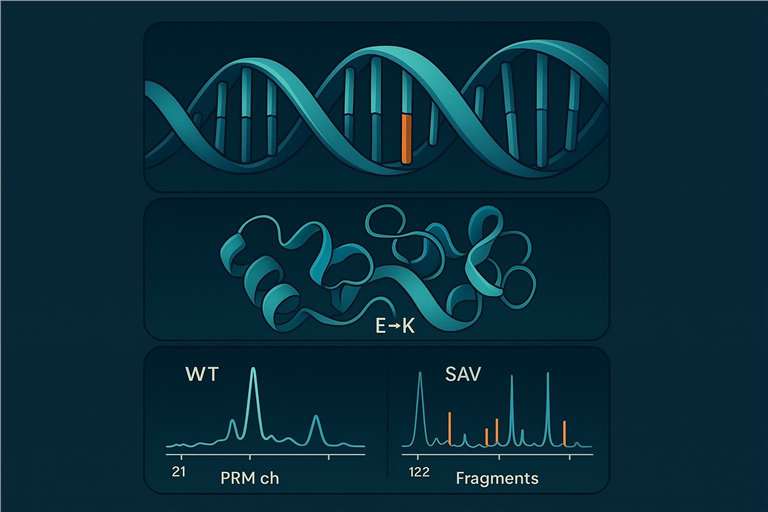

Figure 1: From genetic mutation to protein-level quantification. A single nucleotide change leads to an E→K substitution on a proteotypic peptide, which can be resolved by PRM using diagnostic fragment ions and retention-time differences.

Designing SAV-selective PRM assays

High-resolution PRM collects full MS/MS spectra for each targeted precursor, enabling selective extraction of multiple fragment ions that embed the variant site. This spectral richness is especially valuable for SAVs in complex digests where near-isobaric peptides may co-elute.

Peptide selection logic for variant discrimination

• Proteotypicity: Confirm peptide uniqueness against close homologs (e.g., ALDH family). Exclude sequences conserved across paralogs.
• Enzymology: Favor fully tryptic peptides 7–20 residues in length; evaluate whether the variant introduces or removes a Lys/Arg that could alter cleavage and missed-cleavage risk.
• Chemistry: Avoid labile residues when possible, or control them experimentally. Methionine oxidation can complicate quantification unless monitored explicitly.
• Diagnostics: Prioritize y-ions that include the variant site; higher m/z fragments often deliver better selectivity and S/N.

Authoritative guidance on PRM method design and selectivity is summarized in a 2015 review describing PRM's high-resolution, high mass-accuracy advantages and examples of variant and isotype discrimination in plasma, including serum amyloid A isotypes (PMCID: PMC4691067).

For additional context on targeted PRM use cases and fit-for-purpose implementation, see the overview at Creative Proteomics in the page on PRM targeted proteomics analysis.

Balancing sensitivity and selectivity with high-resolution PRM

In matrices such as PBMC digests, the priority is unambiguous identity. Strategies include longer gradients to separate co-eluting near-isobars, 5–10 ppm extraction windows for fragments, iRT-based retention anchoring, and stringent library match thresholds. Spike heavy analogs for both the variant and wild type, confirm co-elution, and verify dot-product spectral similarity. When interferences persist, adjust protease selection or chromatographic chemistry to shift the variant into a more discriminating peptide context. Feasibility for SAAV measurement with heavy standards in clinical matrices has been demonstrated in serum using SRM with absolute quantification, as reported in 2014 in the Journal of Proteome Research with SAAV peptides in cancer serum (DOI: 10.1021/pr500934u; PMCID: PMC4261938).

Case example for ALDH2 E504K design walkthrough

Status note: We did not identify peer-reviewed PRM or SRM publications reporting validated proteotypic peptides spanning ALDH2 residue 504 with performance metrics. The following is a didactic design outline to be validated experimentally.

• Sequence context: ALDH2 p.E504K corresponds to rs671. Enumerate tryptic candidates spanning residue 504 for both wild type and variant using UniProt and in silico digestion tools. Screen out peptides shared with ALDH paralogs.
• Selection criteria: Prefer fully tryptic peptides where the E→K substitution resides within an informative y-ion ladder; avoid sequences prone to missed cleavage from newly introduced Lys/Arg unless chromatographically separated.
• Heavy standards: Synthesize stable isotope–labeled analogs for both alleles; verify co-elution, peak symmetry, and high dot-product spectral matches.
• Diagnostics and acquisition: Monitor at least three variant-encompassing y-ions, use stepped collision energies, and confirm retention-time orthogonality with iRT calibrants.

Absolute quantification with AQUA and SIS

Relative ratios rarely satisfy clinical or regulatory stakeholders. AQUA translates LC–MS/MS signals into absolute concentrations using stable isotope standards and matrix-matched calibration.

Stable isotope standards and spike strategy

Use peptides that match the endogenous sequence and modification state, labeled at the C-terminal Lys or Arg with 13C/15N. Spike a constant heavy amount across all calibrators and unknowns post-digestion for peptide-level assays, or pre-digestion protein standards when digestion variability must be controlled. Foundational best practices for targeted quantitation with heavy standards and transition design are summarized by Biochemistry in 2013 in a comprehensive review of targeted protein quantitation (DOI: 10.1021/bi400110b).

Calibration curves, weighting, and defining LLOQ

Construct at least six non-zero matrix-matched calibrators spanning the expected physiological range. Fit linear regression to light-to-heavy ratios versus concentration; evaluate residuals and adopt 1/x or 1/x² weighting when it improves low-end accuracy and homoscedasticity. Define LLOQ as the lowest calibrator meeting accuracy 80–120% and precision ≤ 20% CV with acceptable identity criteria. Practical discussions of matrix-matched curve construction and figures of merit have been presented in the Journal of Proteome Research in 2020, which details how to evaluate linearity and calibration performance in complex matrices (PMID: 32356448; PMCID: PMC7175947).

Stability and dilution integrity for clinical cohorts

Plan and document bench-top, freeze–thaw, long-term, and autosampler stability. Confirm dilution integrity to maintain accuracy within ±15% (±20% at LLOQ). These elements align directly with expectations in the ICH Guideline M10 on Bioanalytical Method Validation, adopted in 2022, which outlines harmonized criteria for precision, accuracy, calibration, selectivity, carryover, stability, and study sample analysis acceptance rules (EMA-published PDF: https://www.ema.europa.eu/en/documents/scientific-guideline/ich-guideline-m10-bioanalytical-method-validation-step-5_en.pdf).

Clinical-grade validation and scale-up to 300 plus samples

Scaling a targeted SAV assay to hundreds of clinical samples requires discipline in validation, operations, and documentation. The aim is tight inter- and intra-assay CVs, transparent audit trails, and predefined acceptance rules.

Mapping acceptance criteria to ICH M10

• Precision and accuracy: Within-run and between-run CV ≤ 15% (≤ 20% at LLOQ); mean accuracy within ±15% (±20% at LLOQ).
• Calibration: At least six non-zero levels; justified regression and weighting; back-calculated concentrations within ±15% (±20% at LLOQ).
• Selectivity and matrix effects: Verify with ≥ 6 individual matrices; endogenous interference ≤ 20% of LLOQ; assess hemolysis and lipemia where relevant.
• Carryover and dilution: Post-high standard blank ≤ 20% of LLOQ and ≤ 5% of internal standard; dilution integrity within acceptance.
• Stability: Bench-top, freeze–thaw, long-term, processed sample stability all within acceptance.

QC design and cross-batch CV control

Large cohorts benefit from a layered QC strategy. Recommended practices described in 2024 by the Journal of Proteome Research emphasize system suitability injections independent of matrix, pooled study QCs on every plate, batch-bridging controls across runs, and software-driven drift monitoring with predefined rules for re-injection or re-quantification (DOI: 10.1021/acs.jproteome.4c00363; PMCID: PMC11030400). An operations plan might include:

• Plate layout: Seven-point calibrators and four pooled QCs per 96-well plate; randomize sample order; inject system suitability at start, mid, and end.
• Bridging strategy: Include the same pooled QC across all batches to estimate and, if justified, correct for drift using ratio-to-QC or LOESS—record every adjustment.
• Targets: Keep inter- and intra-assay CV ≤ 15% away from the LLOQ; allow ≤ 20% near LLOQ.

Comparative decision table

Data reporting and audit trails

Regulatory and sponsor confidence grows with transparency. Prepare reviewer-ready packages that include:

• Calibration and QC summaries with back-calculated concentrations, residual plots, and weighting rationale.
• System suitability logs separate from calibrators and QCs to isolate instrument performance.
• Chain-of-custody, sample handling timestamps, digestion batch records, and instrument maintenance logs.
• Normalization rationale and validation evidence for the chosen organelle proxy, including any orthogonal assays and correlation statistics.
• Predefined acceptance criteria, deviations, and corrective actions with timestamps.

For readers exploring broader localization-aware designs, see a complementary perspective at Creative Proteomics in the page on spatial proteomics services.

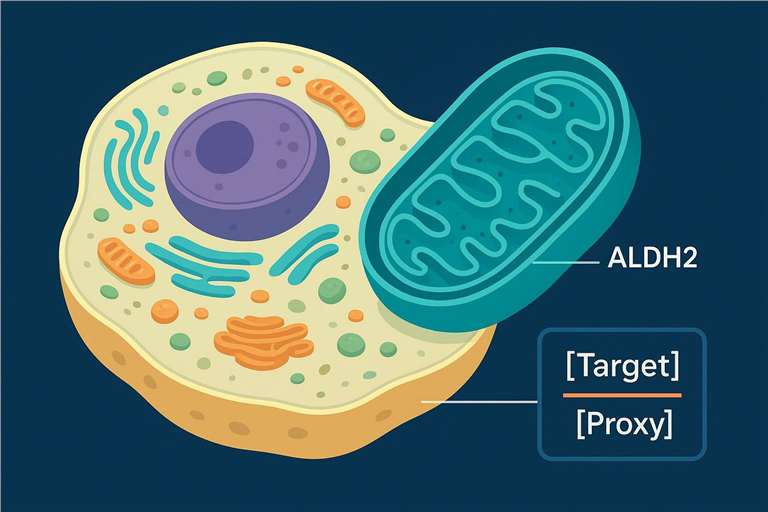

Figure 2: Organelle-specific normalization model. The target is scaled by a validated proxy of organelle abundance to reflect biological density rather than bulk total protein.

Next steps and where to go deeper

If you are building a fit-for-purpose SAV assay for a clinical cohort, start by defining the organelle context for your targets and set up a proxy validation experiment early. In parallel, finalize PRM peptide candidates and heavy standards, plan matrix-matched calibration, and map your validation and QC structure to ICH M10 requirements. For a practical overview of targeted PRM options that can support implementation, see the page on PRM targeted proteomics analysis. For broader capabilities and contacts, visit Creative Proteomics.

References

• VDAC1 structure and abundance in the human outer mitochondrial membrane — Journal of the American Chemical Society, 2022. DOI: 10.1021/jacs.1c09848.
• VDAC family ubiquitination under mitochondrial depolarization — Science Advances, 2021. DOI: 10.1126/sciadv.abj0722.
• Organellar maps and normalization strategies — Subcellular Proteomics review, 2021. PMCID: PMC8451152.
• Organelle composition heterogeneity and marker-informed normalization — eLife, 2024. DOI: 10.7554/eLife.85214.
• PRM selectivity advantages and variant/isotype discrimination examples — Parallel Reaction Monitoring review, 2015. PMCID: PMC4691067.
• SAAV quantification with heavy standards in serum — Journal of Proteome Research, 2014. DOI: 10.1021/pr500934u; PMCID: PMC4261938.
• Targeted protein quantitation with isotope-labeled standards — Biochemistry, 2013. DOI: 10.1021/bi400110b.
• Matrix-matched calibration and figures of merit in complex matrices — Journal of Proteome Research, 2020. PMID: 32356448; PMCID: PMC7175947.
• ICH Guideline M10 on Bioanalytical Method Validation — EMA PDF, 2022. https://www.ema.europa.eu/en/documents/scientific-guideline/ich-guideline-m10-bioanalytical-method-validation-step-5_en.pdf.
• Framework for quality control in quantitative proteomics — Journal of Proteome Research, 2024. DOI: 10.1021/acs.jproteome.4c00363; PMCID: PMC11030400.
