Navigating the Complexity of Large-Scale Mammalian Proteomics: Strategic Design for Batch Consistency and High-Throughput Delivery

Running discovery proteomics at industrial scale is less about "pushing harder" on the instrument and more about engineering the entire campaign so drift, bias, and missingness are minimized before you ever normalize a matrix. In a typical 60-plus cell line design that spans 180 or more injections, the decisions you make up front—sample intake, randomization, pooled quality controls, cross-batch anchors, and replication—determine how much trust you can place in the biology later. Here's the counterintuitive part: in heterogeneous cohorts, global-sum scalers like TIC often hurt you; QC-anchored LOESS or robust median-based strategies tend to preserve biology better. And when heterogeneity is high, choosing DIA to reduce stochastic missingness can be wiser than leaning on aggressive match-between-runs settings.

Key takeaways

• Design out bias first with block randomization, pooled QC cadence, and cross-batch anchors; correct only what remains.
• For heterogeneous LFQ datasets, prefer median scaling and QC-anchored LOESS over total ion current normalization.
• Intake of pre-digested peptides demands quantification, desalting checks, and a micro-LC scouting run to surface problems early.
• MBR improves completeness but requires governance and transfer auditing; consider DIA to avoid reliance on transfers when heterogeneity is high.
• Technical triplicates stabilize CVs and improve confidence in differential analyses at scale.
• Use pooled QC and anchor samples to model drift across instruments, days, and maintenance windows.
• Evaluate normalization success by QC CVs, stable PCA separation, and preserved biological contrasts rather than by a single metric.

The industrialization of proteomics and why scale changes everything

Scaling from dozens to hundreds of injections transforms proteomics from a single-run optimization exercise into a systems engineering problem. Throughput and proteome depth become coupled to scheduling, maintenance, and longitudinal control. Studies that operate for weeks or months must assume retention time drift, subtle mass accuracy shifts, and column performance changes. Large-scale reproducibility frameworks emphasize design-first controls and longitudinal QC as the backbone for trustworthy biology; see the strategies cataloged in Nature Communications 2020 by Poulos et al., which detail reference samples, scheduling discipline, and monitoring practices for extended campaigns.

Throughput versus proteome depth

When profiling more than 60 cell lines, you will be forced to balance gradient length, loading, and duty cycle against proteome depth. Shorter gradients boost throughput yet increase co-elution and risk of undersampling in DDA. DIA shortens this gap by deterministically sampling across m/z windows, mitigating stochastic missingness and improving consistency across runs. Practical guidance from reproducibility studies suggests minimizing stochastic elements to reduce downstream corrections while maintaining separation of known biological groups.

A pragmatic planning approach:

• Choose an initial gradient length (e.g., 30–45 minutes for discovery DIA) that keeps peak capacity adequate without overextending runtime. Place system suitability and pooled QC at the start; verify peak widths and identification counts.
• For DIA, define window schemes that balance isolation width and cycle time. Wider windows increase completeness but risk chimericity; tighter windows require faster duty cycles. Library-free DIA workflows have matured to provide robust identifications at modest gradients; see the tooling advances summarized in J. Proteome Research 2023 by Wallmann et al..
• For DDA, expect greater stochasticity at short gradients. If DDA is mandated, budget for conservative MBR and transfer audits (see below) or extend gradients modestly to stabilize sampling.

Infrastructure requirements for 100 to 300 samples

Running 100 to 300 samples efficiently requires robust LC systems, an autosampler that tolerates long queues, and a high-sensitivity mass analyzer capable of fast, high-resolution duty cycles. Peer-reviewed reports indicate that Orbitrap Astral–class performance supports deep coverage at shorter gradients in DIA modes, enabling high-throughput schedules; see the phosphoproteome analysis using Astral-class instrumentation in Lancaster et al., 2024, PMC11327265 and a broader performance overview in Hendricks et al., JPR 2024. Build in maintenance windows, keep spare emitter tips and columns ready, and stage pooled QC and cross-batch anchor samples to bracket maintenance cycles. Automation for plate handling and standardized wash routines will pay off in reduced carryover and more predictable retention time behavior.

Standardized intake SOP for pre-digested peptide samples

Receiving "ready-to-inject" peptides can dramatically accelerate turnarounds for large campaigns, but it also shifts responsibility for digestion quality and desalting upstream. The intake step is the last, best opportunity to prevent concentration disparities, salt contamination, or incomplete digestions from turning into batch effects later. Micro-volume UV/Vis methods have demonstrated accurate peptide quantification at microliter scales with strong linearity, helping stabilize injection loads in LFQ contexts; see ACS Omega 2020 by Maia et al..

Rationale for peptide-level submission

Peptide-level submissions decouple protein extraction and digestion from the LC-MS/MS queue, unlocking scheduling flexibility and faster iteration. The tradeoff is that the proteomics lab loses direct control over digestion parameters. That makes intake QC non-negotiable. Micro-volume UV/Vis measurements enable practical, small-volume quantification of MS-ready peptides and, when combined with orthogonal checks, can materially improve loading accuracy and reproducibility.

Multi-dimensional intake quality control

• Quantification consistency: Use micro-volume UV/Vis for approximate concentration and confirm with a dye-based method when feasible to catch composition-dependent biases. Align loading targets across the cohort before any injection.
• Desalting and contaminant checks: Inspect UV baselines or simple conductivity proxies to flag residual salts and detergents. Excess salt drives ion suppression and unstable chromatography; fix it now rather than discovering it mid-batch.
• Micro-LC scouting for digestion quality: Run a brief nano-LC scouting injection per batch to estimate missed cleavage proportions and to observe peak shape and retention. Elevated missed cleavages or a noisy baseline are warning signs. Universal numeric thresholds are not standardized in peer-reviewed literature; instead, define study-specific acceptance criteria and enforce them consistently. Longitudinal reproducibility discussions in Poulos et al., 2020 support front-end rigor and documentation.

Sample normalization before MS injection

Even when samples arrive pre-digested, equalizing on-column peptide load is one of the simplest ways to reduce variance. Normalize injection volumes to a constant peptide mass where quantification supports it. If a subset remains uncertain, bracket them with pooled QC injections and consider a re-quantification loop before proceeding.

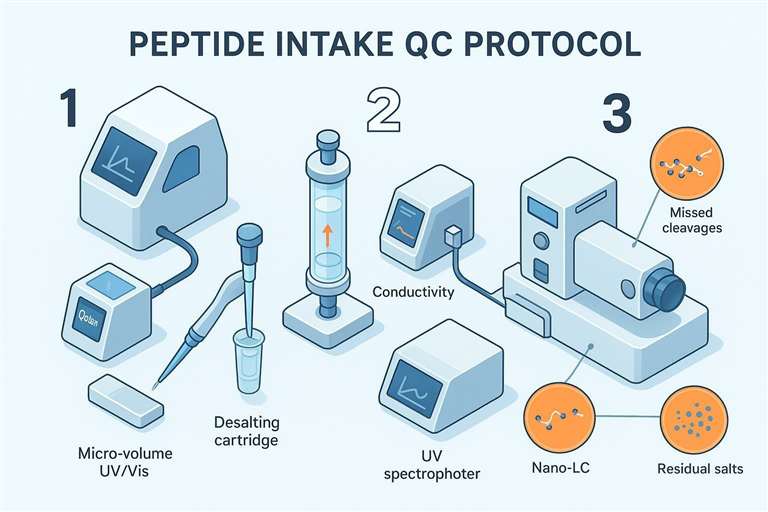

Figure 1: Standardized acceptance criteria for pre-processed peptide samples to ensure downstream data integrity.

Intake checklist for pre-digested peptides

• Micro-volume UV/Vis quantification recorded with method and pathlength
• Optional dye-based quantification cross-check documented
• Desalting step verified; baseline inspection screenshot stored
• Micro-LC scouting run completed; missed cleavage indicators reviewed
• Injection load normalized across cohort; outliers flagged for re-quantification
• Pooled QC vial prepared and aliquoted for the entire campaign

Batch effect control in Large-scale proteomics

Design choices that fight bias upstream will always outperform heroic downstream corrections. The core moves are block randomization, pooled QC cadence, cross-batch anchor samples, and then methodical normalization guided by diagnostics. In proteomics-scale omics designs, block randomization reduces confounding and time-linked drift; this approach is formalized in Journal of Proteome Research 2020 by Burger et al., which shows how balanced blocks mitigate sequential biases in large cohorts. For a complementary systems view of large-scale proteomics, see the reproducibility playbook in Poulos et al., Nat Commun 2020.

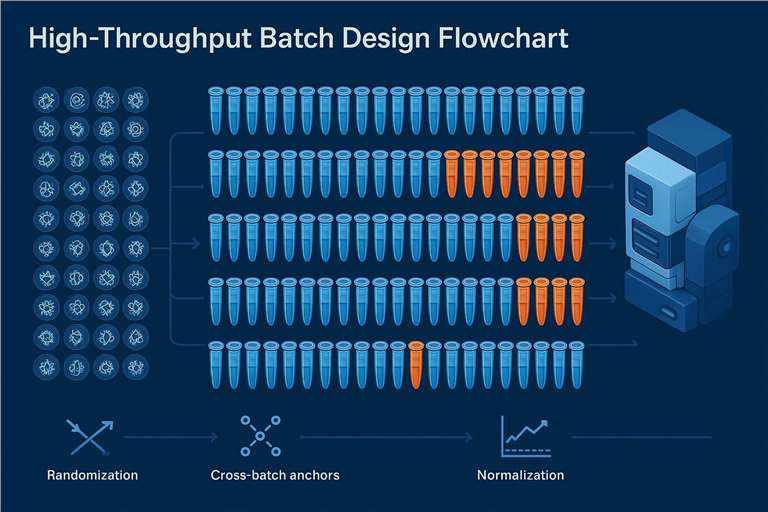

Figure 2: Strategic randomization and QC anchoring for high-throughput proteome profiling.

Choosing normalization algorithms with a diagnostics-first mindset

The most common mistake in large-scale LFQ is defaulting to total ion current normalization. In heterogeneous cohorts where global abundance truly shifts, TIC can erase biology. Instead, use median-based scalers or probabilistic quotient normalization for between-sample scaling, and apply QC-anchored LOESS to correct smooth, non-linear drift within a batch. For multi-batch harmonization, methods such as ComBat or RUV-family approaches can work, but only when their assumptions hold and after you verify that they do not over-correct. Practical overviews caution against over-normalization and outline diagnostics like pooled QC CVs and PCA stability; see ACS Measurement Science Au 2024 by Jiang et al.. Cross-omics synthesis in Genome Biology 2024 by Yu et al. similarly warns that aggressive correction can remove true signal if design controls are weak.

Normalization diagnostics to review before locking a method include pooled QC intensity CVs, PCA separation of known groups, stability of internal standards or housekeeping peptides, and the degree to which normalization reduces technical variance while retaining biological contrasts. Make these diagnostics part of a formal sign-off before running differential tests. For a formal QC metric framework and system suitability focus, see J. Proteome Research 2024 by Tsantilas et al..

Match between runs and data completeness safeguards

MBR can be valuable in lifting completeness across many injections by transferring identifications across runs. The risk is false transfers that survive filtering. A definitive two-proteome evaluation in J. Proteome Research 2019 by Lim and Park's team quantified how initial false transfers can inflate identifications and showed that stringent downstream filtering removes most survivors. Constrain retention time match windows to study variability, require co-elution similarity, and enforce stringent peptide and protein-level FDR control. For critical contrasts, perform a validation experiment using mixed proteomes or spike-ins to quantify how many transfers are unsupported by fragment evidence. In highly heterogeneous designs, consider DIA to reduce dependency on transfers in the first place.

Normalization decision aids

Ensuring statistical power and outlier detection

Large-scale projects magnify the cost of noise. Technical triplicates offer a pragmatic way to stabilize coefficients of variation and to buffer against transient LC or MS perturbations. Placing replicates across different instrument cycles further guards against time-linked artifacts. Evaluate replicate CVs on pooled QC and on representative study samples; if variance inflates after a maintenance event, rebalance the schedule and re-inject anchors. The case for replication and variance-stabilized summaries is reinforced in Poulos et al., 2020.

For outlier detection, combine unsupervised methods with domain review. Principal component analysis quickly reveals samples that diverge due to preparation or instrument issues; hierarchical clustering helps spot subgroups driven by non-biological factors. Define in advance what constitutes an outlier that warrants reinjection versus removal, and document the decision with plots and QC metrics. Automated QC report cards based on MaxQuant outputs are available in J. Proteome Research 2016 by Bielow et al. on PTXQC, and a modern system suitability framework is outlined in Tsantilas et al., 2024.

Normalization workflow in practice

Think of normalization as a two-stage process: stabilize within-batch drift using QC-anchored smoothers, then scale between samples or batches with robust statistics.

Example pseudo-workflow (R-like pseudocode):

# inputs: expr (proteins x runs), meta (run annotations with batch, is_qc)
# 1) Within-batch LOESS anchored on pooled QC
for(b in unique(meta$batch)){
  idx <- which(meta$batch==b)
  qc  <- idx[meta$is_qc[idx]==TRUE]
  # fit smooth drift on QC intensities per feature (or on global proxy)
  drift <- loess_fit(time=meta$order[qc], y=rowMeans(expr[,qc], na.rm=TRUE))
  expr[,idx] <- expr[,idx] / predict(drift, meta$order[idx])
}
# 2) Between-sample scaling using median or PQN
scale_factors <- apply(expr, 2, function(col){ median(col, na.rm=TRUE) })
expr <- sweep(expr, 2, scale_factors, "/")
# 3) Diagnostics: pooled QC CVs, PCA before/after

This schematic highlights the principle: anchor drift correction to observed QC behavior, then apply robust scaling. Lock the method only if QC CVs improve and biological clusters in PCA remain intact, as recommended in Jiang et al., 2024.

MBR audit in practice

A compact way to govern transfers is to run a two-proteome mixture (e.g., yeast plus human in defined ratios) as a validation set alongside your study. Enable MBR under your intended parameters and then quantify the fraction of transferred identifications lacking supporting fragments in the validation runs. The approach mirrors the evaluation in Lim/Park et al., 2019 and gives you a study-specific estimate of transfer risk. Document retention time windows, co-elution similarity thresholds, peptide and protein FDR cutoffs, and the resulting transfer-aware metrics.

Practical workflow example for large campaigns

Consider a 180-run study spanning just over three weeks on two LC-MS systems. Samples are assigned by block randomization so that each block contains a balanced mix of biological groups. Every tenth injection is a pooled QC that was prepared at the outset in sufficient aliquots to last the full campaign. Cross-batch anchors—real study samples repeated across batches—are scheduled at the start and end of each daily sequence and after each maintenance window. Technical triplicates are interleaved across different days. This design aligns with block randomization guidance in Burger et al., 2020 and longitudinal control principles in Poulos et al., 2020.

Intake is standardized: pre-digested peptides are quantified, desalting quality is verified, a micro-LC scouting run confirms digestion quality, and injection loads are normalized. A neutral, auditable intake and batching structure like this is what organizations such as Creative Proteomics use to keep large campaigns on track without relying on heavy post-hoc correction.

For acquisition, if cohort heterogeneity is high, adopt DIA with a library-free workflow to minimize missingness and simplify downstream analysis. If DDA is mandated, enable MBR with conservative settings, and run a transfer audit using a mixed-proteome validation so you can quantify false transfers that survive filtering. Normalization is selected only after diagnostics confirm that pooled QC CVs improve and that PCA preserves expected biology.

Strategic FAQ for large-scale proteomics projects

Q: What peptide input per injection works for high-throughput label-free quantification?

A: Choose a load that your column and gradient can handle with stable peak shapes and minimal carryover. Micro-volume UV/Vis supports practical load targeting at small volumes. Validate on a small subset and monitor pooled QC identification counts and intensity stability before you scale; the micro-volume approach is exemplified in Maia et al., 2020.

Q: How do you calibrate batches when a project exceeds 100 runs?

A: Use pooled QC injections on a fixed cadence, cross-batch anchors, and pre-specified maintenance windows. Normalize within batches using median or LOESS approaches anchored to QC behavior, then test a between-batch harmonizer such as ComBat or RUV on anchors and pooled QCs, verifying that biological separation is preserved, as recommended in Jiang et al., 2024 and supported by QC frameworks like Tsantilas et al., 2024.

Q: Should we rely on MBR or switch to DIA as the study grows?

A: If heterogeneity is modest and you can govern transfers with strict auditing, DDA plus MBR can work. As heterogeneity and missingness increase, DIA tends to produce more consistent matrices without transfer artifacts, supported by tooling progress summarized in Wallmann et al., 2023.

Next steps and a reproducibility kit you can reuse

To reduce list density while keeping this reusable, here is a compact table you can adapt.

When your study includes post-translational modification endpoints or functional interpretation questions, consider deep-diving with resources on PTM fundamentals and site localization. As a starting point, see the concise primers on Introduction to PTMs and Detect PTM sites. For targeted confirmation of a short candidate list after discovery, a focused PRM follow-up can complement your global readout; review the overview of 4D-PRM targeted proteomics analysis.

By Caimei Li, Senior Scientist at Creative Proteomics · LinkedIn: https://www.linkedin.com/in/caimei-li-42843b88/
