Scaling Pre‑Digested Peptide LFQ Proteomics for 60 Cell Lines

Label‑free proteomics is no longer a boutique exercise. When your study spans 60 mammalian cell lines with n=3 technical replicates (≈180+ LC‑MS/MS runs) and pre‑digested peptide submissions, success depends on two things: rigorous peptide‑level intake/QC and end‑to‑end batch control across hundreds of injections. This guide lays out a practical, auditable design that balances throughput and depth while protecting data integrity.

Key takeaways

• Pre‑digested peptide LFQ proteomics scales reliably when you standardize intake (concentration, purity, micro‑QC) and enforce automated batch randomization with periodic QC inserts.
• For 30–45 min DIA gradients on Orbitrap Astral‑class platforms, expect strong depth‑throughput balance; schedule QC checks and acceptance thresholds to curb drift, not after the fact.
• Use technical triplicates (n=3) to stabilize variance, power multi‑group contrasts, and drive reinjection decisions via replicate‑level CVs and correlations.
• Prefer Median centering and LOESS for cross‑batch normalization; treat TIC as situational. Validate with PCA/RLE and post‑normalization CVs rather than assumptions.
• Apply MBR/PIP conservatively with tight alignment windows and explicit FDR controls; completeness gains should never outpace identification confidence.
• Convert interest into action: provide a clear peptide sample submission checklist so partners know exactly how to ship, label, and document pre‑digested materials.

The challenge of scale — managing 180+ LC‑MS/MS runs without drifting

Large‑cohort LFQ lives or dies by stability. Short, 30–45 minute DIA gradients on Orbitrap Astral‑class instruments can maintain impressive proteome depth at high acquisition rates while improving overall throughput, as shown in Astral performance evaluations supporting robust short‑gradient detection profiles according to the Journal of Proteome Research (2023) in the article Evaluating the Performance of the Astral Mass Analyzer for Proteomics Applications. See the detailed findings in the Journal of Proteome Research's open‑access paper by Heil et al. (2023): Astral analyzer performance and short‑gradient depth.

But speed introduces drift and wear. To control it proactively across >100 runs:

• Randomize run order in blocks so each cell line and replicate is evenly distributed across the sequence.
• Insert a system‑suitability QC (HeLa digest + iRT spike‑in) about once every 10–12 study injections to track sensitivity and retention time stability, a cadence aligned with core‑facility practice context described by Neely et al. (2024) in the article Quality Control in the Mass Spectrometry Proteomics Core: Practical QC materials and RT calibration usage.
• Define operating targets up front (2026 baseline): ID rate CV < 5% (sequence trending), RT drift < 0.8 min (via iRT), peptide CV < 15% across technical triplicates, and replicate correlation R² > 0.98. Treat deviations as triggers for maintenance, reinjection, or recalibration.

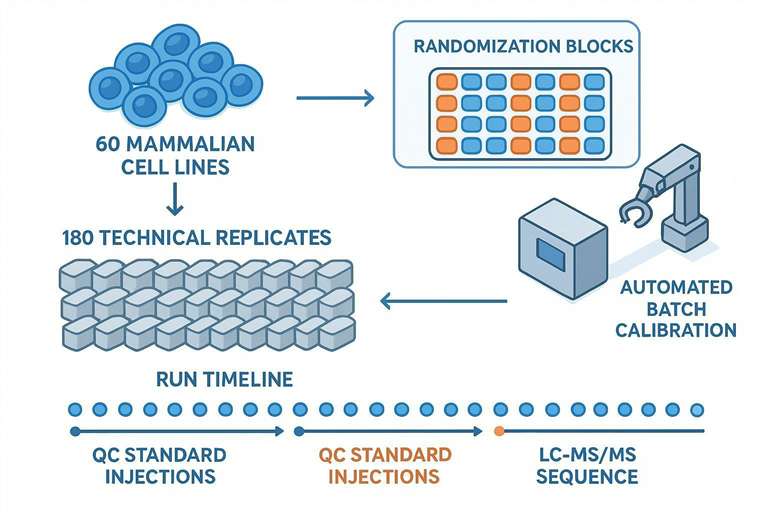

Figure 1: Systematic batch‑control strategy with randomized blocks and QC injections every ~10–12 runs to ensure trend visibility and quick remediation.

Start from peptides — intake QC for pre‑digested submissions

When partners submit peptides rather than lysates, the first 24 hours determine whether your downstream data are clean or compromised. Here's a pragmatic intake workflow that keeps projects on the rails without wasting precious sample.

Quick checks before desalting: concentration, purity, micro‑QC trial run

• Verify peptide concentration and total amount upon receipt. Standardize diluent and pH.
• Screen purity via a micro‑QC nanoLC‑MS/MS injection using a short scouting gradient. Track coarse metrics: identification rate, base‑peak intensity, and iRT fit.
• If salt or contaminants suppress ionization, perform StageTip/SPE cleanup before committing to long sequences. Review QC metrics to confirm recovery and stability. Practical overviews of such QC setups, including iRT for RT normalization and premixed digest standards, are available from Neely et al. (2024): Core‑facility QC quick‑start and iRT practice.

Calibrating peptide concentration across 180 samples

LFQ precision depends on consistent loading. Use a calibrated spectrophotometric or colorimetric assay validated for peptides, then equalize loading per injection (e.g., fixed ng on column). For each batch, confirm technical‑replicate CVs ≤ 15% and replicate R² ≥ 0.98; outliers should be reinjected or excluded per SOP.

Table 1: Pre‑digested sample intake and QC acceptance criteria

Robust normalization across 60 cell lines

Uniform loading and QC will not remove all variance. You still need a normalization plan and diagnostics to prove it worked.

Why technical triplicates matter for statistical power and QC

Triplicates stabilize variance estimates, improve detection of regulated proteins, and expose outliers via correlation and PCA/hierarchical clustering. Workflows leveraging moderated statistics (e.g., limma) are widely used in proteomics for complex designs and benefit from well‑behaved replicates; a Bioconductor overview (2023) describes these linear‑model strategies for high‑throughput omics: Empirical Bayes linear models for proteomics.

Choosing the right normalization (TIC vs Median vs LOESS) with diagnostics

• Median centering is a robust first step when you expect most proteins to be unchanged within a contrast.
• LOESS (locally weighted regression) can correct non‑linear intensity drifts across retention time or abundance ranges.
• TIC scaling, while useful for injection‑volume bias, can distort biology when global intensity shifts reflect real regulation; consider it situational.

Comparative studies and tutorials consistently support Median/LOESS combinations for proteomics, with directLFQ and related approaches documenting improved centering/variance profiles in intensity‑based LFQ. For example, the 2023 directLFQ paper reports favorable normalization properties on proteomics datasets: Intensity‑based LFQ normalization performance. A broader 2025 benchmarking across omics modalities also highlights Median and LOESS among top performers for preserving biological variance with stable QC features: Benchmarking normalization strategies across omics.

Validate your choice with diagnostics rather than intuition: tighter biological clustering and reduced dispersion on PCA; smaller post‑normalization CVs; and RLE plots centered near zero.

Figure 2: After Median + LOESS, batch structure collapses and biological groups cluster as expected.

Match‑between‑runs, conservatively

MBR (also called peptide identity propagation) increases data completeness by transferring identifications across runs. The gains are real—but so are the risks if matching is too permissive. Tissue and extracellular‑vesicle studies illustrate completeness improvements with MBR in IonQuant/MaxLFQ‑style pipelines, while also underscoring the need for stringent control: see representative open‑access examples describing coverage effects and parameterization trade‑offs MBR completeness in LFQ pipelines and EV proteomics using default MBR.

Best‑practice safeguards:

• Align runs tightly; then use narrow RT windows compatible with the platform's precision.
• Set ppm tolerances that match high‑resolution Orbitrap data.
• Require corroborating features where available (isotope pattern, ion mobility when applicable).
• Keep peptide and protein FDR at 1% and consider decoy‑based evaluation for propagated IDs. Guidance from HUPO/HPP on evidence standards contextualizes FDR policy in proteomics: Protein‑level evidence and FDR framing.

If completeness still lags and alignment is robust, 4D‑MBR (e.g., leveraging ion mobility and retention time) can be explored—incrementally and with validation—rather than flipped on wholesale.

Bioinformatics that scales for big proteomics

Outlier detection with hierarchical clustering and PCA; reinjection vs imputation

Build an intake dashboard that flags problematic injections from day one: replicate‑level CVs, iRT drift, ID rates, and PCA loadings. Use hierarchical clustering and PCA to isolate deviating replicates; when policy allows, prefer reinjection of clear technical failures over aggressive imputation, which can bias downstream tests.

Multi‑group comparisons at cohort scale

For 60 cell lines, model‑based approaches help manage complex contrasts. Linear models with empirical Bayes moderation (limma) handle multiple factors and contrast matrices well; MSstats adds robust summarization and mixed‑effects options for large LFQ designs. An accessible overview of limma‑based proteomics analysis is available in a 2023 Bioconductor tutorial: Linear models and moderated statistics in proteomics. When visualizing multi‑group results, combine per‑contrast volcano plots with heatmaps of log2 fold‑changes and adjusted p‑values to summarize patterns across all cell lines.

Practical example — how a specialist lab receives peptide‑level submissions

Here's a neutral, condensed example of an intake/QC approach used by an experienced provider. Upon receipt, pre‑digested peptides are verified for identity and chain of custody, then inspected for volume, concentration, and diluent compatibility. A micro‑QC run (short scouting gradient) checks identification rate, base‑peak trends, and iRT fit. If suppression or contaminants are evident, StageTip/SPE cleanup is performed before long sequences begin. For large projects, injections are scheduled in randomized blocks with a HeLa digest + iRT QC inserted approximately every 10–12 study runs to trend sensitivity and retention time. Operating targets for high‑throughput LFQ (2026) include ID rate CV < 5% across the sequence, RT drift < 0.8 min, peptide‑level CV ≤ 15% across technical triplicates, and replicate R² > 0.98; deviations trigger maintenance or reinjection.

Teams that need a clear handoff can find a single source of truth outlining submission and QC expectations on the provider's main proteomics page. For background and contact, see the proteomics overview at Creative Proteomics. The same page typically links to service details, enabling procurement and QA to confirm required documentation and data‑integrity practices.

Strategic FAQ for high‑throughput LFQ

Q: How do you handle batch calibration for projects exceeding 100 runs?

A: Pre‑define randomized blocks and interleave system‑suitability QCs (HeLa digest + iRT) about every 10–12 injections to trend sensitivity and RT stability. Track sequence‑level metrics—ID rate CV (target < 5%) and iRT‑based RT drift (target < 0.8 min). Reserve maintenance windows between blocks; if QCs breach control limits, pause, service, and re‑establish baselines before resuming. Keep a living calibration plan and audit log so any intervention is documented against quantitative triggers. Practical QC setups using iRT for RT normalization and premixed digest standards are summarized by Neely et al. (2024): Core‑facility QC practice context.

Q: What are the requirements for shipping pre‑digested peptide samples?

A: Ship on dry ice in low‑bind tubes or sealed 96‑well plates with unambiguous labels and chain‑of‑custody documentation. Limit to a single freeze–thaw cycle on arrival. Provide diluent composition, peptide concentration, and total volume per injection. Include iRT spike‑in details if pre‑added. For a complete list, download the Multi‑Peptide Sample Shipping & Quality Requirements Checklist (PDF): Peptide sample submission checklist.

Q: Can we integrate 4D‑MBR (Match Between Runs) to increase data completeness?

A: Yes—cautiously. Confirm tight alignment and stable RT via iRT first; then pilot 4D‑MBR with stringent RT and ppm windows and require corroborating features when available. Monitor peptide/protein‑level FDR at 1% and, where feasible, use decoy‑based evaluations to quantify any PIP‑related false discoveries. Expand usage only if completeness gains outweigh risks and statistical behavior remains stable. See representative discussions of completeness improvements and parameterization trade‑offs in open‑access LFQ pipelines: MBR completeness in LFQ pipelines and FDR framing from HUPO/HPP standards: Protein‑level evidence and FDR policy.

Comparison table — standard LFQ vs high‑throughput LFQ (60+ cell lines)

Next steps

Need a concrete, auditable handoff? Download the Multi‑Peptide Sample Shipping & Quality Requirements Checklist (PDF): Peptide sample submission checklist. For background on services and contact routes, visit the Creative Proteomics proteomics overview.

Author: Caimei Li, Senior Scientist at Creative Proteomics. Caimei has overseen multiple large‑cohort comparative proteomics projects and specializes in throughput‑depth trade‑offs, batch design, and normalization/MBR decision‑making. Professional profile available upon request.
