Low-Input Proteomics vs Spatial Proteomics: Which Strategy Fits Rare Tissue Questions Better?

Rare tissue projects are where low-input proteomics vs spatial proteomics stops being an abstract technology comparison and becomes a study-design decision about what kind of biological information you must preserve. If your central goal is to recover a meaningful proteome from very limited material in a defined region, low-input tissue proteomics is usually the better framing. If your central goal depends on where proteins are across tissue architecture—boundaries, interfaces, and neighborhood relationships—spatial proteomics is usually the better framing.

This is not a winner-versus-loser comparison. The two strategies are optimized for different outputs and can fail in different ways when applied to the wrong question. Rare tissue proteomics creates real overlap because the same region can be both scarce and spatially meaningful—but overlap is not interchangeability. In practice, this is the tension between region-specific proteomics (depth-first) and tissue context proteomics (context-first), sometimes referred to as spatial context proteomics when localization is central to interpretation.

Below is a practical comparison and a study-design framework you can use to align your biological claim with the data structure you are actually generating.

Key Takeaway: Choose based on information structure: depth-first (low-input, ROI-focused) vs context-first (spatial, architecture-preserving).

Why Rare Tissue Questions Create Real Overlap Between Low-Input and Spatial Proteomics

Rare tissue regions are often both limited and spatially meaningful

Rare tissue regions are rarely "just small." They are often small because they are specific: a boundary zone, an interface, a niche, an infiltrate, a microenvironmental pocket, or a compartment that only exists in a subset of the tissue section.

That dual nature creates the overlap:

• They are limited in material: the recoverable protein mass may be constrained by section thickness, ROI area, fixation state, and loss during extraction/cleanup.
• They are embedded in heterogeneous architecture: the biological meaning can depend on adjacency (e.g., tumor–stroma interface), compartment boundaries, or gradients across neighboring regions—exactly the type of problem framed as spatial proteomics for tissue heterogeneity.

The result is a common scenario: you can either (a) spend scarce material to profile a defined region deeply, or (b) preserve broader spatial context to interpret heterogeneity—but you may not get maximal depth and maximal context simultaneously.

The decision depends on what the study is trying to preserve

A useful way to frame rare tissue region studies is to ask what you are protecting from being averaged away (a shorthand for rare tissue region analysis):

• Depth-first protection: protect proteome coverage and quantifiable signal from being lost to low input.
• Context-first protection: protect spatial relationships (where the signal is and how it changes across tissue neighborhoods).

Some studies genuinely sit between these categories, but even then the design needs a primary axis. Otherwise, you risk producing data that is technically impressive but mismatched to the biological claim.

What Low-Input Proteomics Preserves Best in Rare Tissue Studies

Proteome depth from limited material

Low-input proteomics (including low-input LC-MS tissue analysis workflows) is fundamentally about making limited material analyzable without turning your conclusions into a missingness or variance story. It sits next to—without being interchangeable with—approaches often grouped under single-cell proteomics, which share sensitivity constraints but may answer different biological questions.

At low inputs, the practical challenges are not only instrument sensitivity. Loss can dominate in:

• extraction efficiency and adsorption
• cleanup and transfer steps
• digestion efficiency and peptide recovery
• run-to-run variability when you stretch acquisition time to rescue depth

A useful mental model is: low-input workflows are designed to maximize recoverable proteome depth given what you can realistically isolate.

Methodology reviews on low cell number proteomics emphasize that sample preparation losses and variability become first-order design constraints as inputs shrink (see the 2021 review, Proteomics for low cell numbers: how to optimize the sample preparation workflow).

When the tissue is archival or fixation-processed, sample history and recovery constraints also become a major driver of what is realistic to claim; see Creative Proteomics' overview of FFPE tissue proteomics for a practical summary of considerations.

Region-focused recovery rather than full tissue mapping

Low-input tissue proteomics is often paired with ROI-defined sampling—commonly via microdissection or other targeted isolation—because the study is explicitly asking: "What is the proteome of this region?"

This framing works well when:

• the ROI is biologically defined before proteomics (pathology-defined compartment, layer, or niche)
• your interpretation does not require mapping gradients across adjacent compartments
• you can tolerate the fact that a single ROI is a snapshot, not a neighborhood model

Automated low-input preparation workflows such as SP3-based pipelines are frequently discussed as enablers of reproducible processing at small inputs (for example, AutoSP3 for low-input proteomics (2020)). The important takeaway for study design is not a universal performance claim, but that workflow discipline and loss control are central to interpretability.

Where low-input proteomics fits best

Low-input proteomics is usually the best fit when your study claim is region-specific and depth-dependent, such as:

• a hypothesis about pathway-level remodeling in a defined rare region
• characterization of a small, well-defined compartment where broad mapping is secondary
• ROI proteomics where the primary risk is insufficient material rather than loss of spatial meaning

⚠️ Warning: Low-input ROI proteomics can answer "what's in this region?" very well, but it can fail when you implicitly make a spatial claim (e.g., boundary effects) without actually sampling the boundary structure.

What Spatial Proteomics Preserves Best in Rare Tissue Studies

Spatial context and tissue architecture

Spatial proteomics is a context-first strategy: it aims to preserve information about where proteins are within tissue organization.

In practice, "spatial" can be implemented in different ways (imaging-based protein readouts, imaging mass spectrometry, spatially guided MS sampling, etc.). The shared purpose is that location is not metadata—it is part of the biological signal.

A useful internal reference point for the category is the general workflow framing in Creative Proteomics' spatial proteomics overview, which emphasizes ROI selection and spatial interpretation as design components rather than an afterthought.

From a study-design perspective, this is the difference between sampling a region because it is biologically defined versus mapping regions because relationships across architecture are part of the claim.

Neighborhood effects and region-to-region biological meaning

Many rare tissue questions are not only about what is present, but how it changes across adjacent structures:

• does the proteomic state shift across an interface?
• are signals localized to a compartment boundary?
• do neighboring regions show coordinated or opposing patterns?

These are neighborhood and topology questions. They become difficult to support if your design only produces one deep ROI per sample without a structured set of adjacent regions.

Spatial methods face a core trade-off: improving spatial resolution and coverage across a tissue often competes with sensitivity and proteome depth at each location. Imaging MS literature often describes this as a resolution–throughput–sensitivity balance and highlights protein identification limitations in typical imaging workflows (for example, Protein identification strategies in MALDI imaging mass spectrometry (2018)).

Where spatial proteomics fits best

Spatial proteomics is usually the best fit when your interpretability depends on tissue organization, such as:

• tissue heterogeneity questions where the claim depends on architecture
• boundary/interface biology where localization is part of the argument
• discovery of spatial patterns across a section (not just a single predefined ROI)

Crucially, spatial proteomics is not "a prettier map" of the same information. It is a different information strategy—and the design should match that.

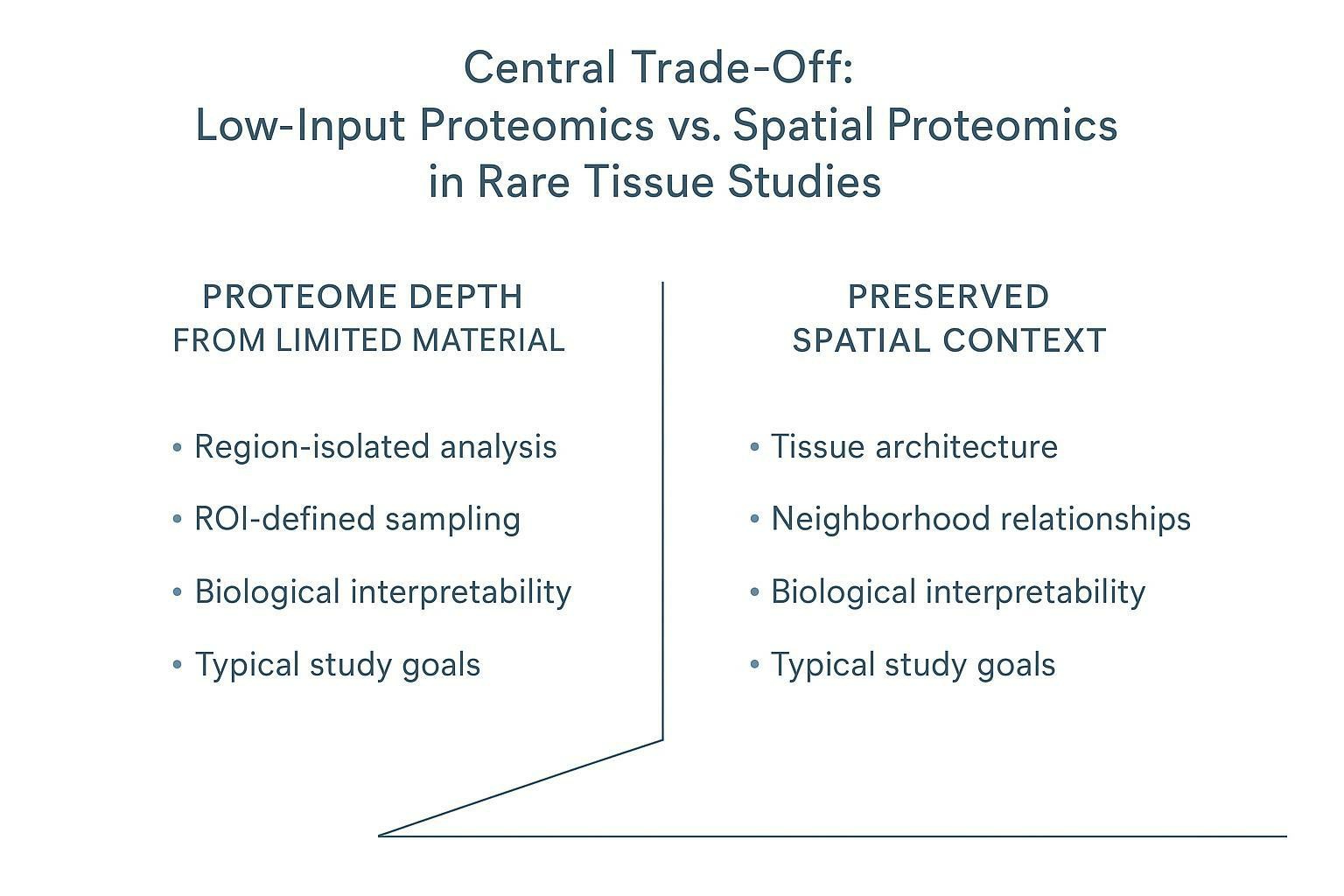

Depth vs Context in Low-Input Proteomics vs Spatial Proteomics: The Most Important Trade-Off

When deeper proteome coverage is the priority

Depth-first (low-input) designs are most defensible when:

• the ROI is already well-defined biologically
• you need deeper coverage to interpret mechanisms (pathway resolution, protein families, isoform-level caveats where appropriate without overclaiming)
• you can accept that broader spatial relationships will be reduced to "this region vs that region" comparisons

A representative example of depth-first ROI proteomics is the coupling of laser capture microdissection with ultrasensitive processing, such as LCM-nanoPOTS spatially resolved proteome mapping (Analytical Chemistry, 2018), which demonstrates that deep profiling can be achieved at small spatial scales under disciplined workflows.

When preserved spatial context is the priority

Context-first (spatial) designs are most defensible when:

• the biological question is explicitly about localization, boundaries, or neighborhood relationships
• the study claim would be misleading if you only had an isolated ROI proteome
• your interpretation needs structured sampling across architecture (e.g., interface-to-core gradients)

Spatial tissue workflows increasingly emphasize the need for design rigor at ultra-low inputs as well; for example, a framework for ultra-low-input spatial tissue proteomics (2023) focuses on scalability and robustness—reminding us that "spatial" does not remove the constraints of scarce material.

Why some studies fail because the wrong information type was prioritized

The most common failure mode in rare tissue region studies is not a technical error—it is an interpretability mismatch:

• Asking spatial questions from depth-first data alone: you report a region difference, but the claim implicitly depends on adjacency or gradients you never measured.
• Asking deep proteome questions from context-first data alone: the biology likely involves low-abundance or subtle changes, but the per-location depth is insufficient to support the claim.

The fix is to make the data structure explicit in your study design document: what will be measured, at what spatial granularity, and what class of biological claims the data can support.

In rare tissue studies, the key decision is often whether the biological question requires deeper proteome analysis from limited material or stronger preservation of spatial context.

How to Frame the Biological Question Before Choosing a Strategy

Questions that point toward low-input proteomics

Use this checklist when your instinct is that the study is depth-first:

• Is the main bottleneck limited recoverable material from a biologically meaningful region?
• Is your primary output a region proteome (IDs + quant) rather than a tissue-wide pattern?
• Would your key claim remain valid if you only compared a small number of predefined regions?
• Do you need deeper proteome coverage to support the biology (e.g., pathway completeness, low-abundance signaling context), with careful expectations?
• Is the region already sufficiently defined by sampling logic (histology, marker staining, morphology) such that the study is not fundamentally discovery-by-mapping?

Questions that point toward spatial proteomics

Use this checklist when your instinct is that the study is context-first:

• Is localization itself central (interfaces, compartment boundaries, gradients, neighborhood effects)?
• Would the claim be misleading if the ROI were removed from its surrounding tissue context?
• Do you need to compare adjacent structures in a structured way (not just "ROI A vs ROI B")?
• Is discovery of heterogeneous patterns across a section part of the goal?
• Is tissue architecture a necessary ingredient for interpretation (not just a convenience for ROI selection)?

Questions that indicate partial overlap

Some rare tissue region studies are genuinely hybrid. In that case, force a ranking:

• Which information type is indispensable to the central claim—depth or context?
• Which is supporting and can be partially compromised?
• Can you stage the study (context-first discovery → depth-first follow-up), instead of trying to do everything in one pass?

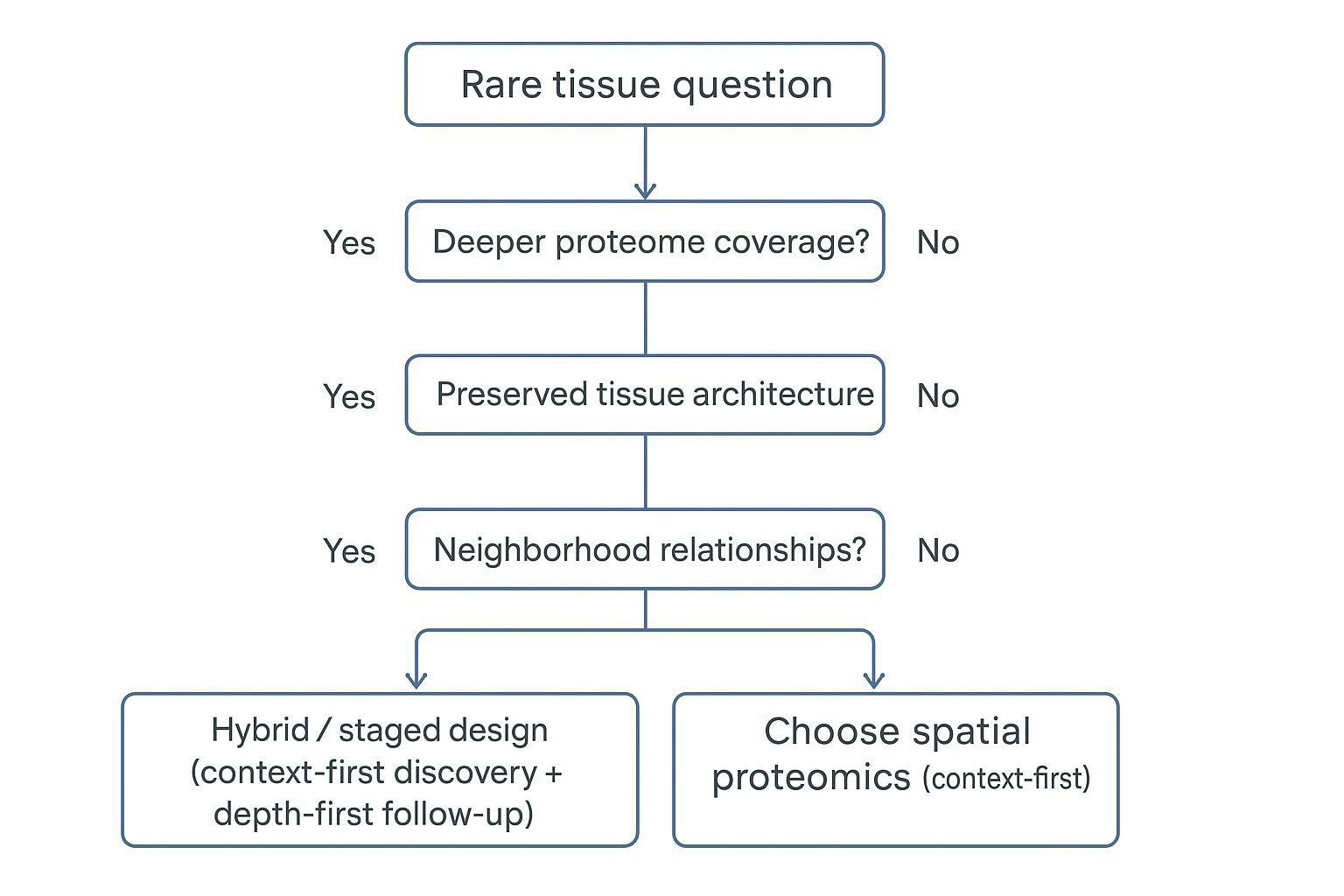

A practical decision framework for choosing between low-input proteomics and spatial proteomics in rare tissue research.

Conclusion: Choose the Strategy That Preserves the Biology Your Study Needs Most

For rare tissue questions, the choice between low-input proteomics and spatial proteomics is rarely about which method is "better." It is about whether your study must preserve deeper proteome coverage from limited material or spatial context across tissue architecture to make the biological claim interpretable.

If your claim is fundamentally region-specific and depth-dependent, low-input ROI proteomics is usually the better framing. If your claim depends on localization, boundaries, and neighborhood relationships, spatial proteomics is usually the better framing. In borderline cases, be explicit about which information type is indispensable—and design the study so the data structure matches the claim.

Next step: review whether your rare tissue question is depth-first or context-first, and align ROI definition, sampling density, and analysis expectations accordingly.
