IP‑MS Absolute Quantification of Amyloid‑beta Best Practices

Creative Proteomics team Proteomics & Quantitative LC‑MS Group, Creative Proteomics Role: method developers and clinical‑grade LC‑MS analysts with ISO/quality‑system experience and peer‑reviewed work in IP‑MS workflows. Representative resources: IP‑MS service page, Publications Spotlight, and our IP‑MS protocol overview. Why this matters: listing institutional expertise and representative resources helps readers assess technical authority and the direct practice link to the methods described.

Introduction

Absolute quantification of Aβ42 and Aβ40 in plasma and cerebrospinal fluid (CSF) enables objective, longitudinal assessment of amyloid biology and supports decisions across discovery, translational research, and potential clinical implementation. For plasma in particular, immunoprecipitation–mass spectrometry (IP‑MS) offers analytical specificity and resilience to interferences that can challenge immunoassays while providing direct mass detection and concurrent Aβ42/40 ratio measurement. Reviews synthesize evidence that IP‑MS approaches perform strongly for blood‑based amyloid biomarkers and contextualize results alongside PET imaging and CSF panels for disease staging and prognosis; see the open‑access synthesis in the 2022 review of plasma amyloid beta measurements.

This best‑practice guide focuses mainly on plasma, with CSF‑specific notes where relevant. You'll learn a practical IP‑MS workflow, how to design matrix‑matched calibration with traceability considerations, validation study designs and targets, and the operational QC and reporting elements required for reproducibility.

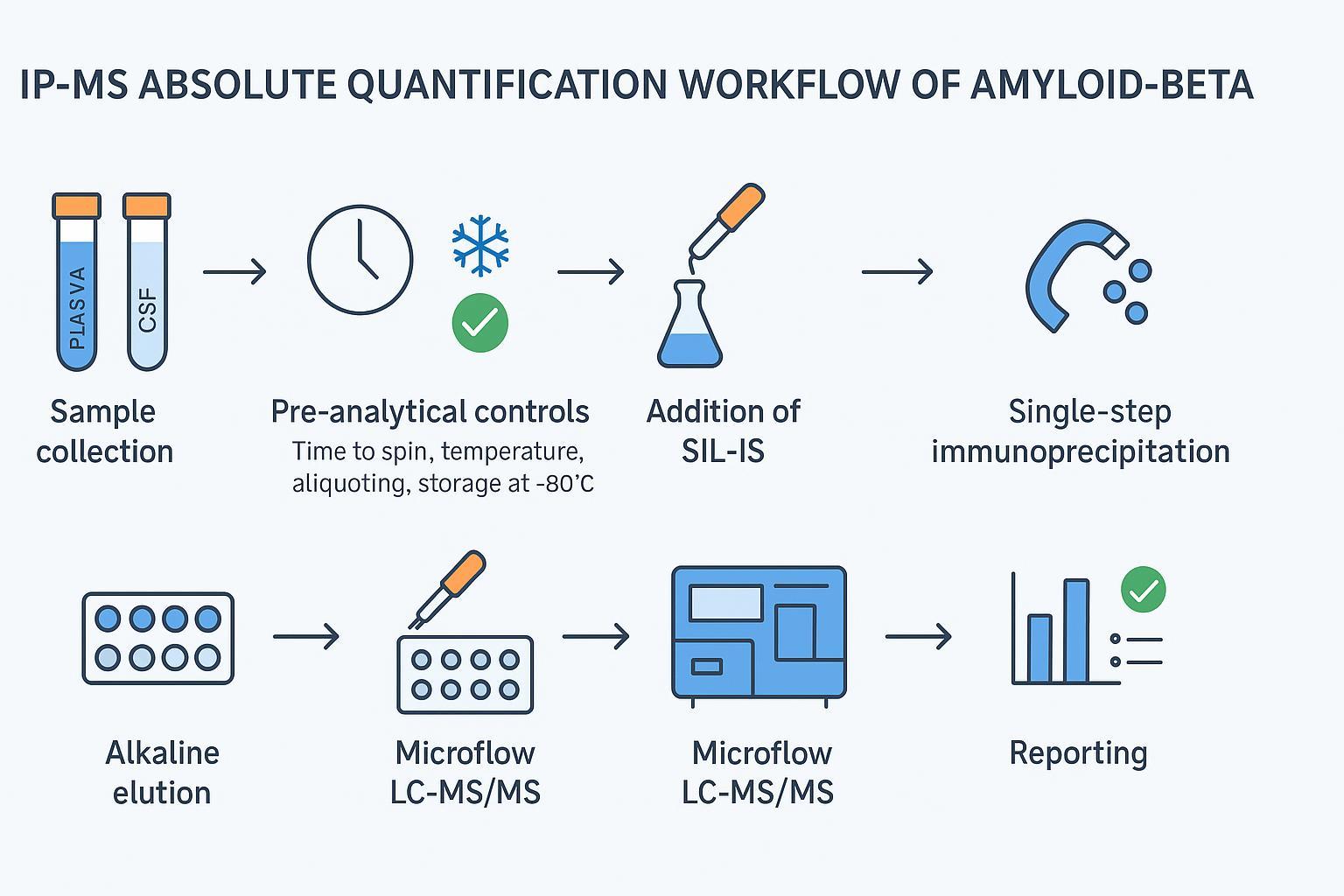

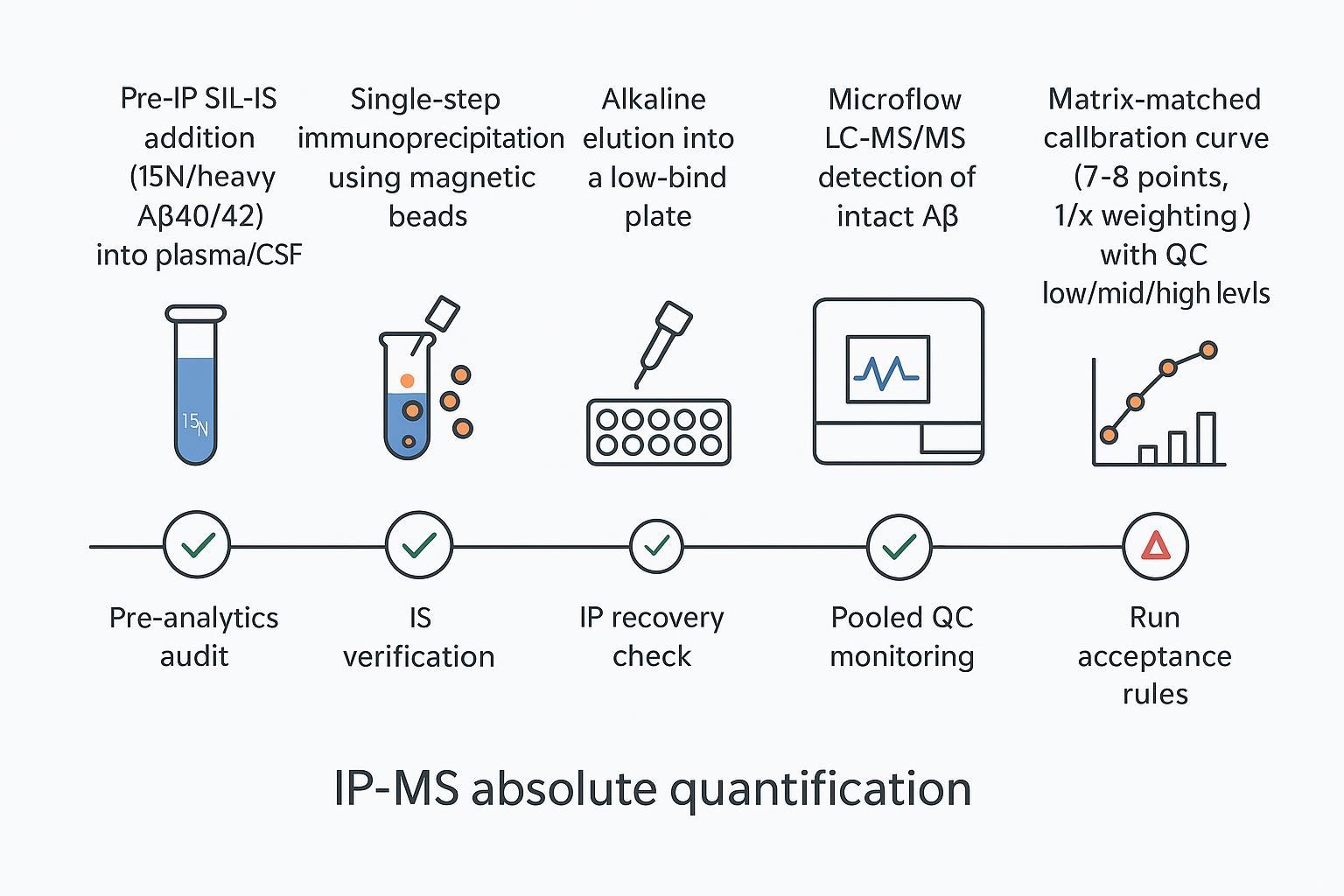

IP‑MS workflow overview

Pre‑analytical controls

Plasma first. Use K2/K3‑EDTA blood collection, process within 1–3 hours, and keep samples cold (2–8°C) until centrifugation. Aliquot immediately into low‑bind tubes and store at −80°C. Limit freeze–thaw cycles and document any deviations; plasma Aβ peptides are sensitive to delays at room temperature and adsorption losses. For practical guidance on blood handling effects, see the evidence‑based plasma pre‑analytics protocol (2025). For CSF, prefer low‑bind polypropylene, fill tubes to reduce wall adsorption, and standardize transfer steps.

Immunoprecipitation and elution

Spike analyte‑specific stable isotope‑labeled internal standards (SIL‑IS; e.g., 15N‑Aβ42 and heavy Aβ40) pre‑IP to correct for variable recovery and ionization. Use well‑characterized monoclonal antibodies coupled to magnetic beads in a single‑step IP to minimize handling. Optimize wash stringency to remove nonspecific proteins without losing target. For elution, validated protocols often use acidic conditions compatible with LC‑MS; alkaline elution can be effective in some workflows—if used, confirm that it preserves analyte integrity and does not introduce carryover or adsorption issues.

LC‑MS/MS detection of intact Aβ

Microflow LC‑MS/MS (for example, 0.5–1.0 mm ID C18 columns at tens of μL/min) balances sensitivity with robustness for routine batches. Monitor co‑elution of analyte and SIL‑IS, apply MRM or PRM with ion‑ratio criteria, and track retention‑time stability. Aβ peptides are sticky: carryover control requires a strong needle‑wash strategy and high‑organic post‑run washes, plus adequate column re‑equilibration. For an example of effective needle‑wash compositions used to mitigate Aβ carryover, see the Waters application note (2019).

Calibration and traceability for IP‑MS absolute quantification amyloid‑beta

Matrix‑matched calibrators

Prepare 7–8 calibrator levels in matrix‑matched material—e.g., delipidated/stripped human plasma for plasma assays or appropriate CSF matrices—spiked with recombinant Aβ40/Aβ42 and matched SIL‑IS. Fit with 1/x weighting and include QC low/mid/high spanning the expected range. Matrix‑matched calibrators reduce commutability errors relative to neat buffer curves and support stable slopes across batches.

Isotope dilution with SIL‑IS pre‑IP

Pre‑IP SIL‑IS addition is central to IP‑MS absolute quantification of amyloid‑beta. Spike heavy Aβ standards into samples, calibrators, and QCs before immunoenrichment so that heavy/light pairs experience identical recovery and matrix effects. Quantitation is anchored to heavy/light area ratios, improving linearity and trueness versus post‑extraction spiking. Verify SIL‑IS identity, purity (minimal light contamination), and co‑elution routinely.

Linking to primary standards/JCTLM

Traceability options differ by analyte and matrix. JCTLM‑listed certified reference materials exist for Aβ42 in CSF and reference measurement procedures are cataloged, which support immunoassay and MS alignment in CSF. Plasma commutability is uncertain and no JCTLM CRM exists for Aβ40. See the JCTLM database index. In practice, traceability relies on well‑characterized synthetic standards, detailed purity documentation, inter‑method comparisons, and participation in external quality assessment where available. State these limits clearly in your validation.

Validation and performance targets

Linearity, LOD/LOQ, range

Design an 8‑point curve across the intended range with replicate injections and 1/x weighting. Determine limit of blank (LoB), limit of detection (LoD), and lower limit of quantitation (LLOQ) using matrix‑based blanks and low‑level spikes consistent with CLSI EP17 concepts. For translational work, adopt ICH M10 style criteria: LLOQ is the lowest calibrator with accuracy within ±20% and precision ≤20% CV across at least three runs. See the ICH M10 bioanalytical guideline overview for definitions and acceptance examples. Published IP‑MS methods for Aβ often achieve LLOQs near ~3–4 pg/mL for Aβ42 and ~12–25 pg/mL for Aβ40 in plasma.

Precision, bias, recovery

Target total CV ≤15% at mid/high QC and ≤20% at LLOQ. Bias should be within ±15% across the range (±20% at LLOQ). Assess intra‑assay precision using replicate QC injections within runs and inter‑assay precision across days, analysts, and instruments where possible. Evaluate recovery with pre‑ and post‑extraction spikes and confirm that Aβ42 and Aβ40 recover similarly to protect the ratio's integrity.

Interference, stability, carryover

Challenge the assay with hemolysis, lipemia, and icterus panels at graduated severities, and document acceptance thresholds empirically. Stability studies should cover bench‑top, autosampler, freeze–thaw, and long‑term storage in the relevant matrix. Define carryover by injecting high spikes followed by blanks/low samples and set a quantitative limit (for example, ≤2% of the preceding high). Adjust needle‑wash solvents and gradient conditions until criteria are met.

Matrix effects and mitigation

Assessing matrix factor and recovery

Quantify matrix factor (MF) using post‑extraction spiking versus neat solutions and normalize to SIL‑IS. Test across multiple plasma lots and, when applicable, CSF pools. Acceptance for IS‑normalized MF typically falls within 0.85–1.15, with recovery repeatability supporting your precision targets. Investigate any differential MF or recovery between Aβ40 and Aβ42 that could skew ratios.

Wash buffers and gradient tuning

Tune IP wash buffers to balance stringency and yield. Small additions of salt or mild detergents can suppress nonspecific binders; verify effects by heavy/light ratio stability. In LC, use elevated column temperatures and microflow gradients to reduce adsorption and improve peak shape. Implement strong post‑run column washes and alkaline‑aided needle washes if validated for your system.

Acceptance criteria and run rules

Adopt clear, pre‑defined run rules. Examples: pooled QC every 10–20 injections; no 1_3s violations on Levey–Jennings charts; allow at most one 1_2s warning per QC level; pooled QC %RSD over the batch ≤15% for key metrics (ratio, RT); ion‑ratio and retention‑time windows enforced per analyte; system suitability met before samples (signal‑to‑noise, mass accuracy, peak symmetry).

Pitfalls and operational QC

Calibrator variability and lot bridging

Lot‑to‑lot changes in synthetic Aβ or in matrix materials can shift slopes and bias QC. Bridge lots by running old and new calibrators together, comparing regression parameters and biases at multiple QC levels. If shifts exceed predefined limits, update calibration factors and document rationale.

Internal standard purity and co‑elution

Periodically verify SIL‑IS identity and purity, including checks for light contamination and consistent co‑elution. Track heavy/light ion ratios and retention times over time; replace lots that drift or show altered fragmentation behavior.

Batch drift, carryover, documentation

Randomize run order, bracket with QCs, and monitor pooled QC for drift. Maintain a strong carryover stress test in each validation and periodically in routine runs. Above all, document everything: sample receipt, pre‑analytics, IP conditions, instrument settings, calibration details, QC decisions, and raw spectra archiving suitable for audits and peer review.

Disclosure: Creative Proteomics is our product. In practice, some laboratories use third‑party method validation and QC reporting support to accelerate implementation and ensure audit‑ready deliverables. For example, Creative Proteomics provides IP‑MS services that can supply comprehensive mass spectrometry data packages, raw spectra, and structured validation/QC templates, and their Publications Spotlight describes relevant case materials. These resources can help teams standardize pooled QC strategies, bridge calibrator lots, and prepare reproducible reports. See the IP‑MS absolute quantification service page and the Publications Spotlight for context.

Conclusion

A robust IP‑MS absolute quantification of amyloid‑beta assay starts with disciplined pre‑analytics, adds protection through pre‑IP SIL‑IS and matrix‑matched calibration, and proves fitness with transparent validation and run‑level QC. For plasma‑focused labs, emphasize cold, rapid handling; sticky‑peptide carryover controls; and strict run rules anchored to pooled QC. CSF work benefits from validated low‑bind plastics and careful adsorption control. As next steps, finalize SOPs for pre‑analytics through reporting, define QC tiers and acceptance thresholds upfront, and adopt reporting templates that include calibration details, QC charts, and links to archived raw spectra for independent review.
