Case Study Blueprint: Reviewer-Requested Absolute Quantification by IP followed by Mass Spectrometry (IP‑MS)

When a major journal asks for orthogonal validation, most revision teams land on ip followed by mass spectrometry to provide sequence-level confirmation and, where feasible, absolute quantification. This guide shows exactly how to package the proof reviewers expect—controls, thresholds, volcano plots, and transparent reporting—so you can copy‑paste the parts you need and move your manuscript forward fast.

Key takeaways

• A "reviewer‑proof" package pairs orthogonal validation with transparent thresholds: effect size and adjusted p/FDR, negative‑control‑anchored comparisons, and QC summaries.
• Absolute quantification is realistic only when isotope‑labeled standards and calibration are feasible; otherwise report calibrated/near‑absolute or relative enrichment with explicit caveats (project‑dependent).
• Lock controls and replicates before the run: Input + IgG (± beads‑only) and KO/KD when possible; predefine thresholds to avoid "parameter‑tuning" during revision.
• Communicate with figures and tables that reviewers can scan in seconds: a volcano plot with threshold lines, a target‑focused quant summary, a hit list with transparency fields, and a QC summary table.
• Keep your Methods, Results, and Response‑to‑Reviewers language copy‑pasteable with bracketed placeholders to accelerate turnaround and reduce risk.

The reviewer asked for "orthogonal absolute quantification"—what they usually mean

In revision letters, "orthogonal" signals an independent method that does not share the principal biases of your discovery assay. For protein claims, IP‑MS fits well: immunoprecipitation provides enrichment and specificity checks; MS provides sequence‑level confirmation and quantitative readouts. "Absolute" is often shorthand for calibrated values tied to standards; in practice, many studies deliver near‑absolute or calibrated‑relative results when full standard curves aren't feasible within the revision window.

According to the International Working Group for Antibody Validation's five‑pillar framework, orthogonal methods are a core path to specificity and transparency in protein studies, a position that supports using IP‑MS as part of a robust validation bundle Nature Methods, 2016. Recent method papers further illustrate IP‑to‑MS as an orthogonal route for antigen confirmation and profiling in complex matrices Journal of Proteome Research, 2025.

Common reviewer wording and how to decode it

• "Provide orthogonal validation with quantitative readout." → Run IP followed by mass spectrometry with matched negatives; report effect size + FDR and annotate contaminants.
• "Report absolute levels for key targets." → If standards are feasible, use isotope‑labeled peptides and calibration; otherwise provide calibrated/near‑absolute values with limits stated as project‑dependent.
• "Demonstrate specificity beyond Western blot." → Include Input + IgG (± beads‑only) and, if feasible, KO/KD; document negative‑control agreement and background assessment.
• "Make thresholds and filtering transparent." → Predeclare effect size and FDR cutoffs; detail missing‑value handling and contaminant flags in Methods and tables.

What a reviewer‑proof evidence package includes

A compact bundle that stacks independent evidence and transparent analytics. It typically includes matched negatives (IgG ± beads‑only) and, where possible, KO/KD alongside inputs; confidence framed by effect size and adjusted p/FDR with volcano plot visualization; a hit list table with transparency fields (replicate presence, contaminant flags, filtering notes); a target‑focused quant summary (absolute/near‑absolute if standards permit; otherwise calibrated/relative with caveats); and a QC summary covering replicate behavior, negative‑control agreement, and batch records.

For background on why Western blot alone often doesn't meet 2026 reviewer expectations, see our internal explainer on elevated reviewer standards (publication context pending).

Blueprint overview: from comment → experiment → figures → response letter

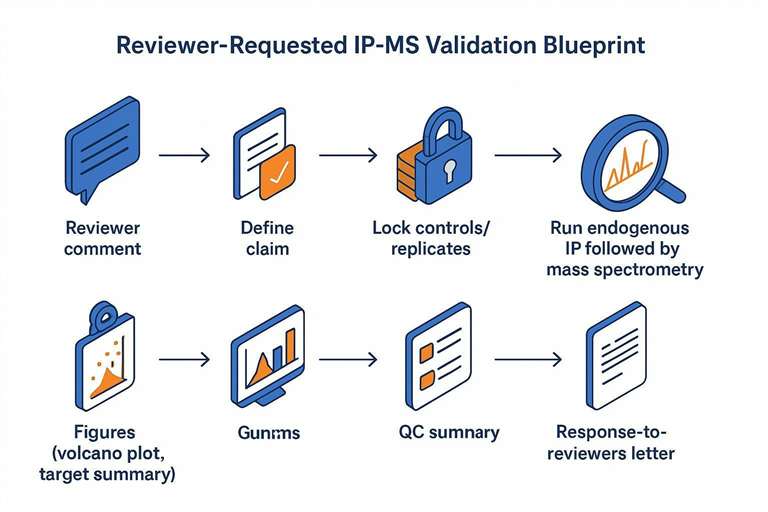

Reviewer‑requested orthogonal validation blueprint using IP followed by mass spectrometry: design, controls, figures, QC, and response letter.

Step 1: Define the claim and the minimum proof needed

Clarify what the reviewer needs to be convinced of. Is the claim about a complex membership or a treatment‑driven enrichment change? Is the target low abundance? Decide which proteins/complexes require focused quant and which can remain at the discovery‑confirmation level. Write down the minimum proof (e.g., "sequence‑level confirmation + negative‑control‑anchored enrichment + calibrated value for [1–2] targets if standards are feasible").

Step 2: Lock controls and replicates

Plan Input + IgG (± beads‑only) and add KO/KD controls if practical. Set minimum biological replicates upfront to enable statistical testing and confidence scoring. Consult contaminant repositories to flag frequent background binders and document how you will annotate them in tables Nature Methods, 2013.

Step 3: Predefine reporting thresholds

Commit to effect size and adjusted p/FDR thresholds before running analysis to avoid retrospective tuning. Use negative‑control‑anchored comparisons. Explain missing‑value handling and normalization in Methods. For score‑based confidence (e.g., SAINT, MiST), state the cutoff and rationale with a citation Nature Methods, 2011; Molecular Systems Biology, 2011.

If you share your reviewer comment and available controls, we can propose an IP‑MS validation plan aligned with publication expectations via the IP‑MS absolute quantification service guide: see the structured overview of deliverables and NDA/IP terms at the Creative Proteomics page on the IP‑MS absolute quantification analysis service.

Template Part 1 — Study design page (copy‑paste)

Use these blocks directly; replace bracketed fields.

Project summary block

Claim focus: [target / complex / pathway] in [system/matrix]. Groups: [group A] vs [group B]. Design includes endogenous IP followed by mass spectrometry with matched negatives. Replicates: [n per group, biological]. Key constraints: [sample availability / timeline / matrix]. Reporting anchored to effect size + adjusted p/FDR with predefined thresholds.

Controls & replicate plan

• Must‑have controls: Input and IgG (± beads‑only). Negative controls are used for anchored comparisons and contaminant assessment.
• Strong additions: KO/KD or isotype‑matched antibodies where feasible.
• Replicates: Minimum [n biological] per group (project‑dependent). Technical replicates only as supportive; decisions are based on biological replicates.
• Standards (if absolute/near‑absolute quant planned): [isotope‑labeled peptide/protein standard], [number of calibration points], [calibration strategy].

Risk register (failure modes + mitigation)

• Antibody specificity limits → Mitigation: validate epitope context; pilot IP; consult orthogonal evidence; document limitations with citations.
• High background / non‑specific binders → Mitigation: optimize wash stringency; include beads‑only/IgG; annotate likely contaminants via CRAPome.
• Sample loss / low abundance → Mitigation: scale input; concentrate eluate; prioritize targeted MS for key peptides.
• Batch effects → Mitigation: randomize runs; log batch factors; include QC standards; summarize stability metrics.
• Time pressure (revision window) → Mitigation: predefine thresholds; prioritize essential figures (volcano, target summary) and minimum replicates.

Acceptance criteria snapshot

Should report: effect size + adjusted p/FDR thresholds; negative‑control‑anchored enrichment; replicate presence; contaminant flags. Should include: QC summary of replicate agreement, negative‑control consistency, and batch record. Any numeric examples are "example ranges / illustrative only."

Template Part 2 — Data package: what figures and tables should look like

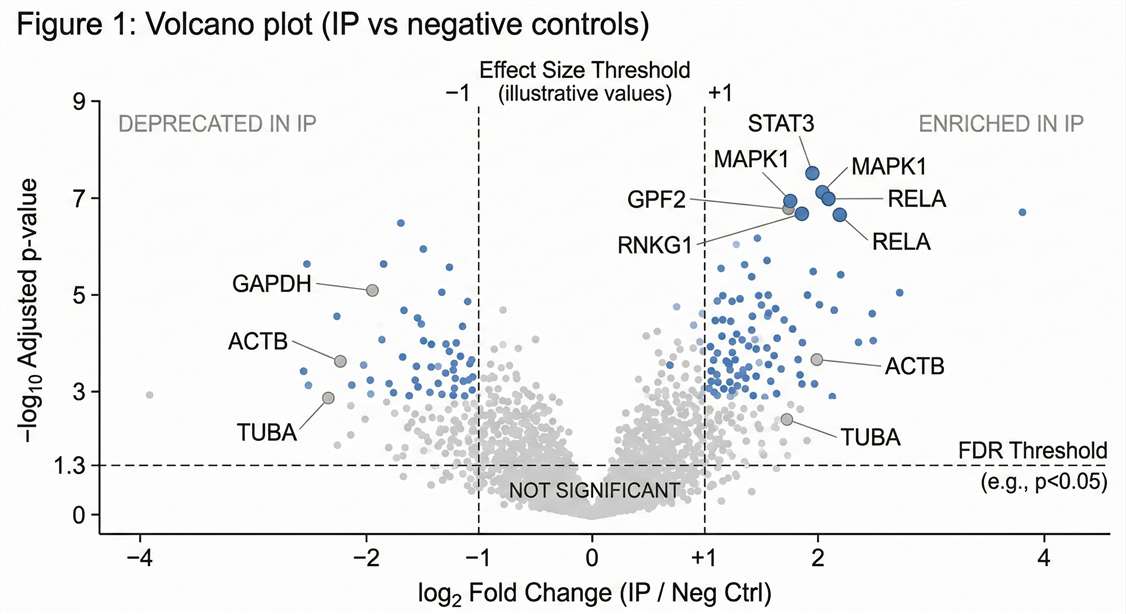

Figure 1: Volcano plot (IP vs negative controls)

What the figure conveys: effect size vs statistical significance for IP vs negative controls with explicit thresholds and key proteins annotated.

Caption template (copy‑paste): "Volcano plot of [IP vs negative controls] showing log2 fold change (x‑axis) and −log10 adjusted p (y‑axis). Dashed lines indicate predefined thresholds: effect size [threshold; example ranges / illustrative only] and FDR [q‑value threshold]. Highlighted points label [target(s)] and reference proteins. Comparisons anchored to [IgG/beads‑only] controls. Normalization and missing‑value handling are described in Methods. Multiple‑testing controlled by [Benjamini–Hochberg or method]."

Optional extended reading on analysis workflow: see the Creative Proteomics resource covering the IP‑MS data analysis workflow (filtering, normalization, FDR).

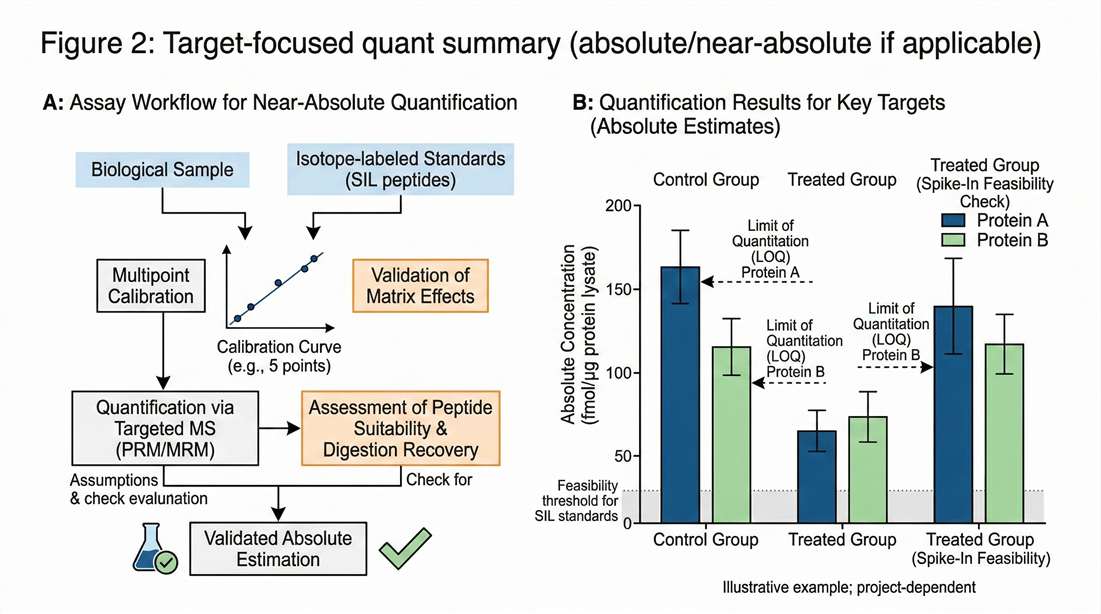

Figure 2: Target‑focused quant summary (absolute/near‑absolute if applicable)

What the figure conveys: calibrated/relative or (when feasible) absolute estimates for 1–2 key targets with clarity about standards and limits.

Caption template (copy‑paste): "Target‑focused quantification for [protein/peptide(s)]. Where isotope‑labeled standards and calibration were feasible, values are reported as [units; project‑dependent] with [number] calibration points; otherwise, calibrated/relative enrichment is shown. Error bars denote [CI/SD; example ranges / illustrative only]. Assay assumptions (peptide suitability, digestion recovery, matrix effects) and limitations are noted in Methods."

Table 1: Hit list with transparency fields

Table 2: QC summary

For acceptance expectations around negatives and batch effects, follow your lab's SOPs and include "example ranges / illustrative only" labels where numeric summaries help.

Template Part 3 — Methods for IP followed by mass spectrometry (copy‑paste)

IP followed by mass spectrometry workflow paragraph

"Endogenous proteins from [system/matrix] were immunoprecipitated using [antibody/epitope information], with matched negatives (Input, IgG ± beads‑only) and, where feasible, [KO/KD/isotype] controls. Eluates underwent reduction/alkylation and tryptic digestion. Peptides were separated by LC and analyzed by high‑resolution MS. Data processing included [software/class methods], normalization, and peptide‑to‑protein roll‑up with predefined filtering rules. Thresholds for effect size and adjusted p/FDR were registered prior to analysis and applied uniformly across conditions."

Statistics & reporting transparency paragraph

"Comparisons were anchored to negative controls. Effect size (log2 fold change) and significance (adjusted p/FDR via [method, e.g., Benjamini–Hochberg]) were reported explicitly. Confidence scoring leveraged [SAINT/MiST/other] where applicable, with a predeclared cutoff. Missing‑value handling, contaminant annotation (CRAPome), and any manual filters were documented in Methods and in the hit‑list table. All example numeric thresholds are illustrative only or project‑dependent."

QC paragraph

"QC focused on replicate agreement (biological), negative‑control consistency, and batch transparency. We randomized run order, logged batch variables, and monitored instrument stability using [QC standards]. Acceptance decisions followed predefined criteria; any deviations and mitigations were summarized in the QC table (Table 2)."

Primer on absolute/near‑absolute calibration logic (plain‑text steps):

• Select proteotypic peptide(s) for [target] and verify uniqueness and suitability.
• Spike isotope‑labeled standard(s) at [levels; project‑dependent] or prepare an external calibration across [points; project‑dependent].
• Acquire targeted [PRM/SRM] data for the peptide transitions, ensuring retention‑time and fragment‑ion consistency.
• Compute calibration factor(s) from standard curve; convert peptide signal to estimated amount on column; back‑calculate to sample concentration (units project‑dependent).
• Document assumptions and limitations (digestion recovery, matrix effects) and label outputs as absolute only when calibration assumptions are satisfied; otherwise as near‑absolute/calibrated‑relative with explicit caveats.

Template Part 4 — Response‑to‑reviewers letter (copy‑paste)

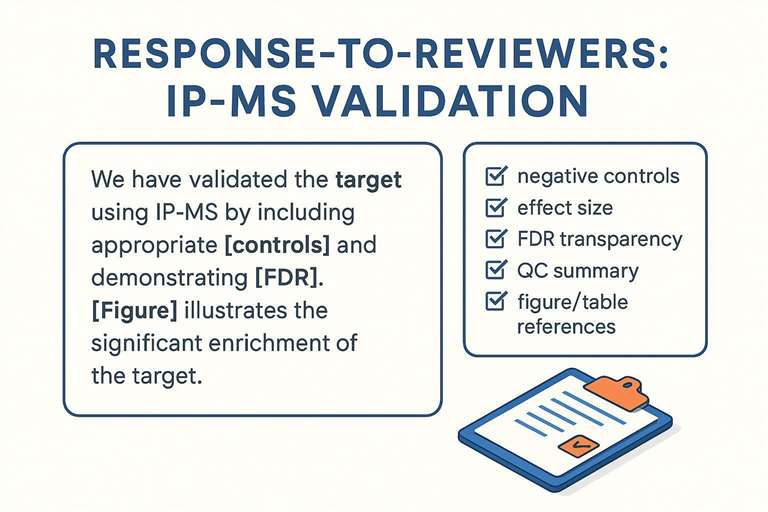

Response‑to‑reviewers template for IP‑MS orthogonal validation: how to cite controls, thresholds (FDR), and key figures clearly.

Short response (3–5 sentences)

"We performed endogenous IP followed by mass spectrometry with matched negatives (Input, IgG ± beads‑only) to provide orthogonal evidence for [target/claim]. We predefined effect‑size and FDR thresholds and applied them uniformly. Figure 1 shows the volcano plot with thresholds and key proteins labeled; Figure 2 summarizes target‑focused quantification (absolute/near‑absolute where standards allowed; otherwise calibrated/relative with stated limits). Tables 1–2 provide the hit list with transparency fields and the QC summary, respectively."

Extended response with figure callouts

"In response to the request for orthogonal absolute quantification, we implemented endogenous IP‑MS with matched negatives and predefined thresholds. The volcano plot (Figure 1) shows enrichment relative to IgG controls with thresholds indicated (effect size; FDR). We annotated likely background binders using CRAPome and reported adjusted p‑values (Benjamini–Hochberg). For [target], we performed [PRM/SRM] with isotope‑labeled standards; the target‑focused panel (Figure 2) reports [units; project‑dependent] where feasible, or calibrated/relative enrichment otherwise. Table 1 lists proteins with log2FC, adjusted p/FDR, replicate presence, and contaminant flags; Table 2 summarizes replicate agreement, negative‑control consistency, and batch records."

What to say if absolute numbers are not feasible

"Absolute values were not feasible within the revision window due to [peptide suitability/standard availability/matrix effects]. We therefore report calibrated/relative enrichment with predefined thresholds and full transparency (effect size + FDR, negative‑control‑anchored comparisons, contaminant annotation). As a follow‑up, we propose targeted [PRM/MRM] assay development with isotope‑labeled standards to establish absolute calibration for [1–2] critical targets (timeline and milestone plan available upon request)."

Example (anonymous): low‑abundance target under a tight revision window

Constraints (sample scarcity, background, time)

• Limited primary material and a low‑abundance kinase target.
• High background binding in the matrix; antibodies with partial cross‑reactivity.
• A four‑week revision deadline restricting assay development time.

Design choices (controls, wash stringency, reporting)

• Locked Input + IgG + beads‑only negatives; KO unavailable; added stringent washes after pilot.
• Chose 3 biological replicates per group (project‑dependent) to enable clear effect‑size/FDR reporting.
• Predeclared thresholds and used negative‑control‑anchored comparisons; annotated likely contaminants via CRAPome.
• For the key peptide, targeted PRM was scoped but deferred due to standard synthesis timelines; reported calibrated/relative enrichment with explicit caveats.

What the final package looked like

• Figure 1: Volcano plot with dashed threshold lines; key proteins labeled; comparisons vs IgG.
• Figure 2: Target‑focused panel with calibrated/relative enrichment (absolute deferred; standards in progress).
• Table 1: Hit list including replicate presence and contaminant flags; Methods documented filtering rules and missing‑value handling.
• Table 2: QC summary with replicate agreement, negative‑control consistency, batch records, and any acceptance deviations.

How we can help (service recommendation only)

Share your reviewer comment, target claim, available controls, and timeline, and we will return a proposed IP‑MS validation plan with predefined thresholds, QC/acceptance language, and a deliverables checklist aligned to publication expectations. We can package controls, QC, and reporting into a reviewer‑friendly deliverable set for your revision timeline. See the structured overview at the Creative Proteomics IP‑MS absolute quantification analysis service.

References (peer‑reviewed only)

• International Working Group for Antibody Validation. Five pillars for antibody validation. Nature Methods (2016). DOI: Orthogonal pillar framework.
• Choi et al. SAINT: probabilistic scoring of protein–protein interactions from AP‑MS data. Nature Methods (2011). DOI: SAINT scoring and FDR.
• Jäger et al. Global landscape of protein complexes in human cells (CompPASS scoring context). Cell (2009). DOI: CompPASS concept.
• Verschueren et al. MiST scoring and AP‑MS best practices. Molecular Systems Biology (2011). DOI: MiST framework.
• Mellacheruvu et al. The CRAPome: a contaminant repository for affinity purification–mass spectrometry data. Nature Methods (2013). DOI: CRAPome contaminants.
• Gallien et al. Targeted proteomics (SRM/PRM) for protein quantification: concepts and applications. Analytical Chemistry (2013). DOI: Targeted MS overview.
• Aebersold et al. Absolute quantification strategies (AQUA/QconCAT) review. Analytical and Bioanalytical Chemistry (2015). DOI: AQUA/QconCAT trade‑offs.
• Journal of Proteome Research (2025). IP‑to‑MS antigen profiling method article. DOI: IP‑to‑MS as orthogonal route.
• Proteomics (2022). Practical visualization and multiple testing in proteomics. DOI: Volcano and FDR practices.

Author

CAIMEI LI
Senior Scientist at Creative Proteomics
LinkedIn: https://www.linkedin.com/in/caimei-li-42843b88/

Bio: Senior scientist specializing in IP‑MS and quantitative proteomics with hands‑on experience building QC and acceptance packages for publishable deliverables.

Disclaimer: For research use only. Not for clinical diagnosis.
