Optimizing Immunoprecipitation Antibodies for Aβ1-40/42 in IP–MS

Plasma-first Aβ work is unforgiving: low abundance, abundant nonspecific binders, and the constant tension between yield and purity. This how-to shows how to pick and optimize immunoprecipitation antibodies—plus beads, washes, and elution—so your Aβ1-40 Aβ1-42 IP-MS workflow delivers high recovery, low background, and MS-verifiable capture in EDTA plasma. We'll keep serum notes brief and add CSF annotations where they change decisions.

Key takeaways

• Define "good IP" upfront with five metrics: recovery, background, isoform selectivity, reproducibility, and MS compatibility; use a reusable scorecard to decide.
• Choose single-step IP for throughput and acceptable LLOQ; move to sequential capture when background threatens the LLOQ in plasma.
• Epitope matters: 82E1 targets Aβ1–x; 6E10 binds 1–16 and can react with APP; 4G8 binds 17–24; 2G3 and 21F12 enable C-terminal isoform specificity.
• Use a wash ladder to reduce nonspecific binders; validate the maximum stringency that preserves recovery; enforce process and beads-only blanks below LLOQ.
• Consider alkaline elution with immediate neutralization to mitigate Aβ aggregation and adsorption during elution.
• Demand a minimum auditable dataset: spike recovery across three levels, precision, linearity with residuals, strict blanks < LLOQ, on-target verification with at least two methods, and correct internal-standard placement.

What a good Aβ IP looks like and how you will measure it

A successful plasma IP for Aβ balances five outcomes:

• Recovery: how much Aβ1-40 and Aβ1-42 you get back from real plasma.
• Background: how low your carryover and nonspecific signal are.
• Isoform selectivity: whether you can discriminate 40 from 42 when needed.
• Reproducibility: intra- and inter-assay precision across days and batches.
• MS compatibility: no antibody leaching, minimal detergents/salts, clean baselines.

A simple scorecard keeps decisions grounded. Example acceptance bands below are guides, not universal rules—confirm for your method and matrix.

For readers new to IP-enrichment concepts in proteomics, this quick primer on enrichment and verification provides background in a neutral format in the Creative Proteomics resource on N-terminal modifications and enrichment workflows: overview of enrichment and IP-MS context.

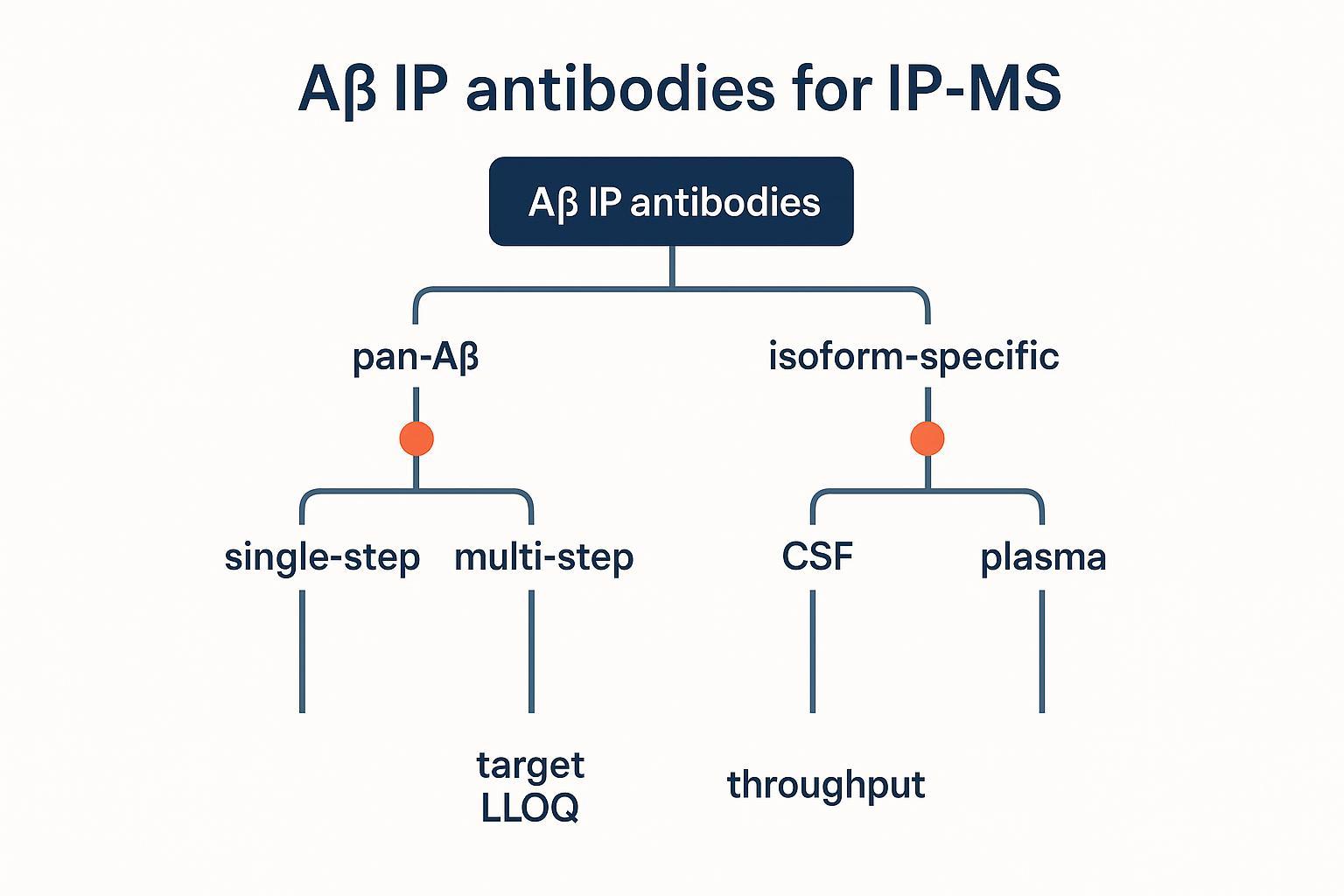

Quick decision map for one-antibody capture versus two-antibody strategy

Single-step IP is simpler and reduces handling losses, but the eluate can carry a bit more background in plasma. Sequential capture can produce a cleaner eluate at the cost of some recovery and extra hands-on time. Pick based on LLOQ targets and matrix cleanliness, and let spike-recovery and blank data make the final call. Evidence from streamlined plasma IP-MS shows single-step can perform well when buffers, washes, and elution are tuned for plasma Karikari et al., 2024, streamlined plasma IP-MS.

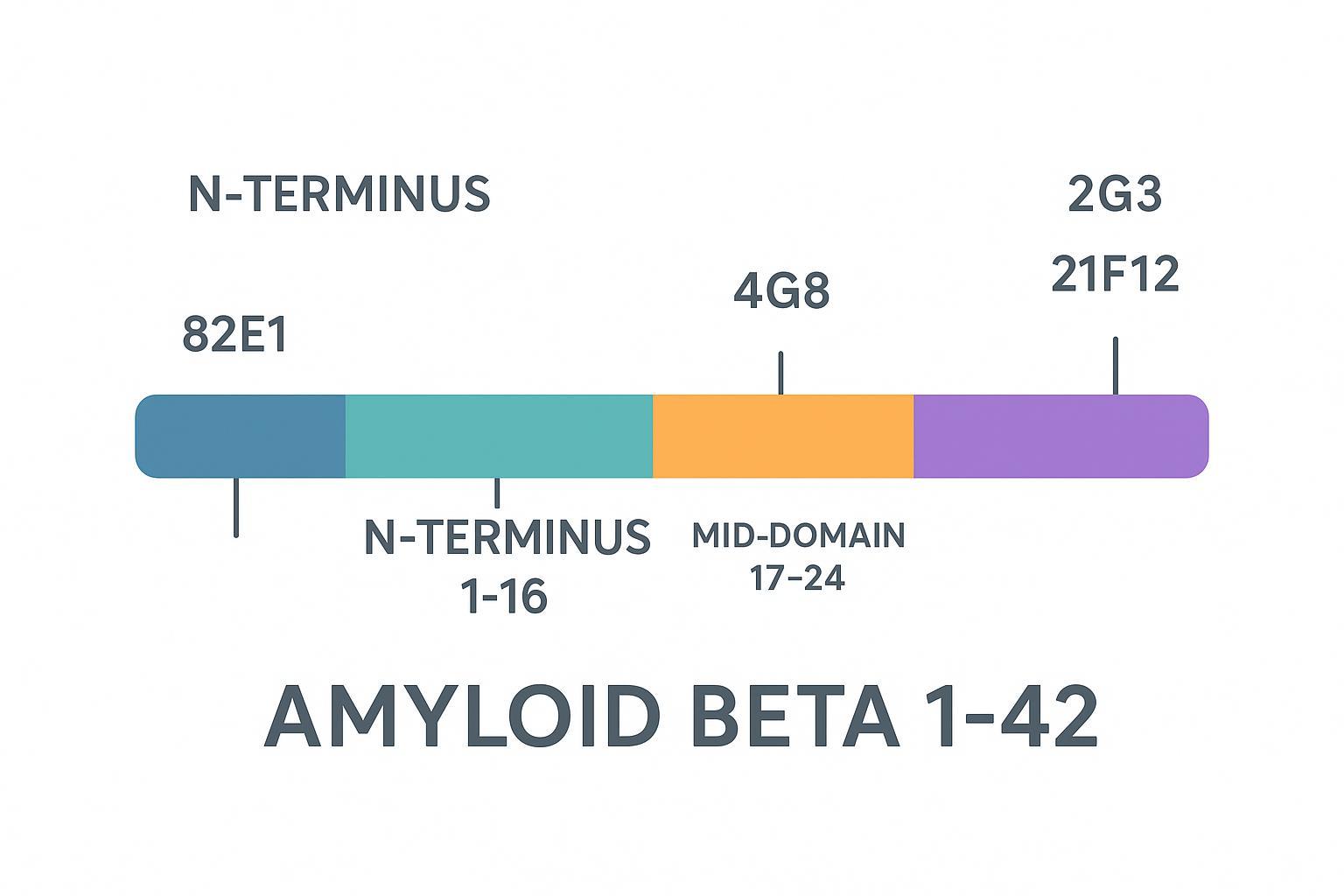

Epitope strategy 101 for N-terminus, mid-domain, and C-terminus clones

Epitope dictates what you enrich—and what you might co-capture.

• N-terminus Aβ1–x: 82E1 recognizes the neo-epitope at the free Aβ N-terminus after β-cleavage; manufacturer and peer-reviewed notes describe lack of reactivity with non-cleaved APP, making it attractive when you want to minimize APP co-capture IBL datasheet for 82E1; see discussion in Syvänen et al., 2018.
• N-terminus 1–16/17: 6E10 is widely used, but cross-reactivity with holo-APP and APP fragments has been documented, increasing background risk depending on matrix Hunter et al., 2017, epitope and cross-reactivity review.
• Mid-domain 17–24: 4G8 binds the central Aβ region; often used as capture partner and can enrich a broader set of Aβ-related species with typically less APP cross-reactivity than 6E10 in several contexts [Hunter et al., 2017].

Practical note for plasma: if background is high, prefer clones with lower APP cross-reactivity (e.g., 82E1) or use mid-domain capture plus targeted MS confirmation to reduce false positives.

Isoform selectivity to enrich Aβ1-40 versus Aβ1-42 on purpose

When absolute discrimination matters, use C-terminal end–specific antibodies:

• Aβ40: 2G3 recognizes the C‑terminus ending at Val40; it has been reported and used in the literature as a C‑terminal Aβ40‑selective reagent for immunoprecipitation and ELISA formats.
• Aβ42: 21F12 recognizes the free Ile42 terminus and is a standard for Aβ42-specific capture in multiple assay formats, including pull-downs validated by MS or immunoassay [Jin et al., 2011; Song et al., 2016].

Alternatively, use a pan-Aβ pull-down, then quantify both isoforms by MS and compute the Aβ42/40 ratio. Ratio metrics can be analytically robust across preanalytical variation, though thresholds and performance depend on the full method and cohort Brand et al., 2022, plasma Aβ ratio context.

From IP-capable to IP-optimized with format, purity, and coupling

• Recombinant over hybridoma-derived when possible for lot consistency across long studies.
• Use carrier-free, azide-free antibody formulations; preservatives and carriers contaminate MS and increase leaching risk.
• Favor oriented or site-directed immobilization to keep Fab accessible; random amine coupling can occlude binding sites. Glycan-based or Fc-specific strategies improve orientation and reduce leaching.
• Crosslink antibodies to Protein A/G beads to prevent IgG co-elution and protect MS baselines; verify by running an antibody-only elution control on MS [Thermo Fisher immunoprecipitation technique overview].

A brief refresher on batch effects and run-to-run comparability in quant MS, useful when you move from development to validation, is summarized in this resource on label-free quantification and batch handling: guide to batch effects and correction concepts.

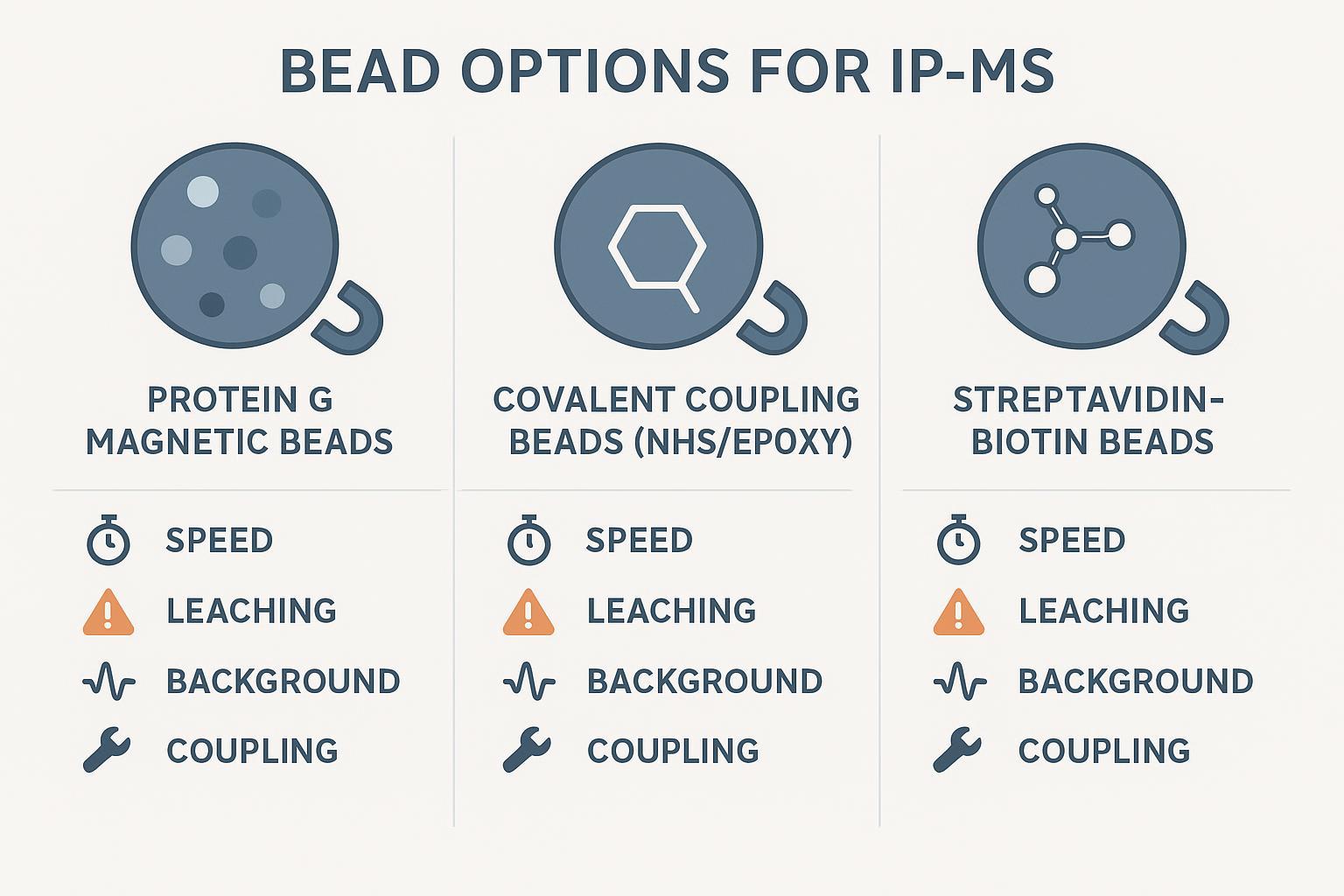

Bead chemistry choices and how they change background

Your bead choice sets the baseline for antibody leaching and tolerated wash stringency.

• Protein A/G magnetic beads: Fast and convenient; reversible Fc binding raises leaching risk and limits wash harshness. Good for rapid screens.
• Covalent coupling beads (NHS/epoxy/tosyl): Irreversible immobilization reduces IgG in eluates and enables harsher washes; requires upfront optimization and avoids epitope occlusion.
• Streptavidin beads with biotinylated antibodies: Extremely tight binding supports stringent washes. Be mindful of endogenous biotin in some sample contexts.

Protein A versus G binding can be decisive: Protein A does not bind human IgG3; Protein G binds all human IgG subclasses strongly and often binds mouse IgG1 better than Protein A. Check authoritative charts before committing to a bead for your antibody species/subclass New England Biolabs Protein A/G IgG binding chart.

Wash ladder to dial down nonspecific binders without losing Aβ

Build stringency stepwise and let data decide:

• Start with physiologic salt washes (e.g., PBS) to remove loosely bound matrix proteins.
• Add a mild nonionic detergent (e.g., 0.05–0.5% Triton X-100 or Tween-20) if blanks rise; keep detergents minimal for MS.
• Increase ionic strength (300–1000 mM NaCl) to strip weak, nonspecific binders.
• Consider a validated chaotrope or adjusted pH only after confirming recovery stability.

A streamlined single-IP plasma method showed that careful buffer and wash selection, plus minimalistic supplement testing, can sustain recovery while reducing background [Karikari et al., 2024]. Document your "maximum tolerated stringency that preserves recovery" so the method remains reproducible and auditable.

Short CSF note: CSF background is lower than plasma, so you may need fewer or gentler washes. Still, adsorption to plastics remains a risk; keep low-bind consumables throughout.

Elution choices, aggregation risk, and practical safeguards

Acidic elution is traditional, but harsh low pH can promote Aβ aggregation and adsorption, reducing apparent recovery and increasing variability. In contrast, alkaline elution around pH ~10.5 has improved recovery and sensitivity in plasma IA-MS workflows, enabling stronger signals and robust calibration and dilution behavior for Aβ40 and Aβ42. Prompt neutralization post-elution and low-bind plastics are essential Iino et al., 2021, IA-MS alkaline elution in plasma. This biophysical rationale aligns with observations that Aβ solubility and aggregation kinetics are strongly pH dependent.

Execution checklist:

• Define elution volume and time; keep contact times consistent across batches.
• If using alkaline elution, neutralize immediately to a safe pH for downstream MS.
• Use low-bind tubes and tips; avoid polypropylene variants with high adsorption.
• Run an antibody-only control to check for IgG leaching at your chosen elution conditions.

The minimum auditable dataset you should demand for Aβ1-40 Aβ1-42 IP-MS

This is the backbone of a defendable method in plasma-first studies:

• Spike recovery: Three levels (low/mid/high) bracketing endogenous concentrations in EDTA plasma; ≥3 replicates per level. Report recovery percent and CV, highlighting behavior near LLOQ.
• Precision: Intra-assay CV ≤ 20% within the working range; allow ≤ 25–30% near LLOQ if predeclared and verified; inter-assay CV targets ≤ 25–30% per project scope.
• Linearity and calibration behavior: Provide regression and residual plots and back-calculated accuracy; watch for saturation or hook effects.
• Background controls: Process blank and beads-only blank must both be < LLOQ (hard requirement). During screening, include an isotype control to expose nonspecific binders.
• On-target capture verification: At least two evidences—MS identity confirmation plus either immunodepletion or competition with an epitope peptide. Orthogonal-epitope confirmation strengthens confidence.
• Internal standards: Place a process control pre-IP (ideally an isotopically labeled full-length Aβ or close surrogate) to measure workflow recovery; add quantitation standards post-digest (e.g., SIL peptides) to correct LC-MS variation.

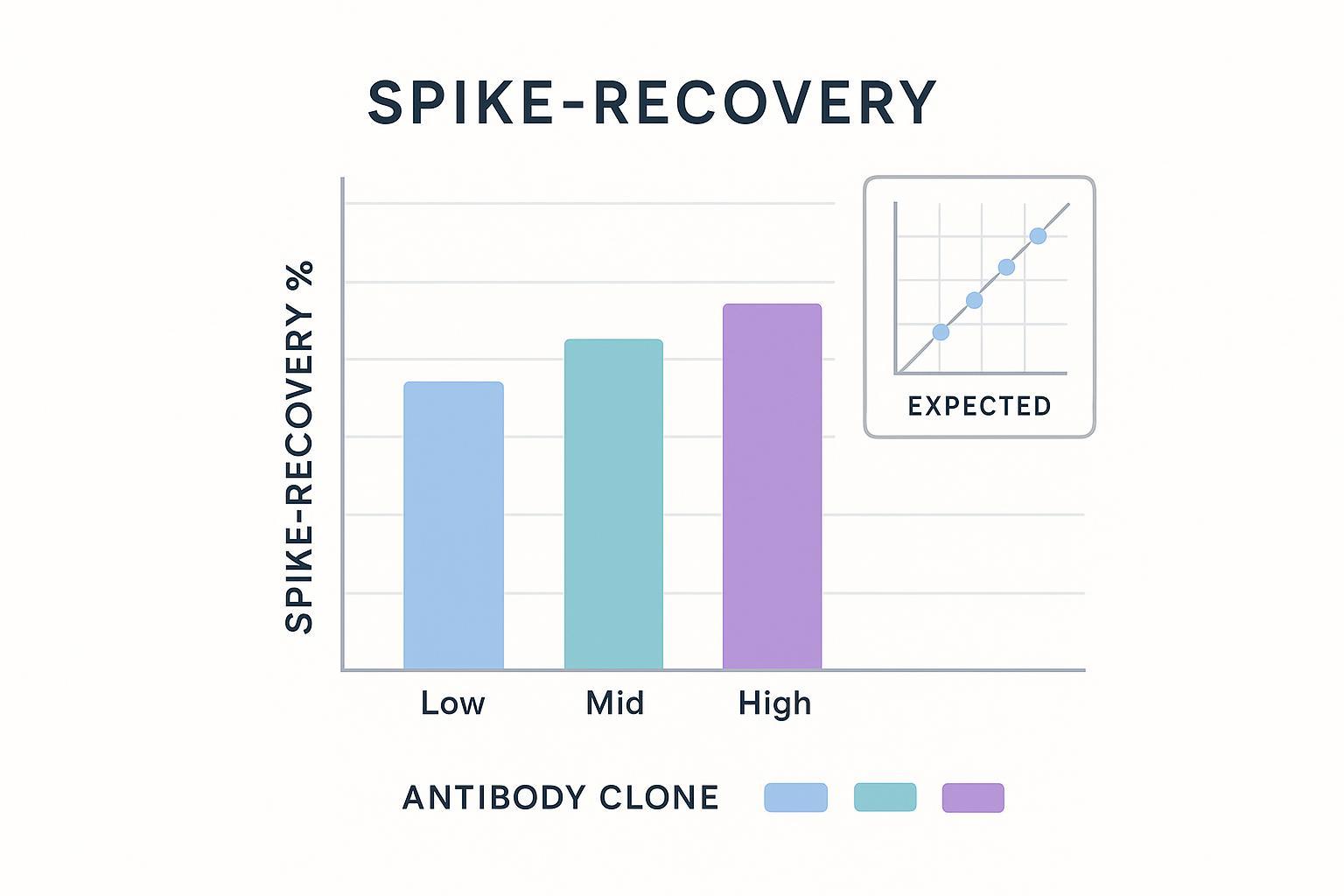

A compact, auditable report might include a spike-recovery and precision table, a residual plot, and blank measurements with pass/fail flags. During optimization, consider tracking preanalytical flags such as hemolysis and lipemia, as these can bias some Aβ assays; ratio metrics can mitigate some effects, but verification is method-specific [Brand et al., 2022]. For general sample-preparation reminders across serum, plasma, and CSF, see these matrix handling guidelines.

Neutral example workflow — How we vet antibodies (replicable steps)

Disclosure: Creative Proteomics is our product. The following is an example pipeline your team can adopt:

• Epitope review focused on APP cross-reactivity risk in plasma and the need for isoform-selective capture.
• Small-scale coupling QC to verify orientation and minimize leaching.
• Spike-recovery plus blanks in the target matrix across low/mid/high spikes with isotype controls.
• On-target verification by MS identity and immunodepletion; optional competition using an epitope peptide.

Single-step versus multi-step IP with evidence and a pragmatic recommendation

If throughput and simplicity dominate and your LLOQ target is achievable, prefer a tuned single-step IP with optimized washes and an elution mode that preserves solubility. When blanks creep toward the LLOQ or matrix interference is persistent—as is common in plasma with heavy nonspecific binders—sequential capture can justify the added complexity. Either way, the choice should be driven by your spike-recovery profile, blank behavior, and residual diagnostics from real plasma experiments [Karikari et al., 2024].

Verifying on-target capture without fooling yourself

Think of verification as a ladder—each step adds confidence:

• MS identity confirmation: Transitions and MS/MS spectra match Aβ1-40 and Aβ1-42 in retention time and fragmentation patterns;
• Immunodepletion: Post-IP supernatant shows reduced target signal, consistent with specific capture;
• Competition: Epitope peptide or antigen blocks capture and reduces signal;
• Orthogonal antibody: Different epitope reproduces capture and MS identification;
• Isotopically labeled standards: [15N]- or heavy-labeled Aβ species processed pre-IP demonstrate recovery and quantitative traceability.

Guidance on verification frameworks and targeted MS practice in biofluids can be found in this open-access consensus perspective: Korecka et al., 2021, targeted MS verification frameworks. A simplified IP-MS protocol for Aβ demonstrates practical identity confirmation and depletion checks in a compact workflow Richard et al., 2019, simplified IP-MS protocol.

Matrix-specific gotchas in plasma and CSF and how they change choices

• Plasma (EDTA prioritized): Expect lower analyte levels and more nonspecific binders. Choose clones with lower APP cross-reactivity where possible; lean on covalent or crosslinked coupling to reduce IgG background; document a wash ladder tuned to recovery; consider alkaline elution with immediate neutralization. Track preanalytical variables (hemolysis, lipemia, freeze–thaw) explicitly in your batch record. A short primer on amyloid peptide identification and sequence context can help when building transition lists: peptide sequencing reference with amyloid-beta context.
• CSF: Cleaner matrix with higher total Aβ makes capture less sensitive to background. Adsorption control still matters (low-bind plastics, consistent timings). You may be able to ease wash stringency relative to plasma while maintaining blanks well below LLOQ.

A 7–10 day optimization sprint and a vendor or PI decision checklist

Here's a practical sprint to lock an Aβ1-40 Aβ1-42 IP-MS in plasma:

• Days 1–2: Epitope review and clone shortlist (3–6 spanning N-terminus, mid-domain, and C-terminus; include 2G3 and 21F12 for isoform tests). Prepare azide-free, carrier-free stocks. Perform small-scale coupling and orientation checks.
• Days 3–4: Couple 1–2 bead chemistries (Protein G or A, and a covalent option). Screen for coupling density and leaching with antibody-only elutions.
• Days 5–6: Wash ladder screen in EDTA plasma using process blanks and isotype controls; escalate from physiologic salt to mild detergent to higher salt; log the maximum tolerated stringency with acceptable recovery.
• Days 7–8: Elution comparison (acidic vs alkaline) with immediate neutralization, low-bind plastics, and run MS baselines for leaching checks.
• Days 9–10: Spike-recovery and linearity dataset (low/mid/high × ≥3 reps); residual plots and back-calculated accuracy; on-target verification by MS identity plus immunodepletion or competition. Select final clone(s) and bead chemistry; lock SOP.

Decision checklist for procurement or PI sign-off:

• Recovery within declared band at low/mid/high spikes;
• Blanks (process and beads-only) both below LLOQ;
• Precision within targets, including near-LLOQ allowances;
• Isoform selectivity adequate for the study aim (C-terminal capture or ratio approach);
• On-target verification with at least two methods;
• Internal standards correctly placed (process pre-IP; quant post-digest);
• Batch controls and bridging samples defined for multi-run studies.

For multi-site or long-running studies, consider a simple bridging plan between batches to stabilize longitudinal interpretation. A brief orientation to batch planning in MS is available here: batch effect concepts for quantitative MS.

Authors: The Creative Proteomics Team, Assay Development Group.

Conflict of interest: Disclosure: Creative Proteomics provides proteomics and IP–MS services. This article includes a single neutral example workflow that references Creative Proteomics; no performance claims or promotional statements about services are made. For questions about methods or data, contact the Assay Development Group at the address above.

References and method notes

• Streamlined plasma IP-MS performance context and buffer/wash choices: Karikari et al., 2024, resource-efficient plasma IP-MS.
• Epitope mapping and APP cross-reactivity discussions for 6E10 and 4G8: Hunter et al., 2017, epitope and cross-reactivity.
• 82E1 N-terminal neo-epitope note and APP non-reactivity: IBL datasheet for 82E1; see Syvänen et al., 2018.
• Alkaline elution rationale and safeguards in plasma IA-MS: Iino et al., 2021, Journal of Applied Laboratory Medicine.
• Verification frameworks in targeted MS: Korecka et al., 2021, consensus perspective.
• Simplified IP-MS protocol with identity confirmation and depletion: Richard et al., 2019, simplified protocol.

Method notes

• Matrix focus: use EDTA plasma as the primary validation matrix; include serum as an annotated secondary matrix. Add CSF annotations only where decisions change.
• Blanks: treat process and beads-only blanks < LLOQ as a non-negotiable requirement. You can optionally set an even tighter threshold (e.g., < 0.5× LLOQ), but document the rationale and verification.
• Preanalytical controls: record hemolysis and lipemia qualitatively at minimum; track freeze–thaw cycles. These factors can alter recovery and background in biofluid assays.
• Internal standards: place the process control pre-IP to reflect total workflow recovery. Place quantitation standards post-digest to correct LC-MS variability without conflating capture efficiency.
